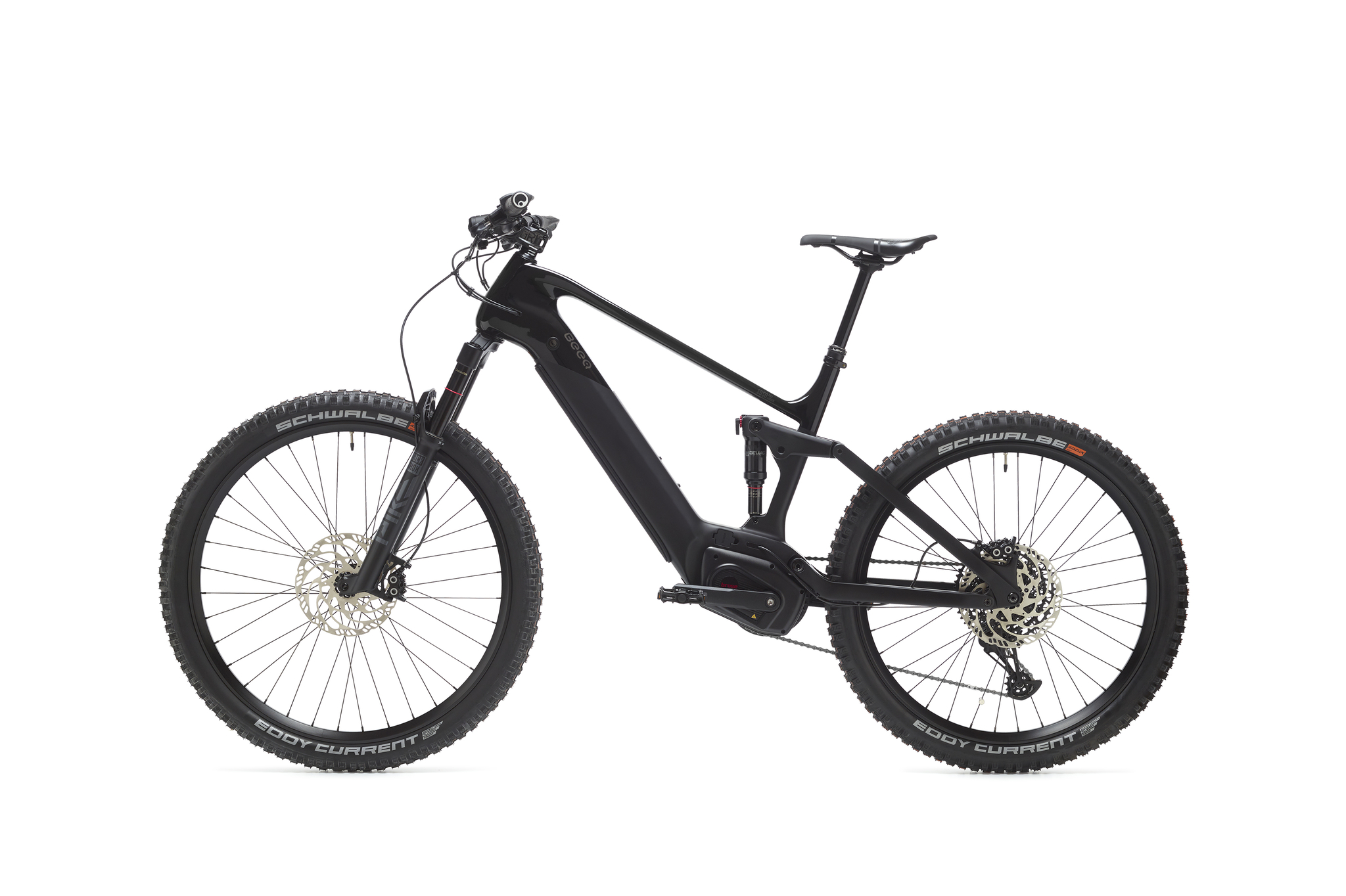

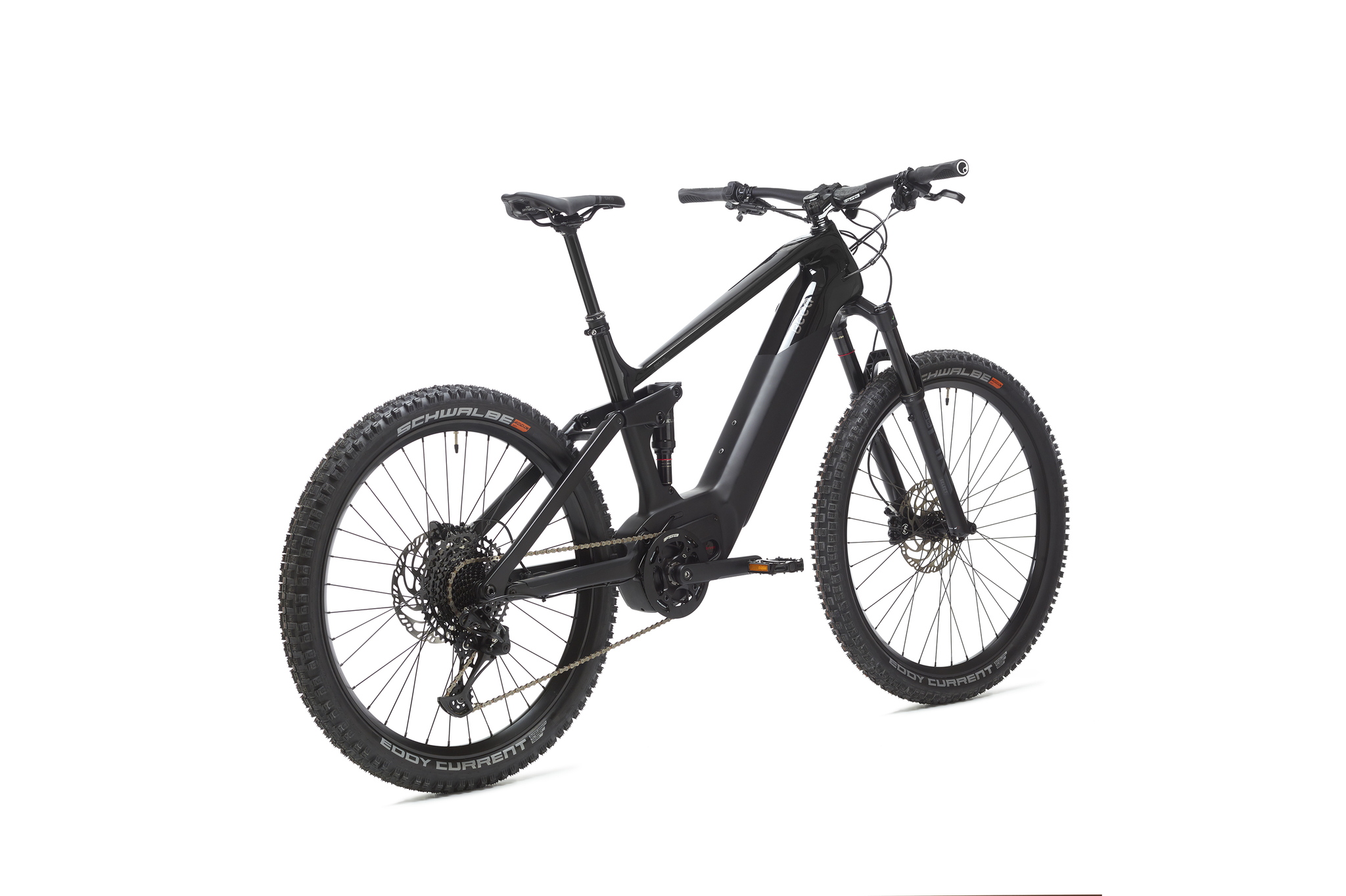

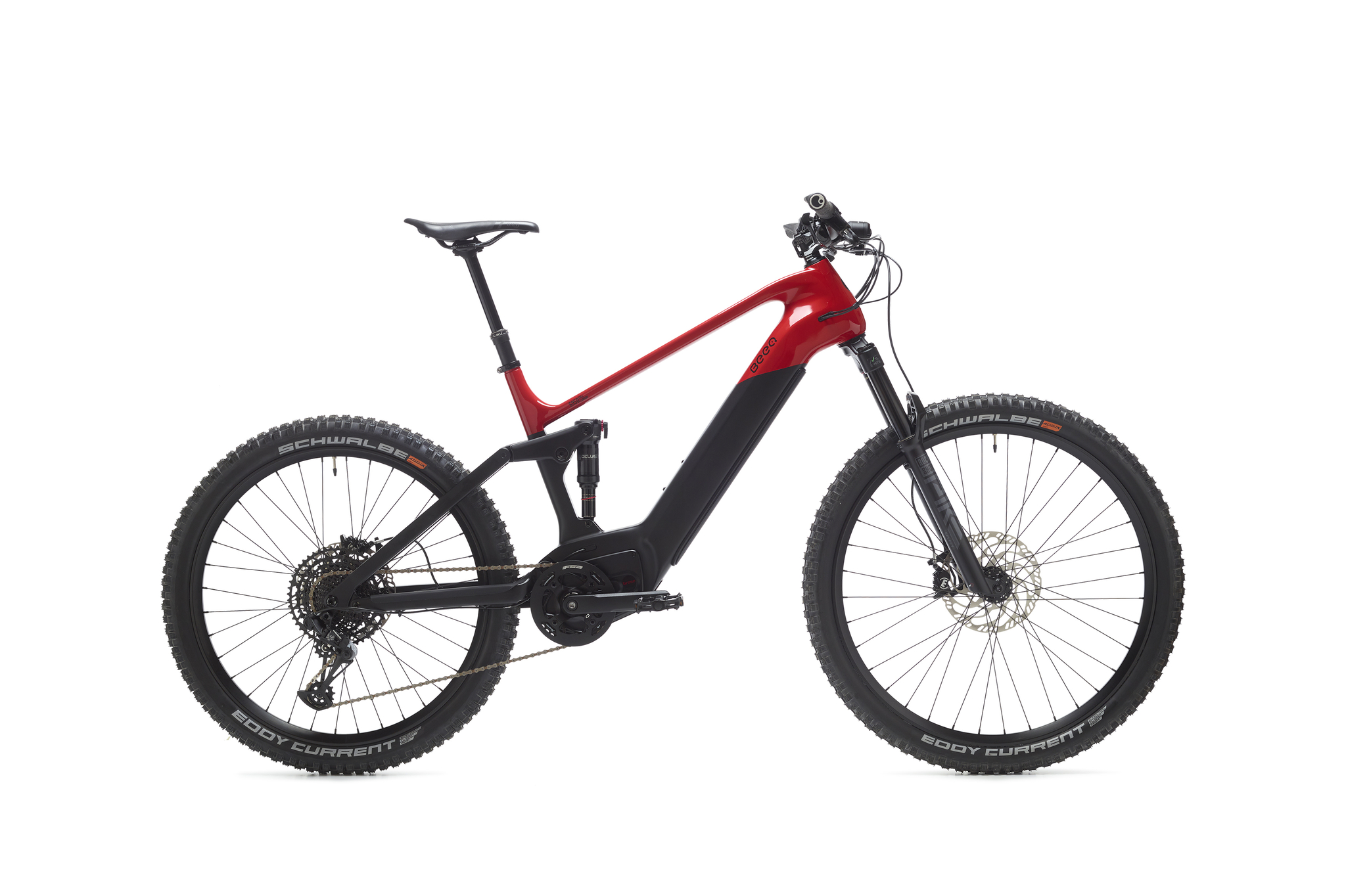

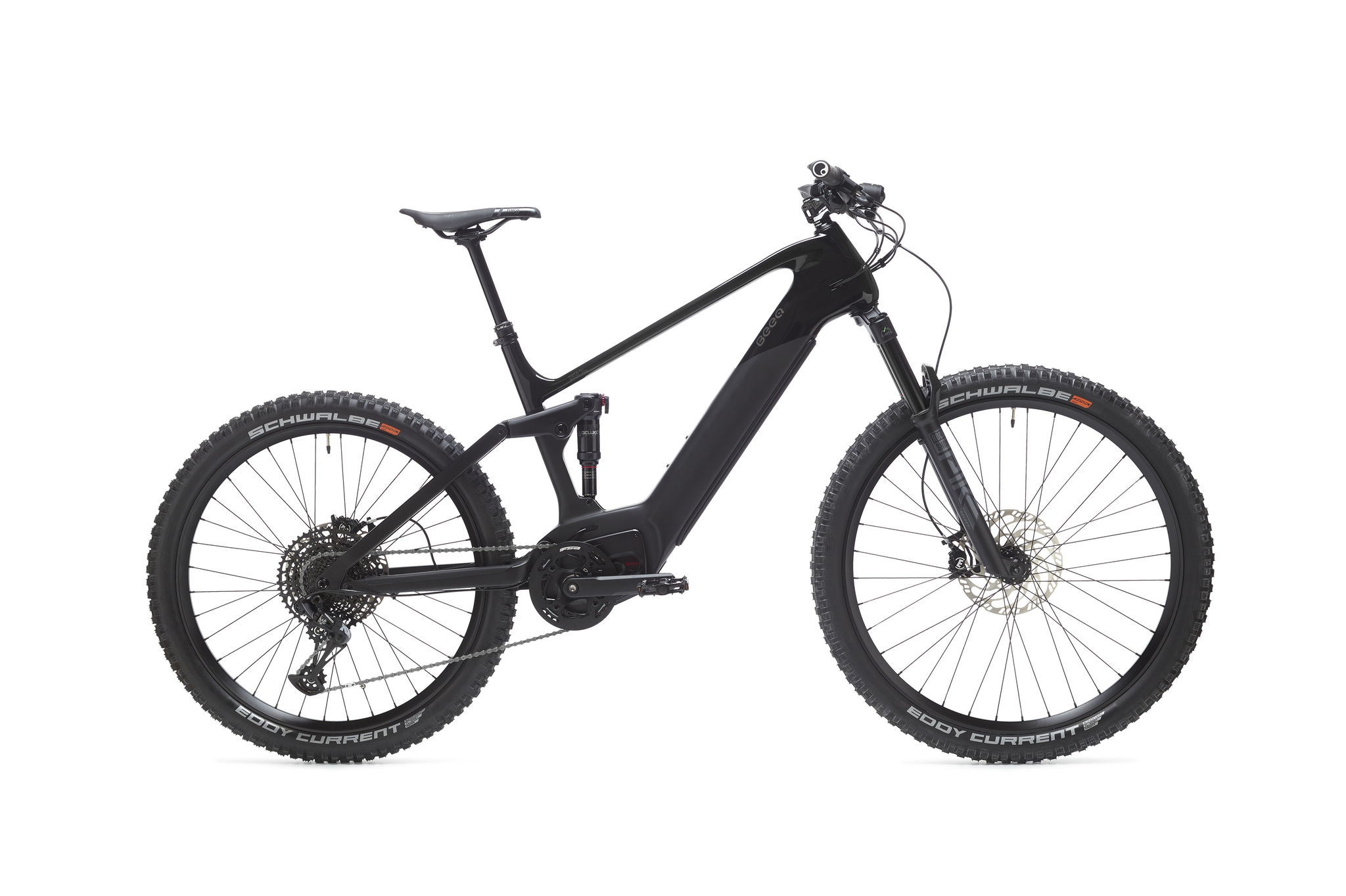

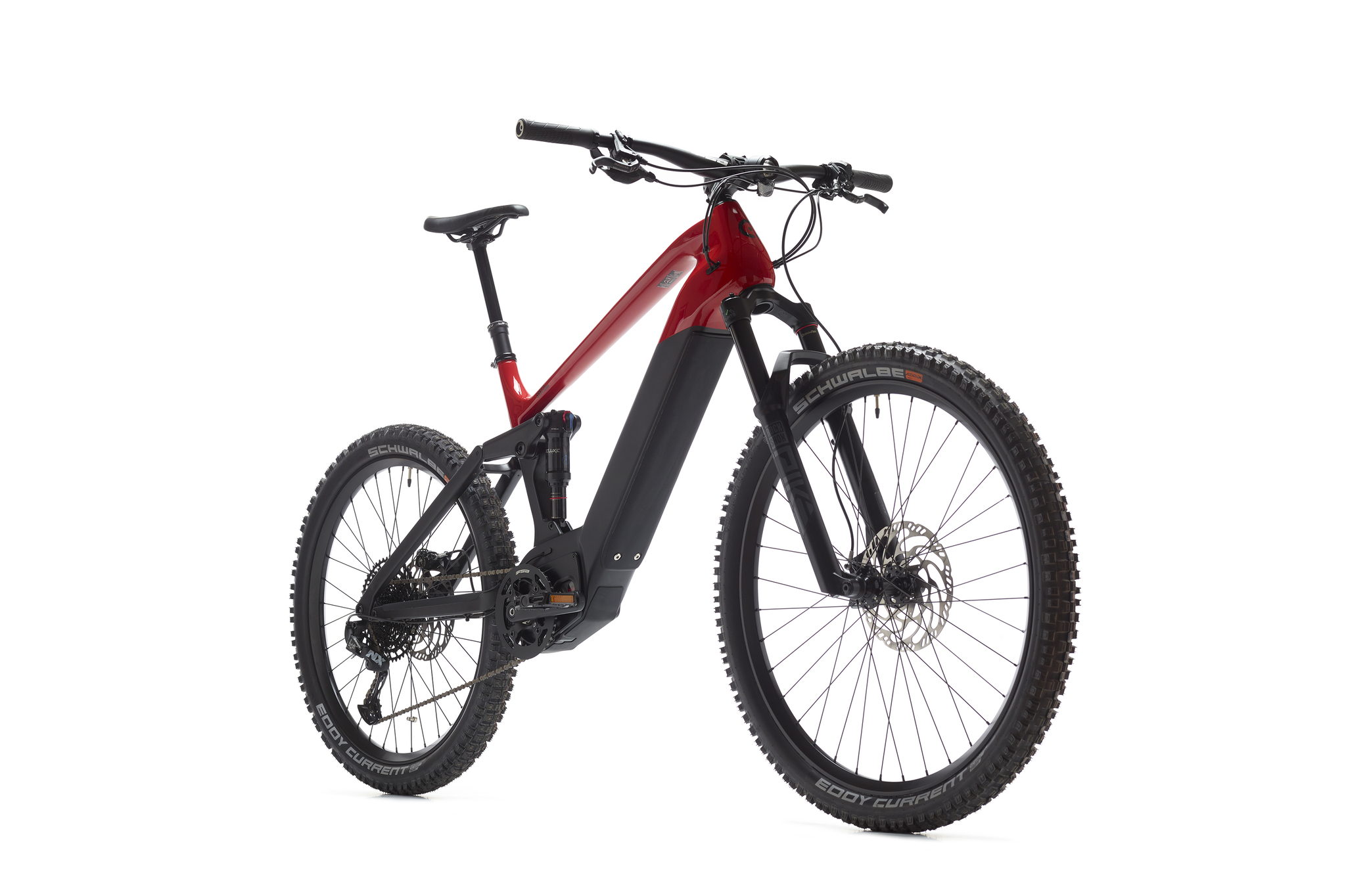

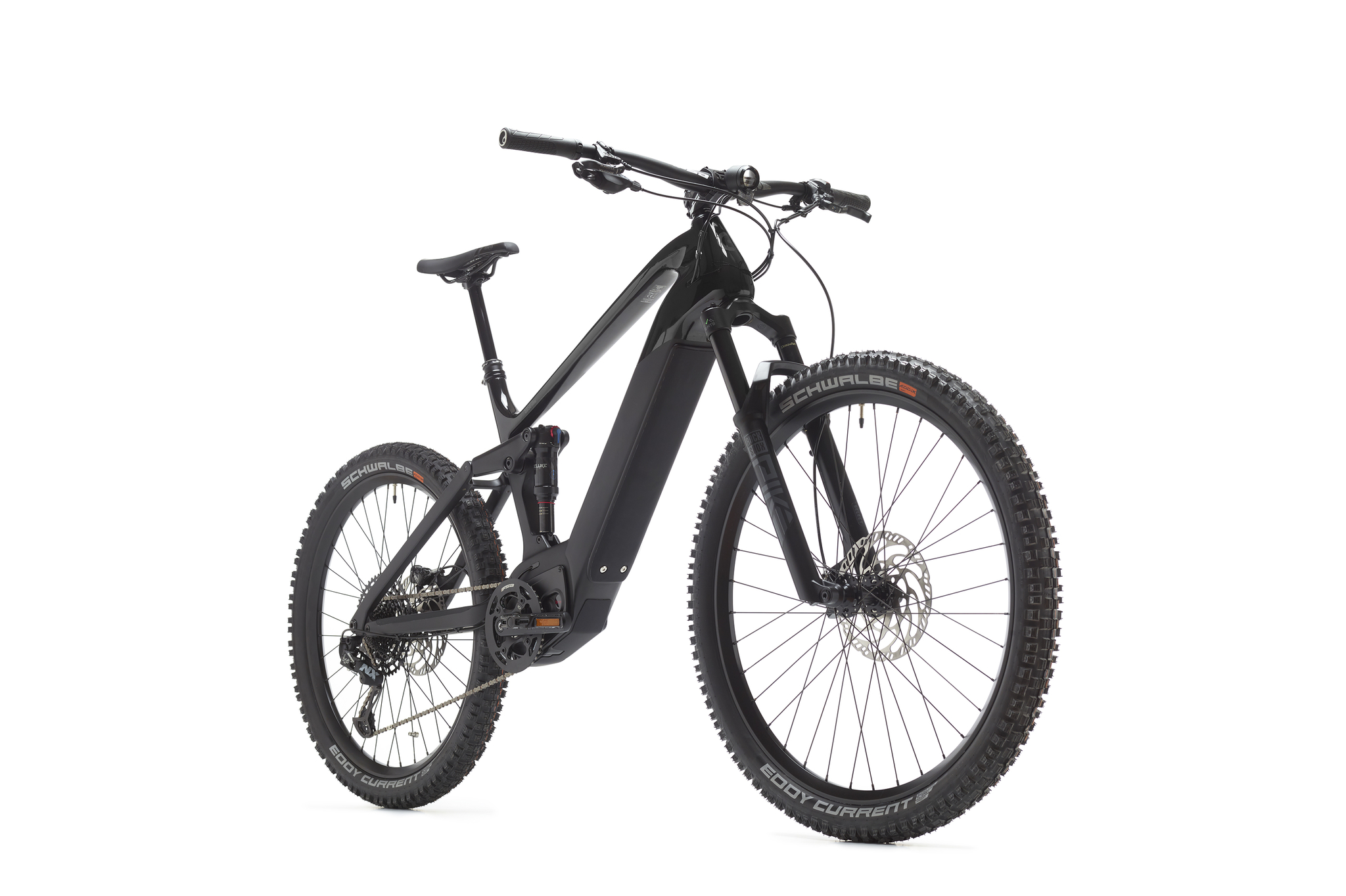

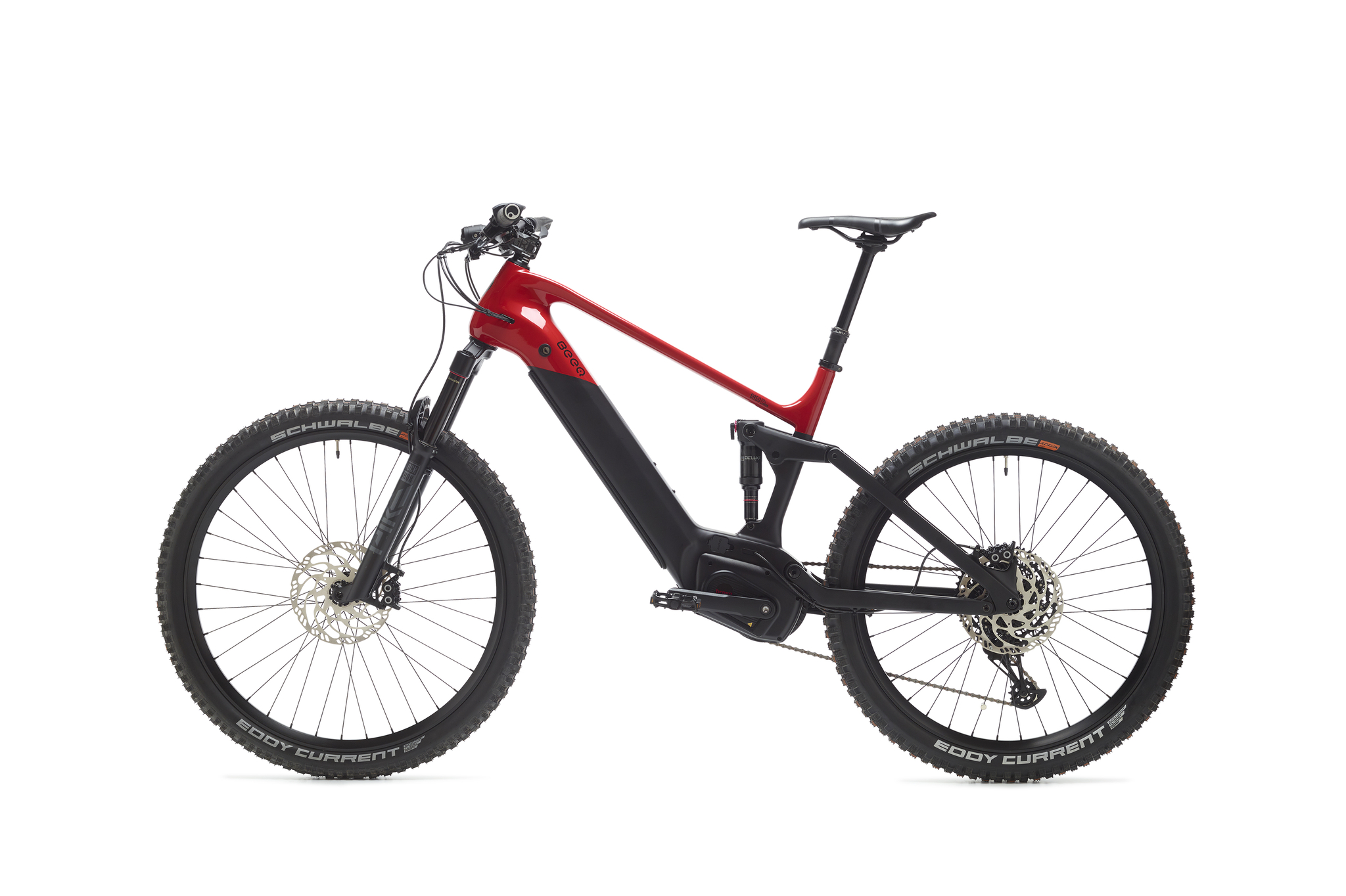

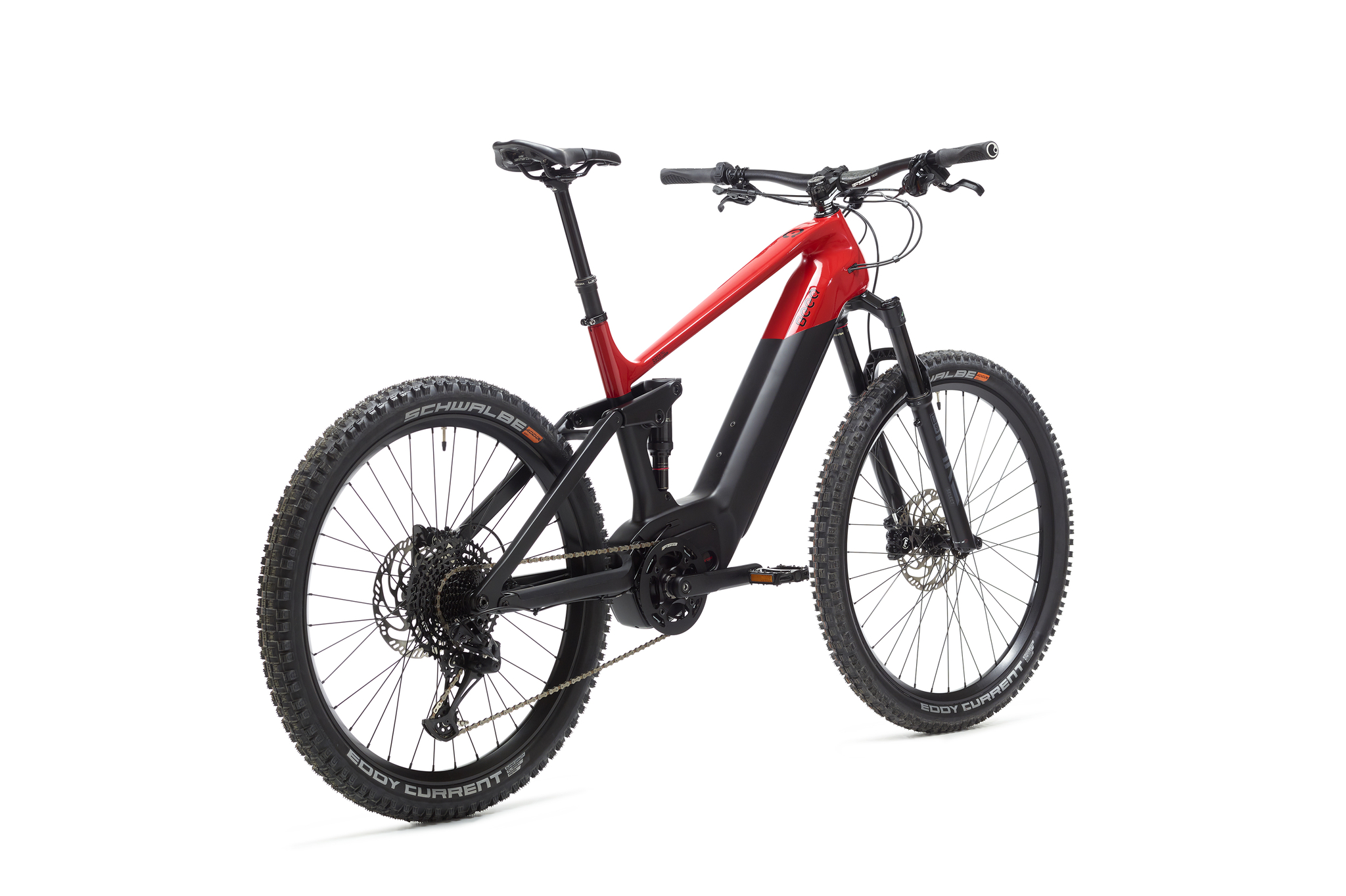

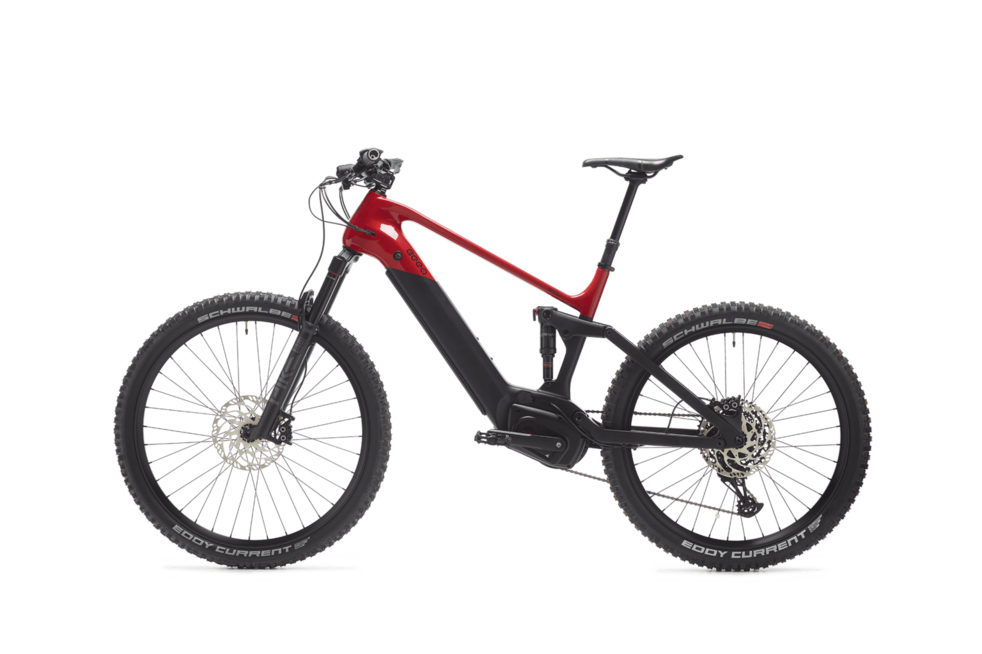

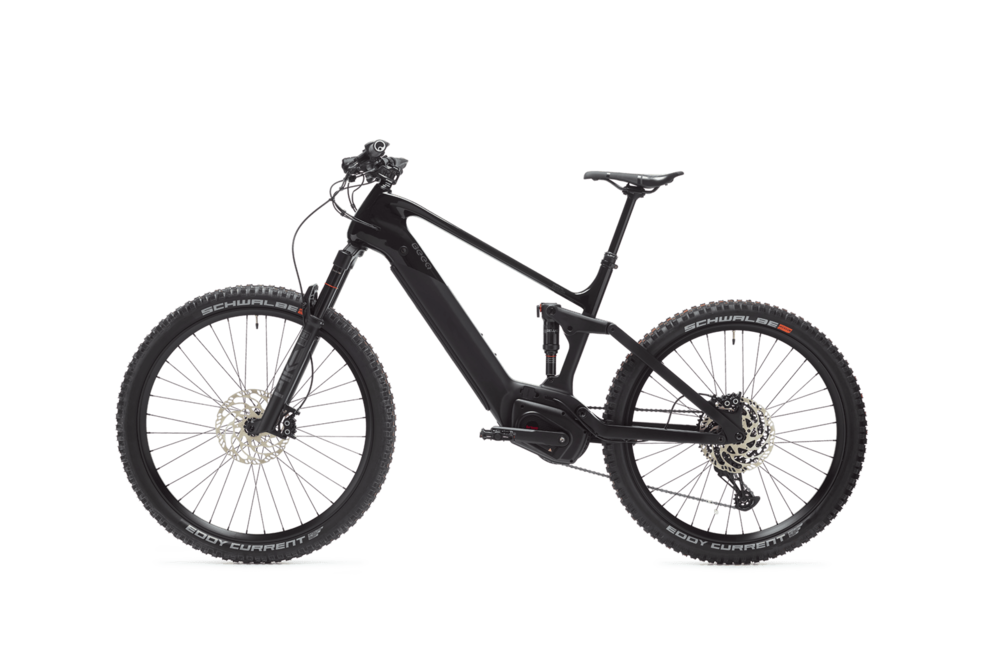

S950 Wild Full Suspension Carbon
RANGE
Discover the mountains and embark on thrilling adventures with the efficient Brose battery, featuring 360Wh and 36V.
MOTOR
Discover the power of the Brose Drive S MAG motor, which delivers 90Nm of torque to propel you into thrilling adventures and new horizons.
PERFORMANCE
Experience the S950's advanced full suspension for superior comfort and performance, all wrapped in a striking carbon frame!
On the mountain Essentials
Technical details
PRODUCT INFORMATION
FRAME SIZES
M (42cm) - L (48cm)
WEIGHT
Approx. 26kg
MAXIMUM BIKE & RIDER WEIGHT
135kg
COLOUR(s)

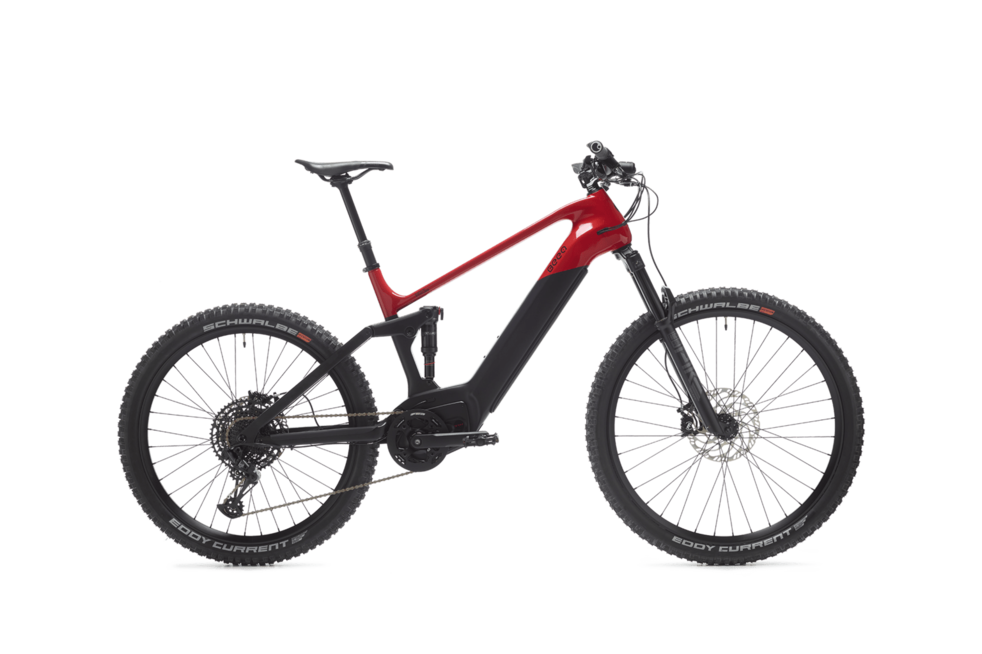

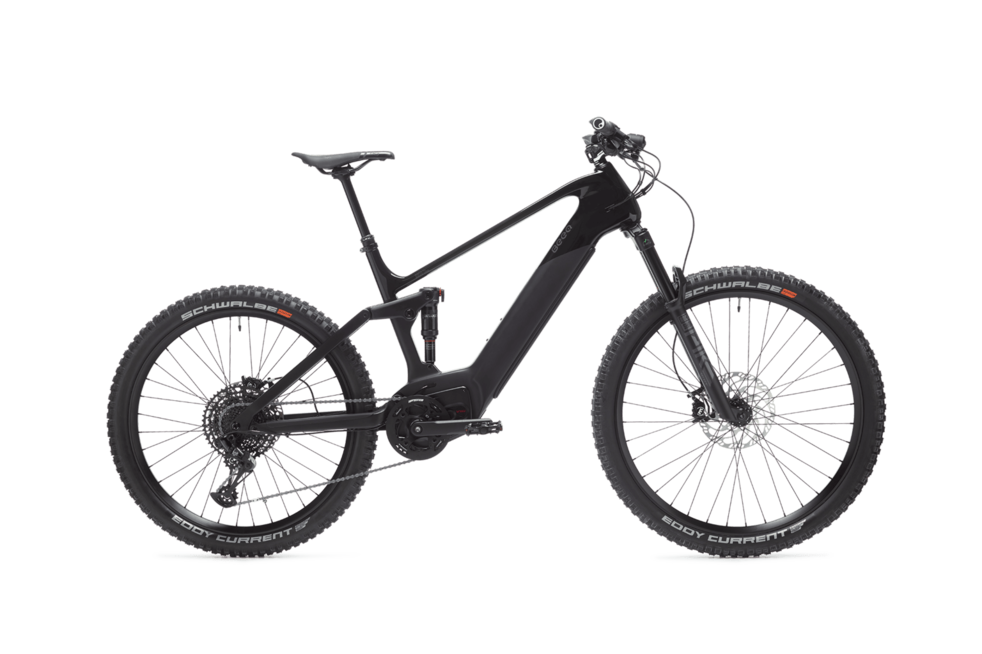

Dark Night with gloss finish | Pure Red with gloss finish
PAINTING
Powder painting scratch resistant with Glossy Varnish
FRAME
FRAME

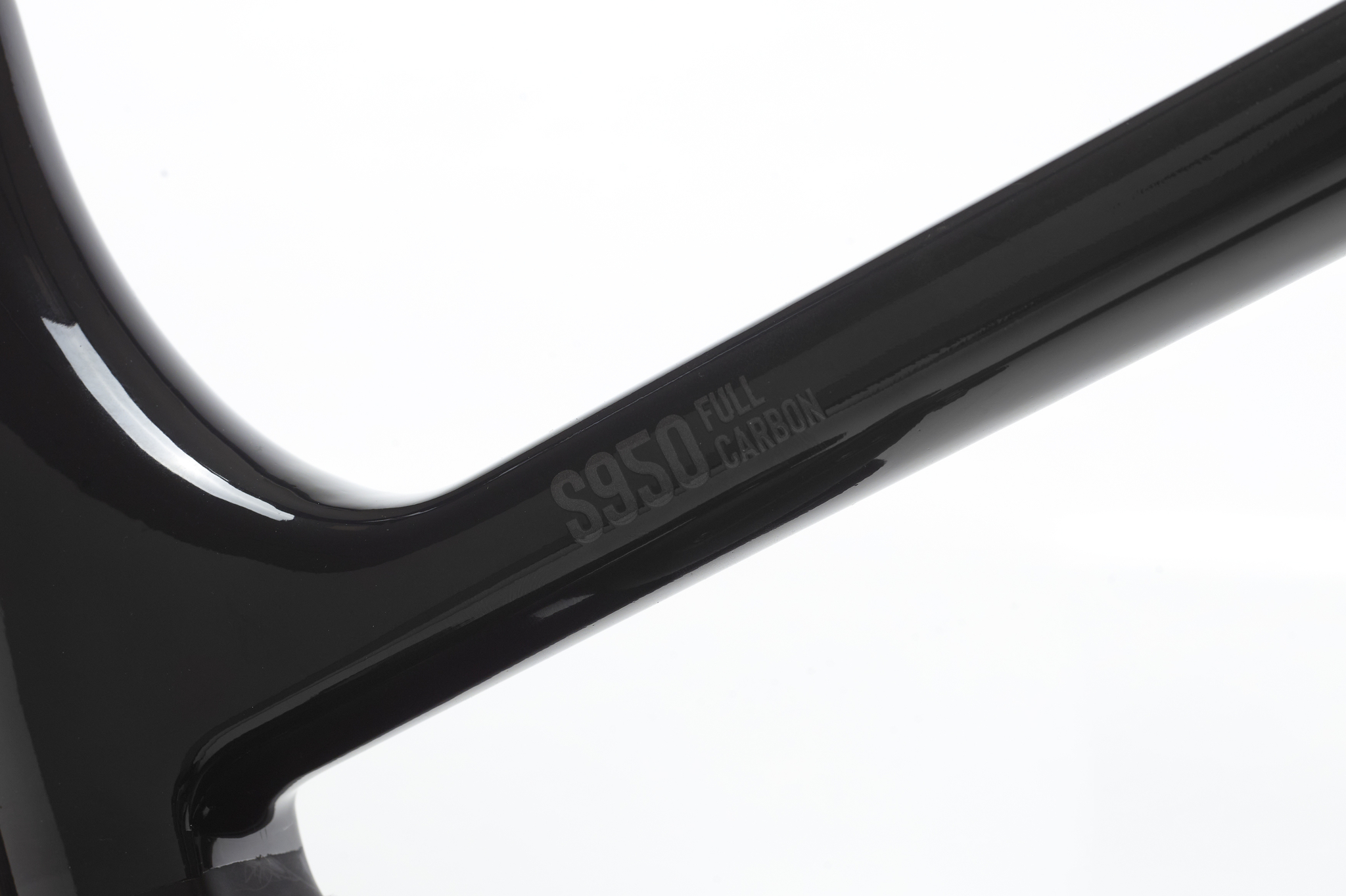

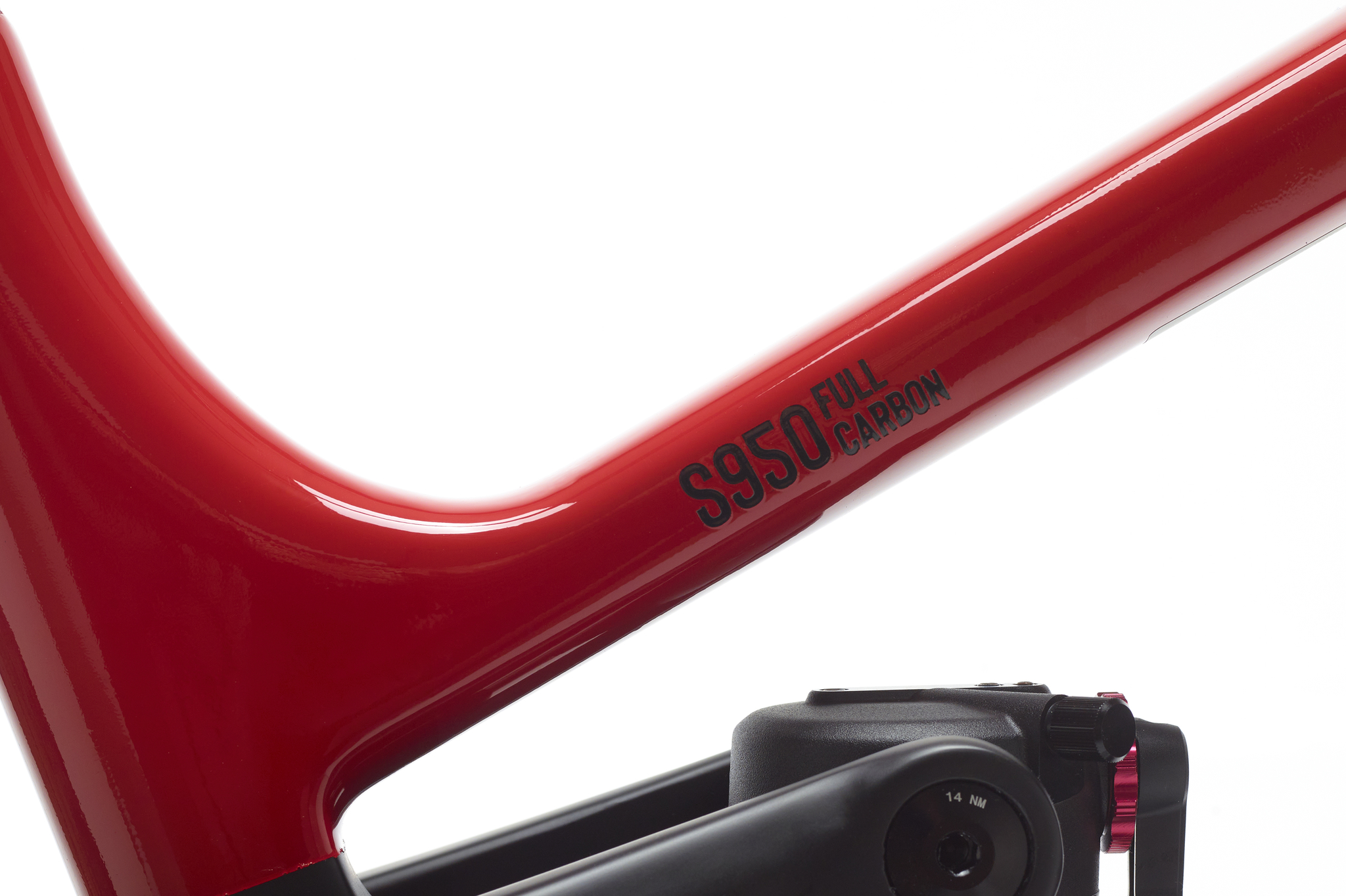

MTB FS Full Carbon 140mm
HEADSET
FSA 1.5" to 1-1/8" Tapered SHIS

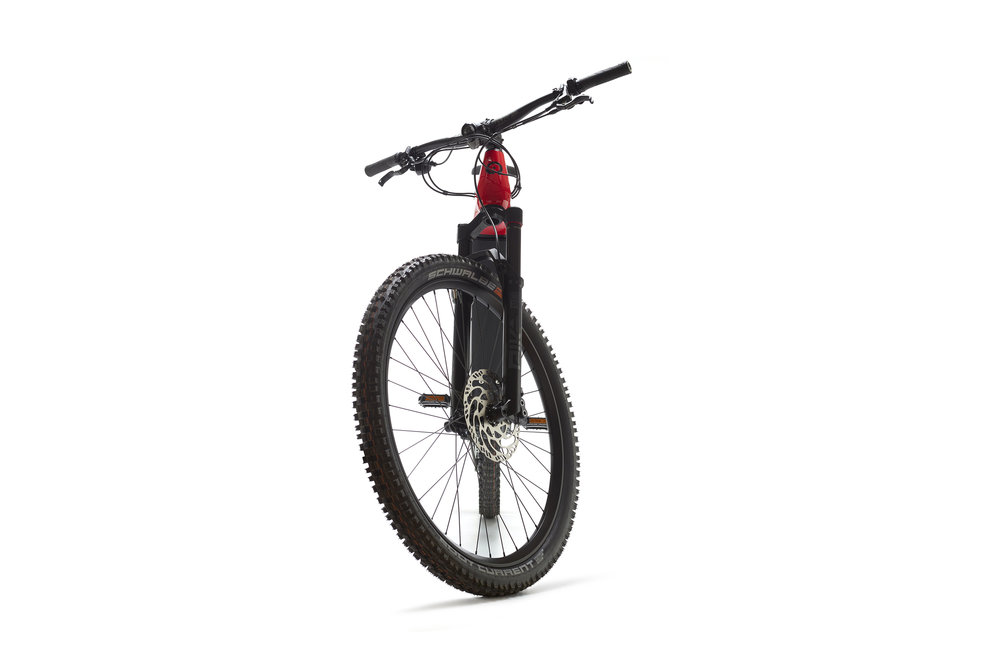

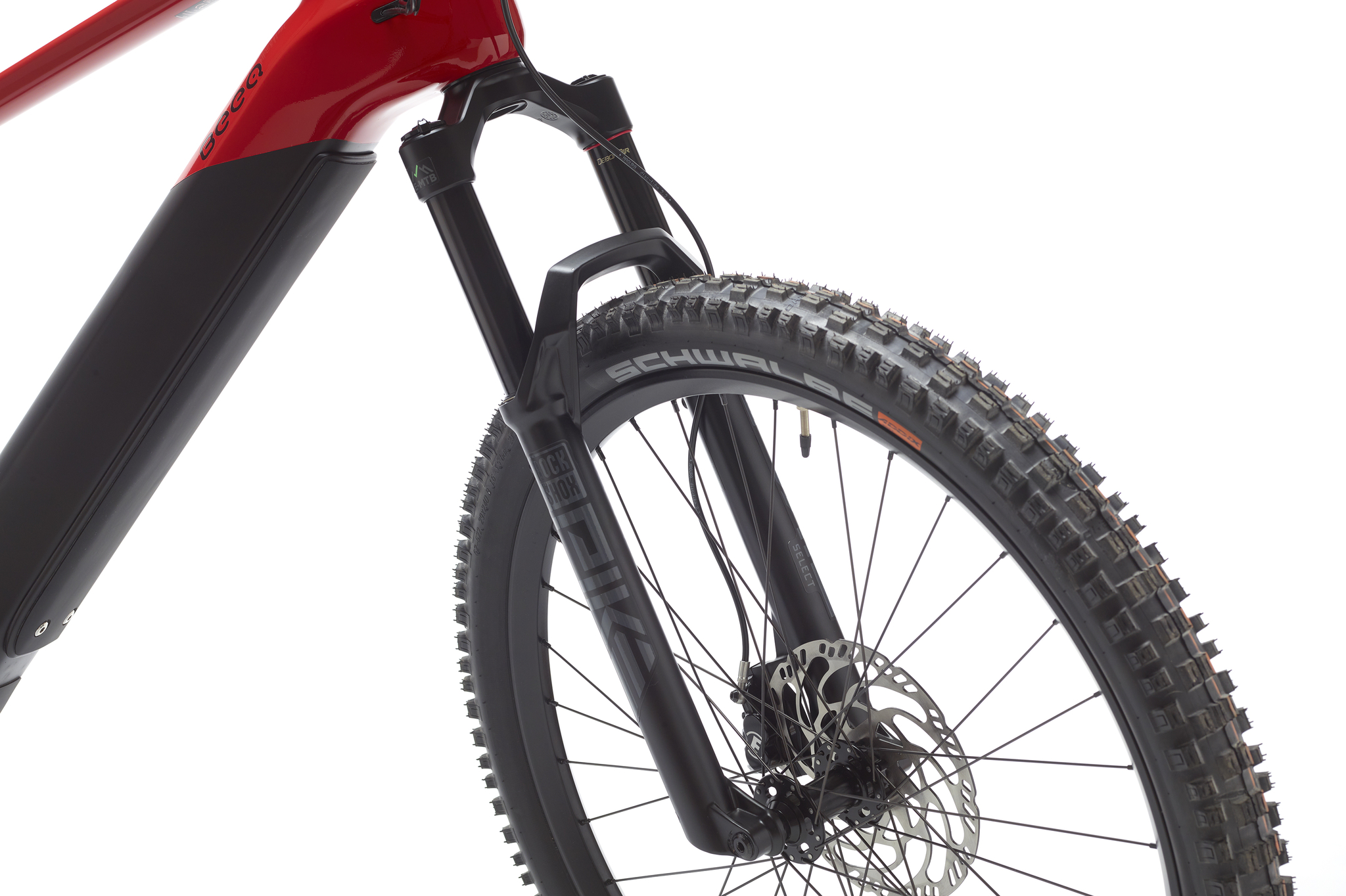

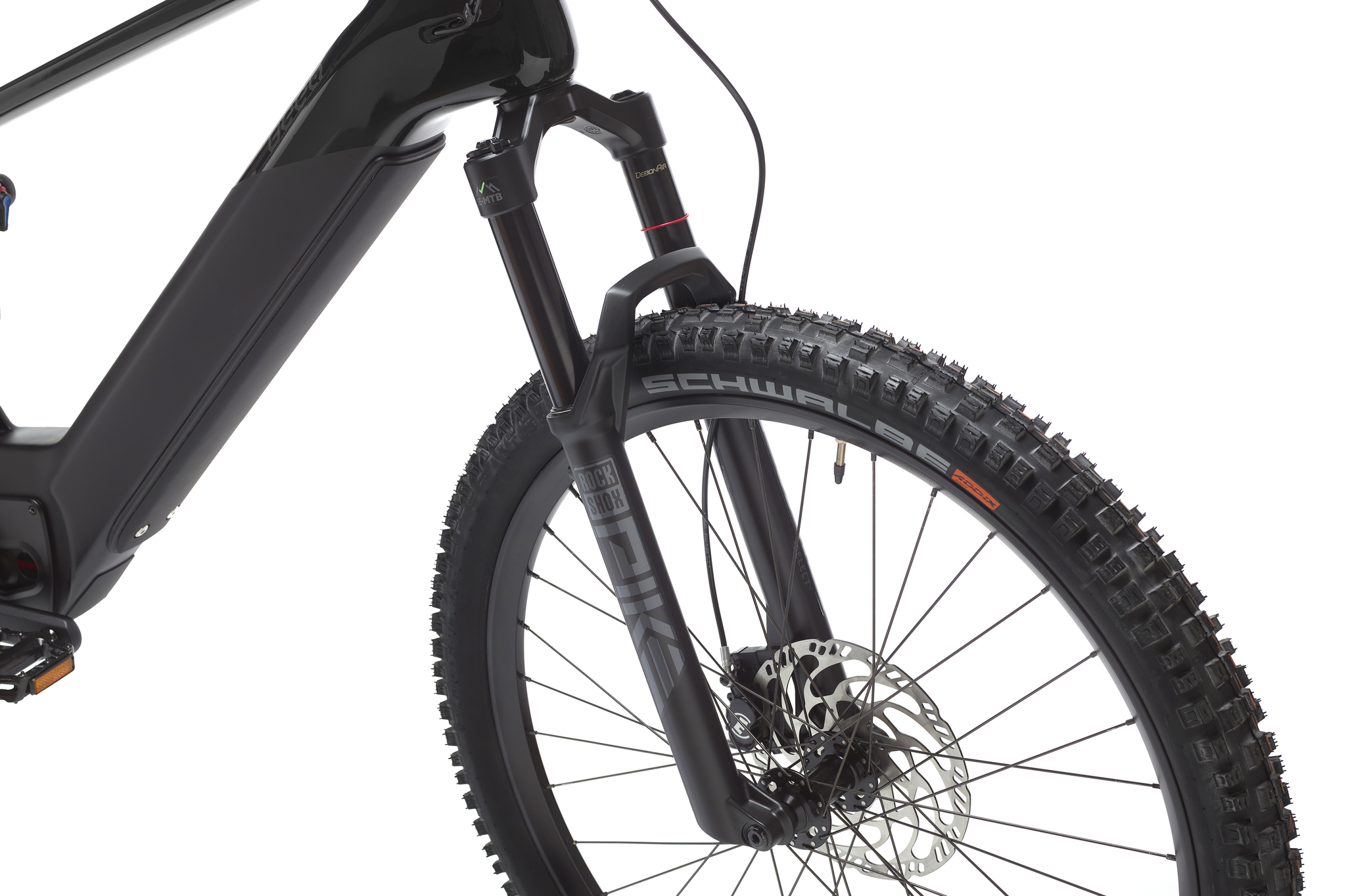

SUSPENSION

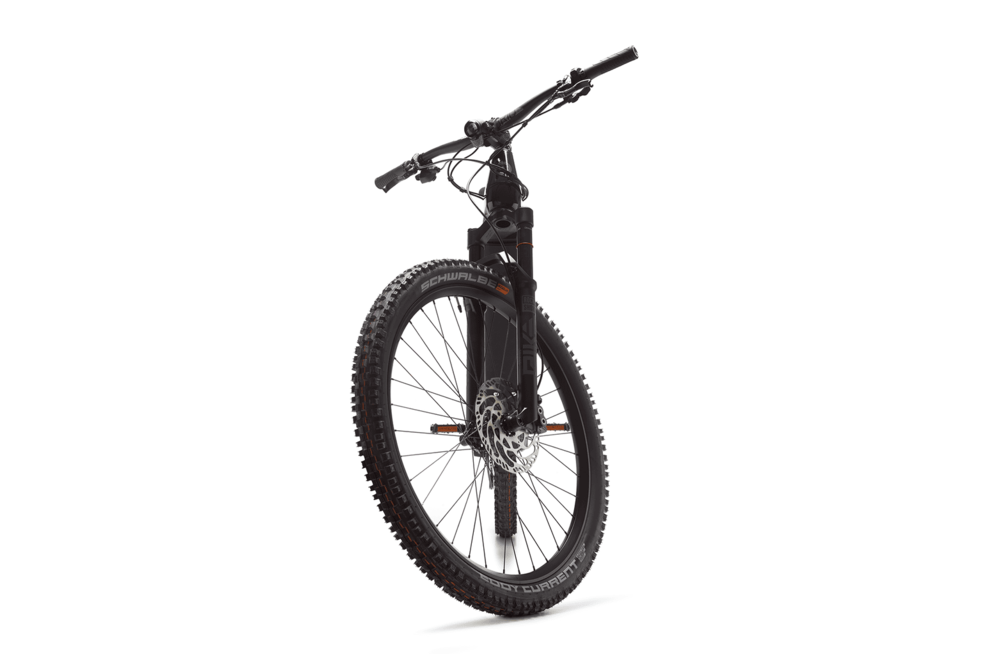

ROCKSHOX Pike Select Air Travel 140mm Axle Boost 110mm 29''

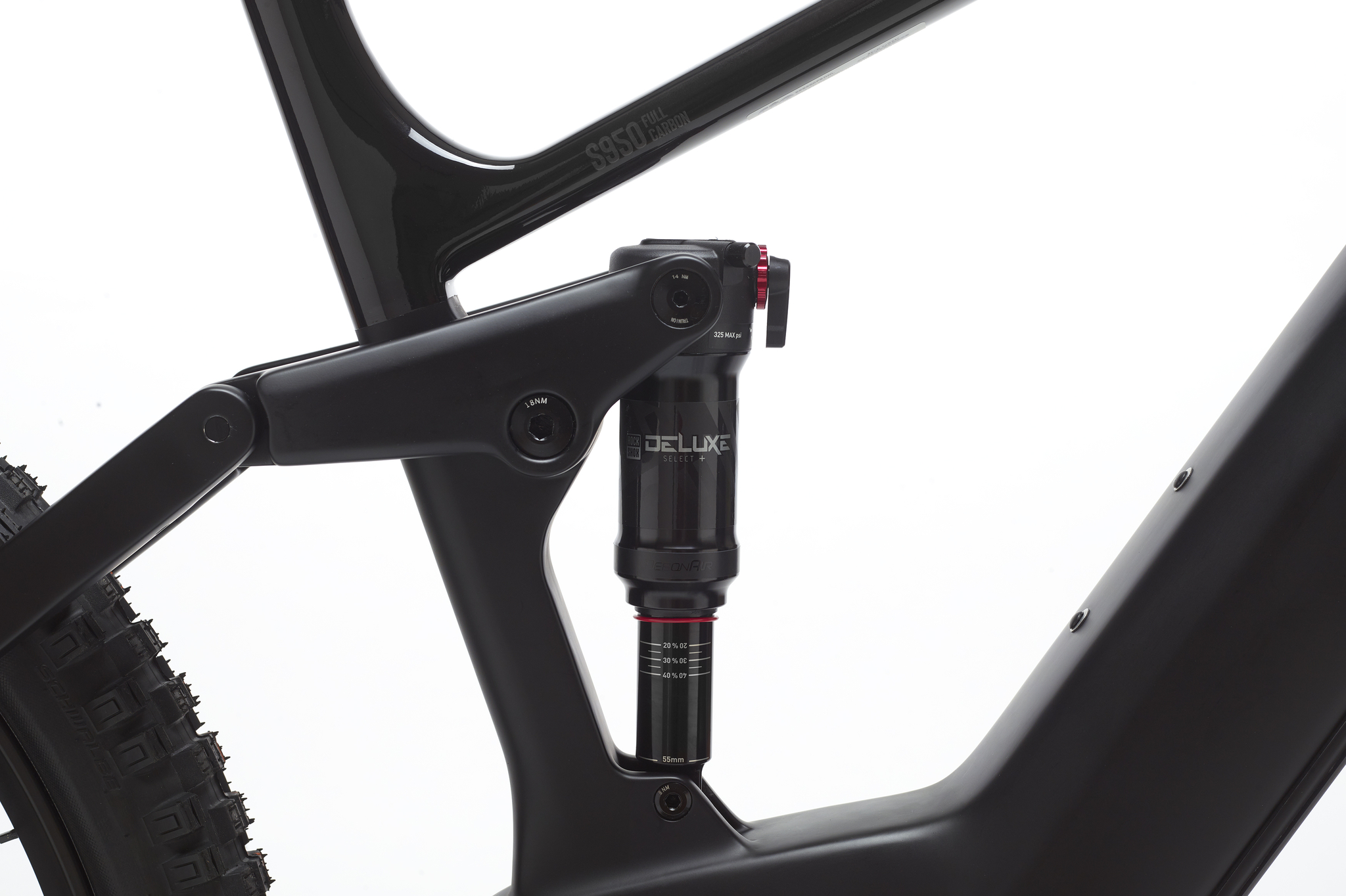

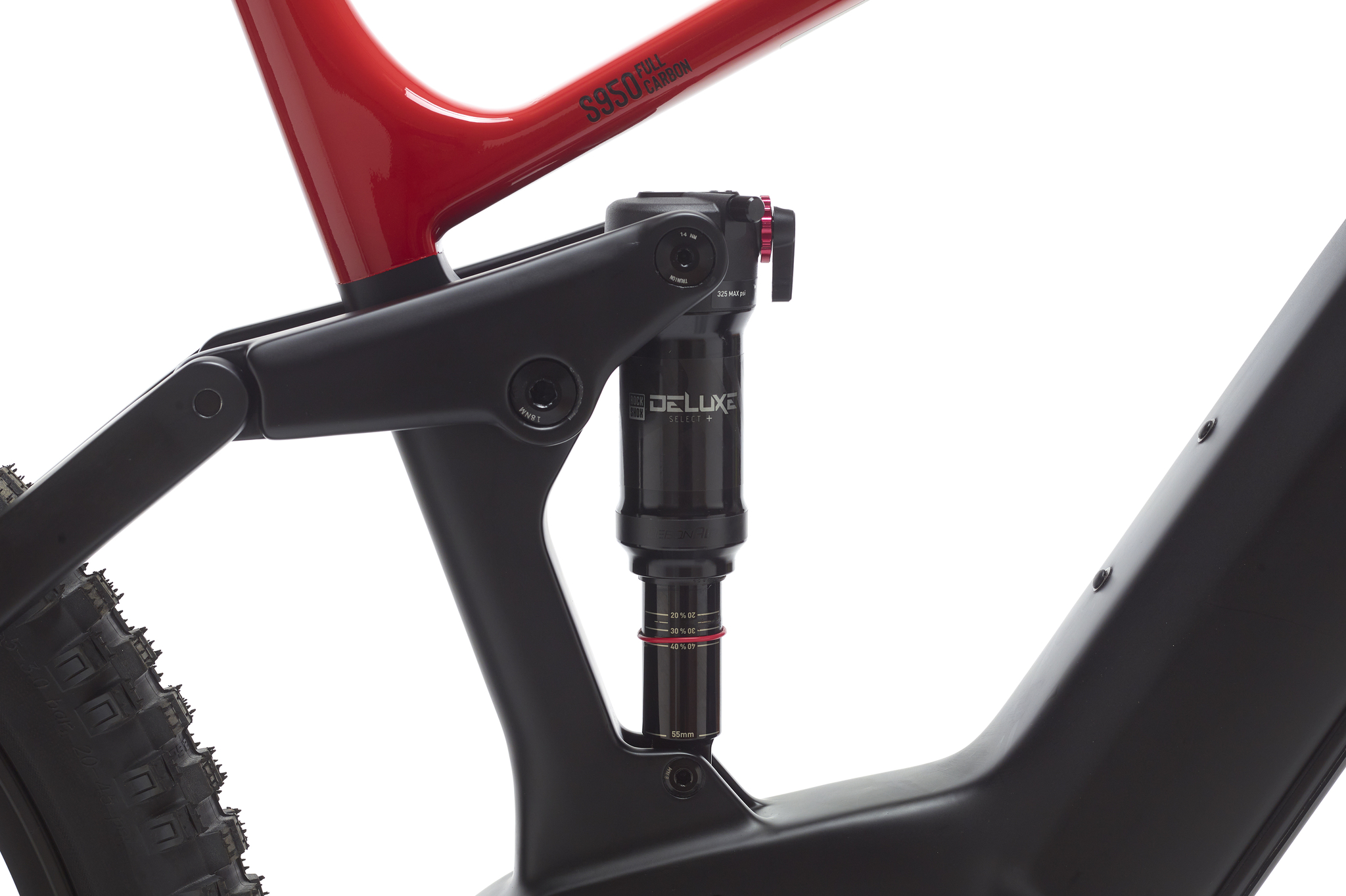

REAR SHOCK
ROCKSHOX Deluxe Select+ Travel 140mm Trunnion (185x55)
E-BIKE SYSTEM

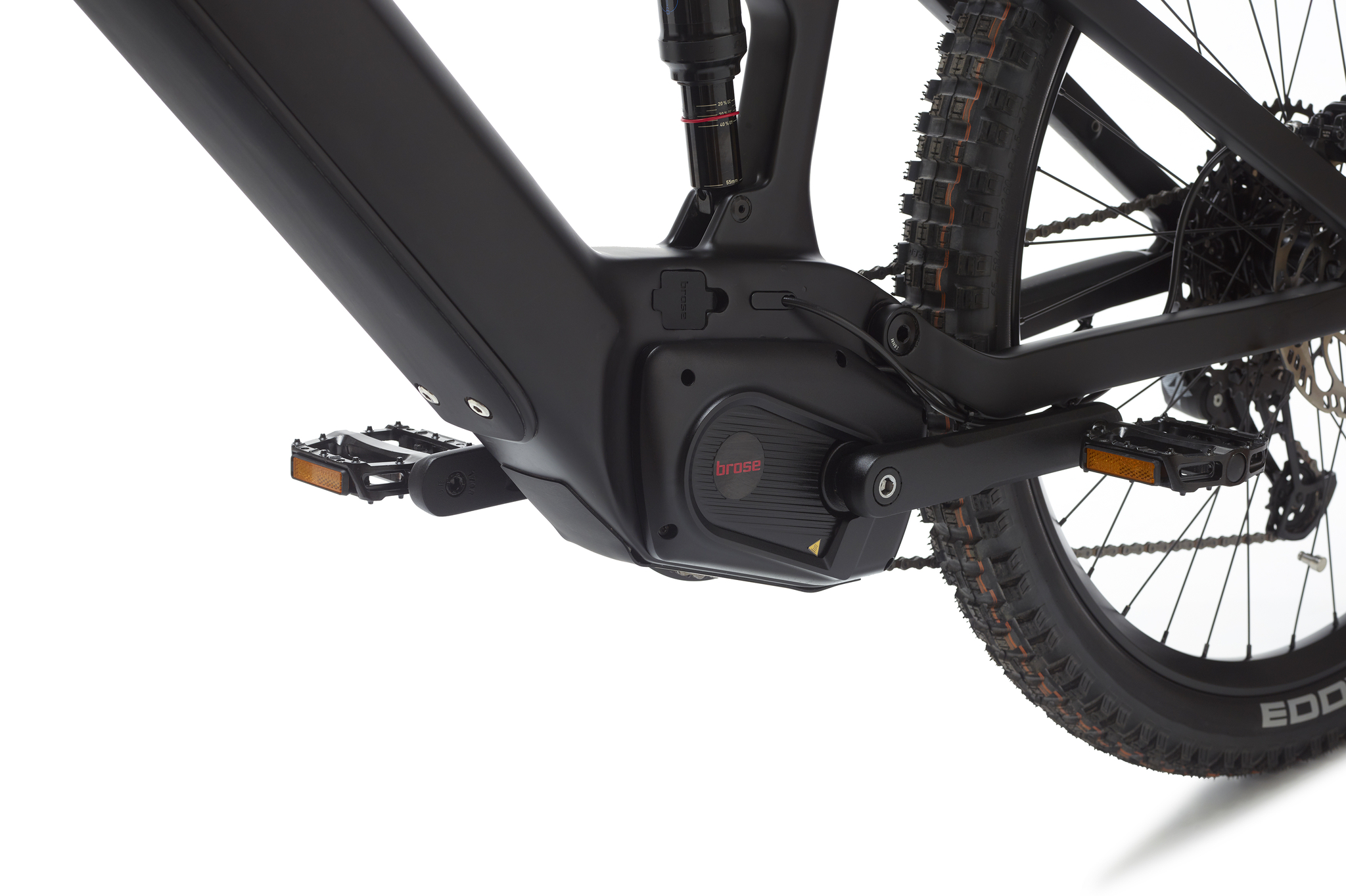

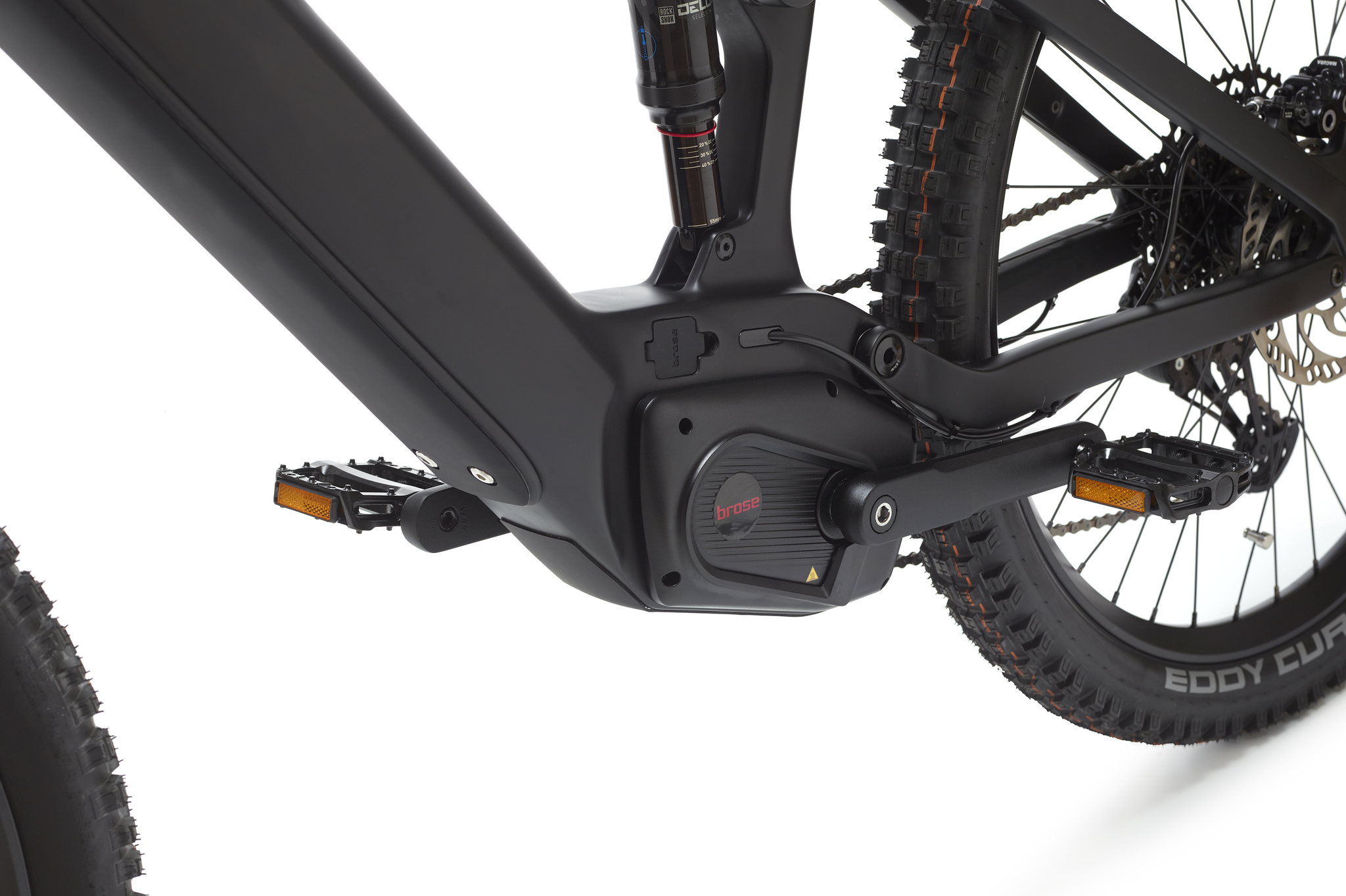

DRIVE UNIT
BROSE DRIVE S MAG Horizontal 90Nm

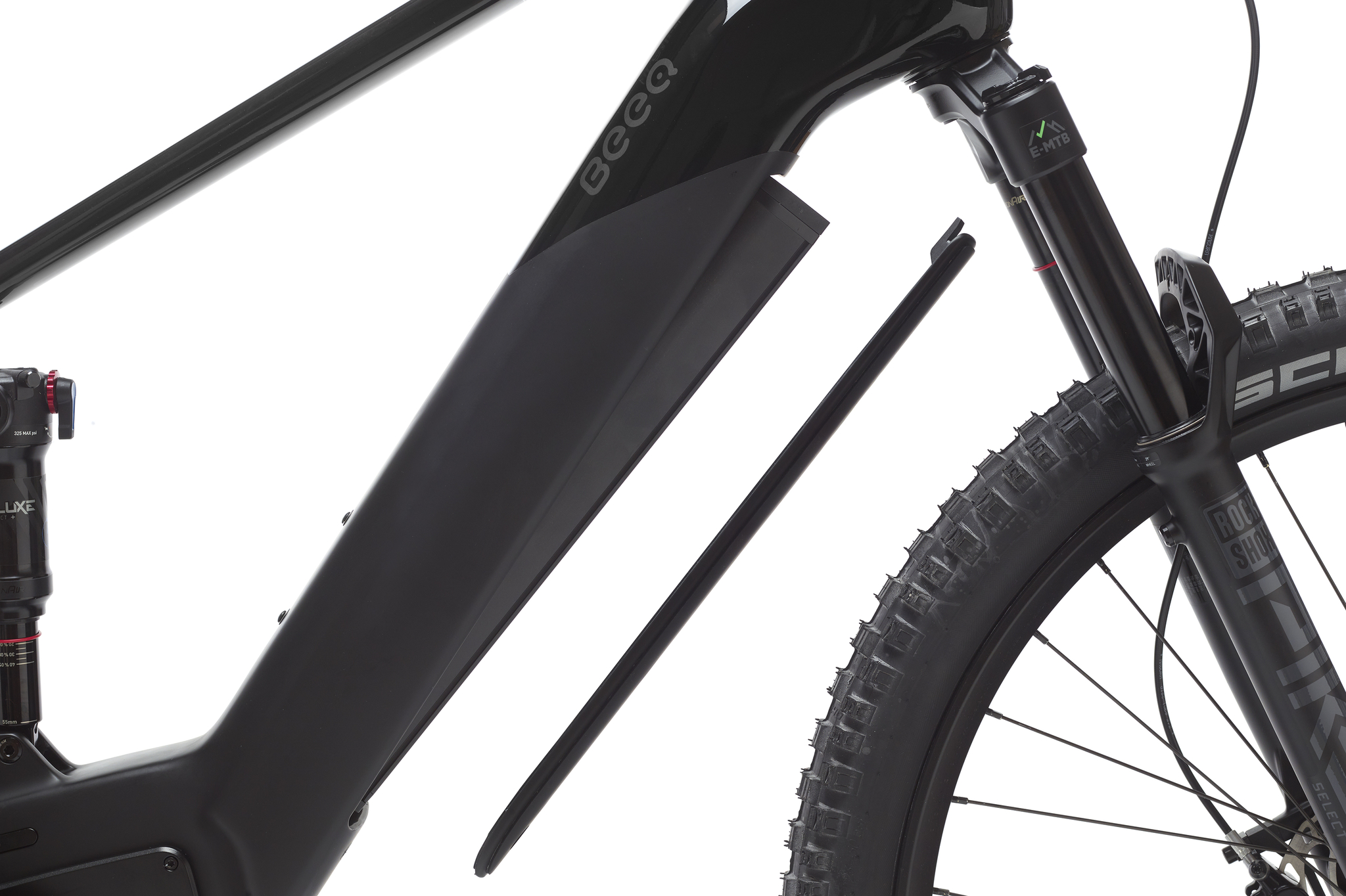

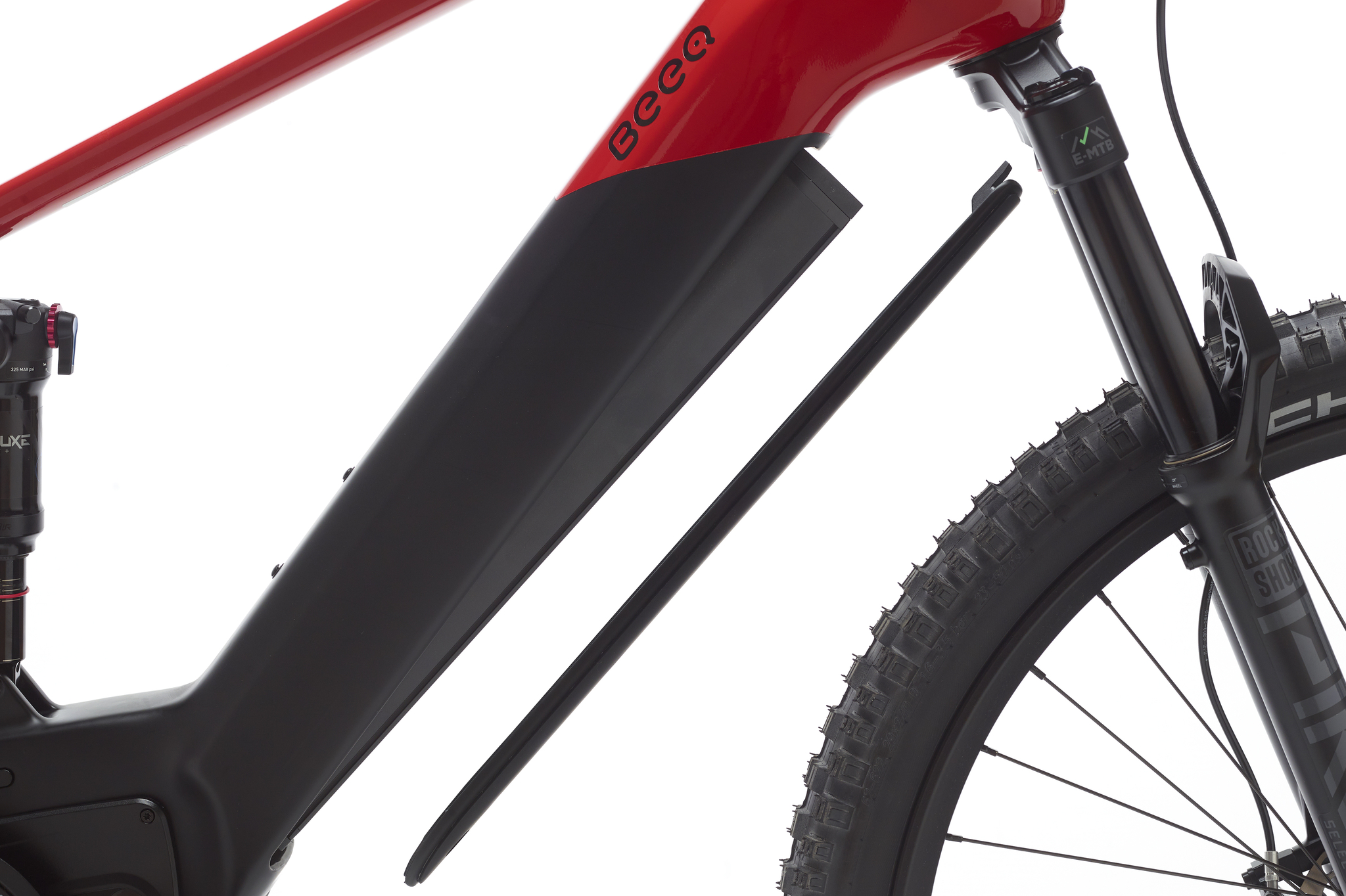

BATTERY
630Wh 36V - Integrated on Downtube - Removable
RANGE
40km to 100km

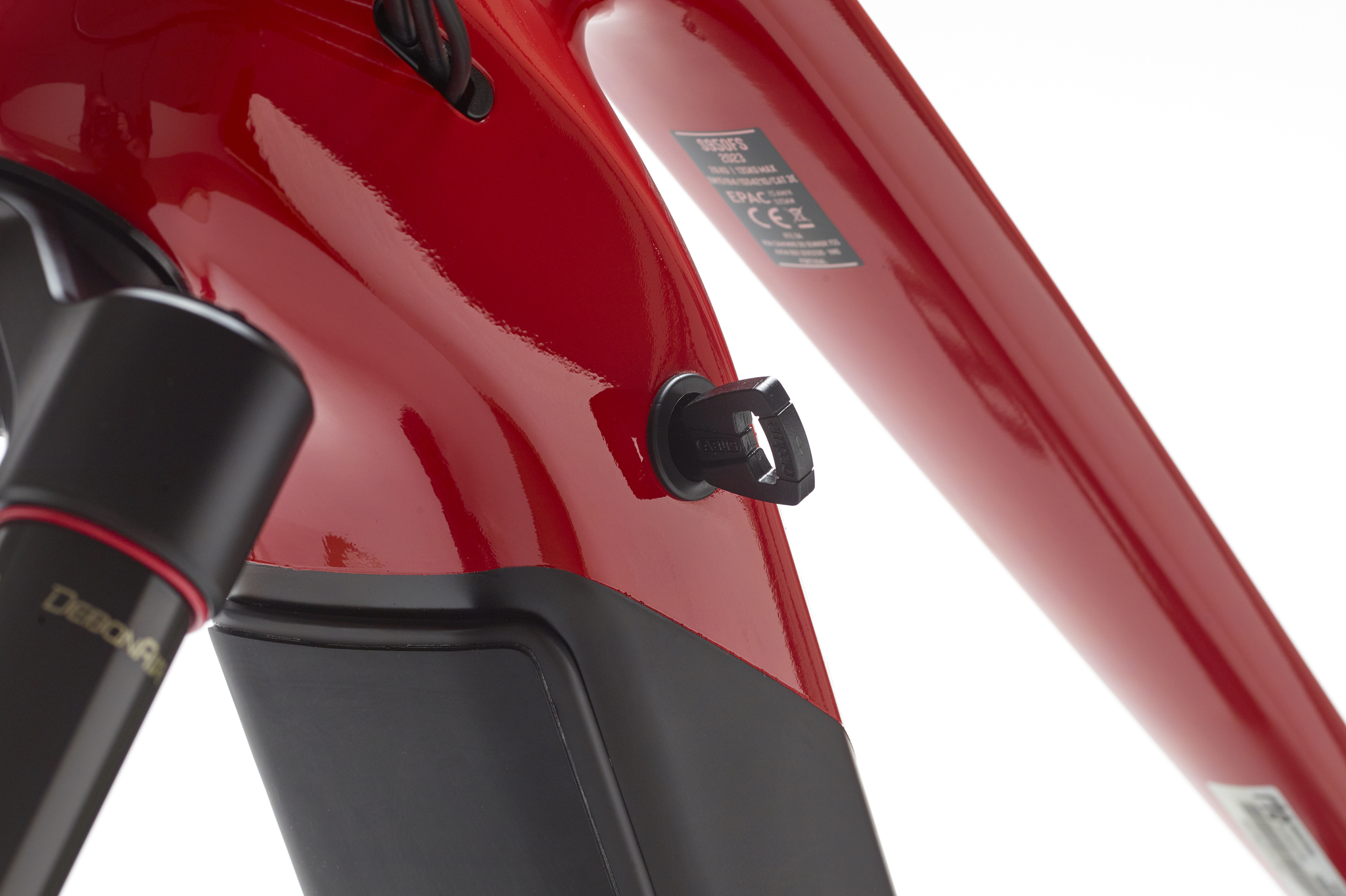

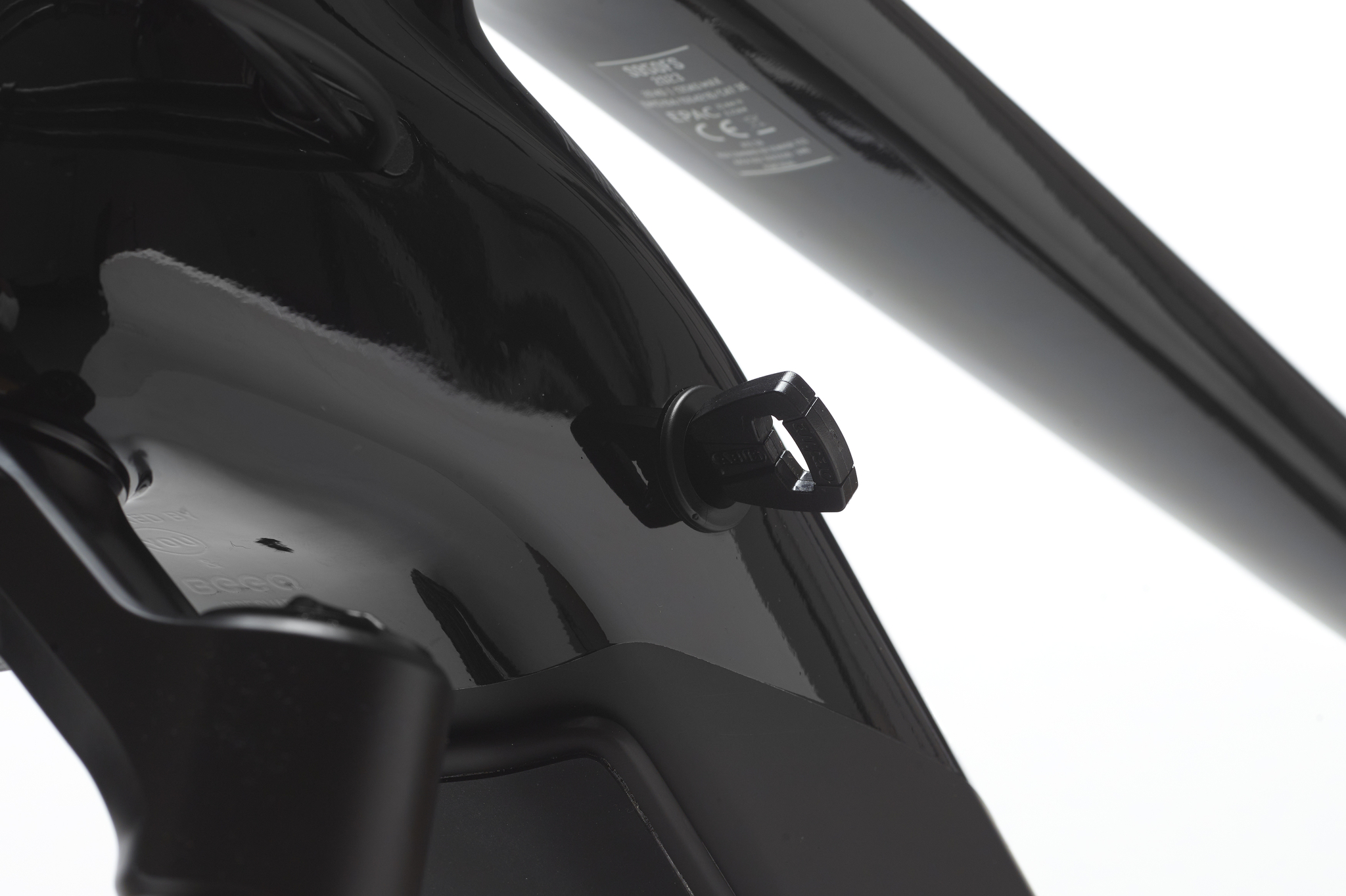

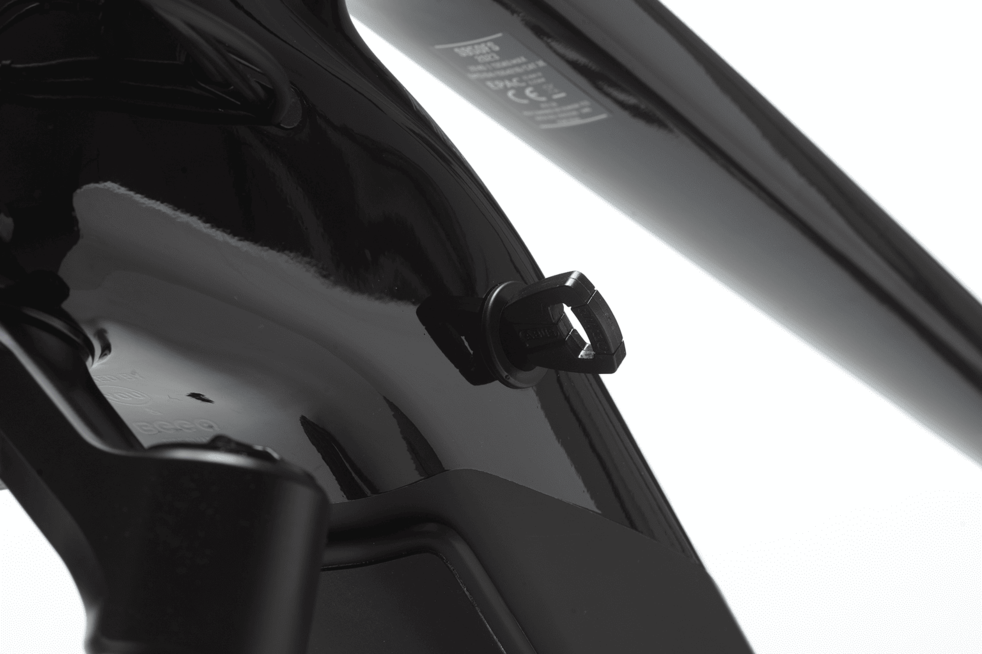

BATTERY LOCK KEY
Yes
CHARGER
4A - 3 to 6 hours total charge time

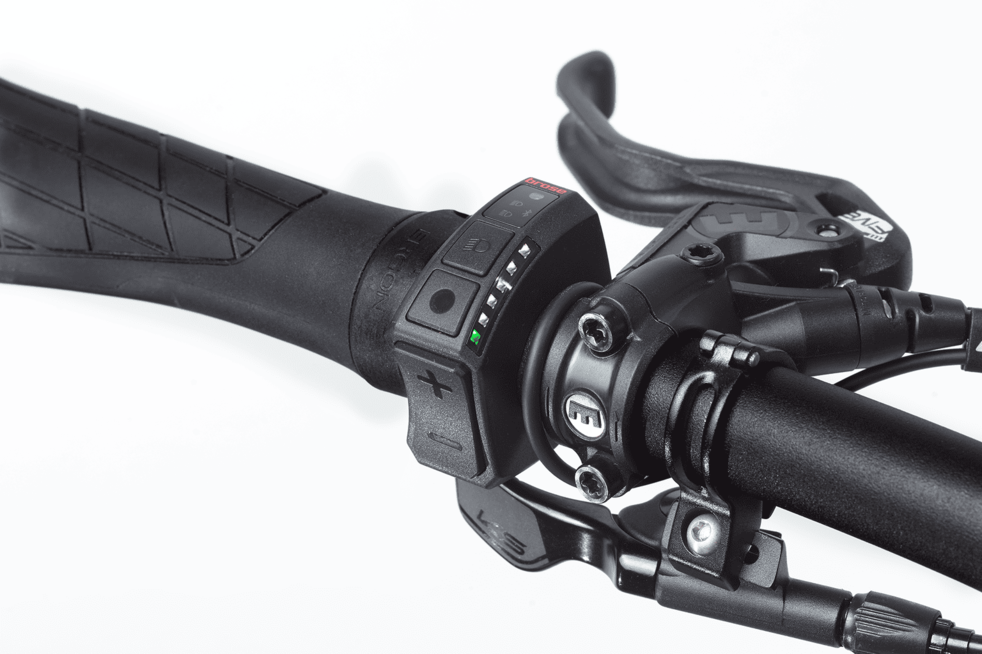

DISPLAY
BROSE Remote
COCKPIT

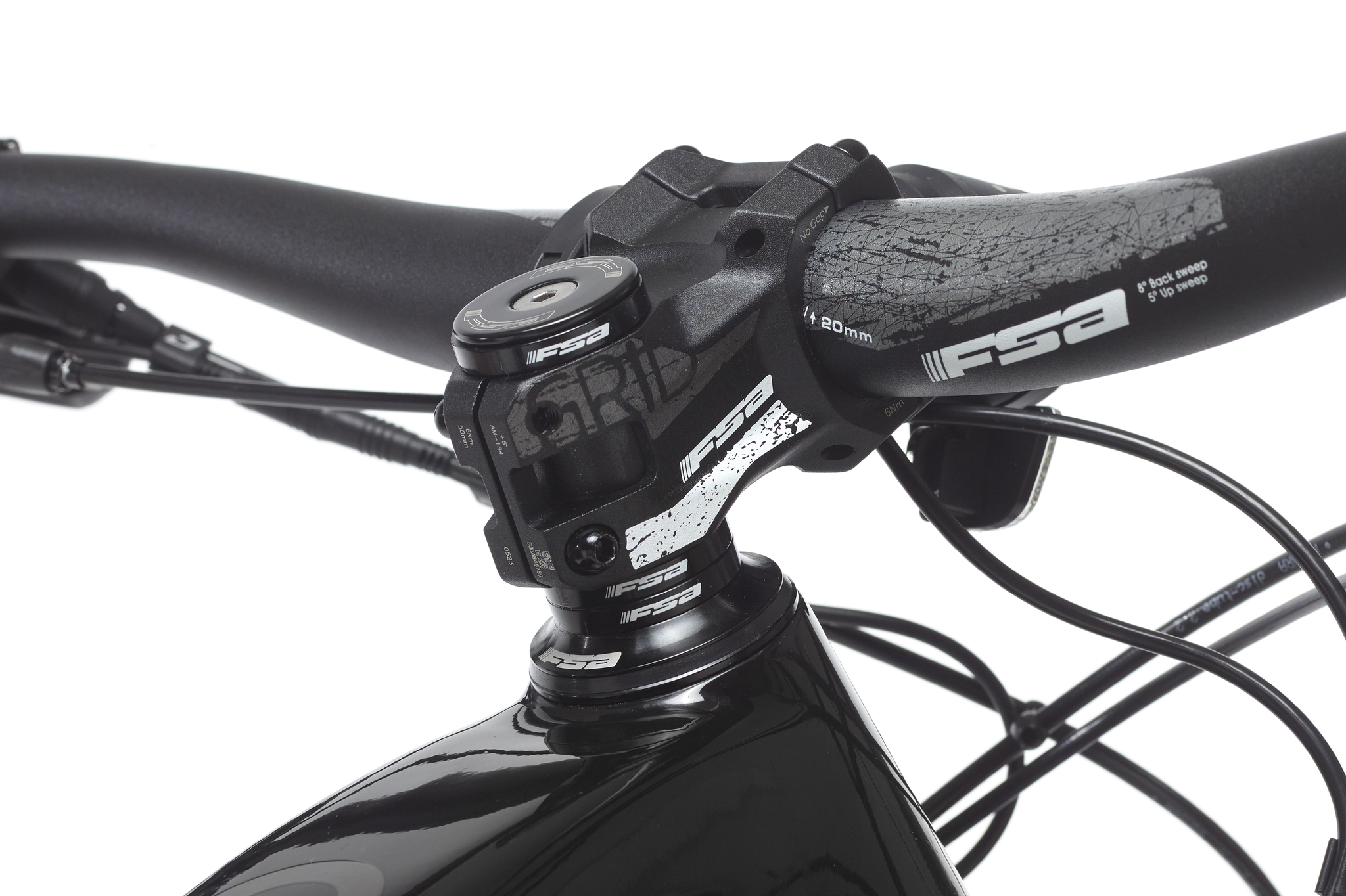

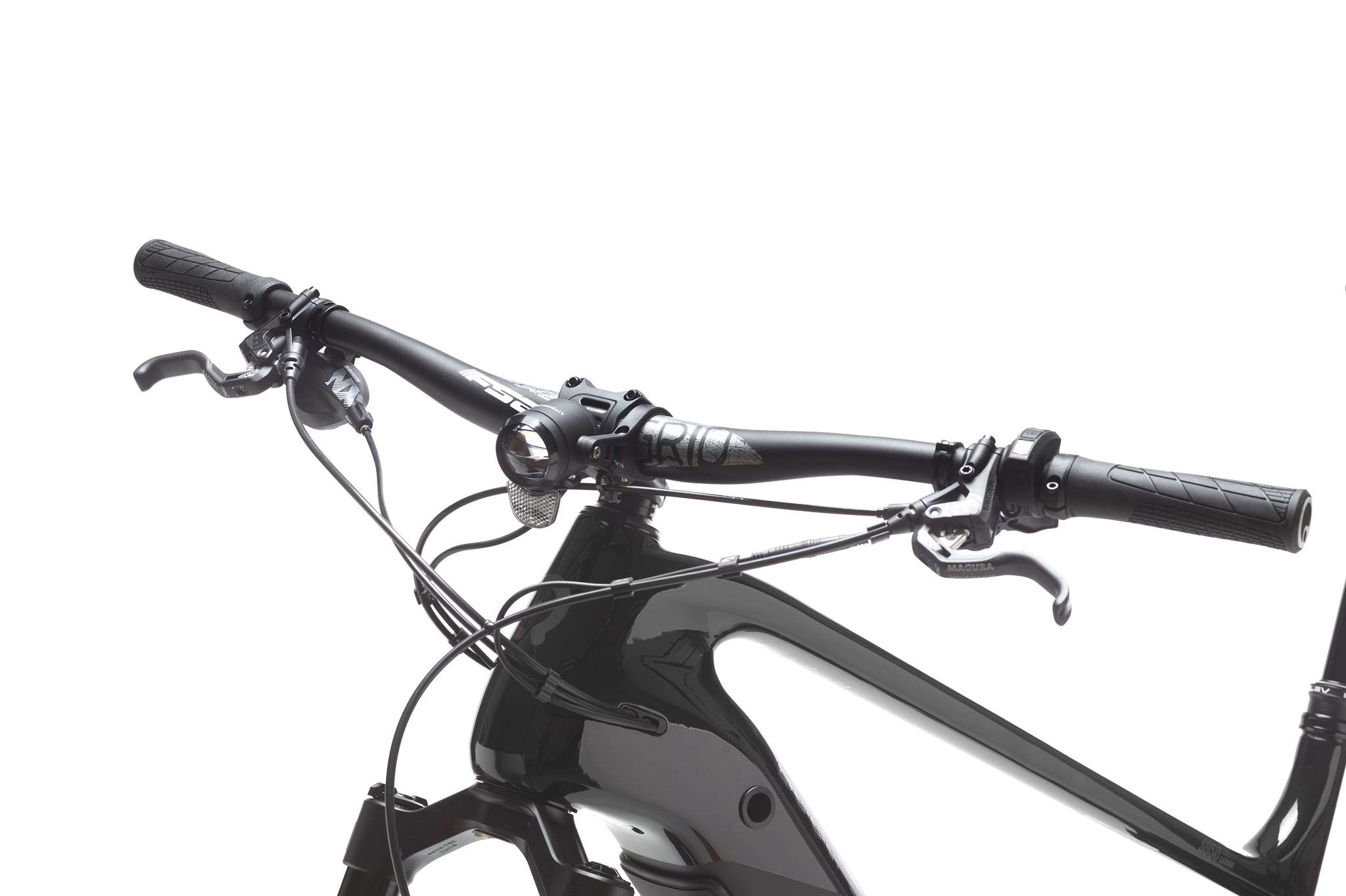

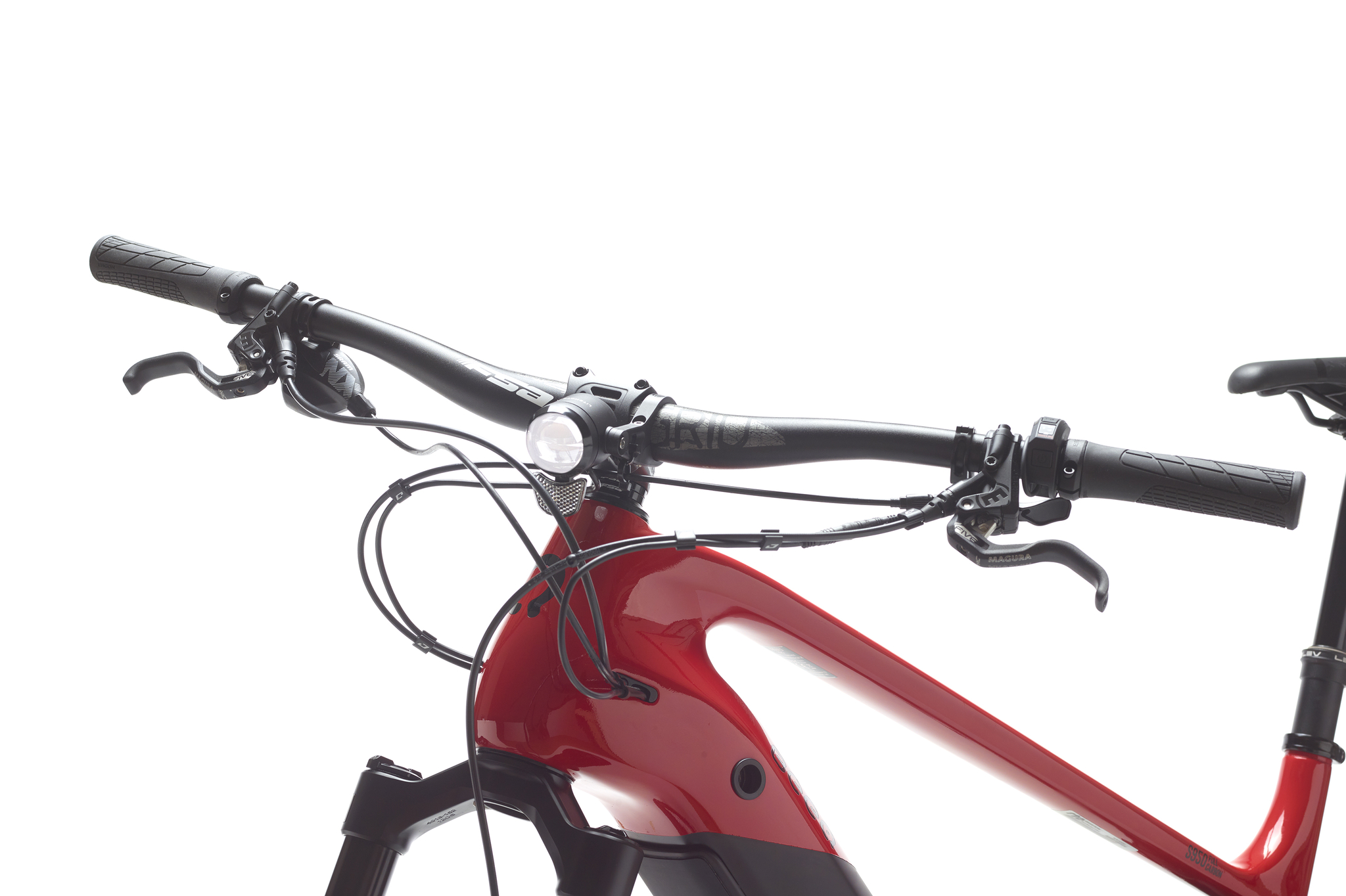

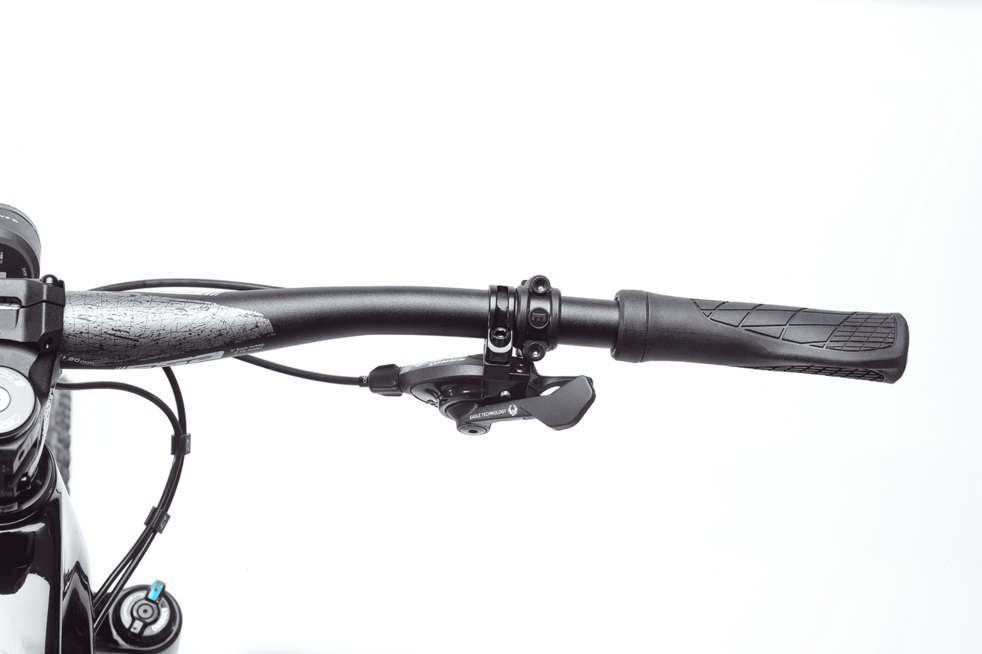

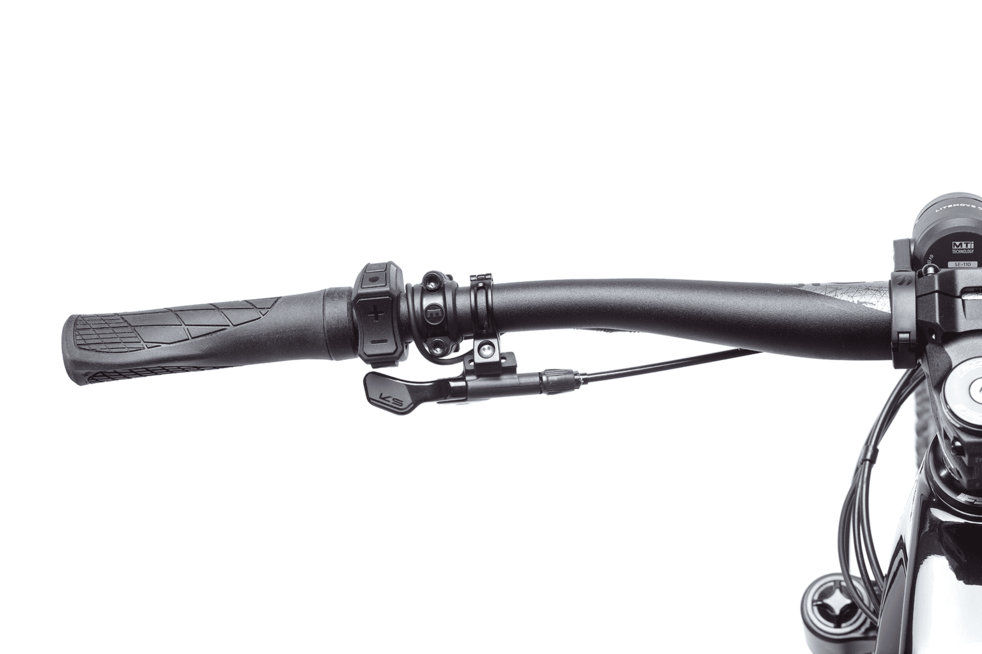

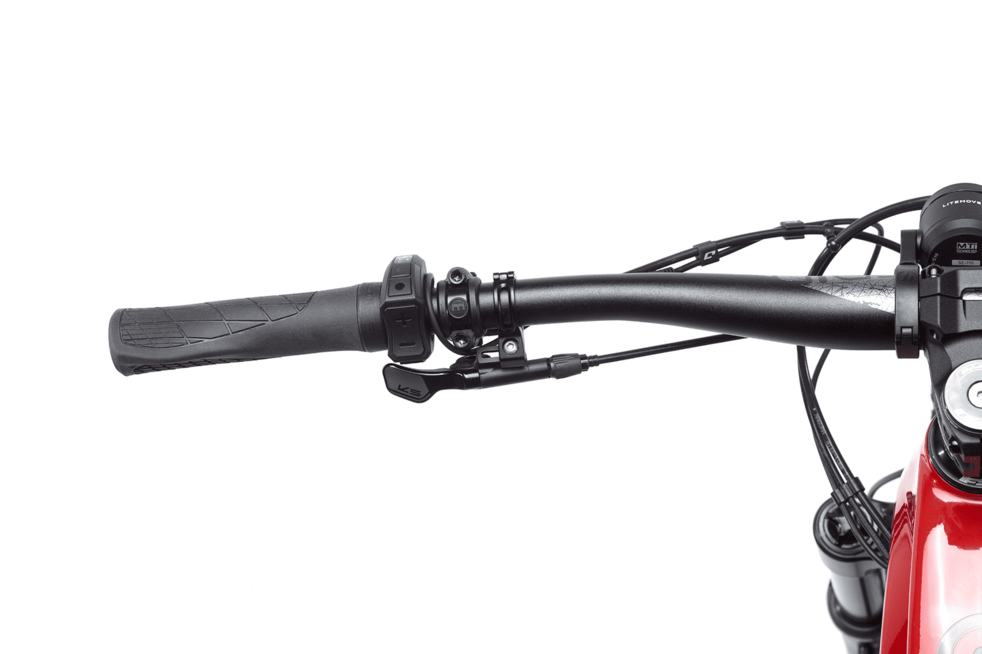

HANDLEBAR

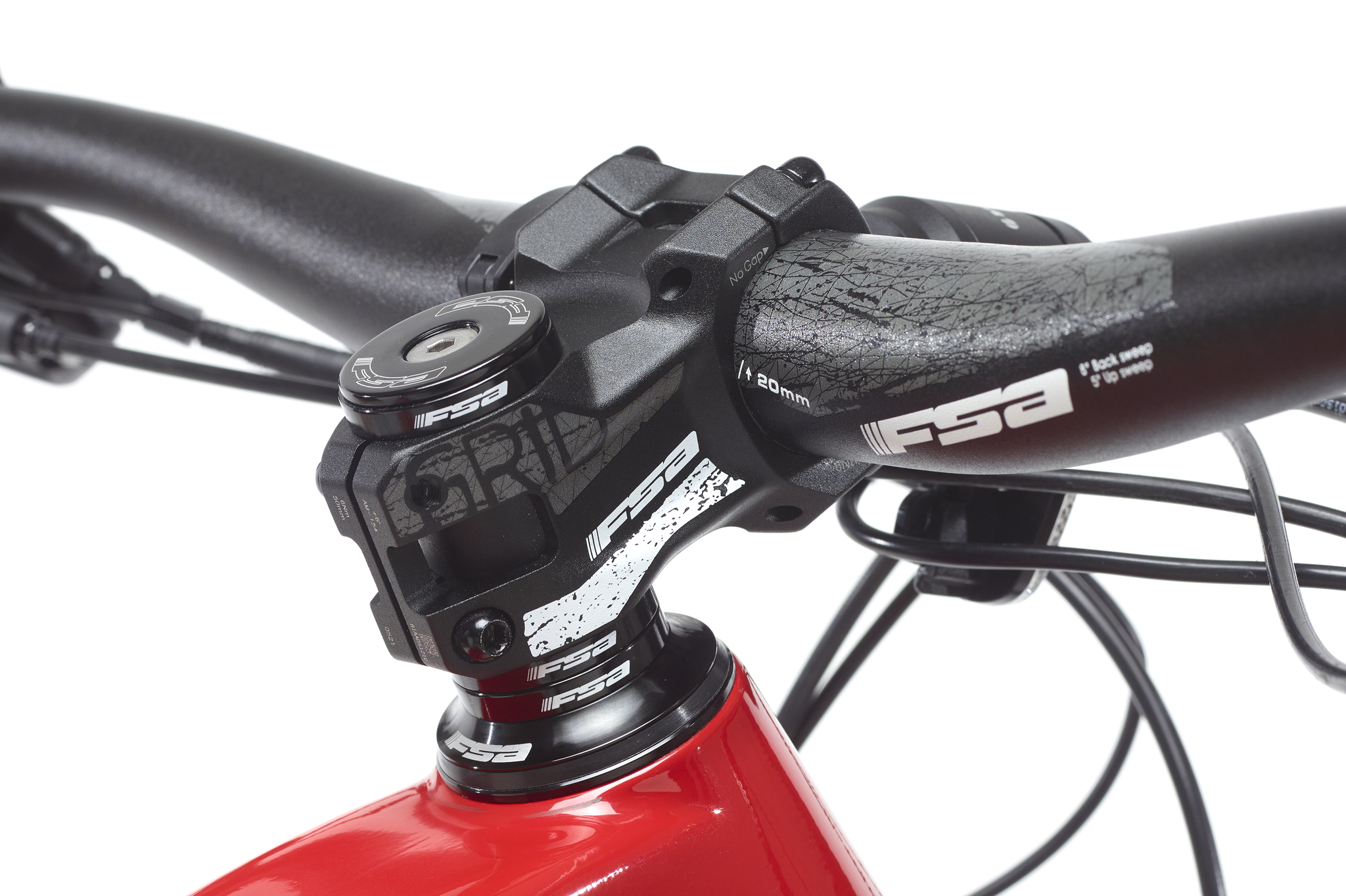

FSA Grid AL 800mm / 35mm / Rise 20mm (Straight)
STEM
FSA Grid 50mm/ 35mm / ±6°
GRIPS
ERGON GA30
WHEELSET
TYRES
SCHWALBE Eddy Current 27,5''x2,6'' / 29''x2,4'' (Tubeless Ready)
WHEEL SIZE
Mullet: 27,5'' / 29''
RIMS
Alloy Double Wall Front: 30mm/ Rear: 35mm (Tubeless Ready)
SPOKES
Black Stainless Steel
FRONT HUB
Boost 110 Thru-axle 15mm
REAR HUB
Boost 148 Thru-axle 12mm
DRIVETRAIN & BRAKES

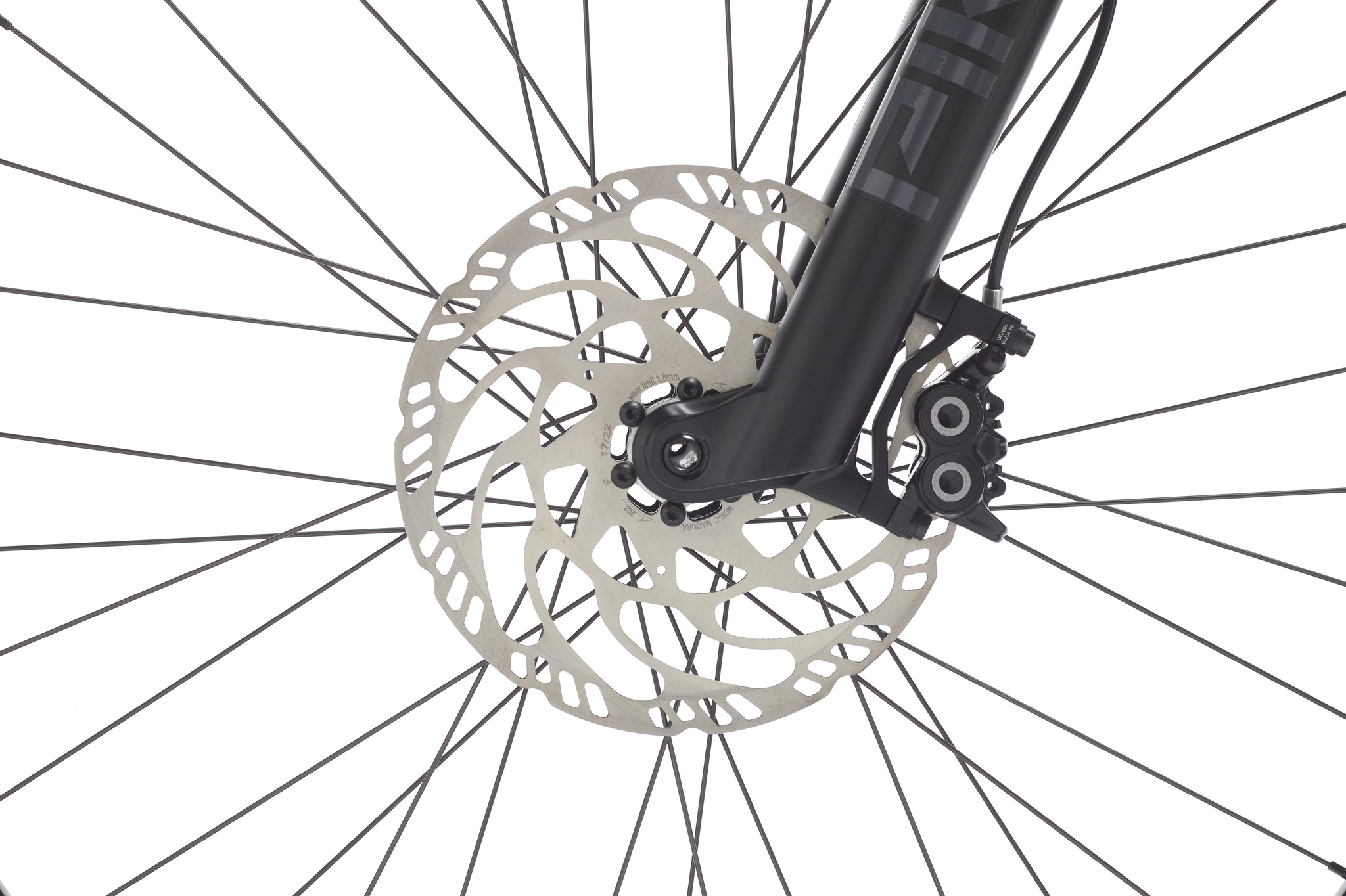

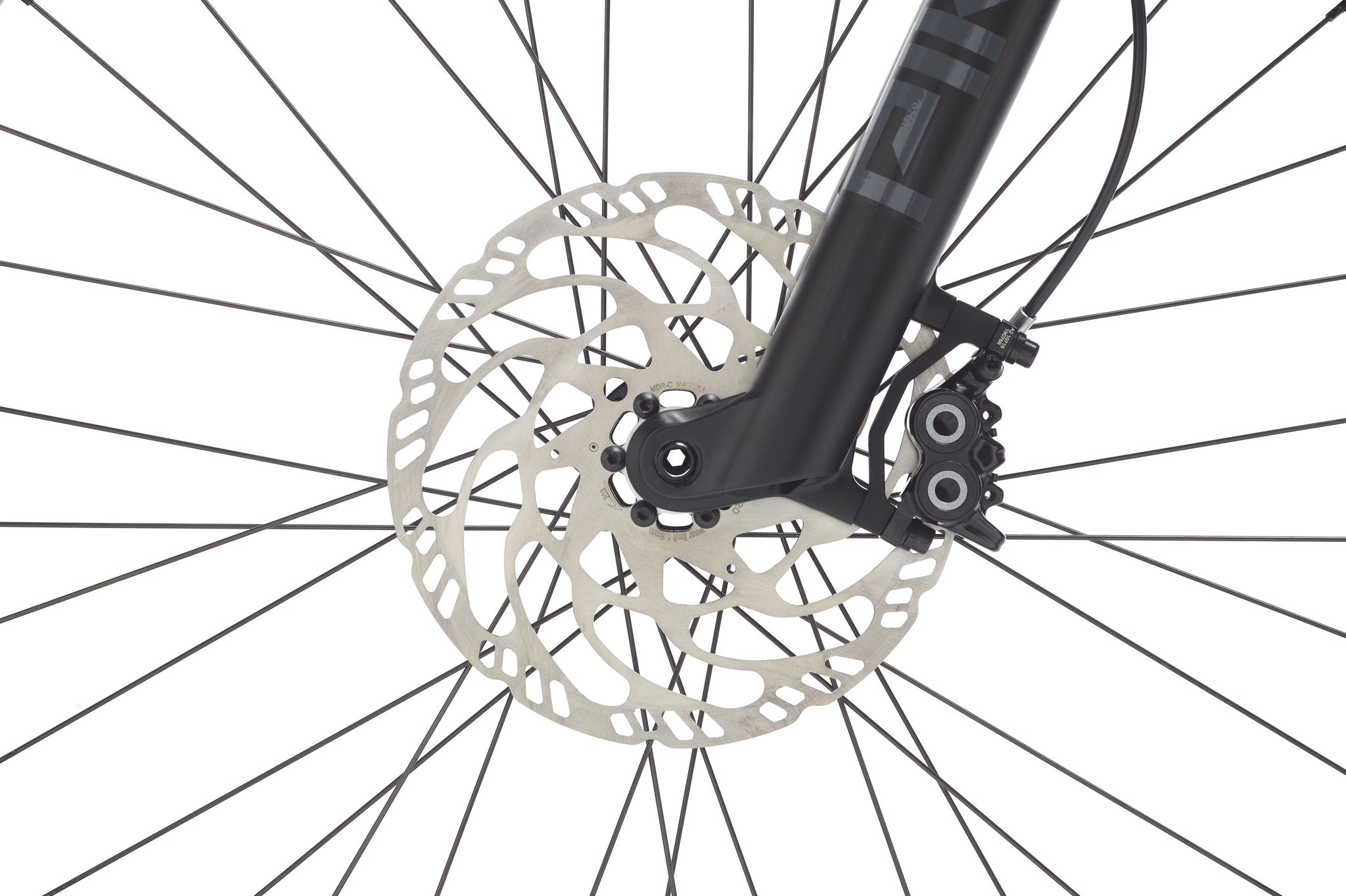

BRAKES
MAGURA Hydraulic MT7
BRAKE ROTOR - Front
MAGURA MDR-C 203mm

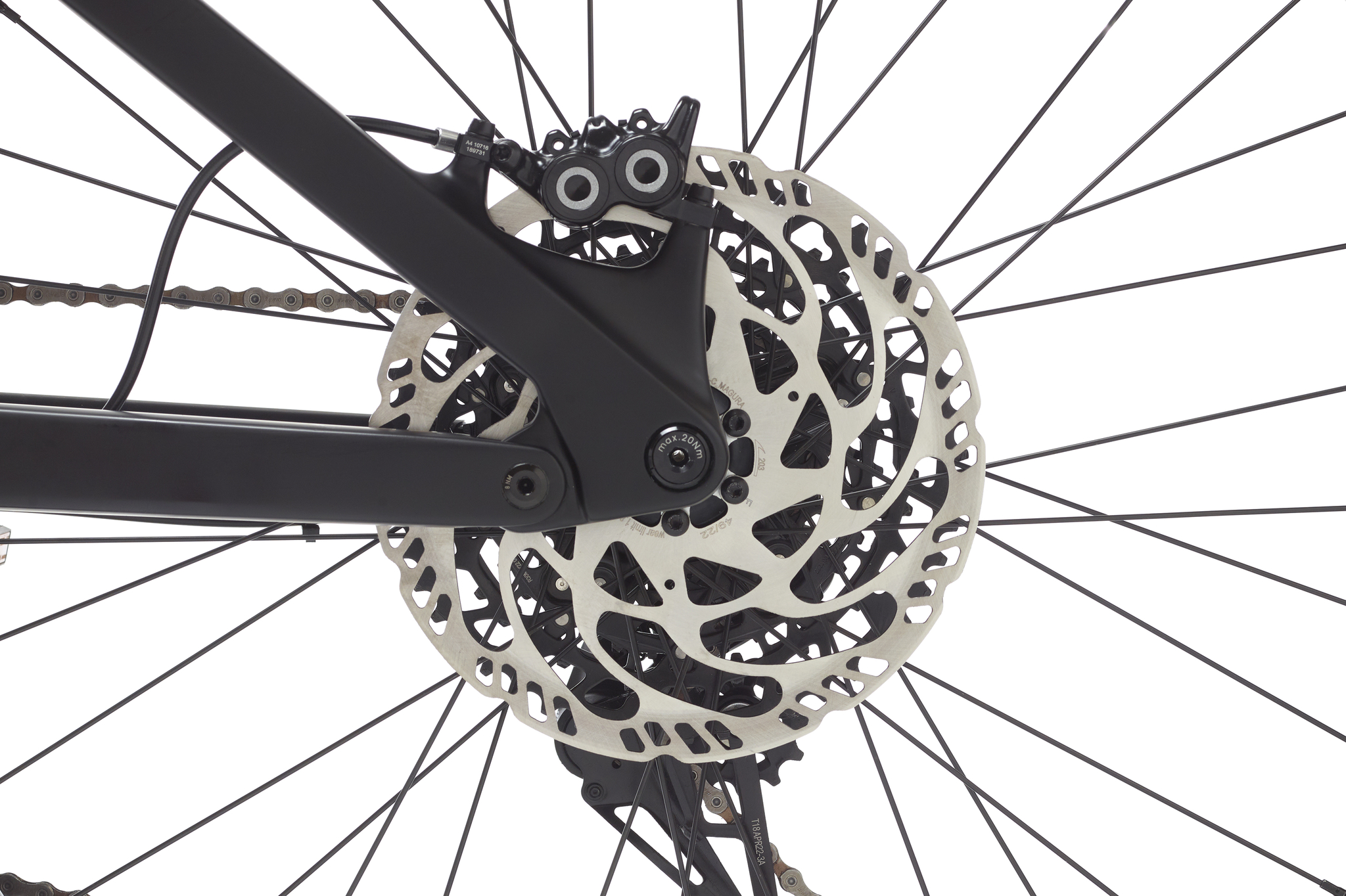

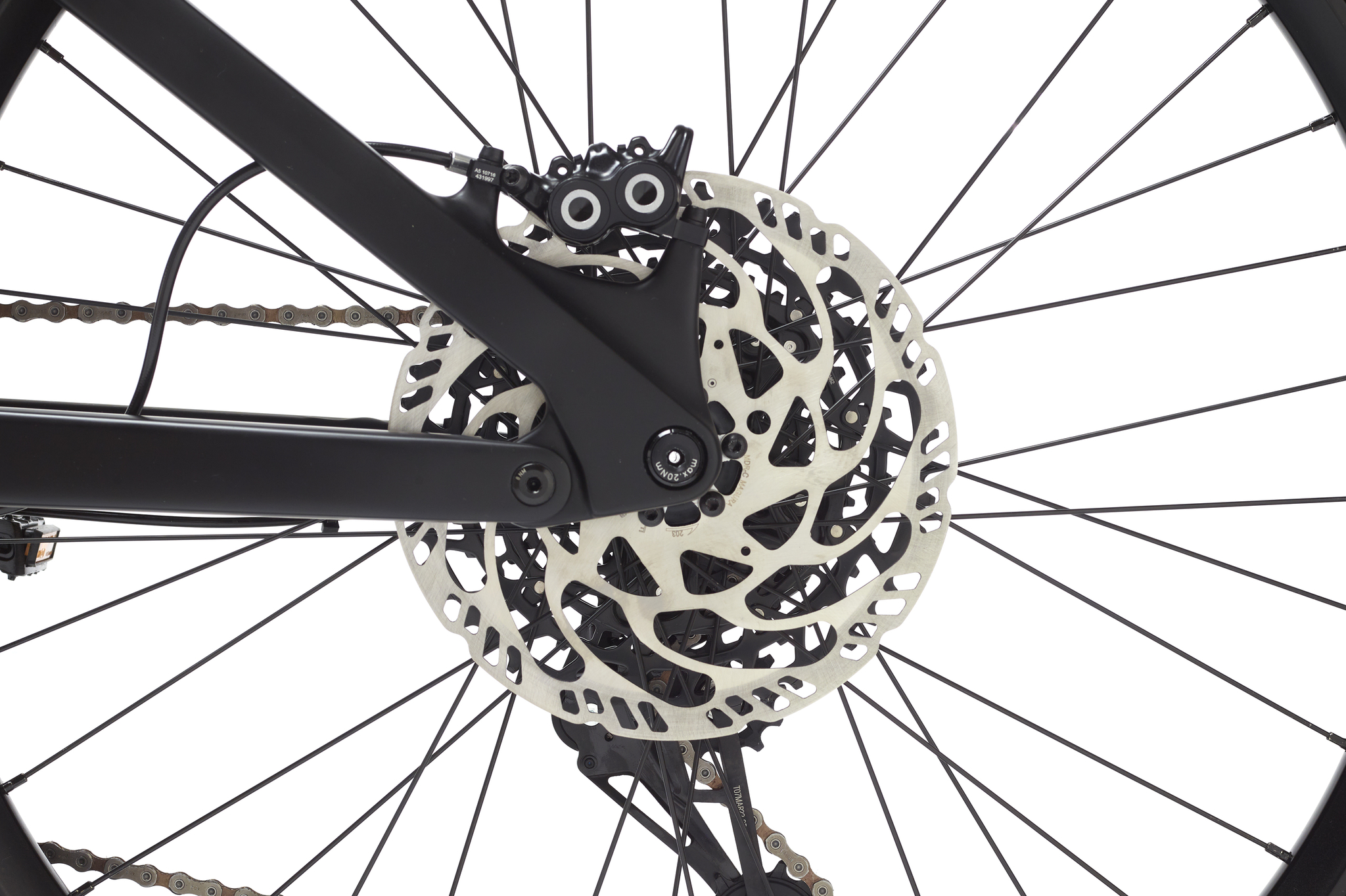

BRAKE ROTOR - Rear
MAGURA MDR-C 203mm

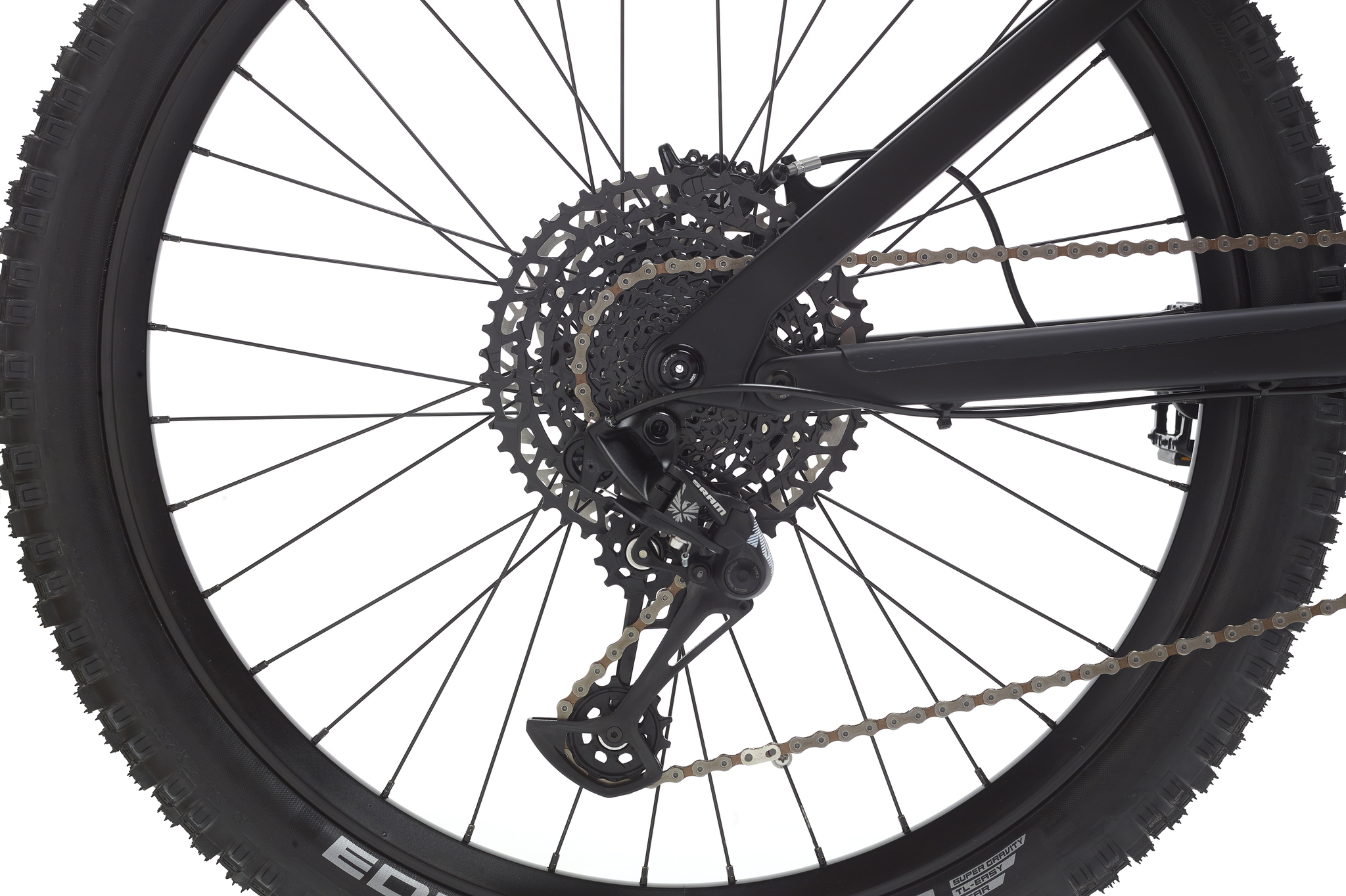

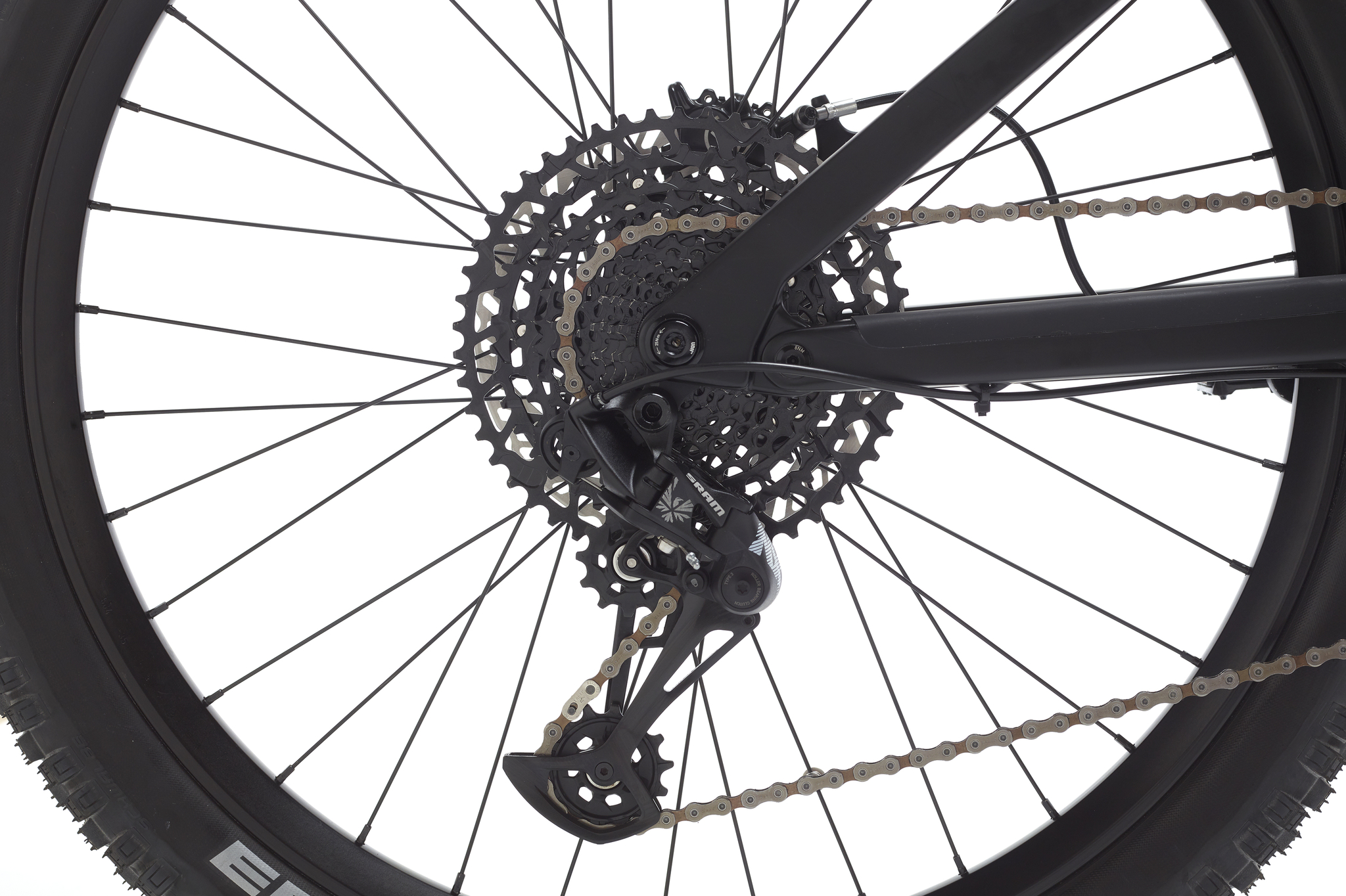

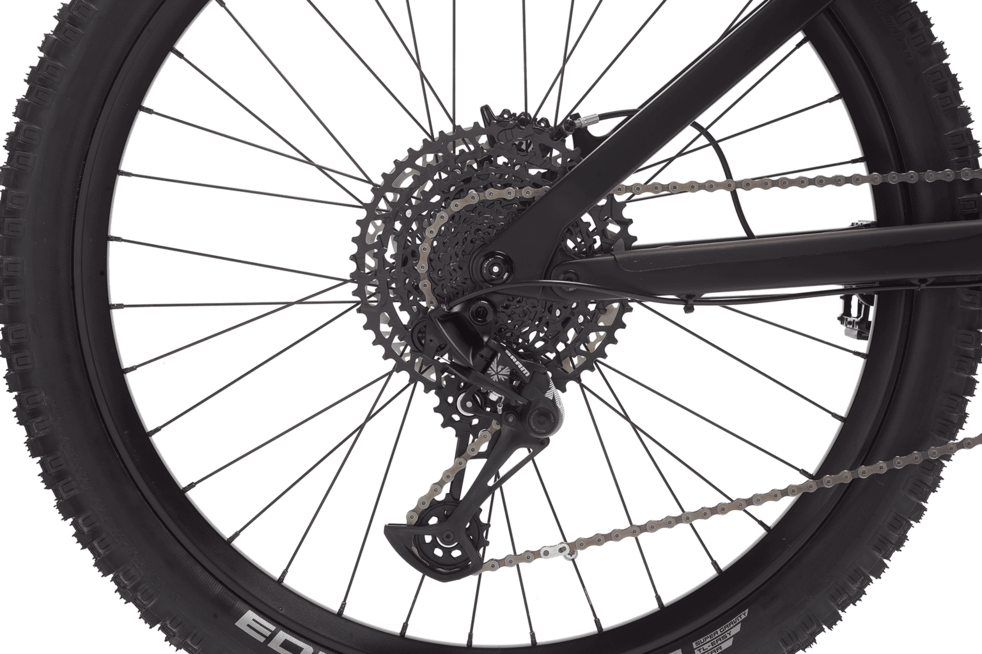

REAR DERRAILEUR
SRAM NX Eagle 12S
CASSETTE
SRAM PG1210 Eagle 12S 11-50T

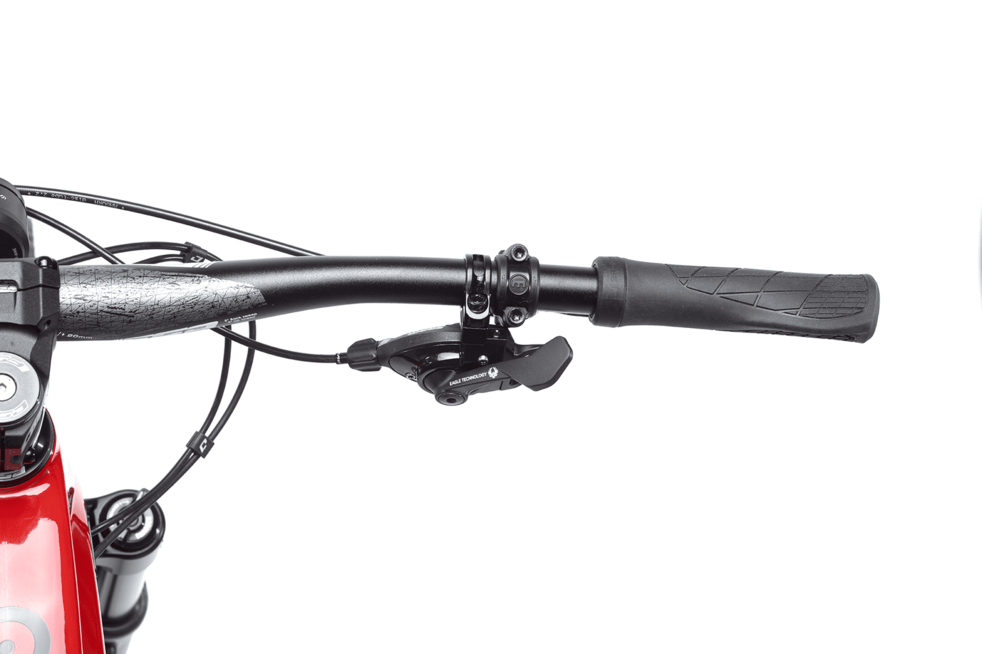

SHIFTERS
SRAM NX Eagle 12S

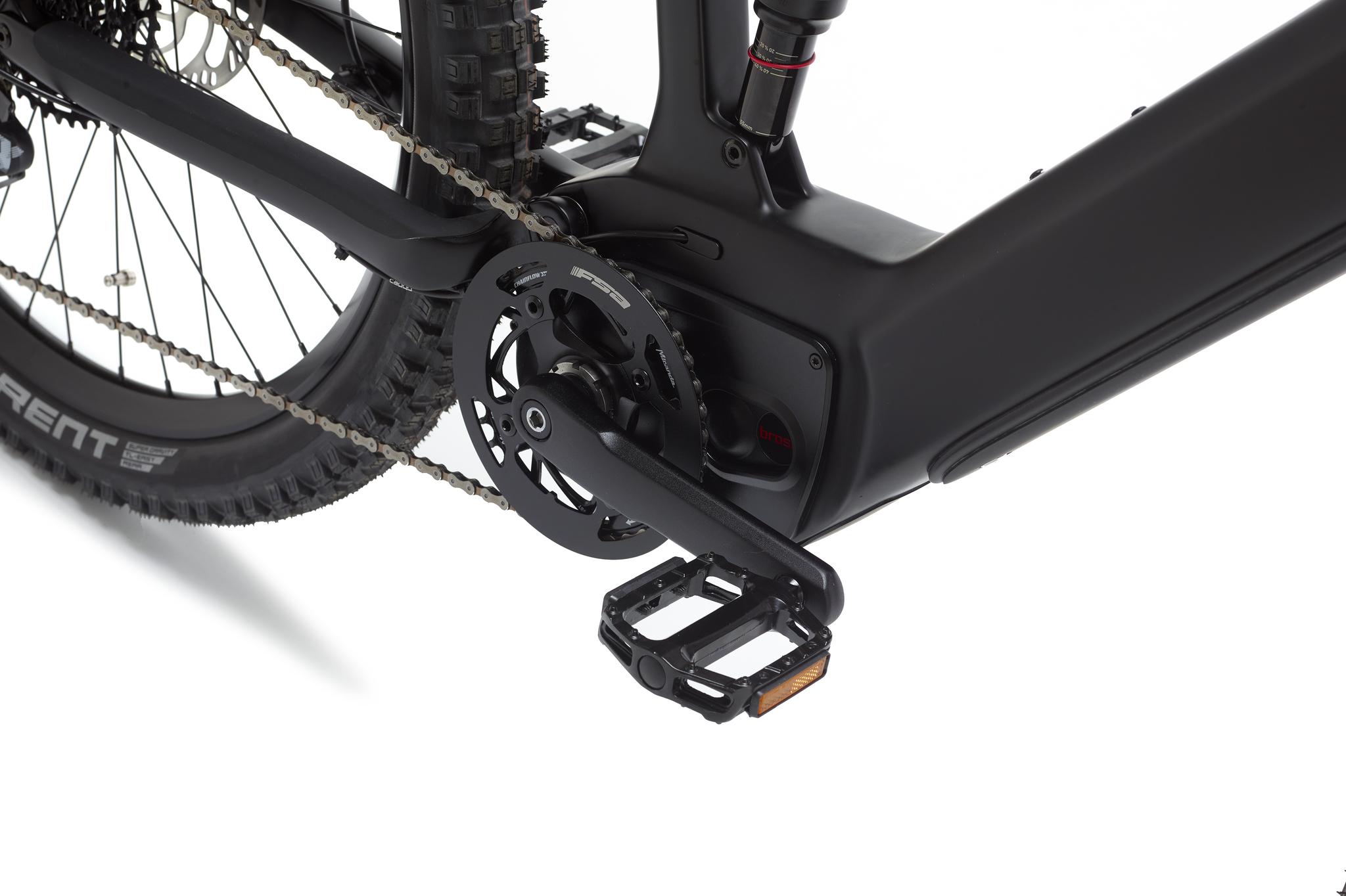

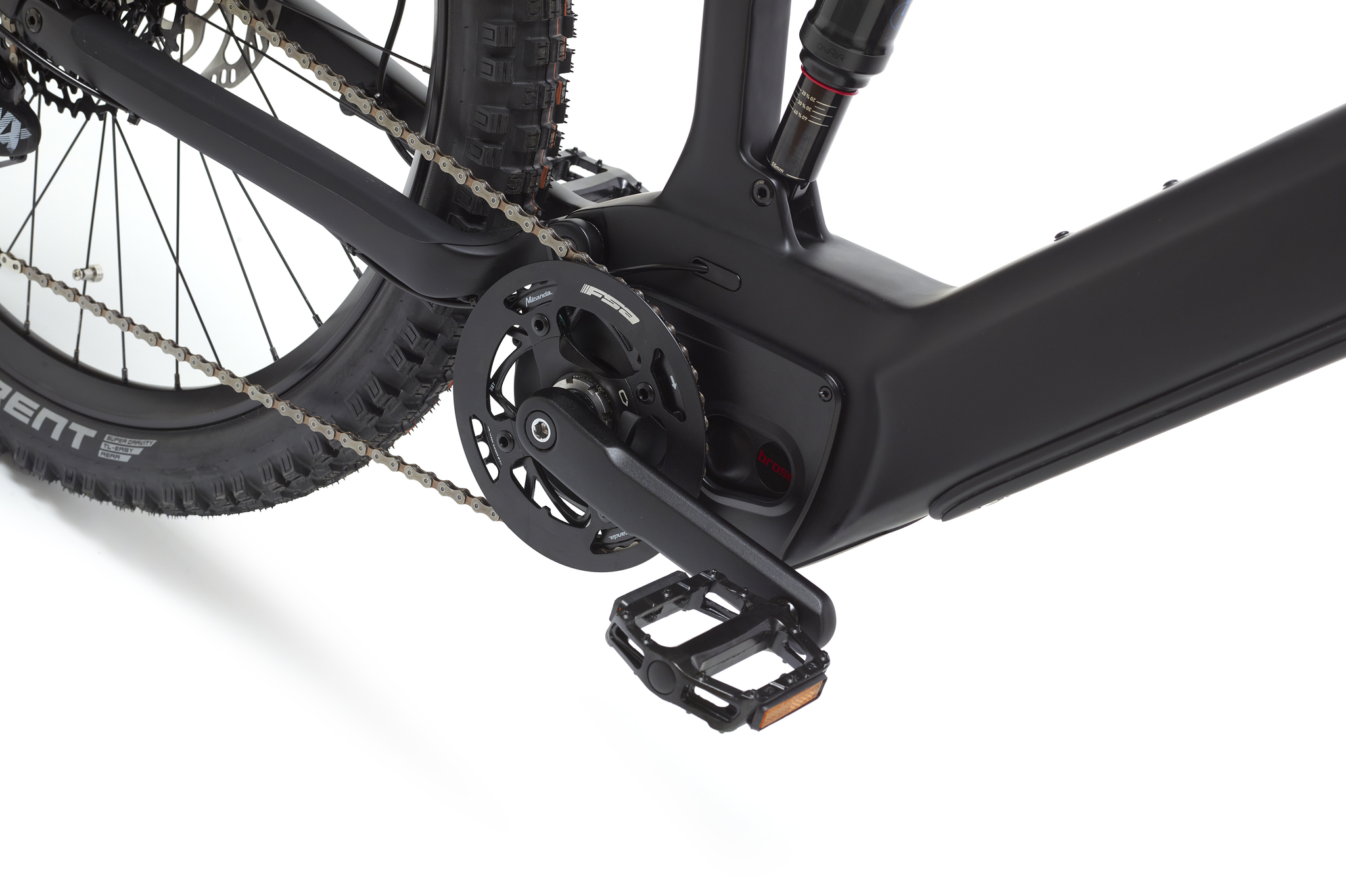

CHAINRING
MIRANDA ChainFlow 3D BCD104 38T
CRANK
SAMOX Shape 175/0
CHAIN
SRAM SX Eagle 12S
CHAINGUARD
Yes - FSA
SAFETY & ACESSORIES

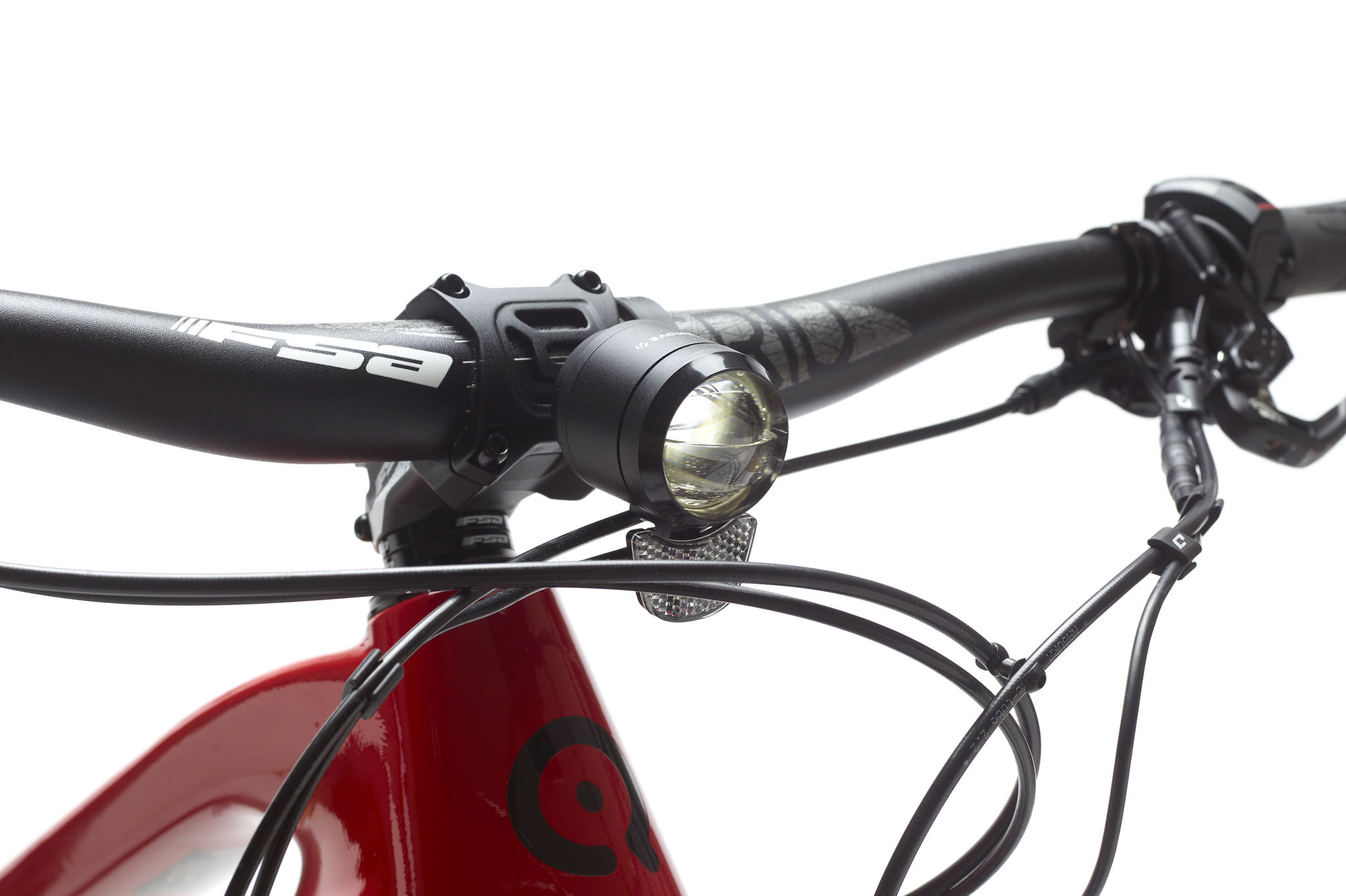

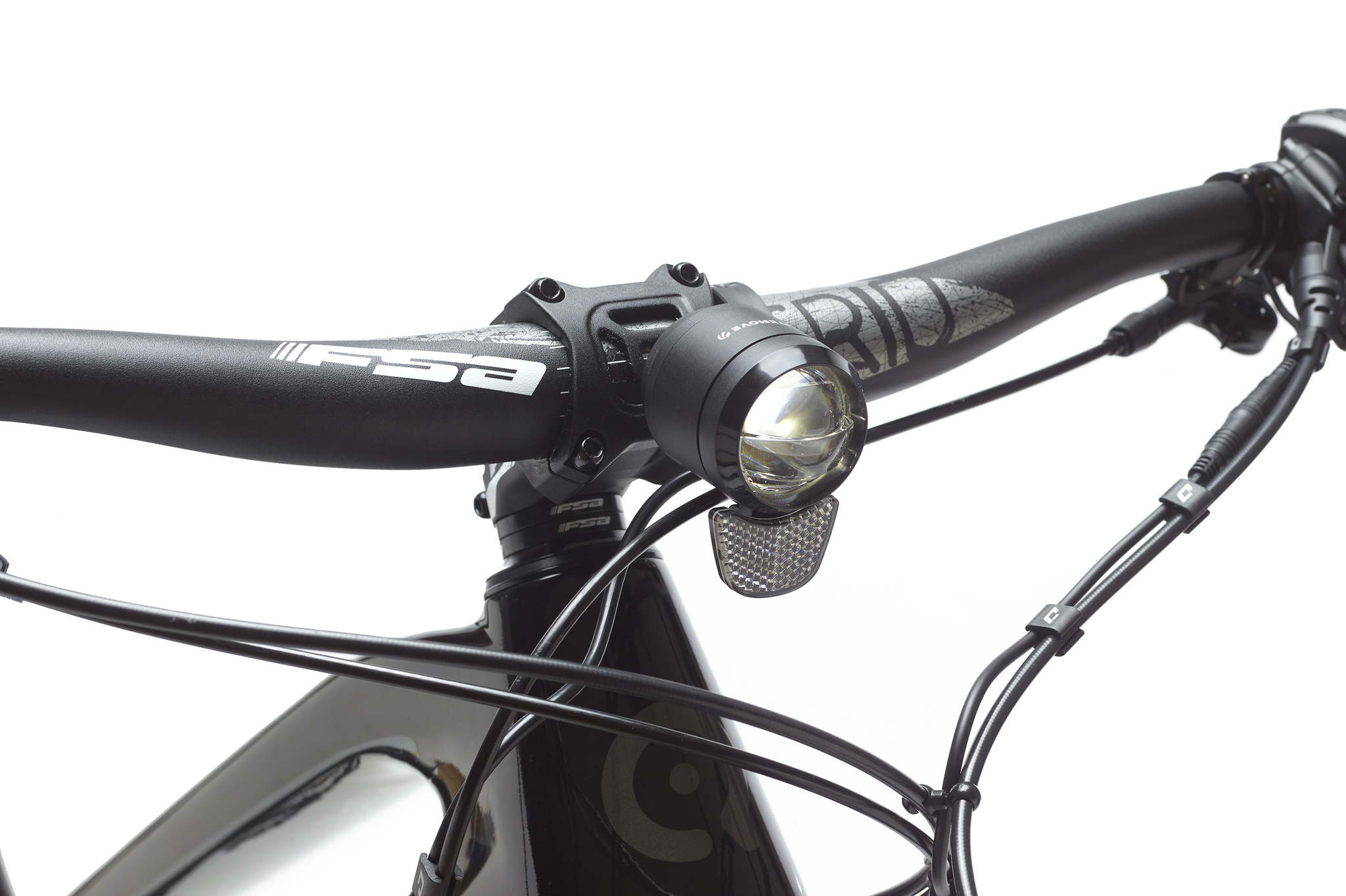

FRONT LIGHT
LITEMOVE SE-110 with reflector 110 Lux

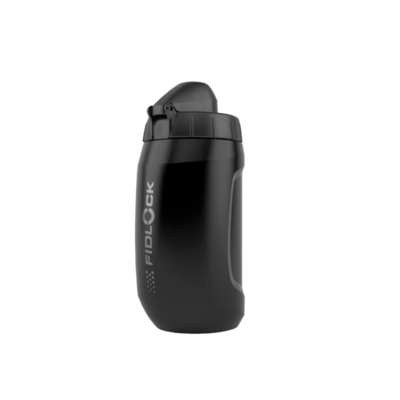

BOTTLE CAGE
Not included. Sold separately.

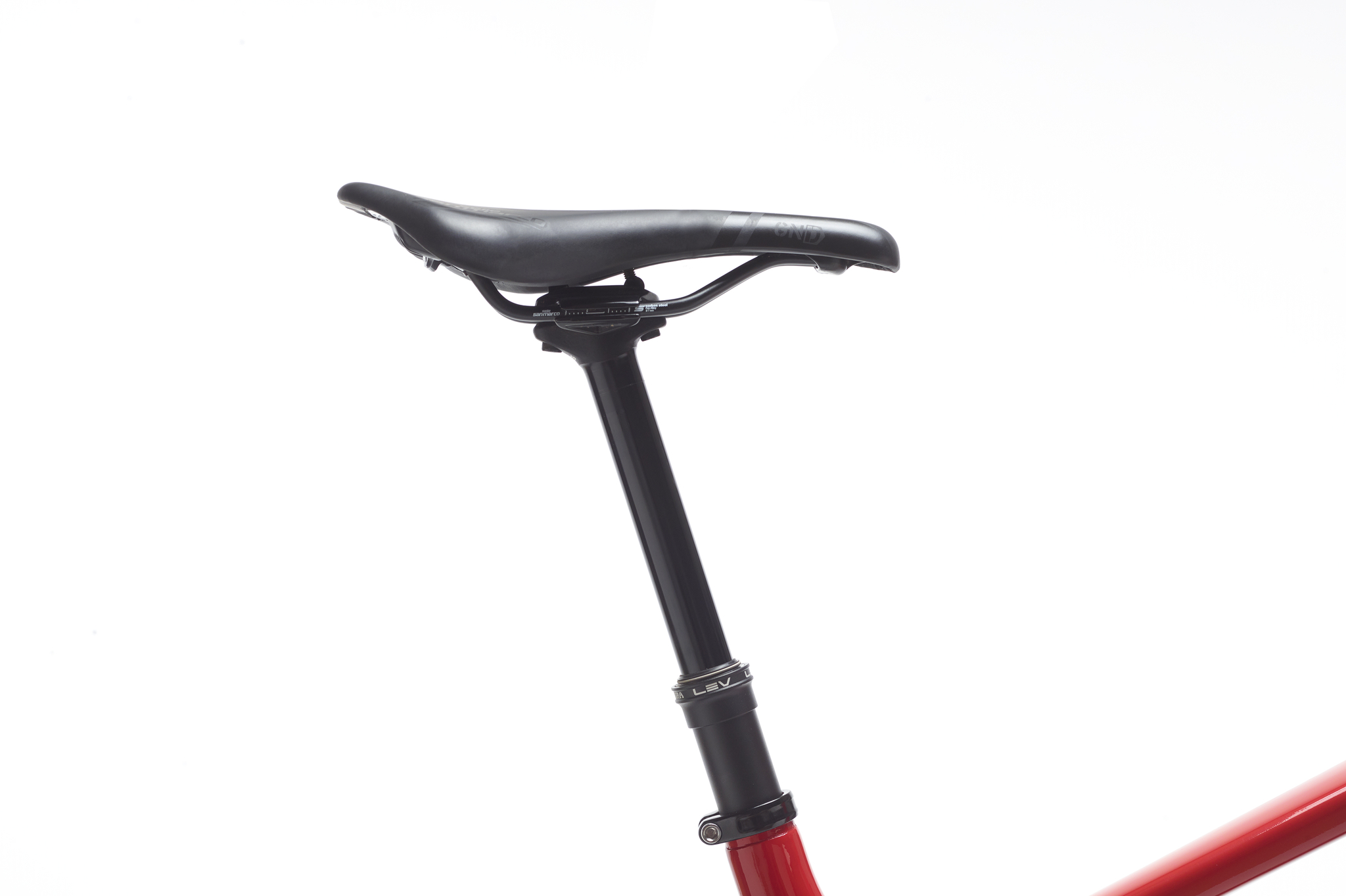

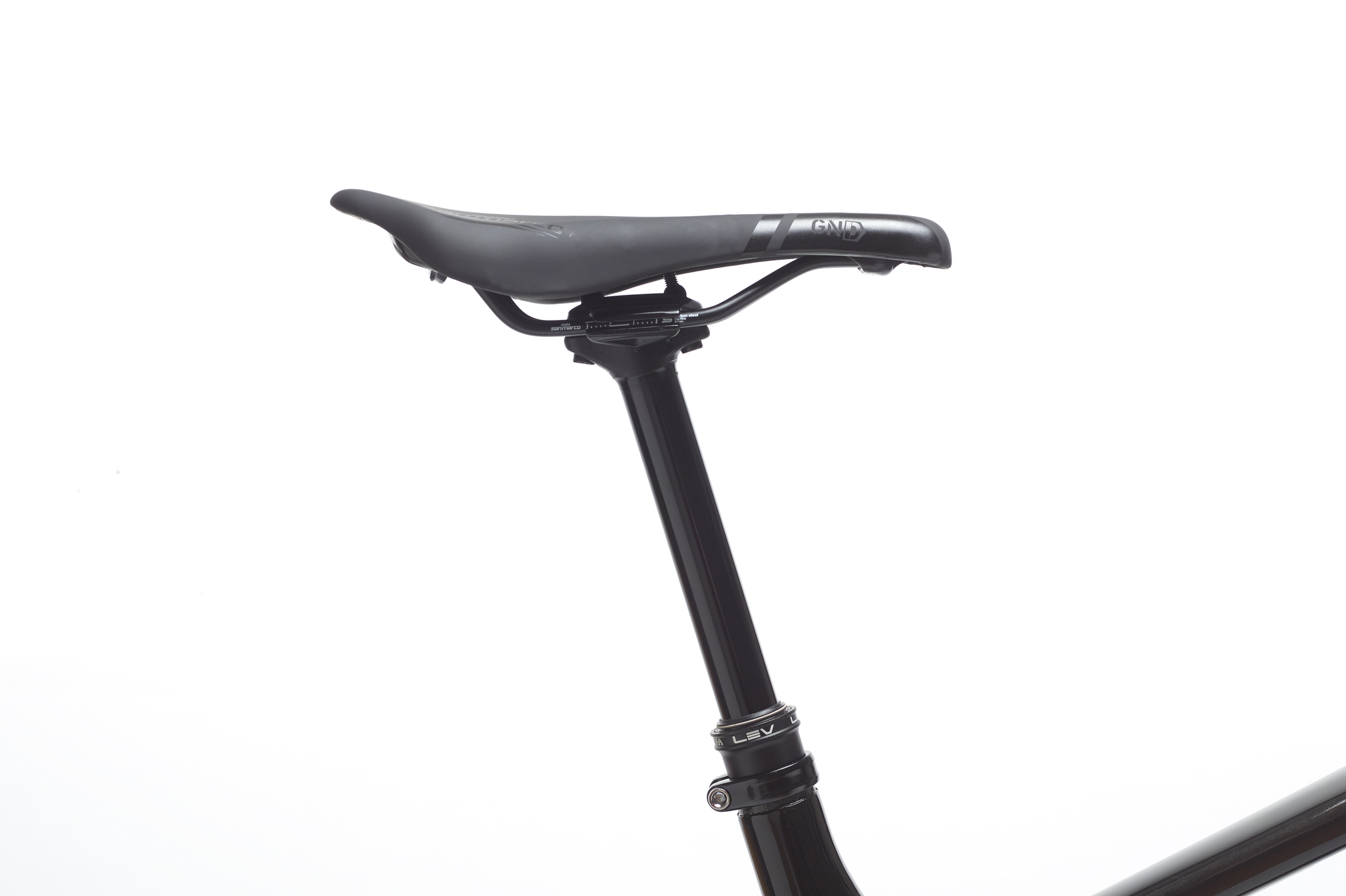

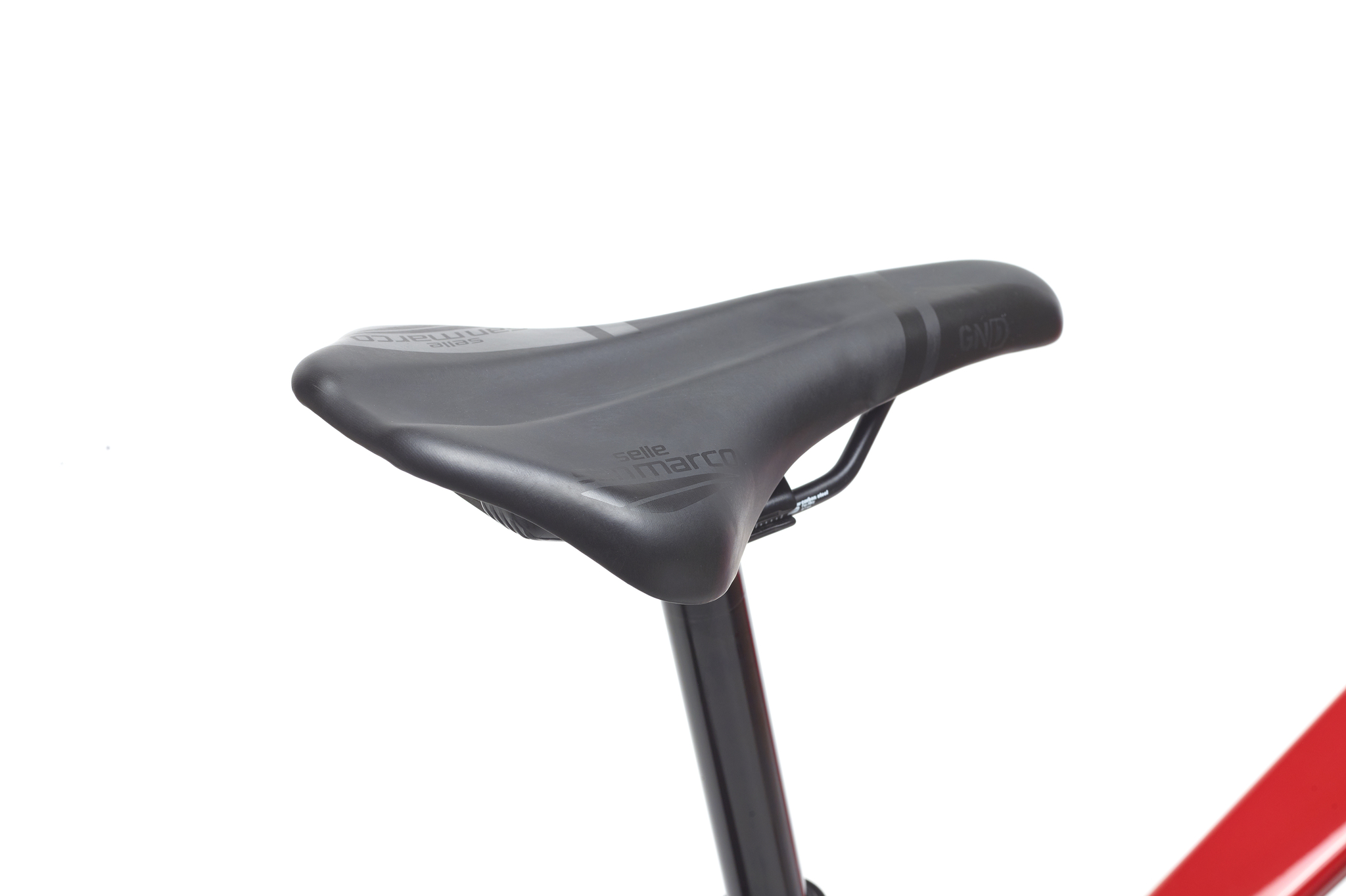

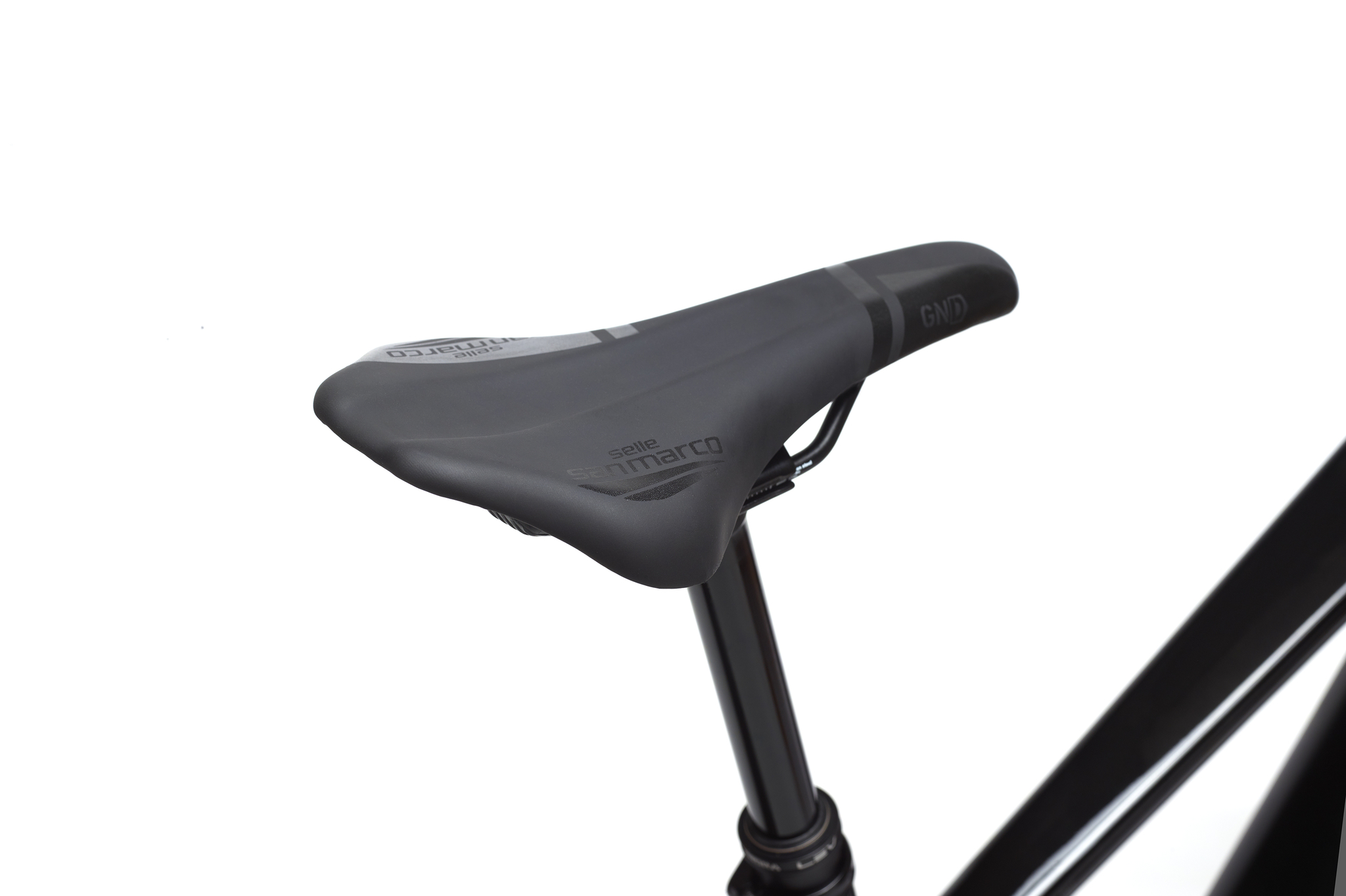

SADDLE
SELLE SAN MARCO GND
SEAT POST
KindShock Dropper Post Lev Integra Travel 150mm
SEAT CLAMP
Alloy black with screw

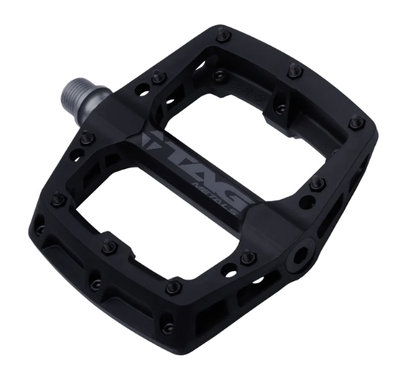

PEDALS
M-WAVE A10 Flat with reflectors
