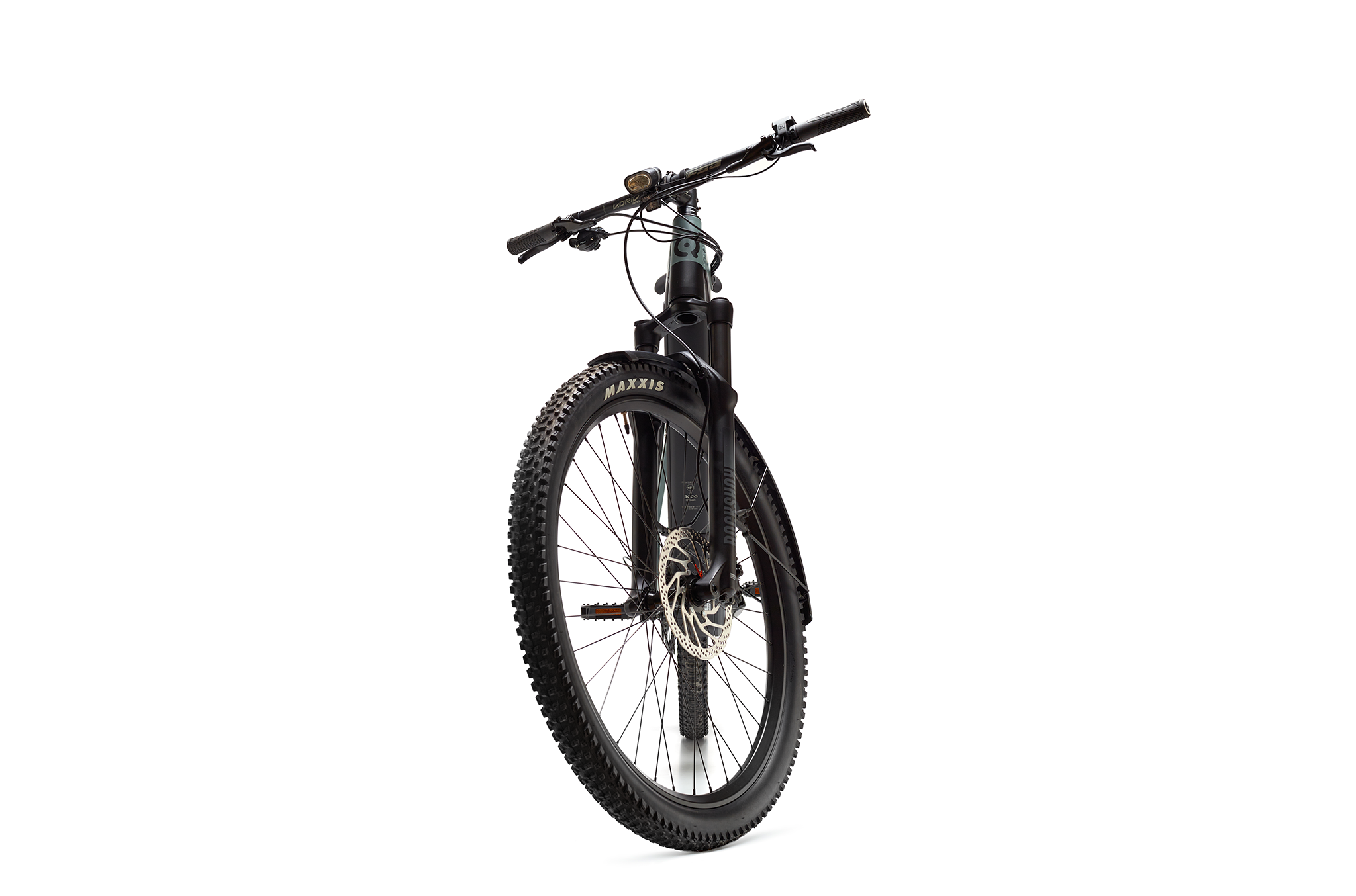

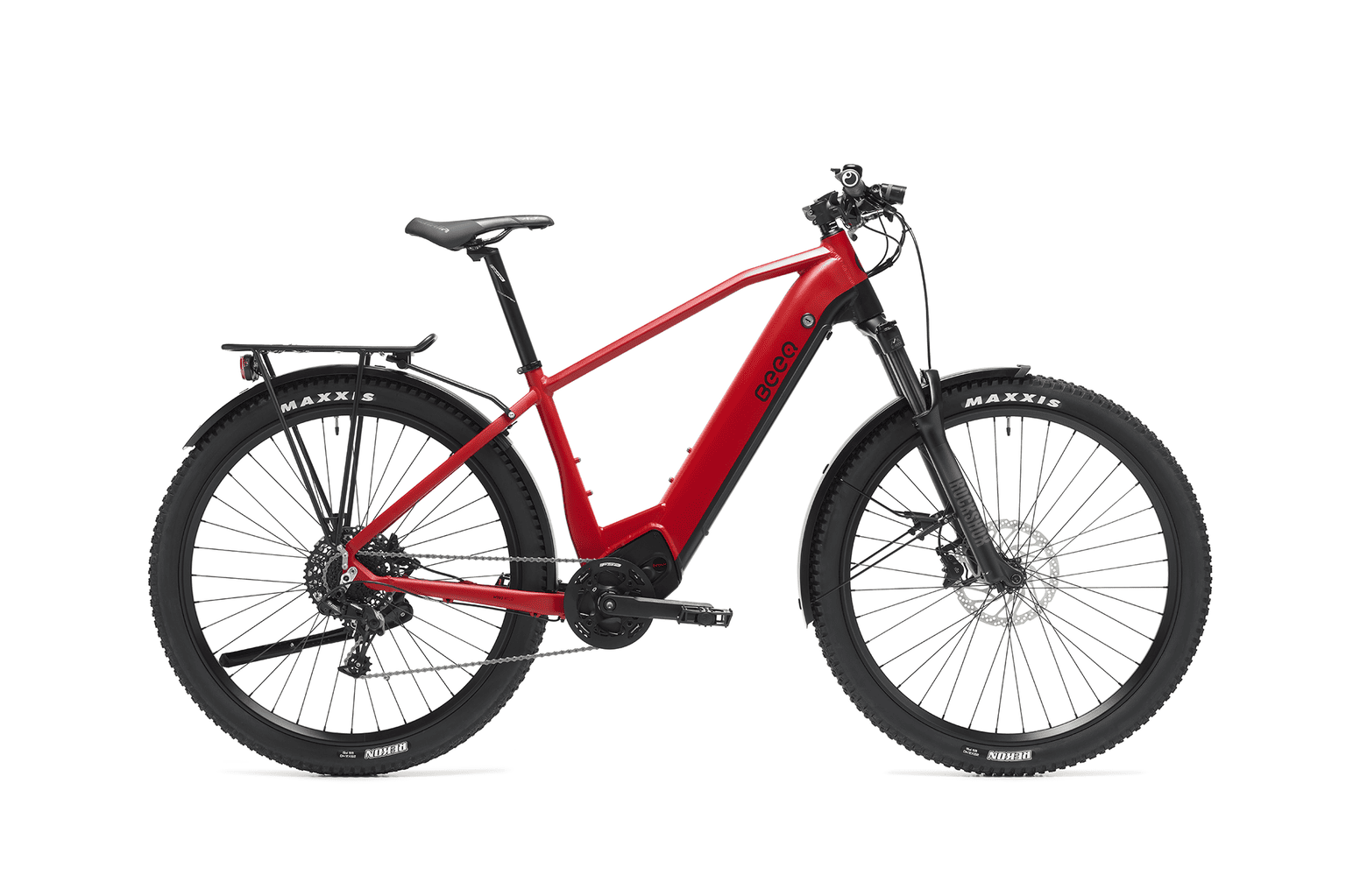

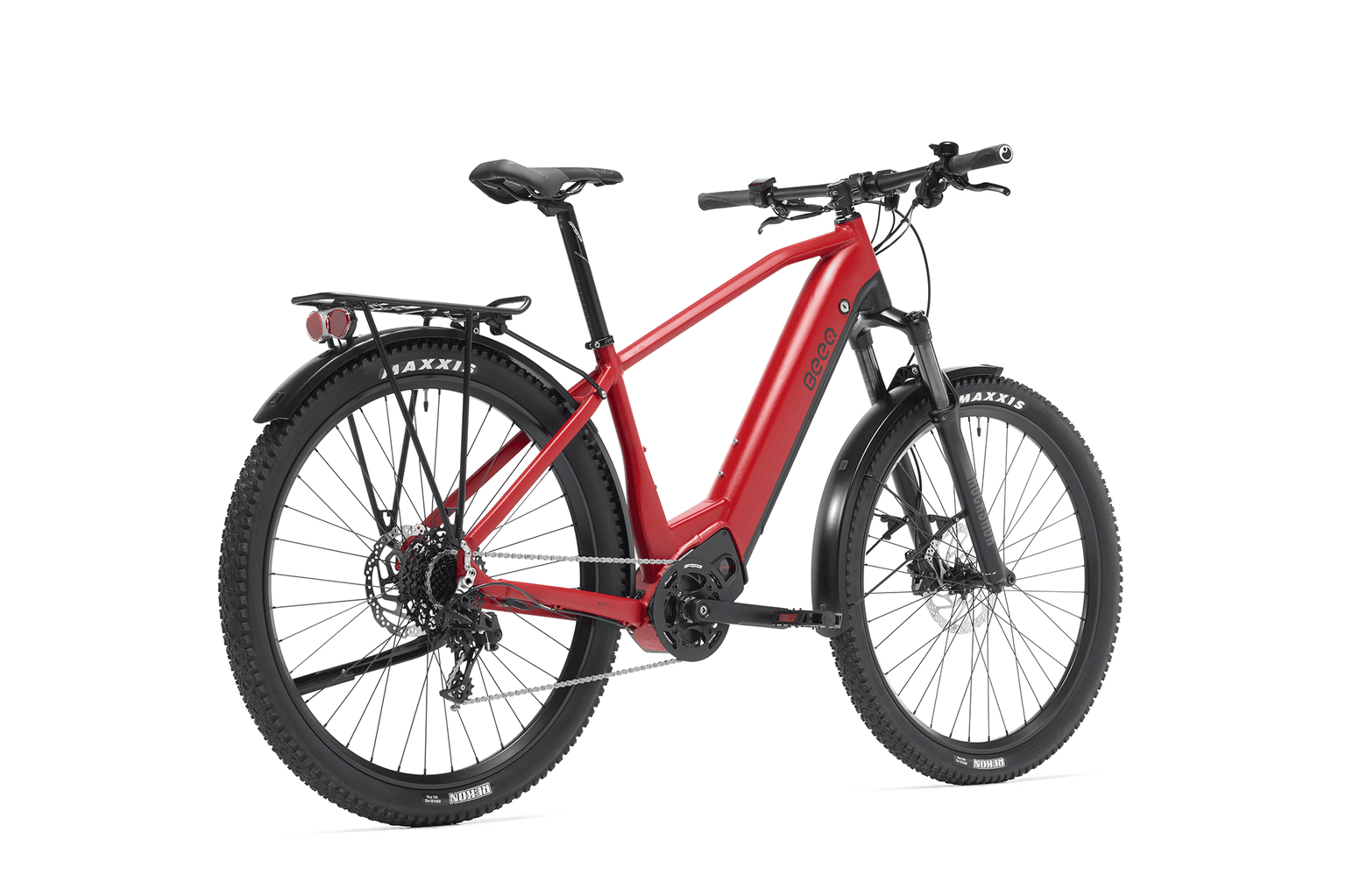

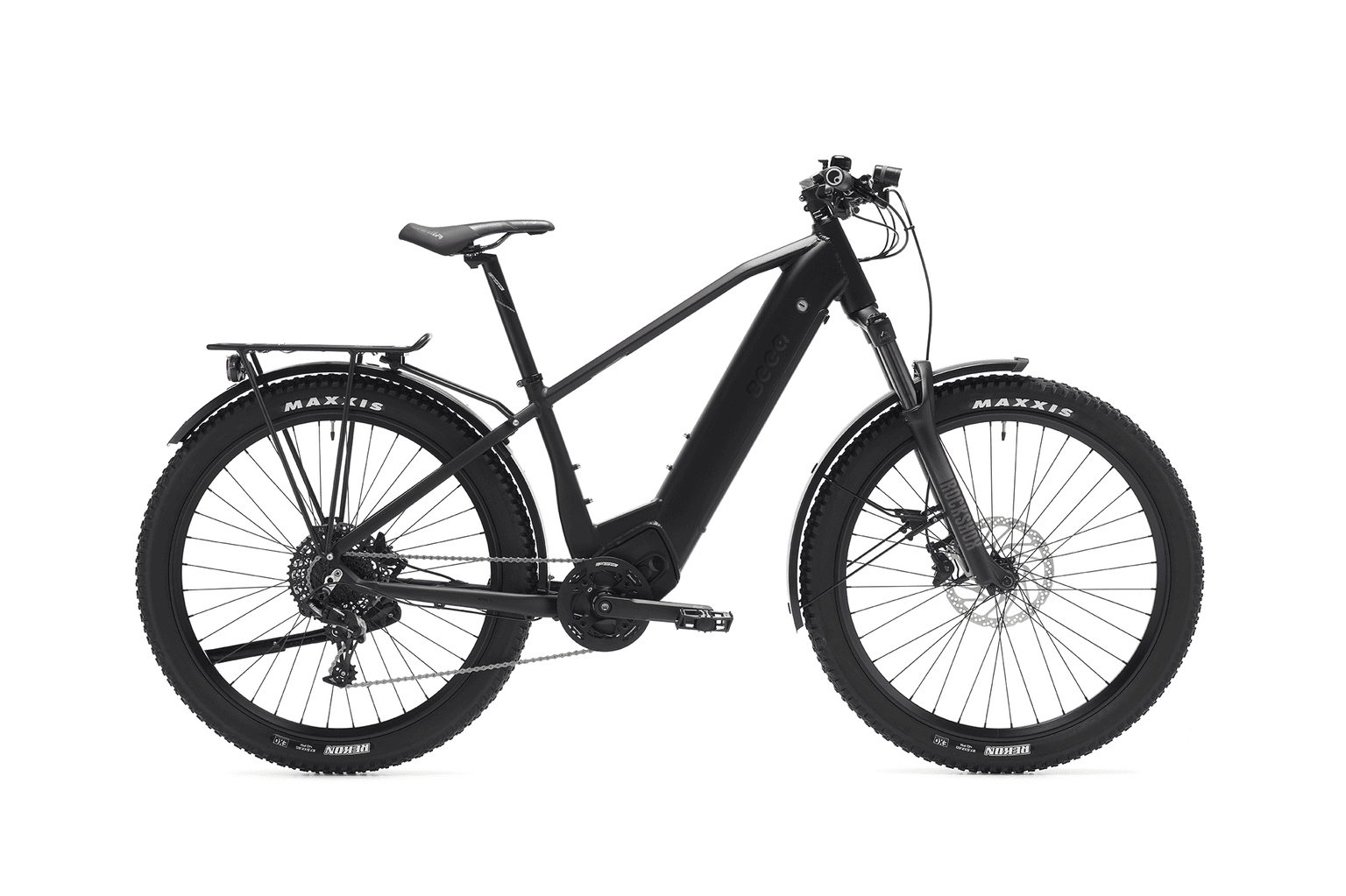

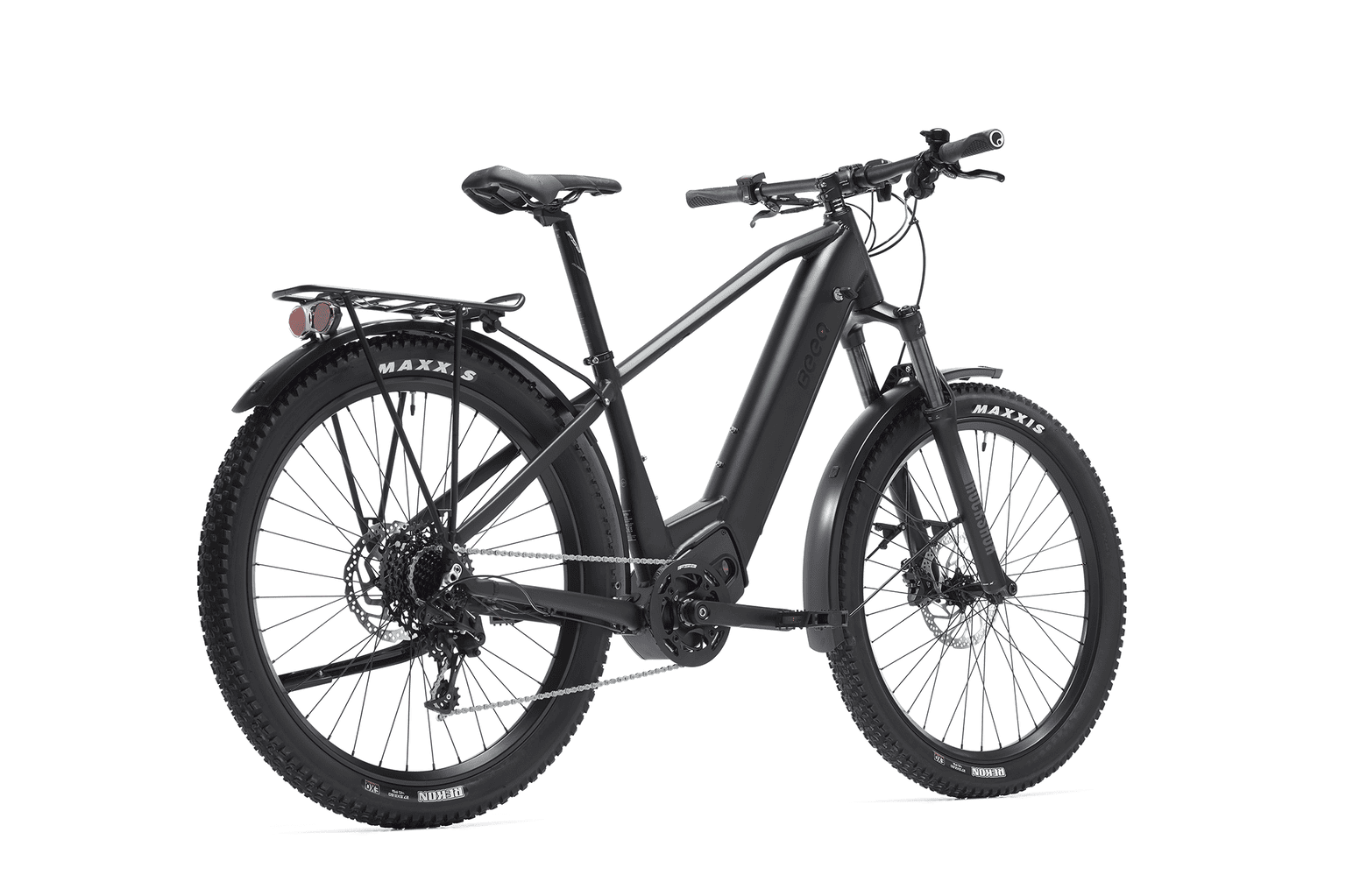

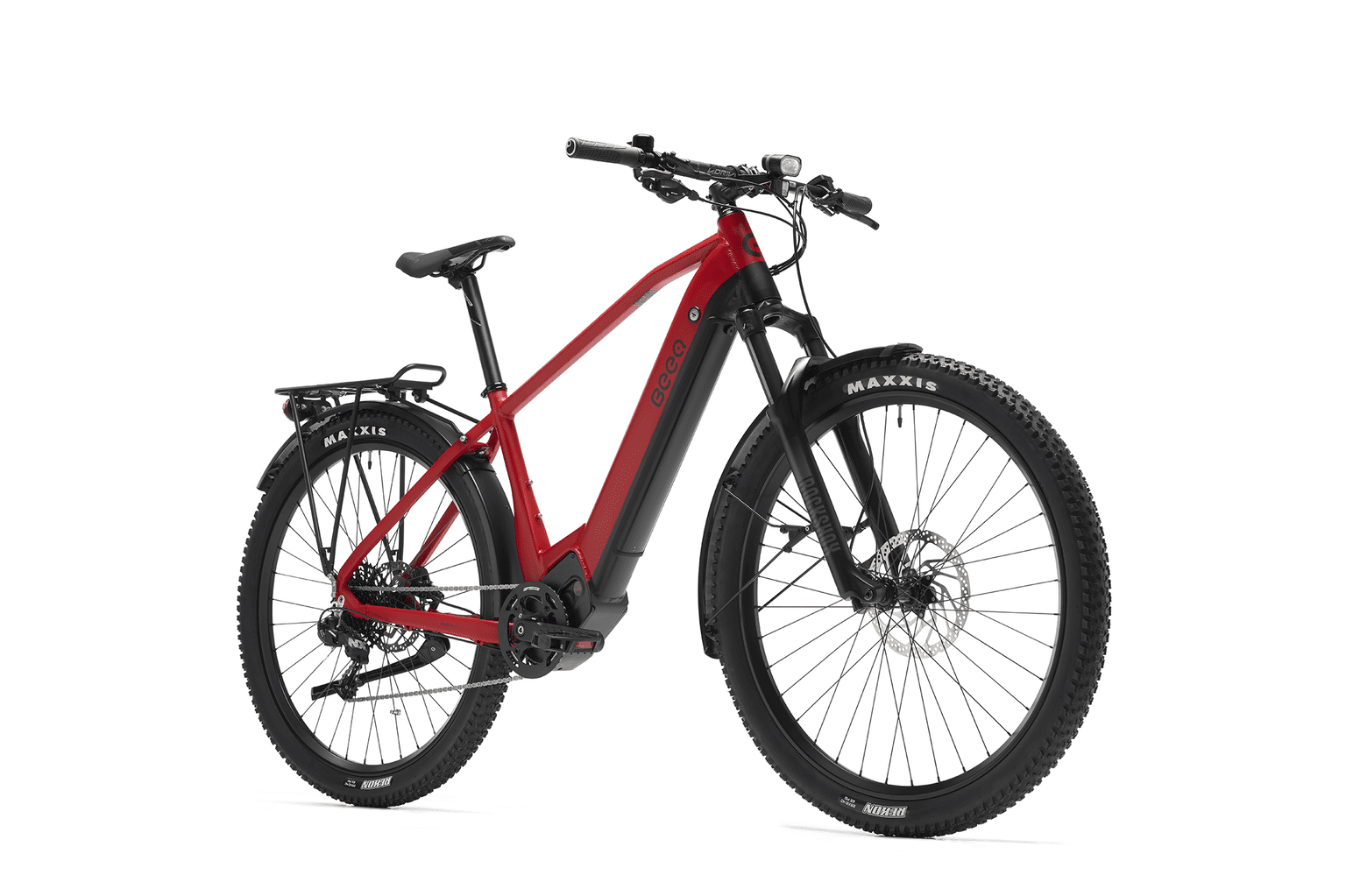

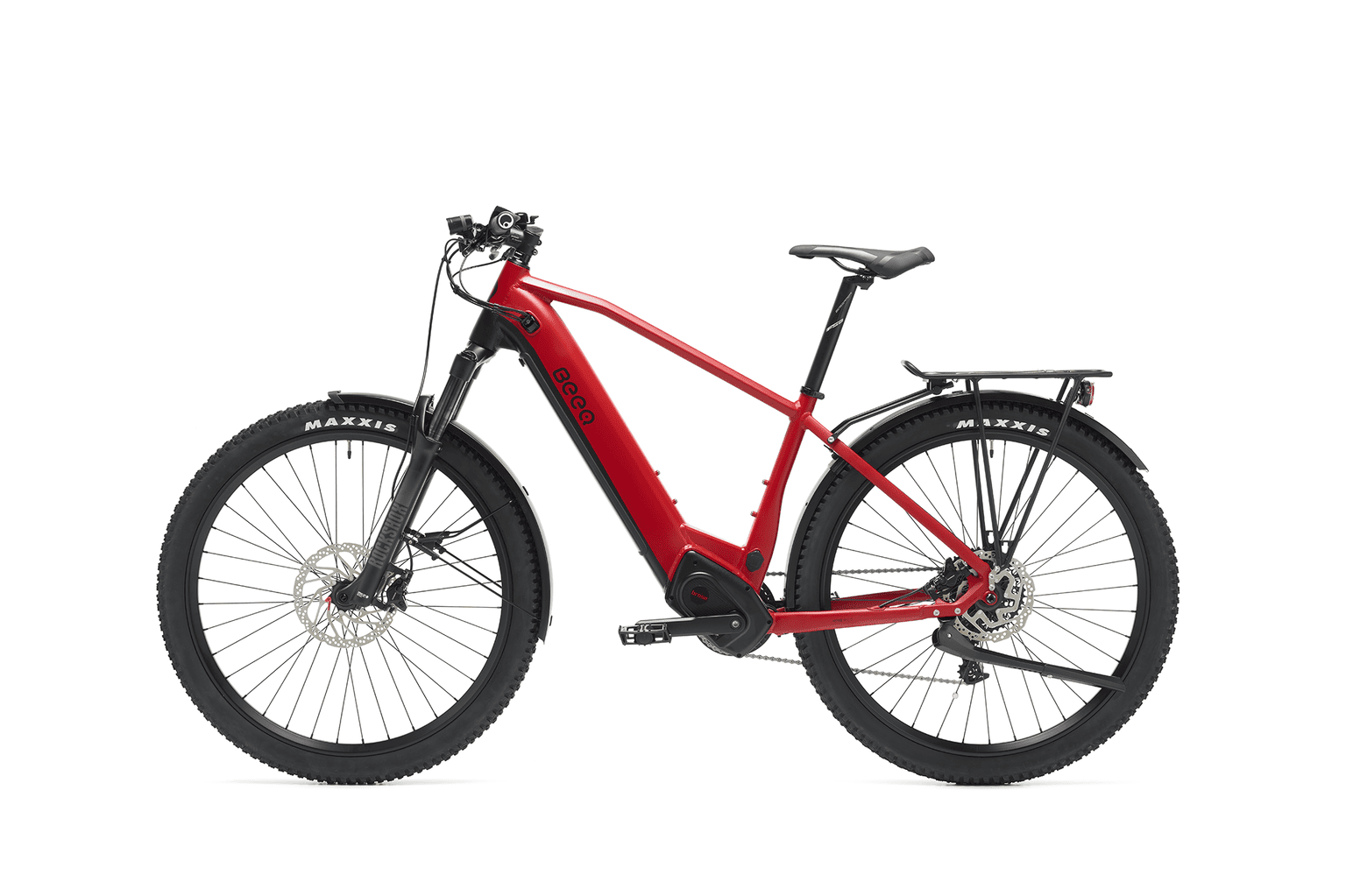

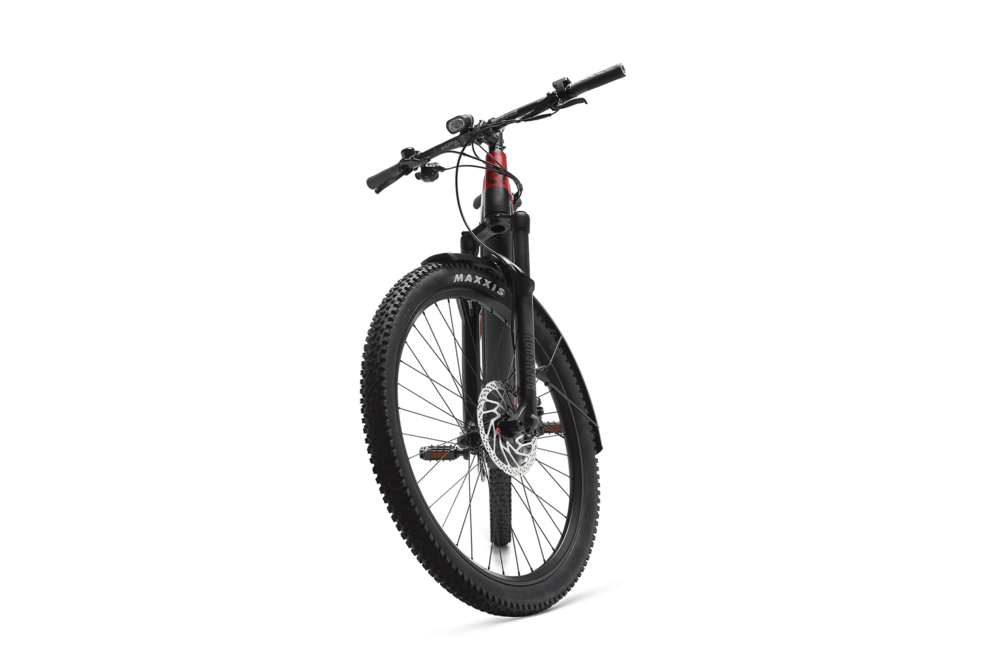

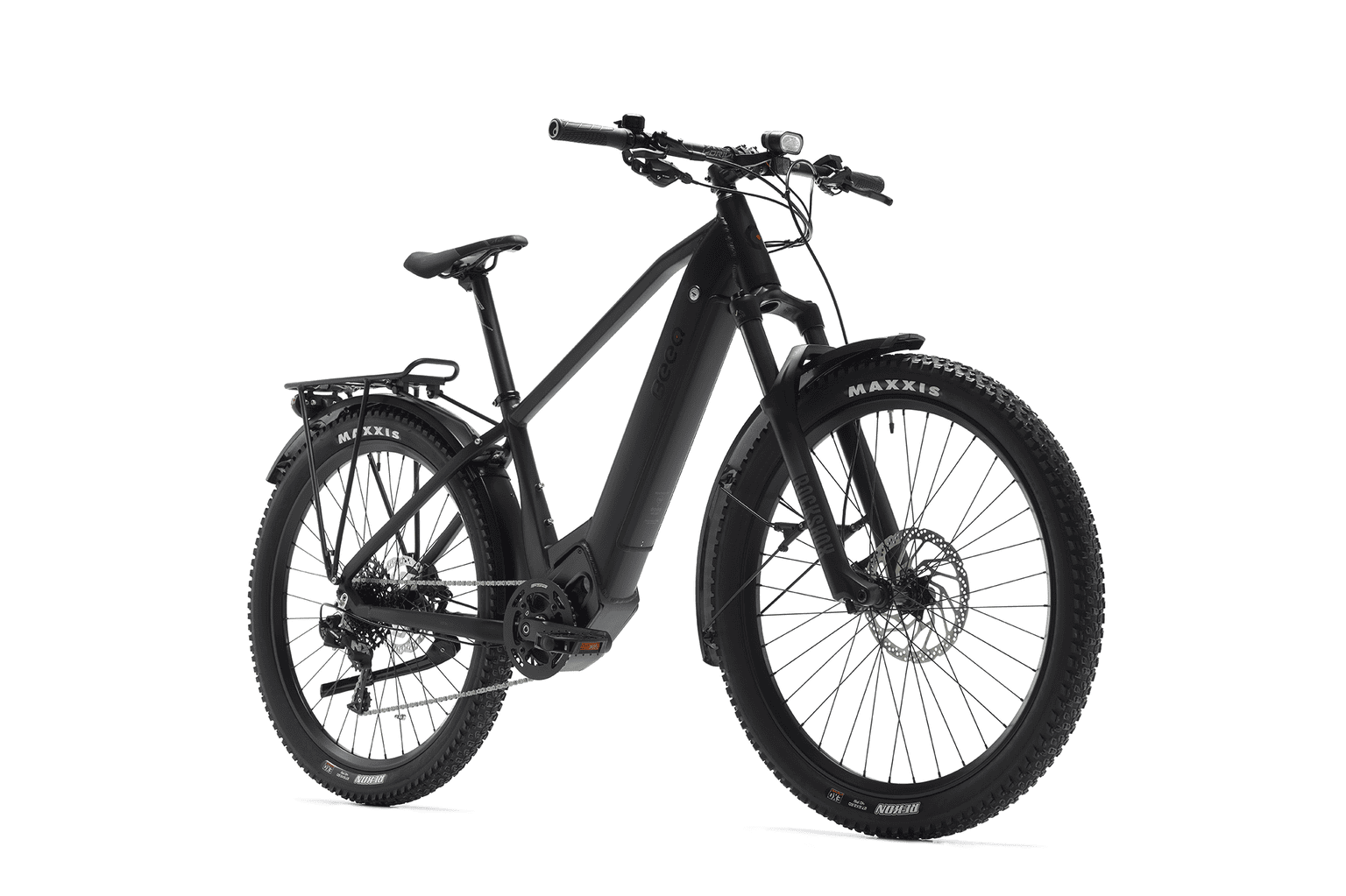

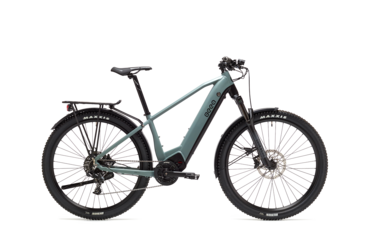

M700 Wild ATB
Colour
Pure Red
60 months
60,06 £
- 3 months - 883,53 £ / month
- 6 months - 447,76 £ / month
- 12 months - 229,84 £ / month
- 24 months - 123,13 £ / month
- 36 months - 87,82 £ / month
- 48 months - 70,40 £ / month
- 60 months - 60,06 £ / month
3 Year Guarantee
30 Days For Returns
Deliveries in 5 Working Days
RANGE
Experience the convenience of traveling from 40km up to 100km on a single battery charge with assisted riding, thanks to the efficient 522Wh 36V battery.
MOTOR

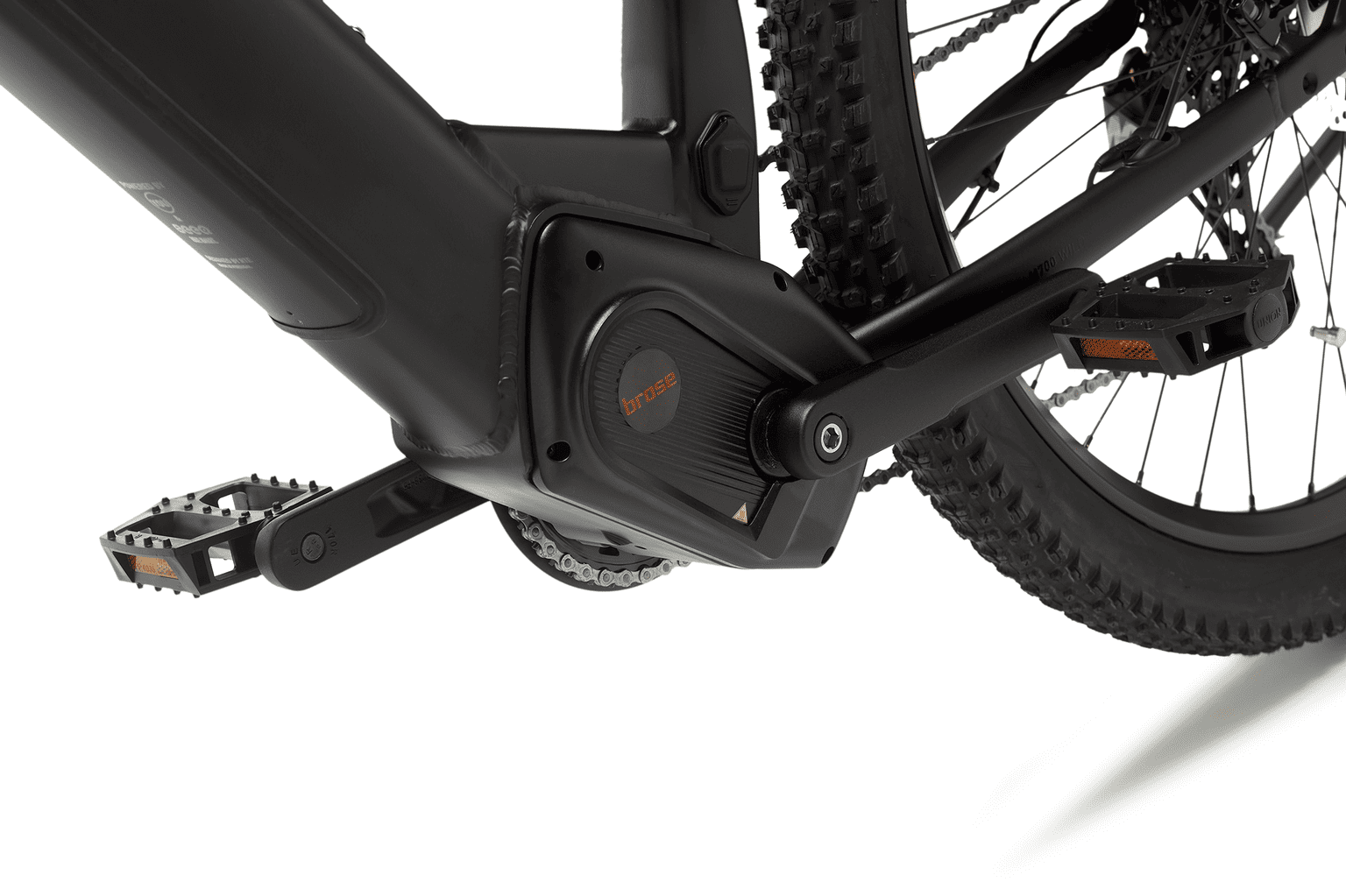

Feel the power of the Brose Drive S MAG motor with 90Nm of torque, driving you into thrilling adventures no matter which path you choose.
VERSATALITY
Experience a bold and sporty look that empowers you to tackle any off-road adventure while making a statement during your city rides.
Touring Essentials
Technical details
PRODUCT INFORMATION
FRAME SIZES
S-M (42cm) - L/XL (46cm)
WEIGHT
Approx. 26Kg
MAXIMUM BIKE & RIDER WEIGHT
135Kg
PAINTING
Powder Painting Scratch Resistant with Matte Varnish
COLOUR(s)
Black Fog with matte finish | Pure Red with matte finish | Rock Blue with matte finish
FRAME
FRAME
MTB Hardtail Aluminum
SUSPENSION

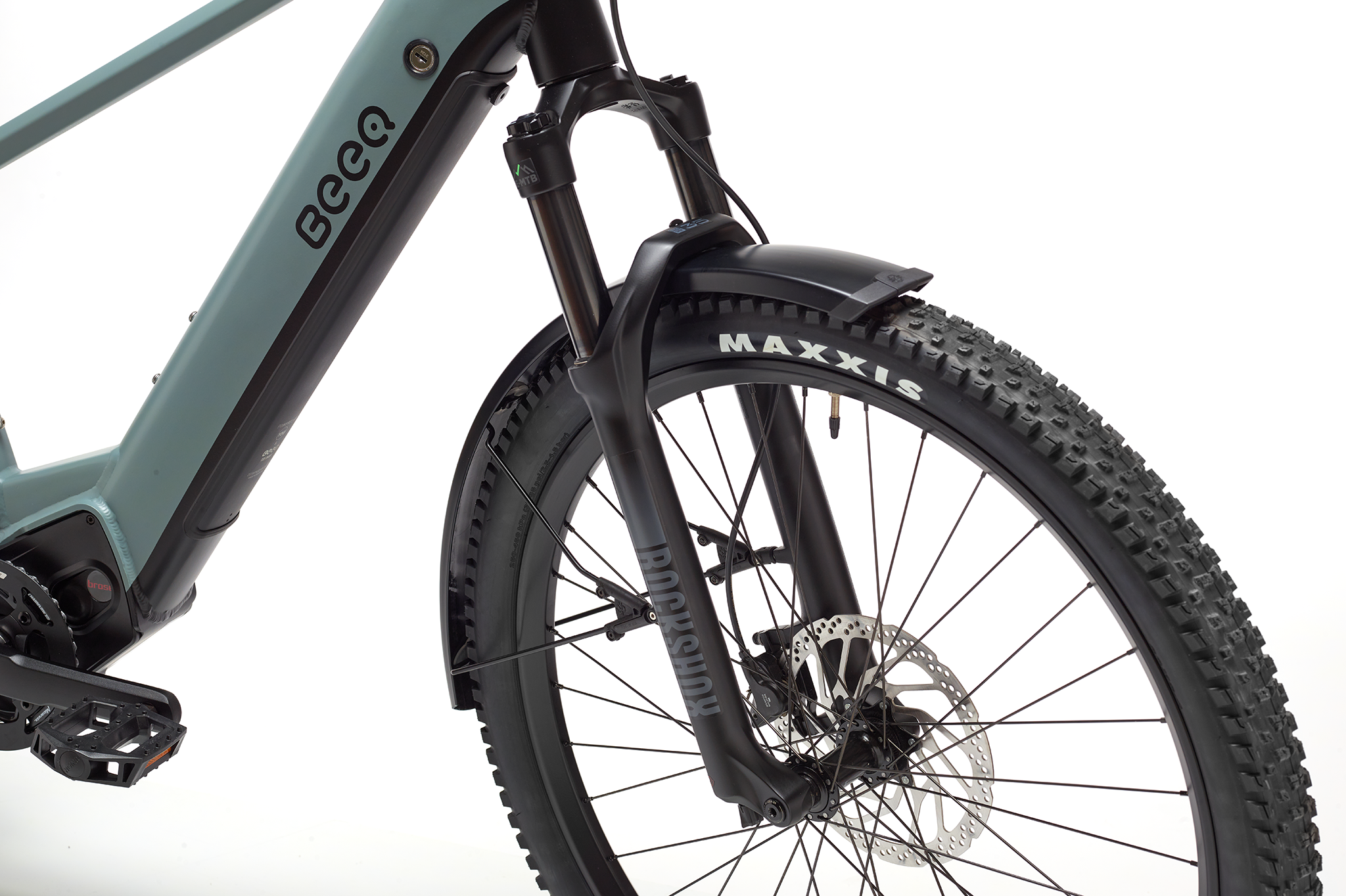

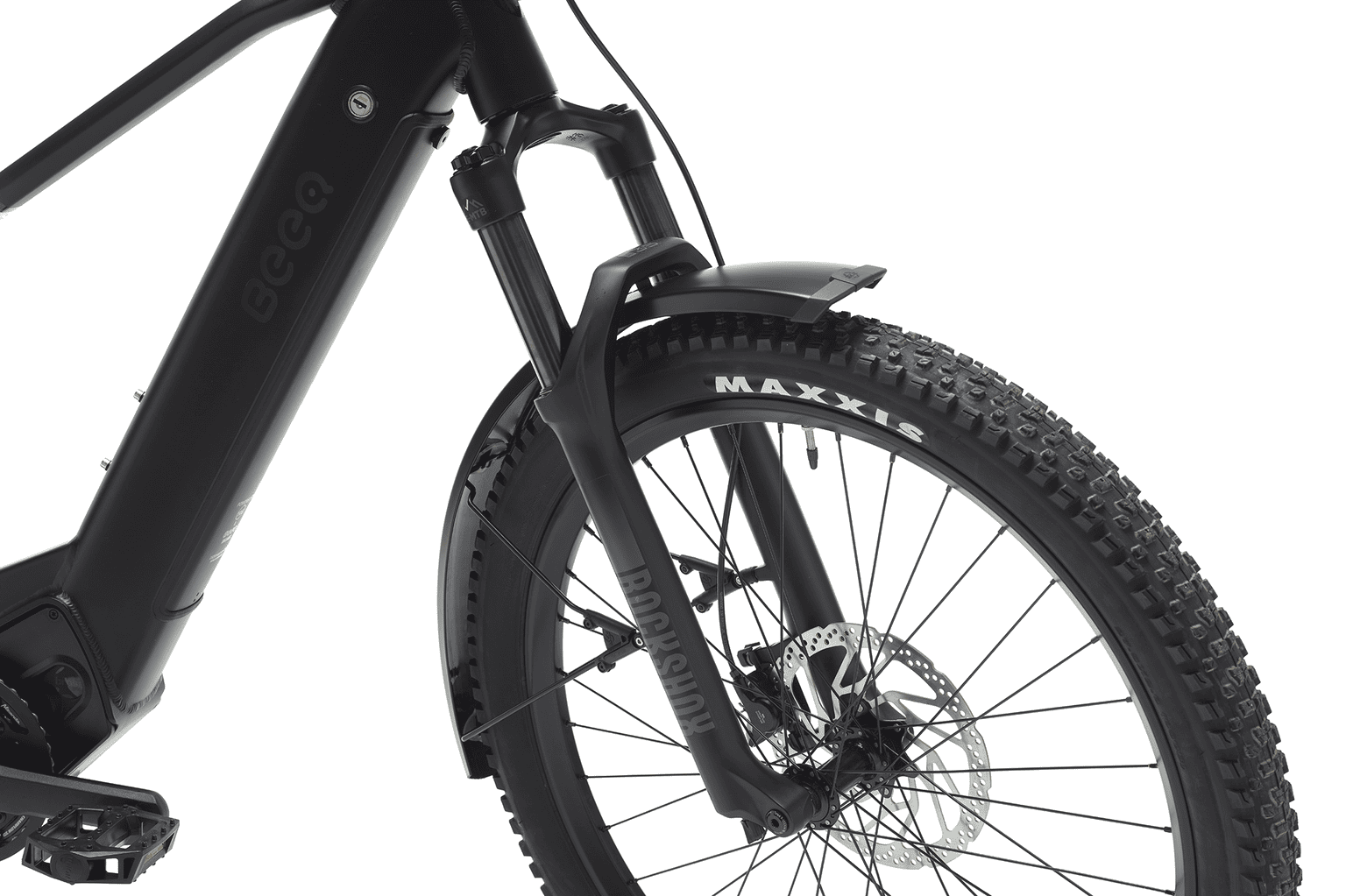

Rockshox 35S Air Travel 120mm Axle Boost 110mm 27.5''/29''

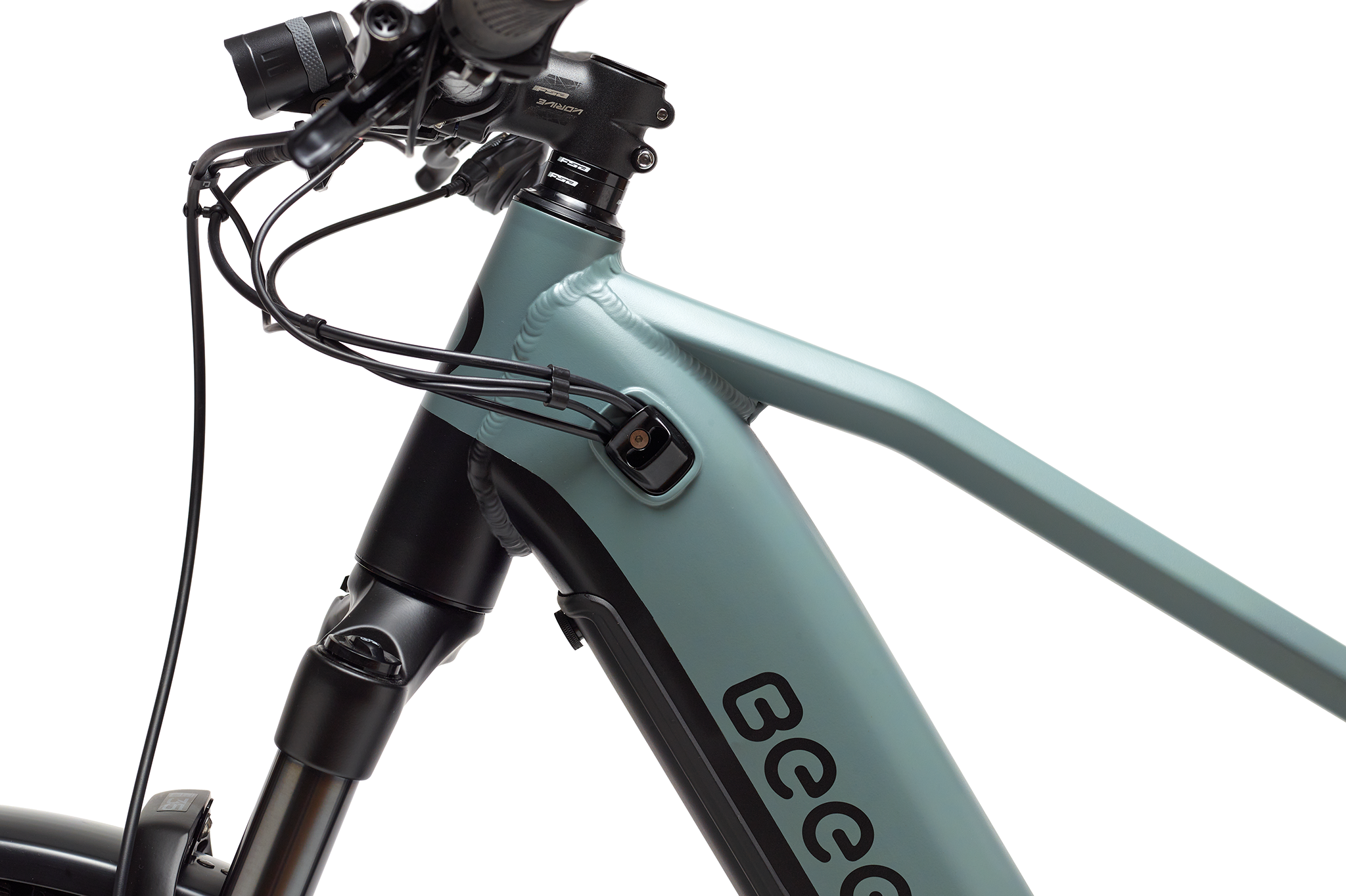

HEADSET
FSA 1.5" to 1-1/8" Tapered SHIS
E-BIKE SYSTEM

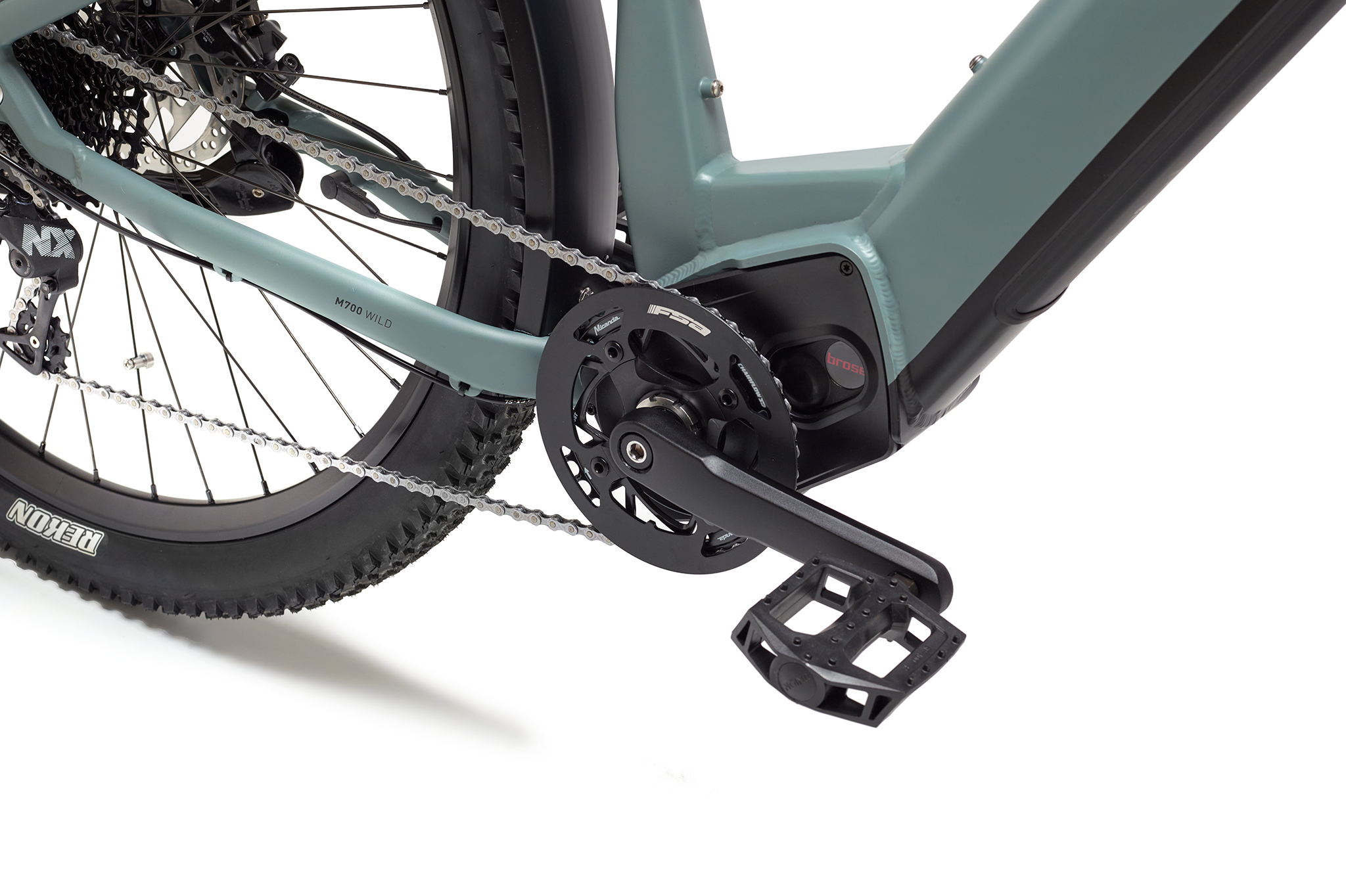

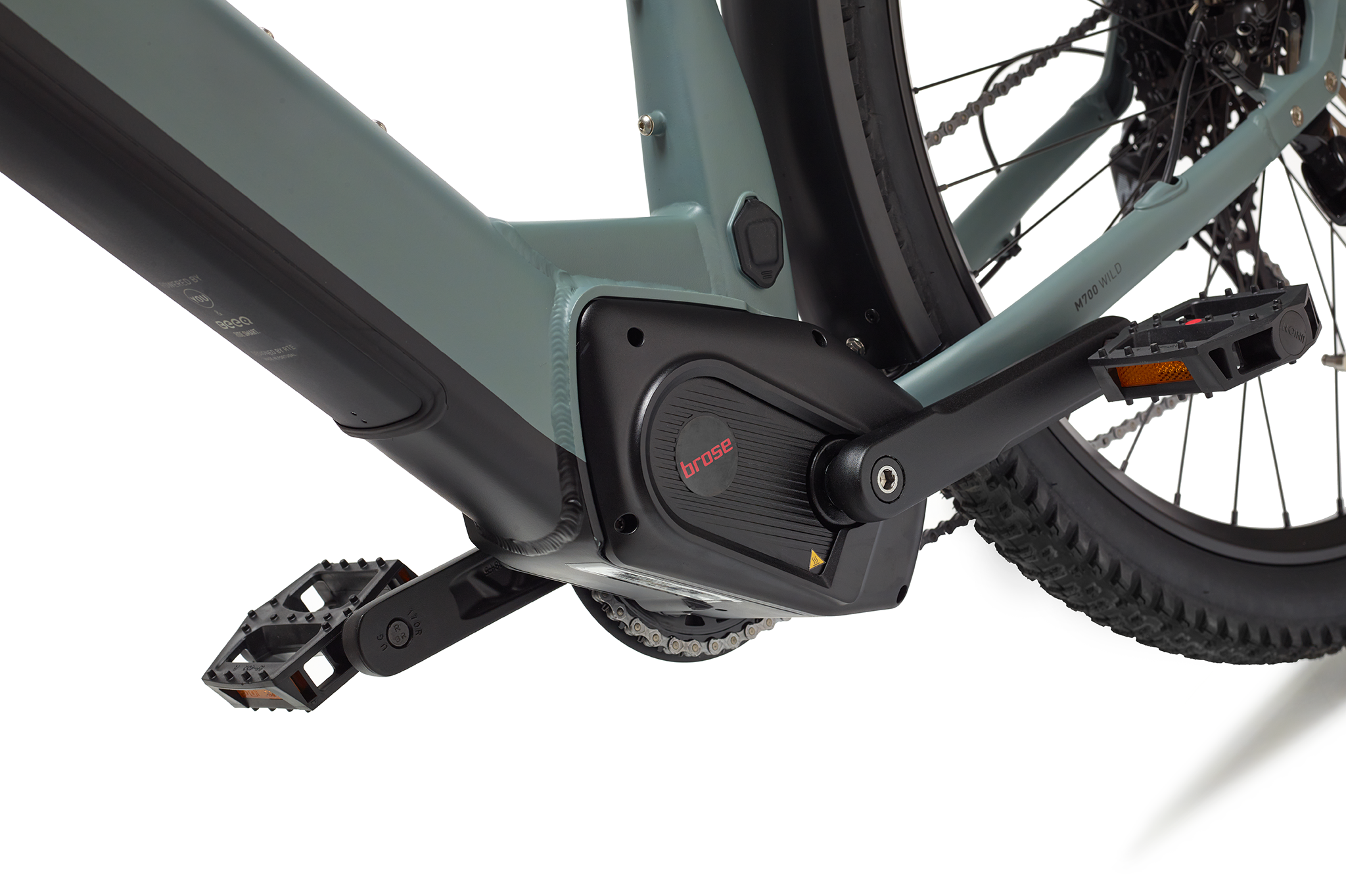

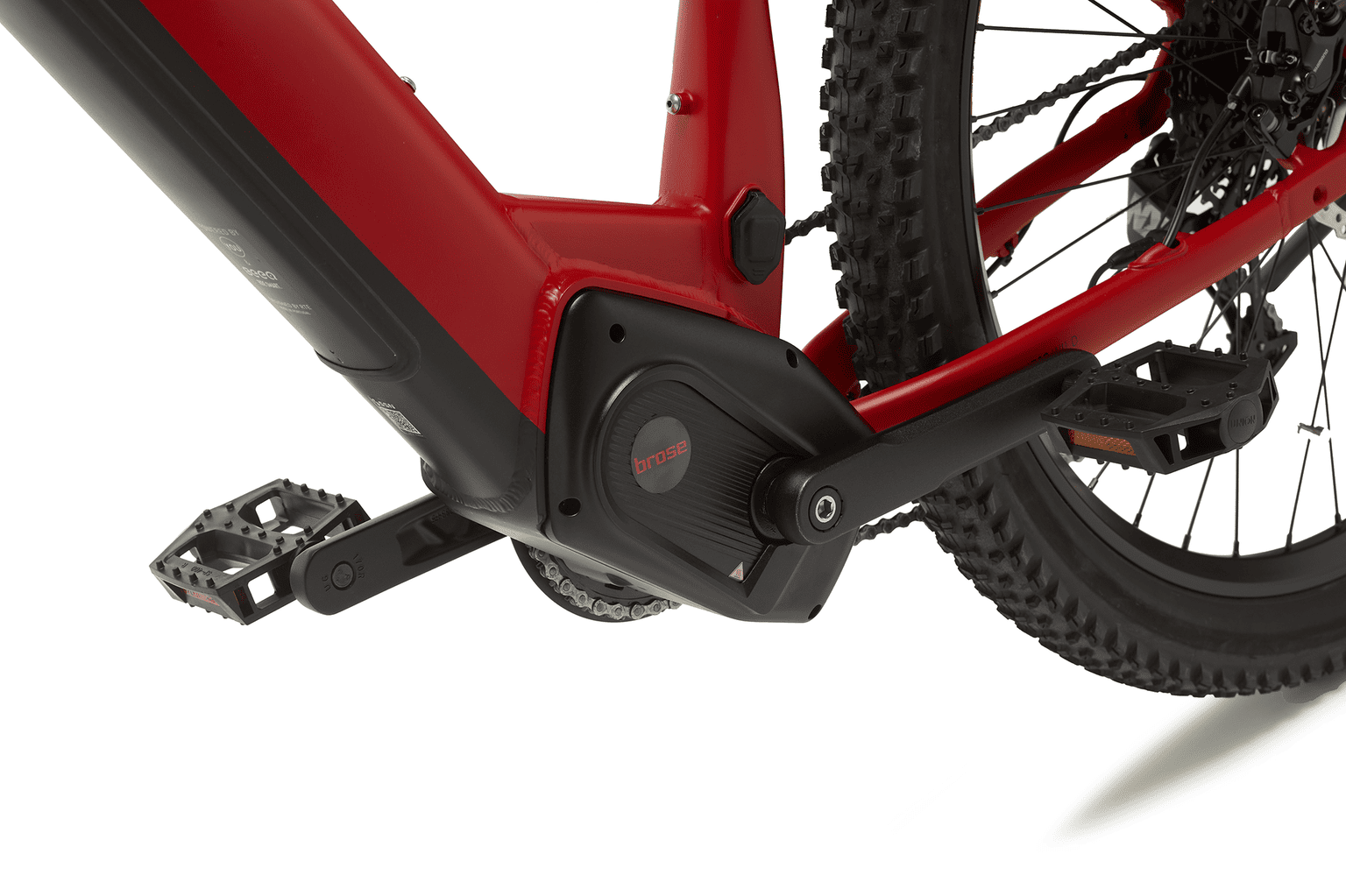

DRIVE UNIT
BROSE DRIVE S MAG Horizontal 90Nm

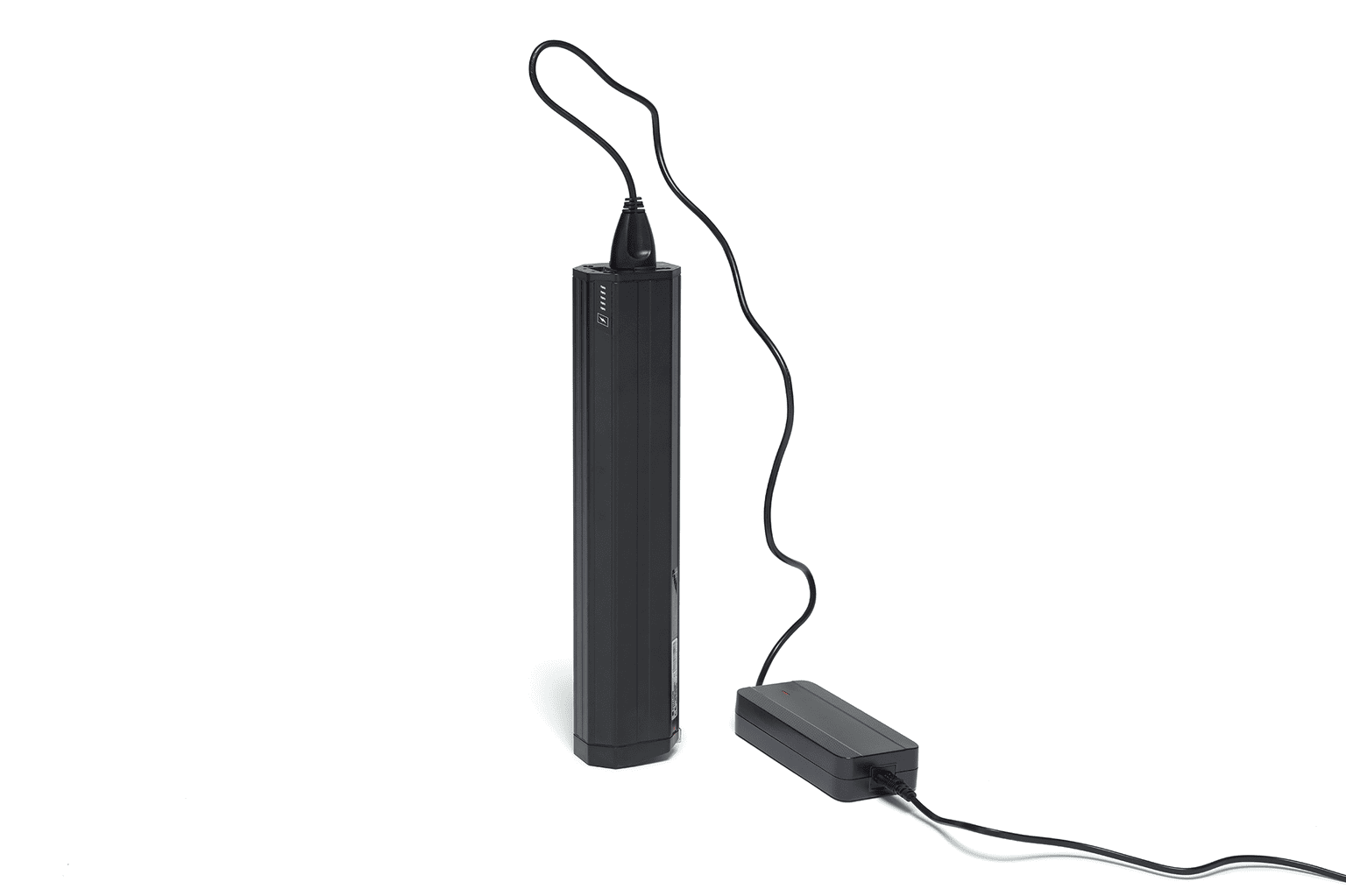

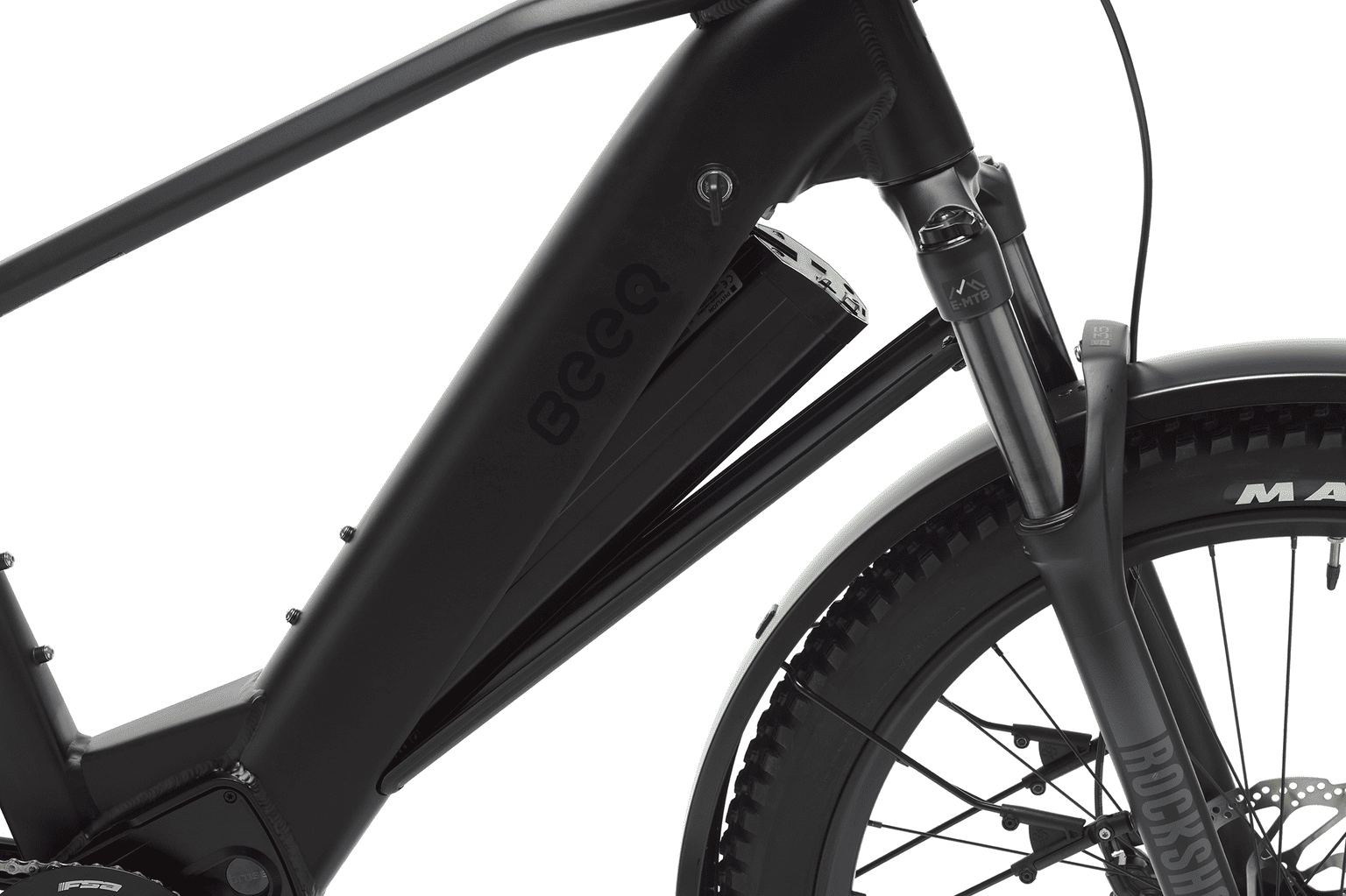

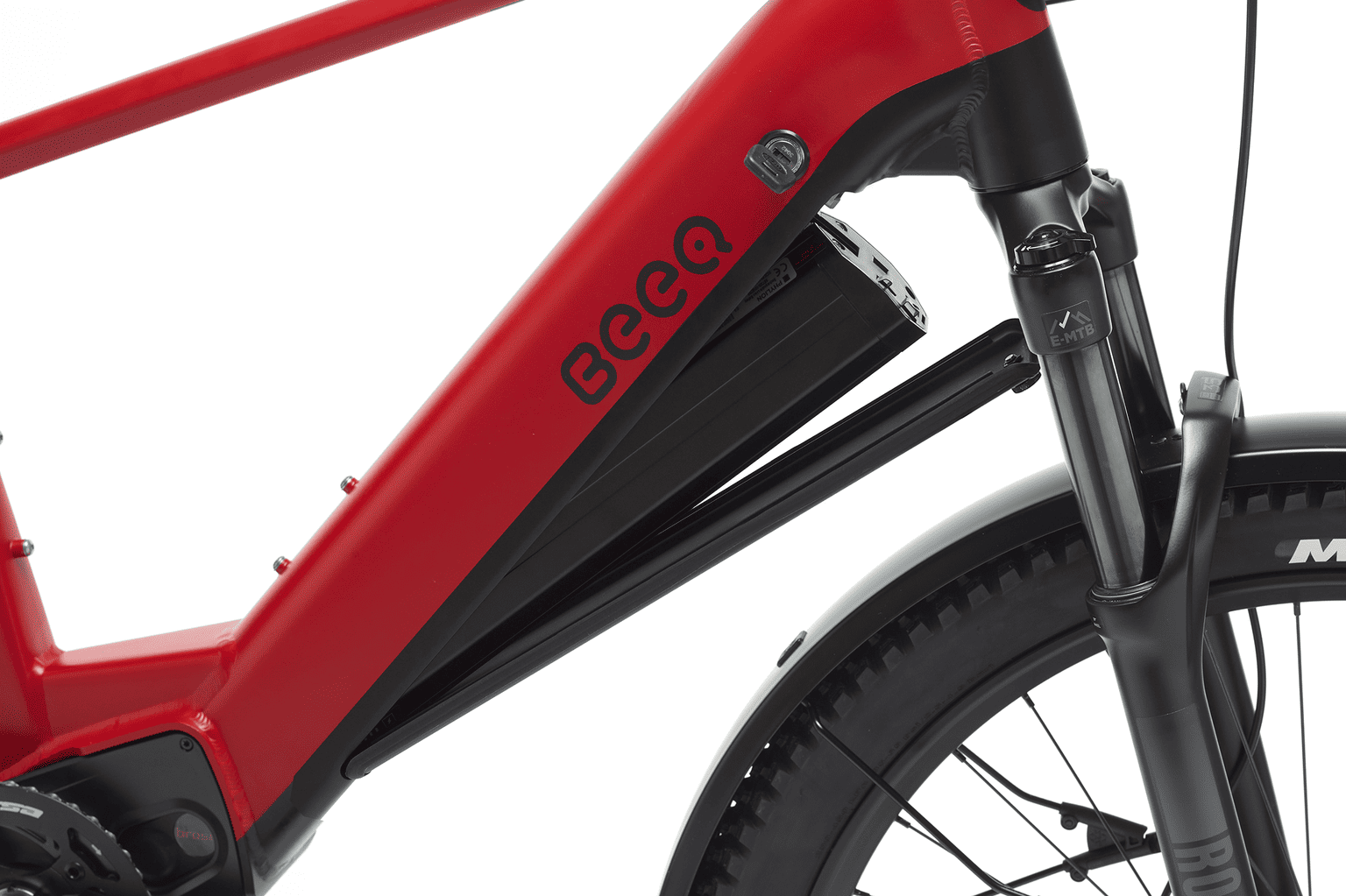

BATTERY
522Wh 36V - Integrated on Downtube - Removable
RANGE
40km to 100km

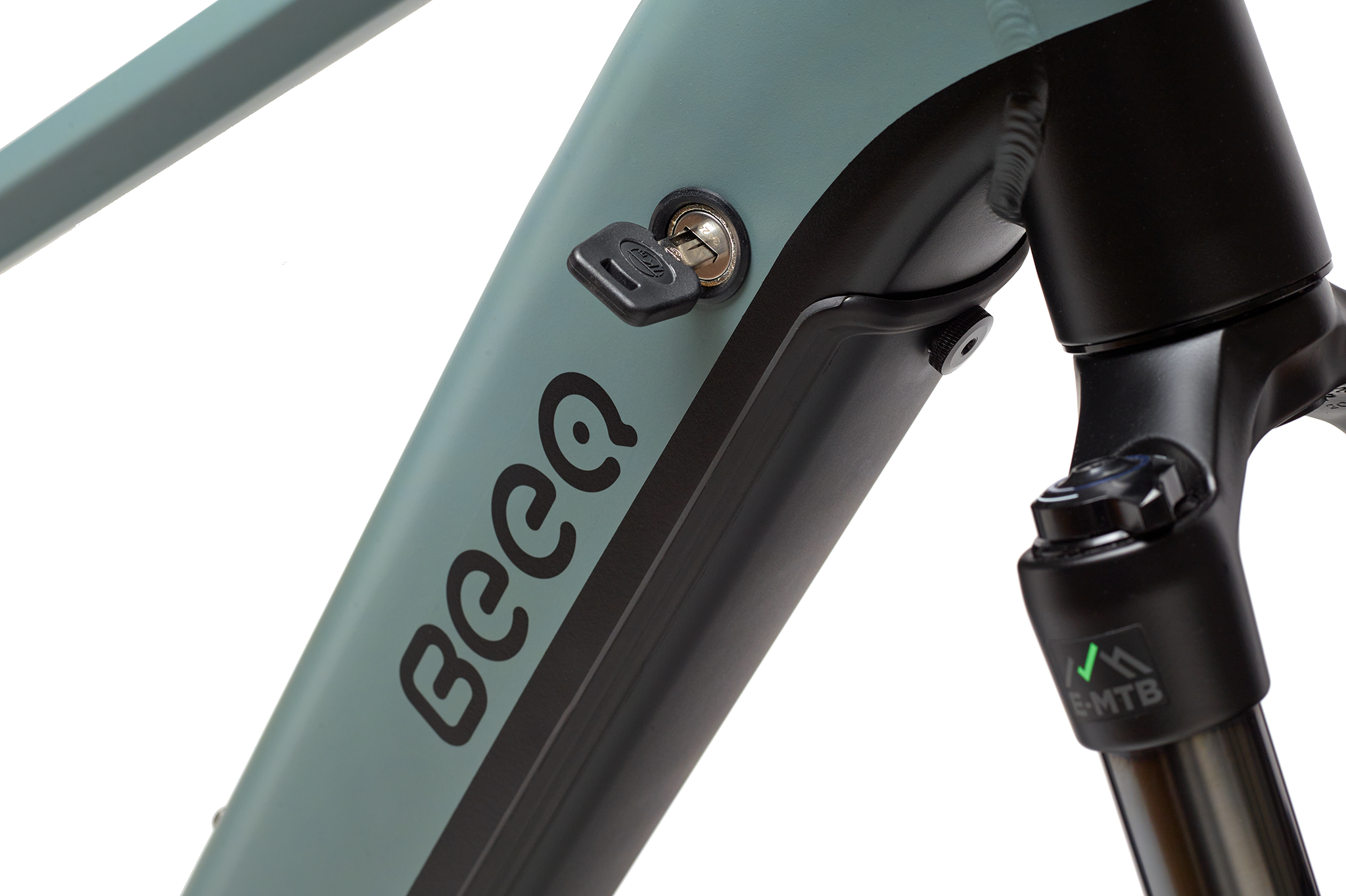

BATTERY LOCK KEY
Yes

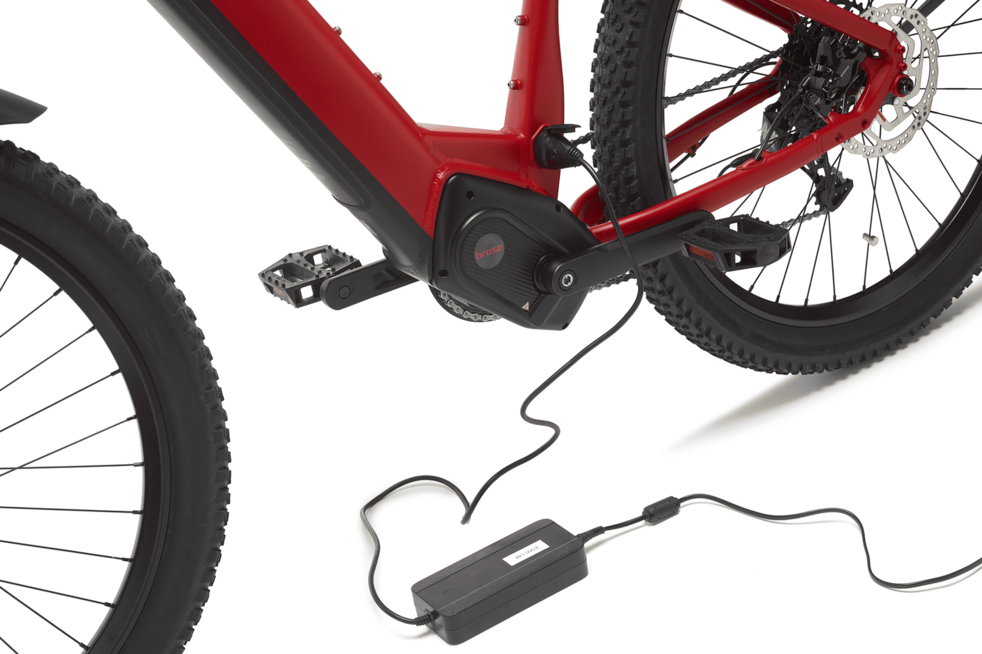

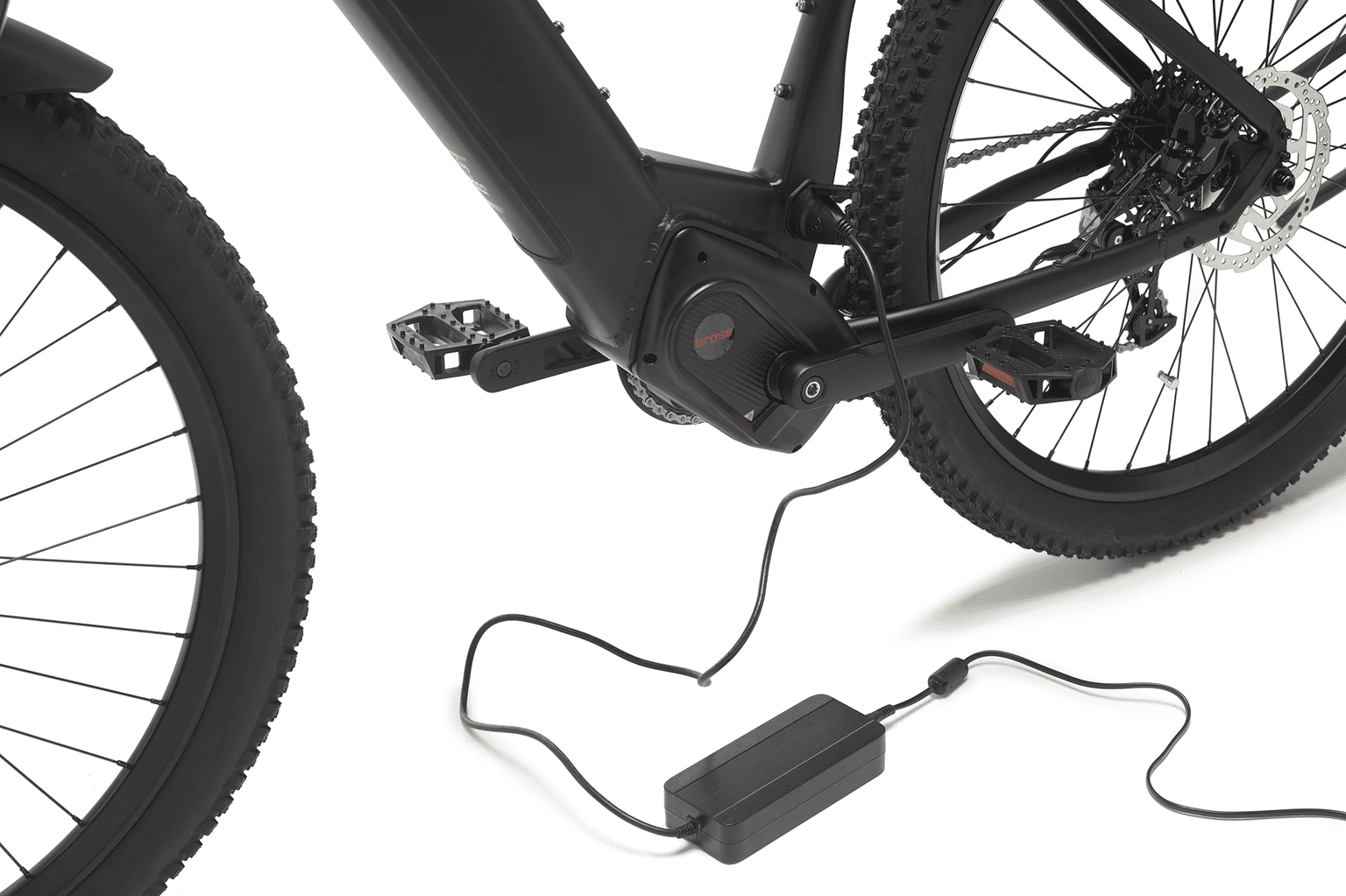

CHARGER
4A - 3 to 6 hours total charge time

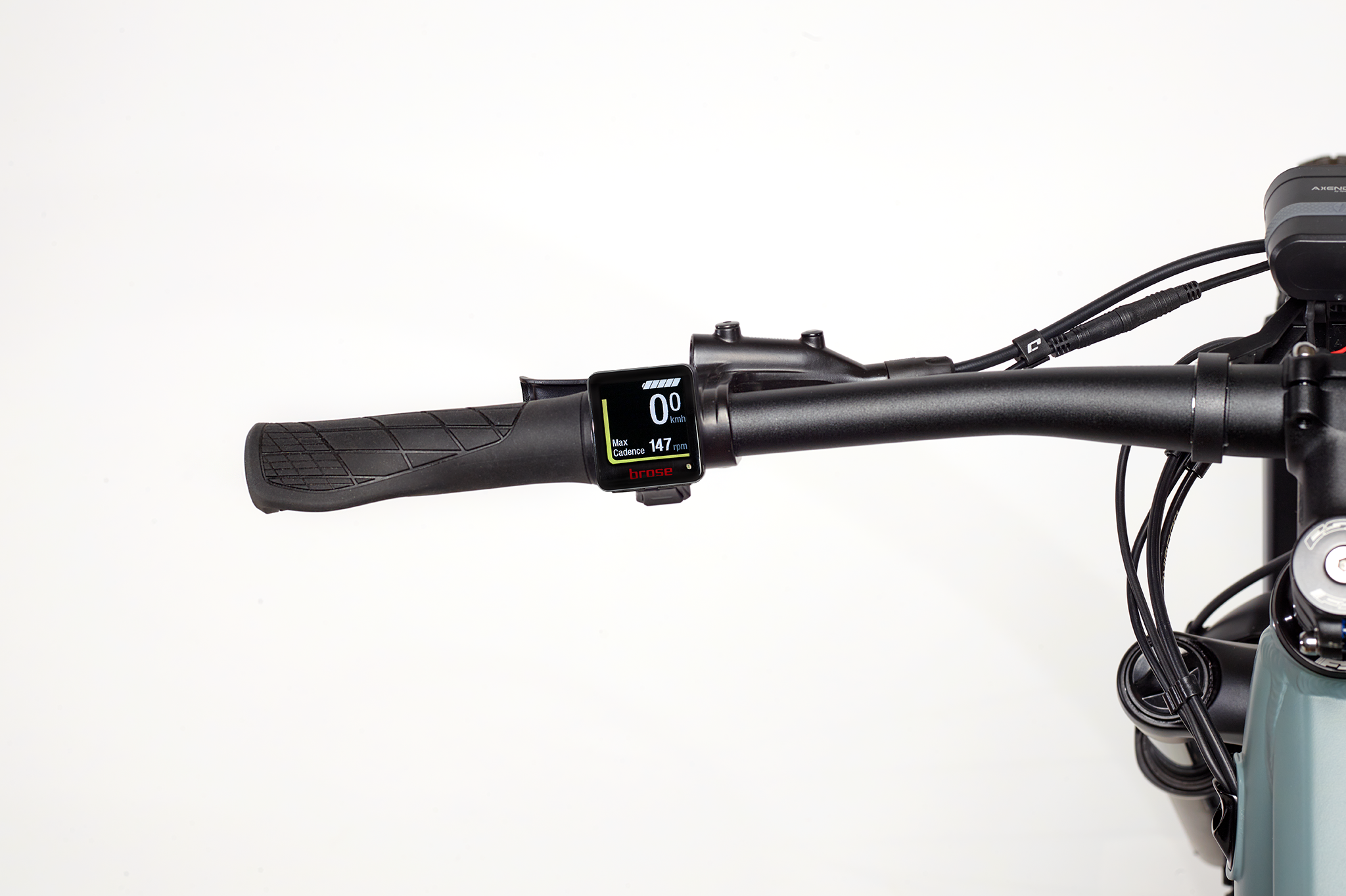

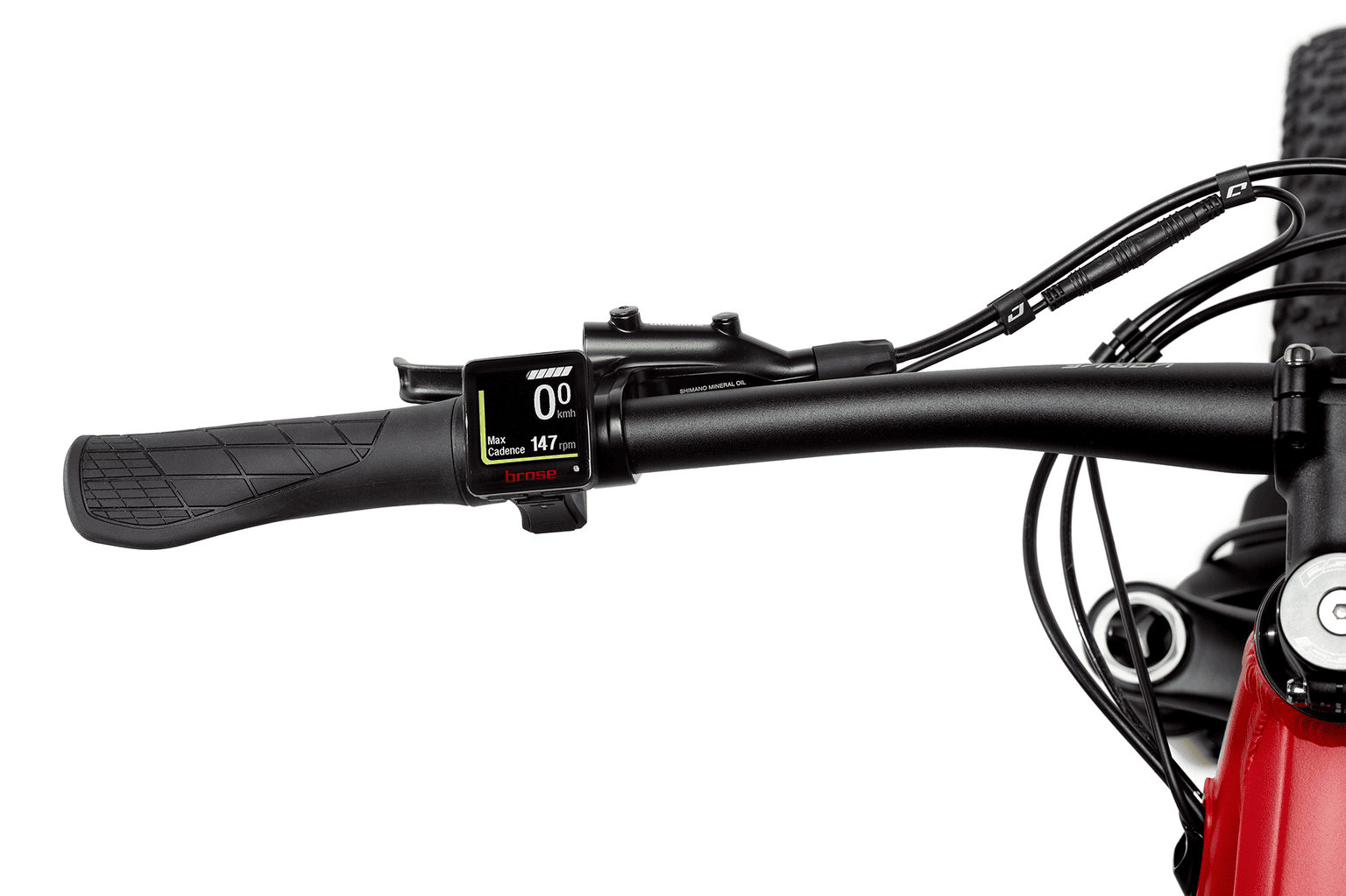

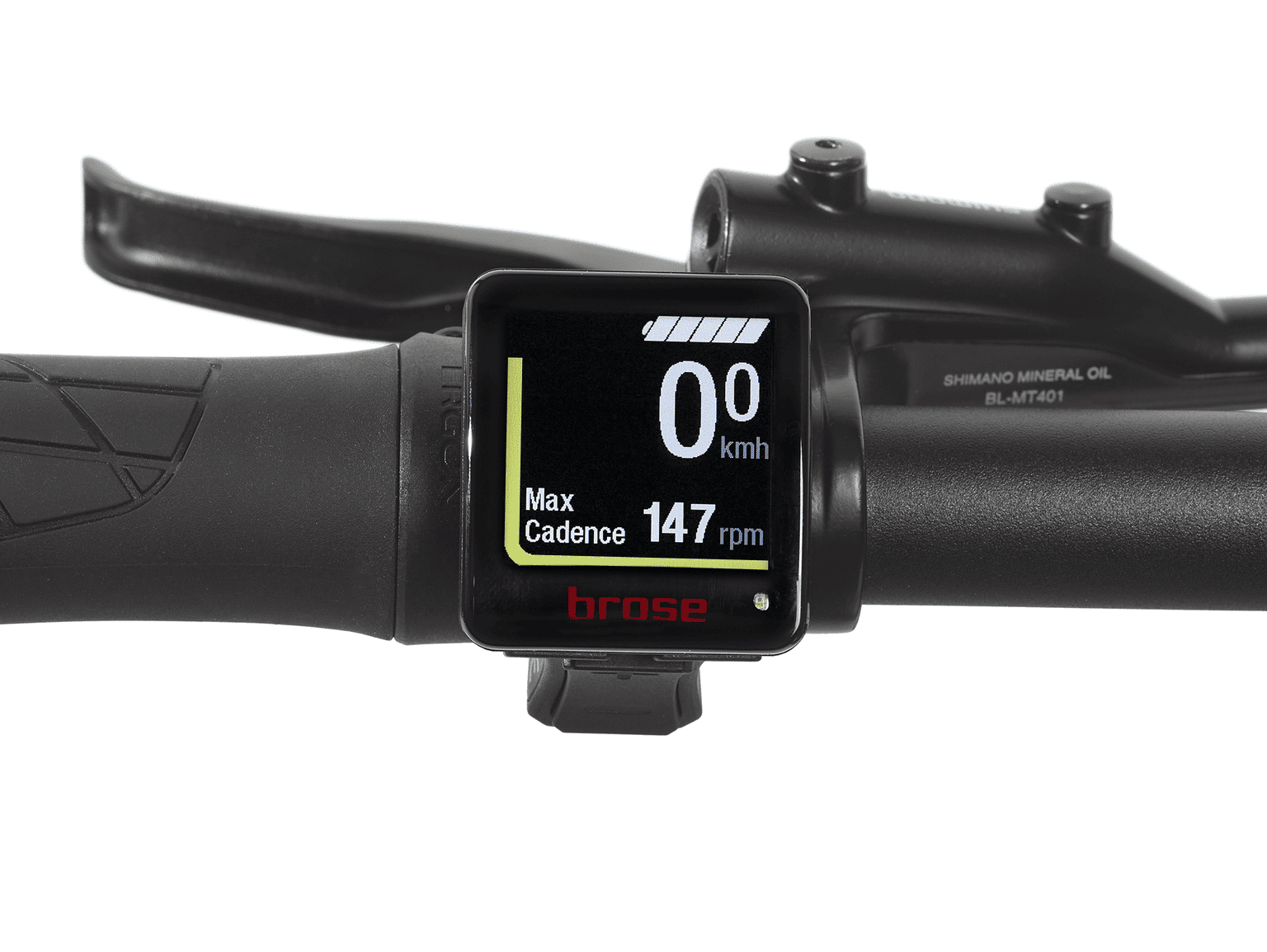

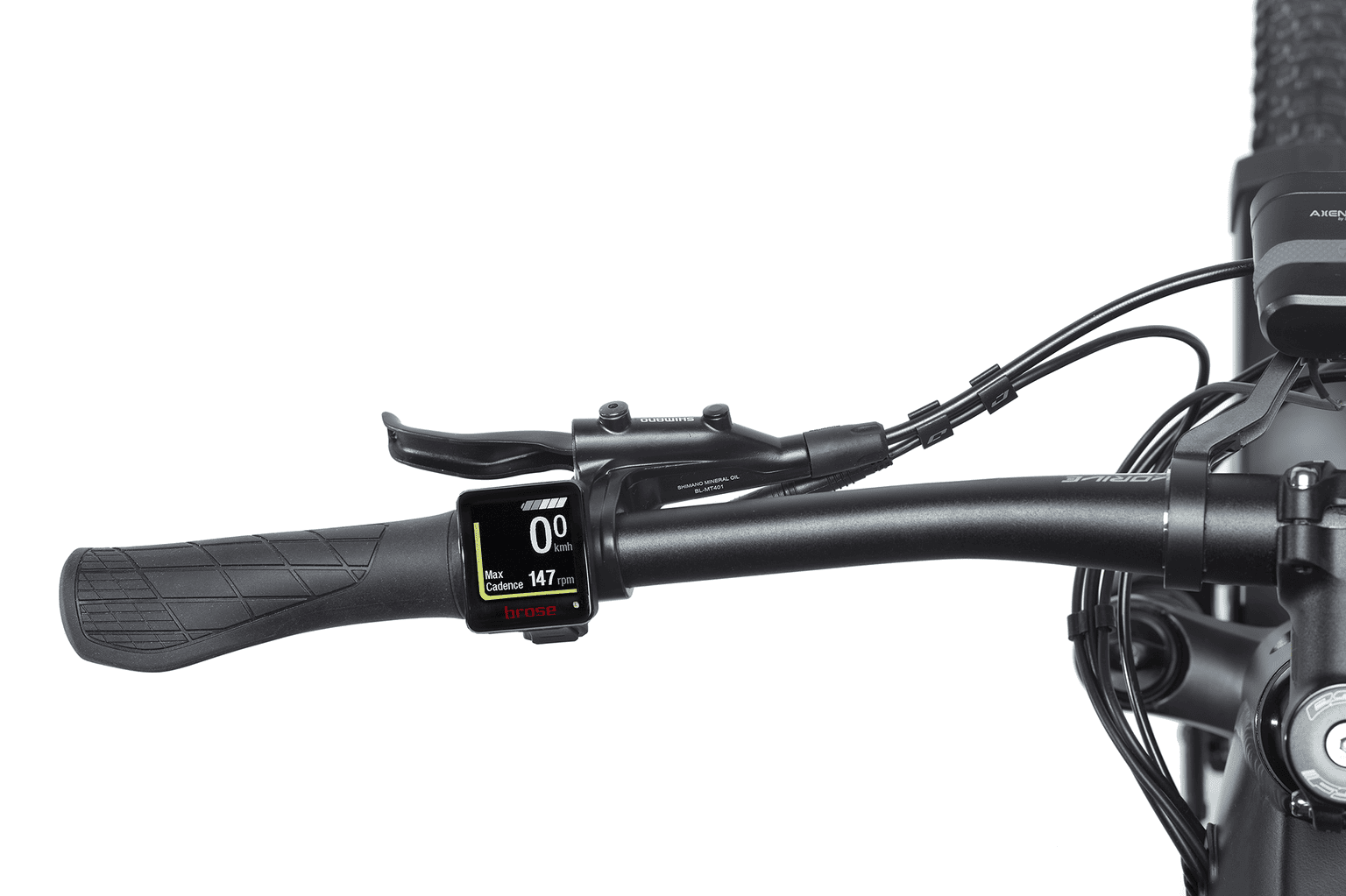

DISPLAY
Brose Allround
COCKPIT

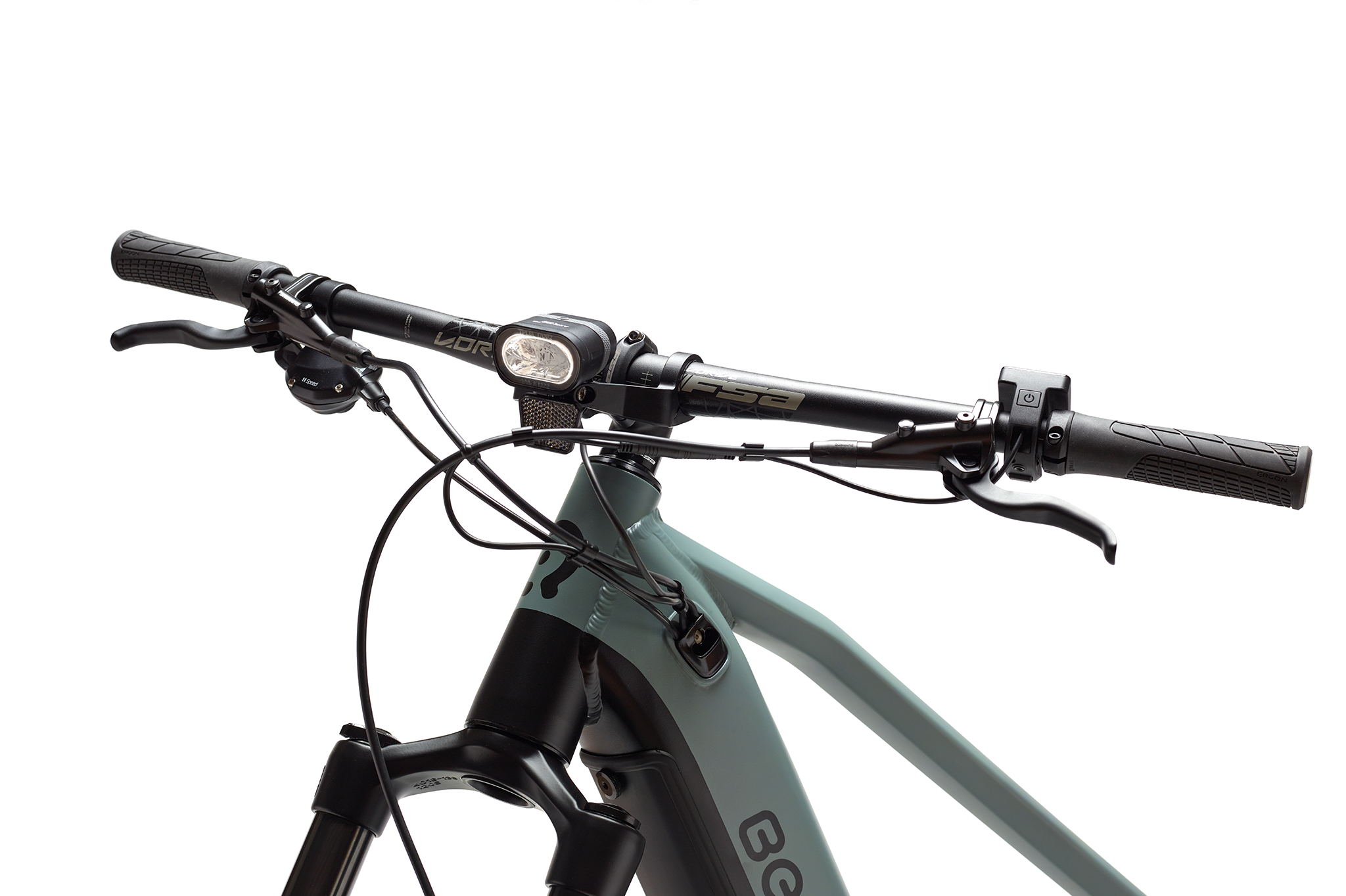

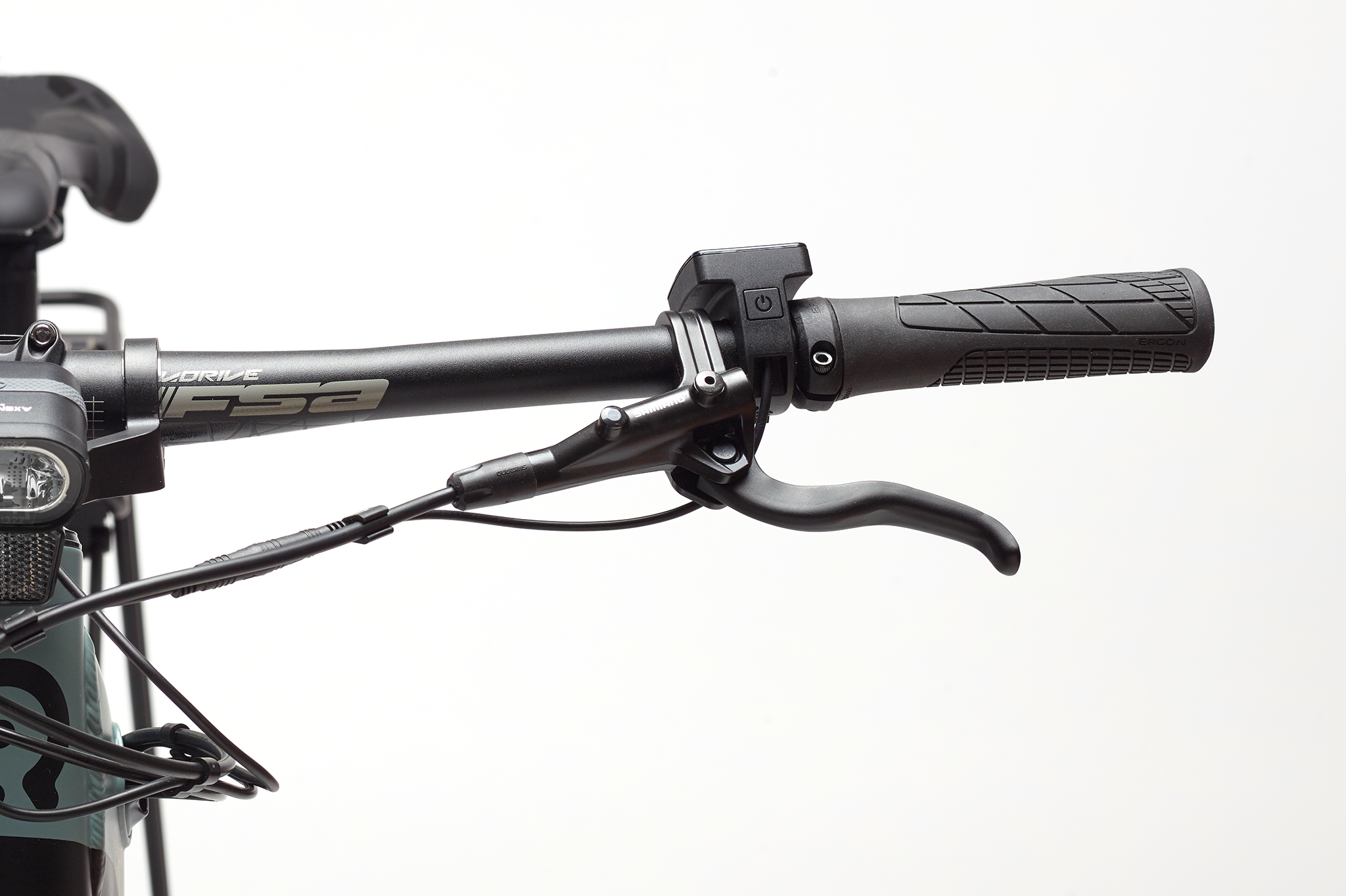

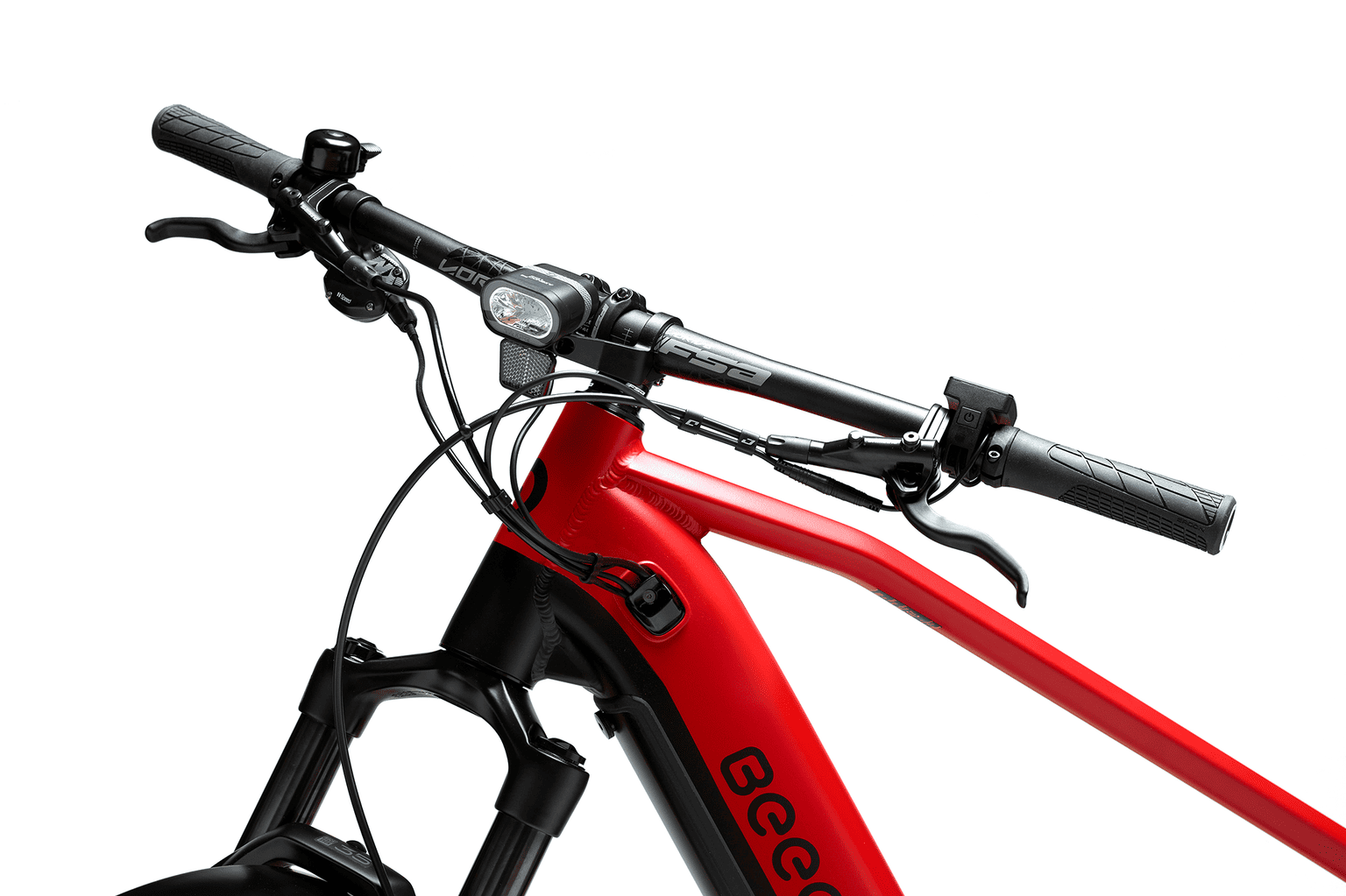

HANDLEBAR

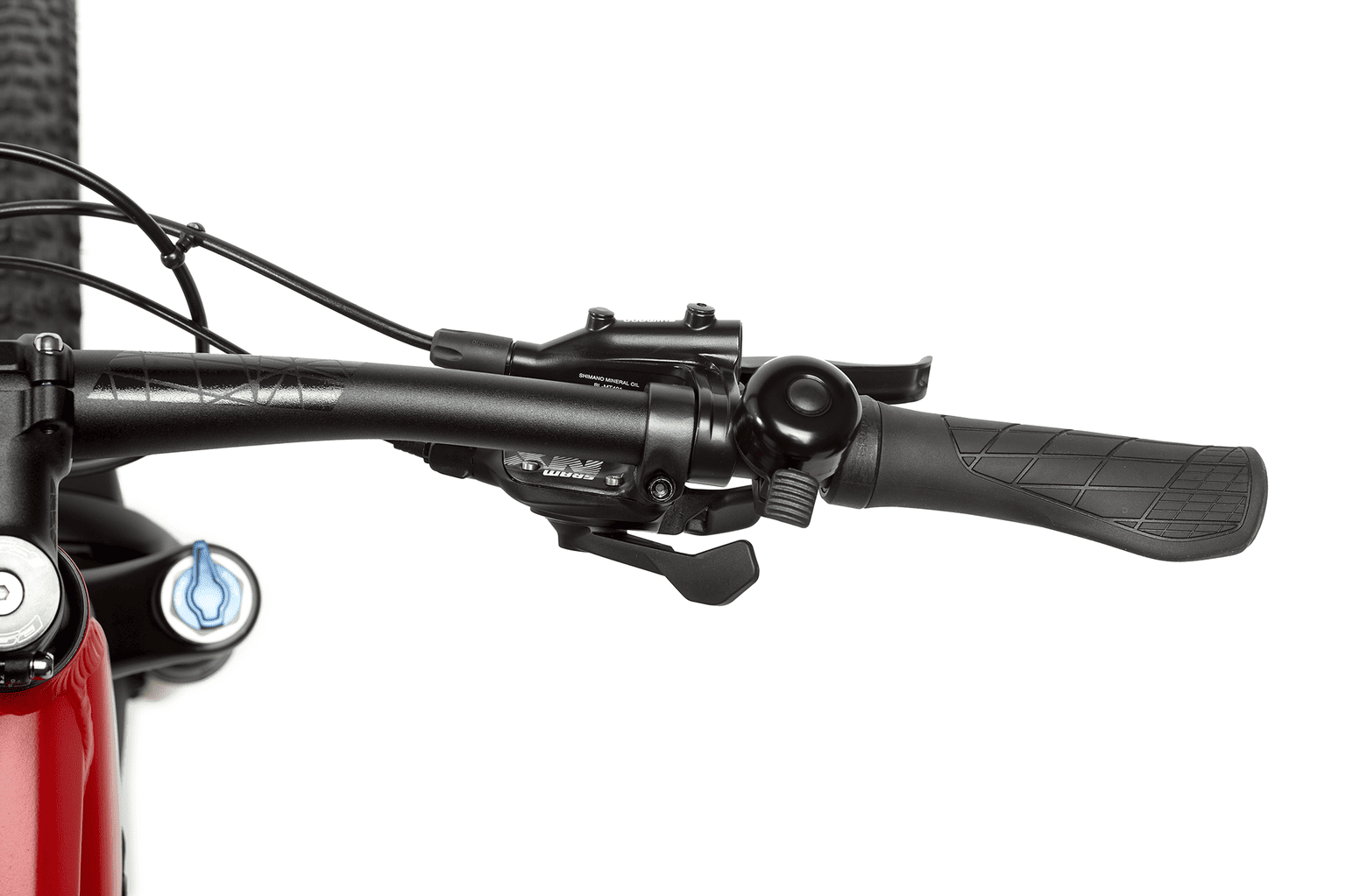

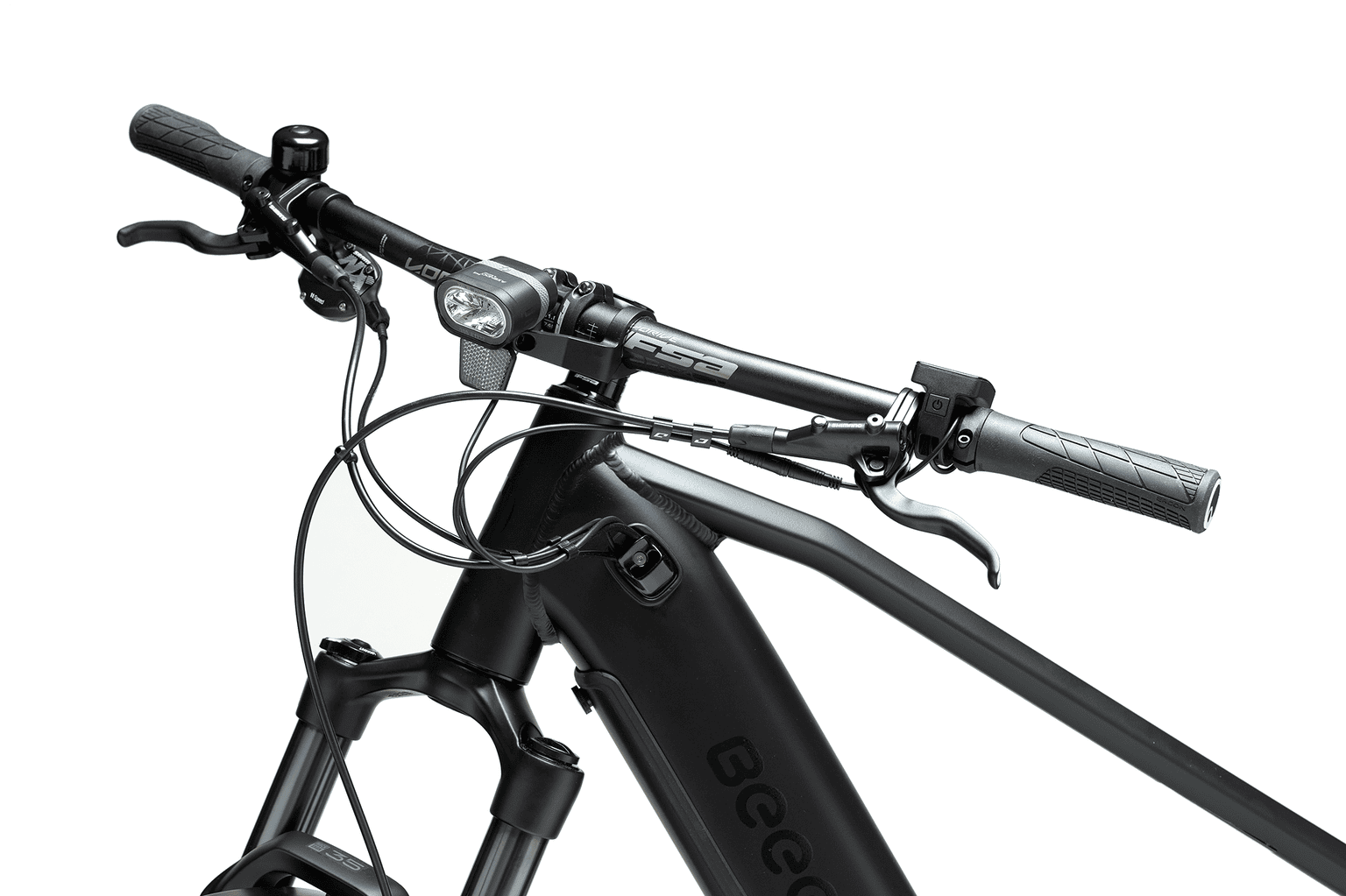

FSA V-Drive 740mm / 31.8mm (Straight)
STEM
FSA V-Drive 60mm/ 31.8mm / ±6°
GRIPS
ERGON GA30
WHEELSET
TYRES
MAXXIS Rekon
S - 27,5''x2,6'' / M - L/XL- 29''x2,4''
WHEEL SIZE
27,5" (S) / 29" (M-L/XL)
RIMS
Alloy Double Wall 30mm (Tubeless Ready)
SPOKES
Black Stainless Steel
FRONT HUB
SHIMANO HB-MT400-B Boost 110 Thru-axle 15mm
REAR HUB
SHIMANO HB-MT400-B Boost 148 Thru-axle 12mm
DRIVETRAIN & BRAKES
BRAKES
SHIMANO Hydraulic MT400

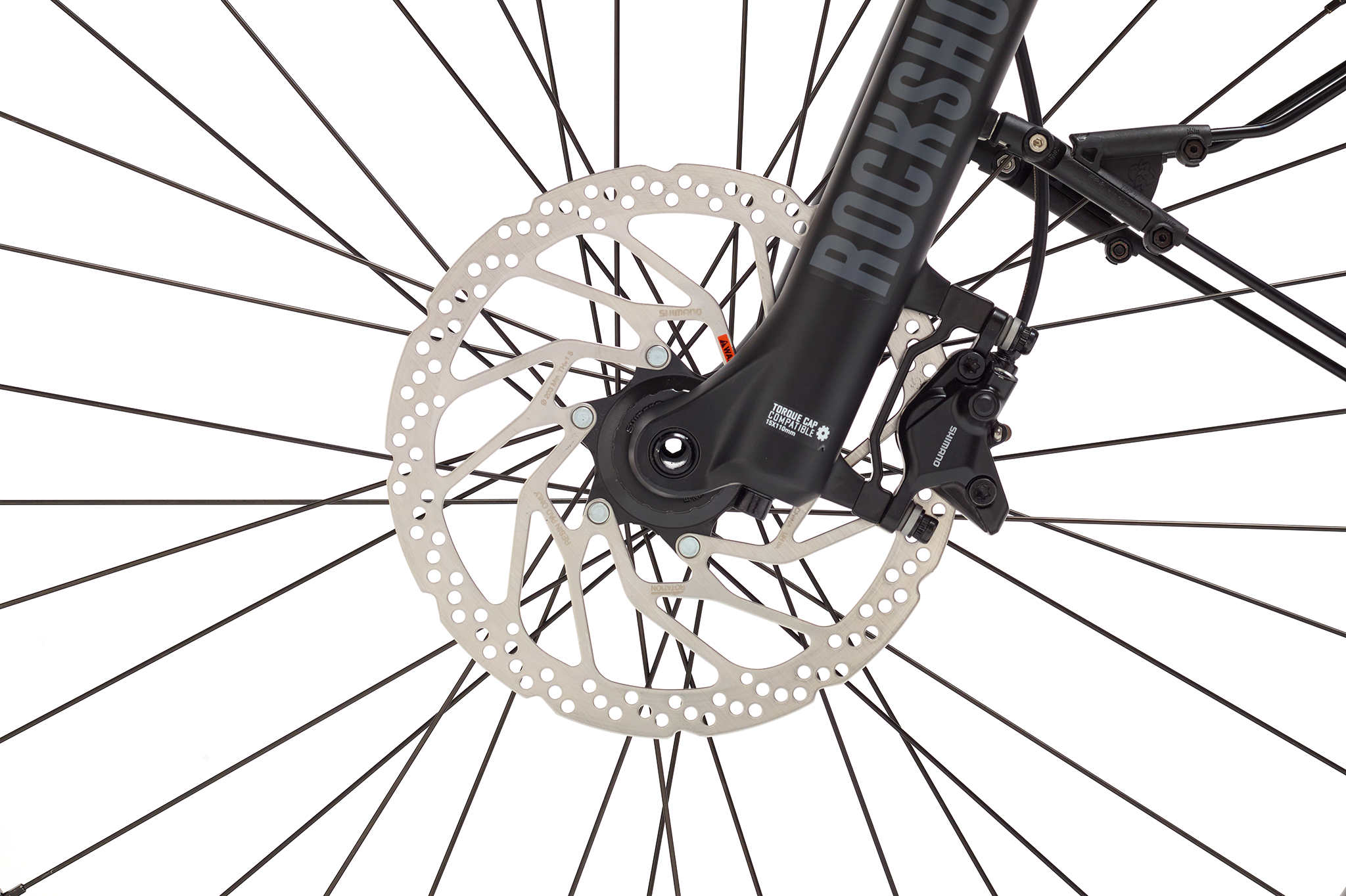

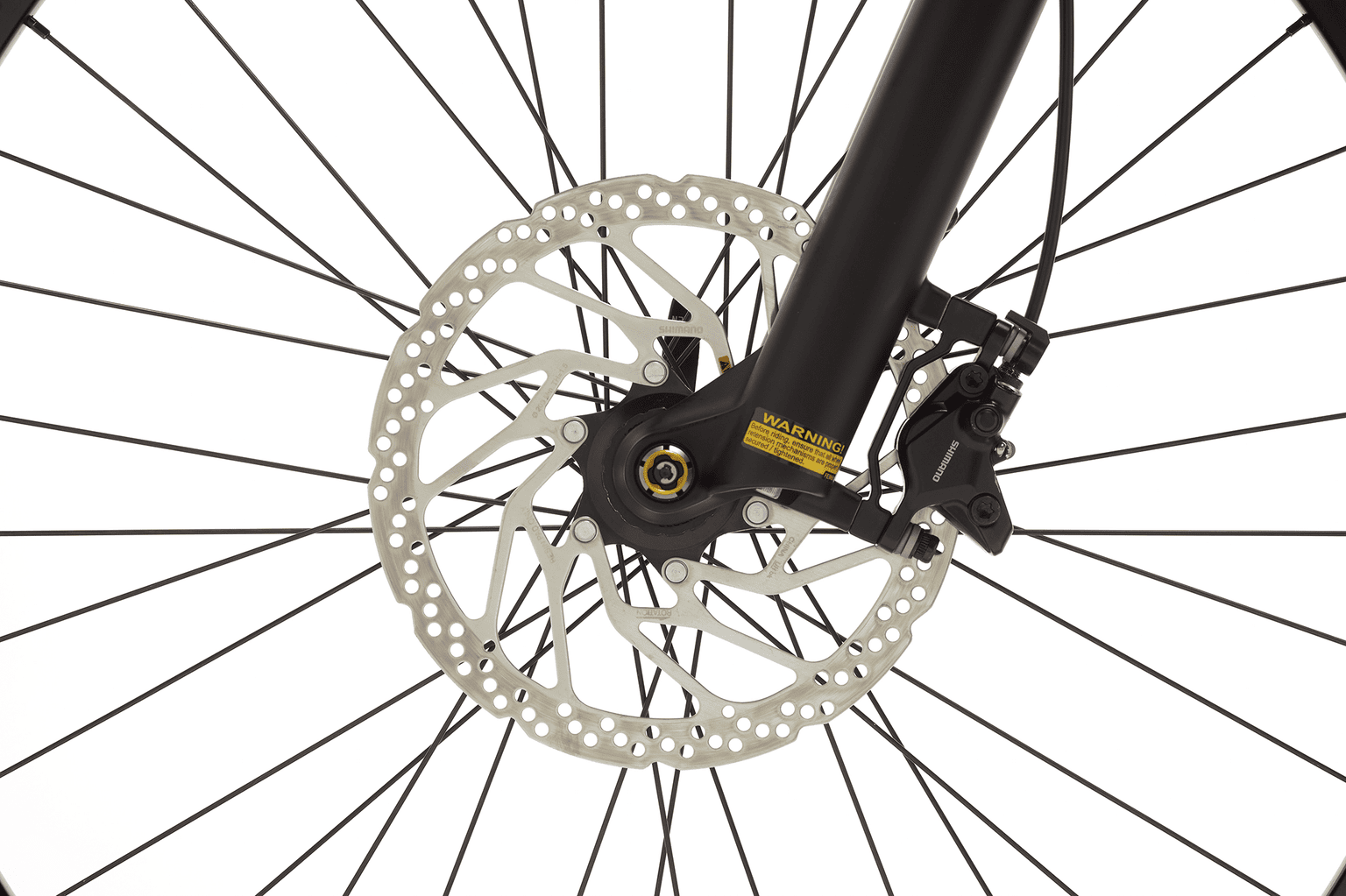

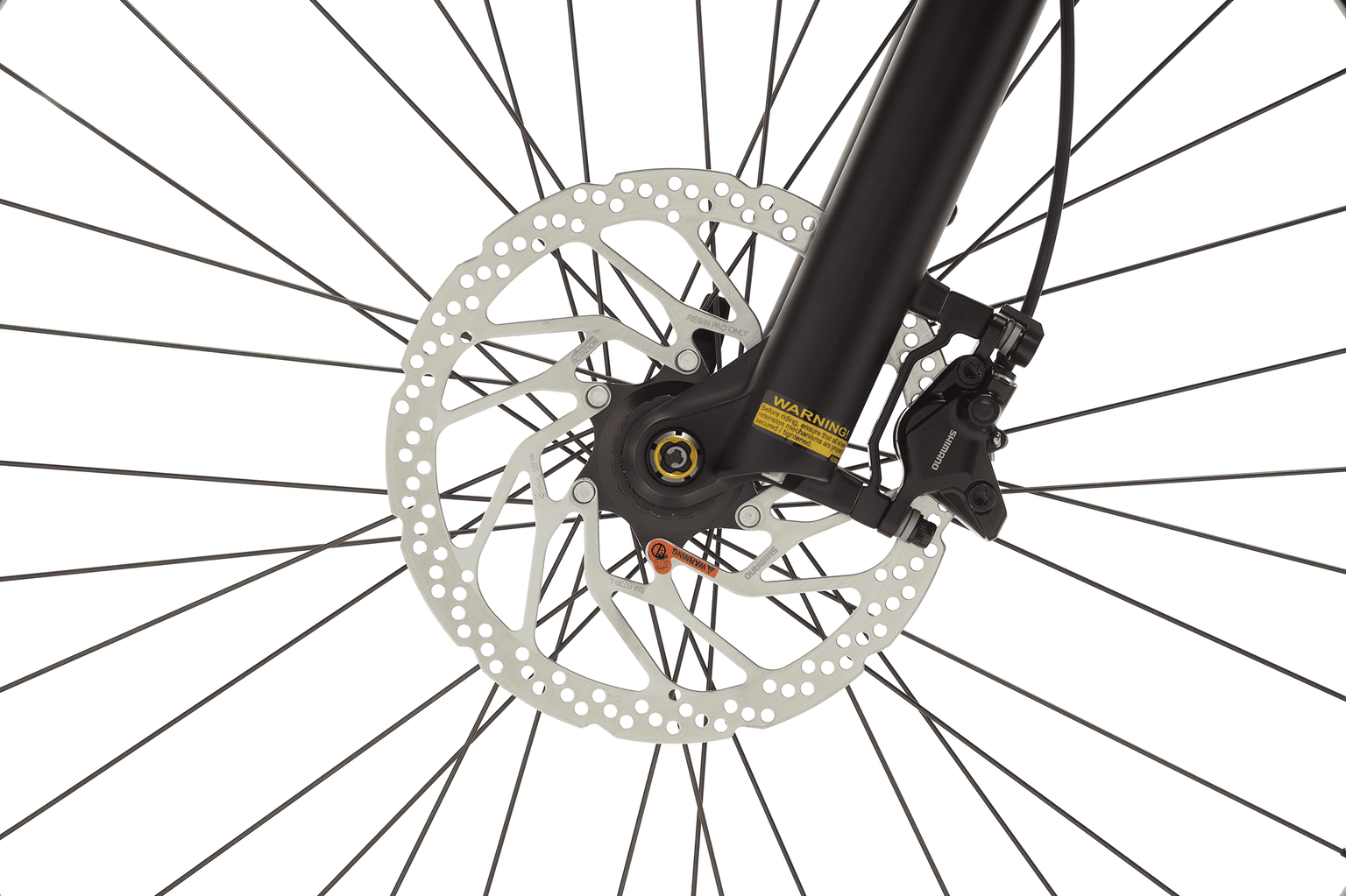

BRAKE ROTOR - Front
SHIMANO SM-RT30 203mm
BRAKE ROTOR - Rear
SHIMANO SM-RT30 180mm

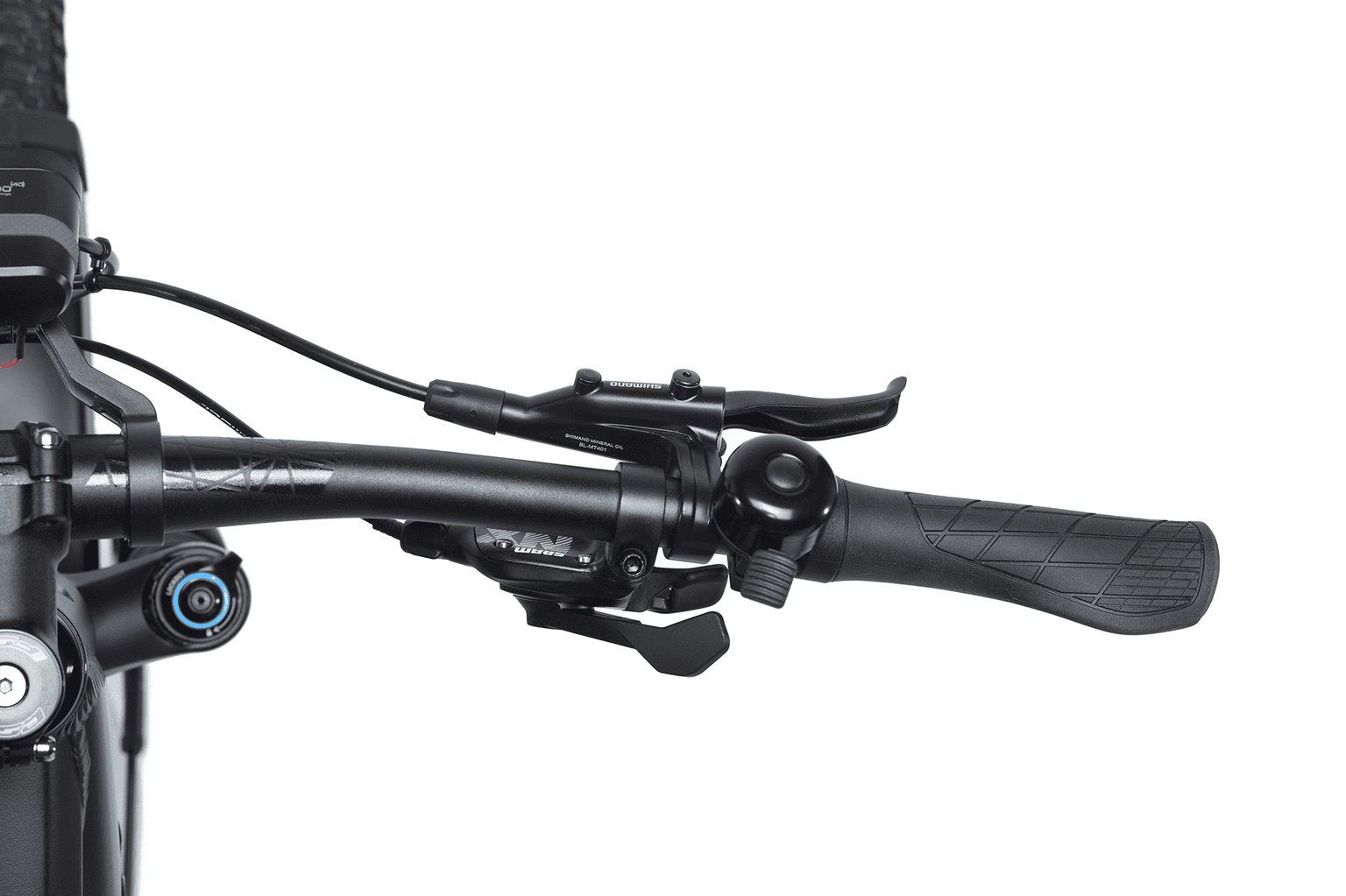

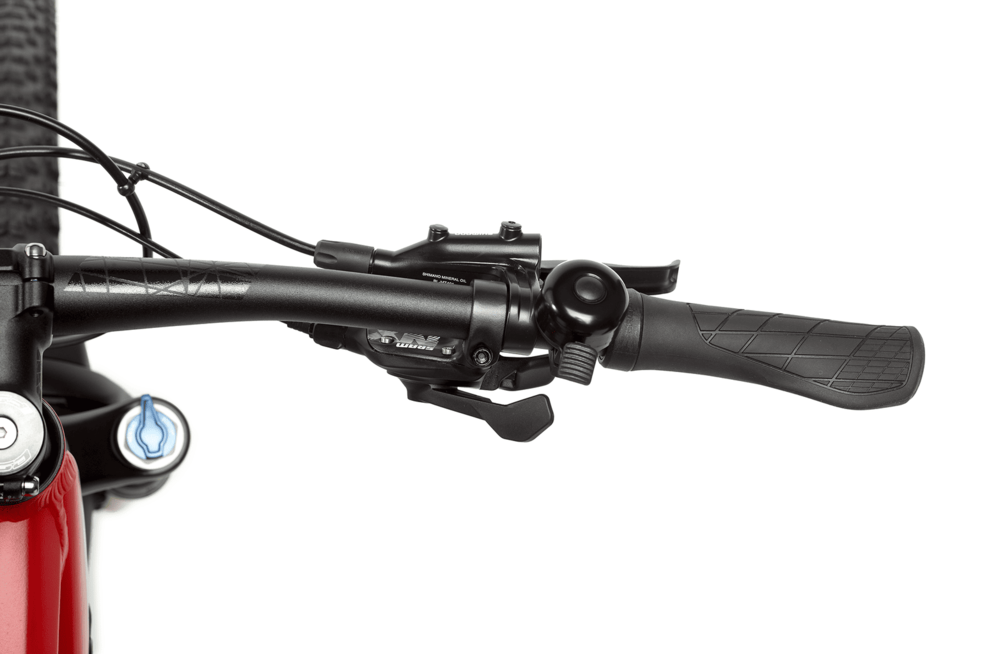

SHIFTERS
SRAM NX 11S

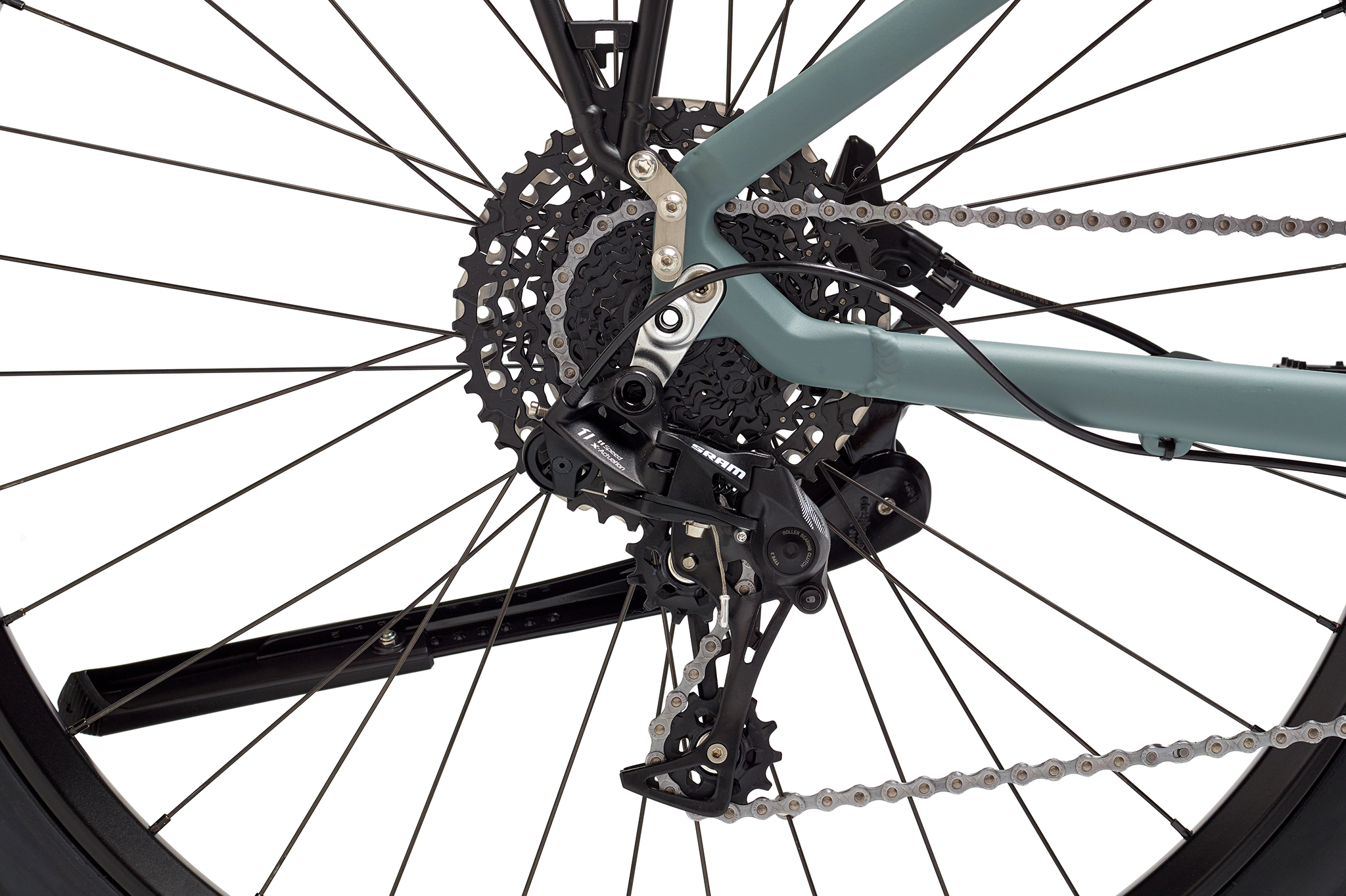

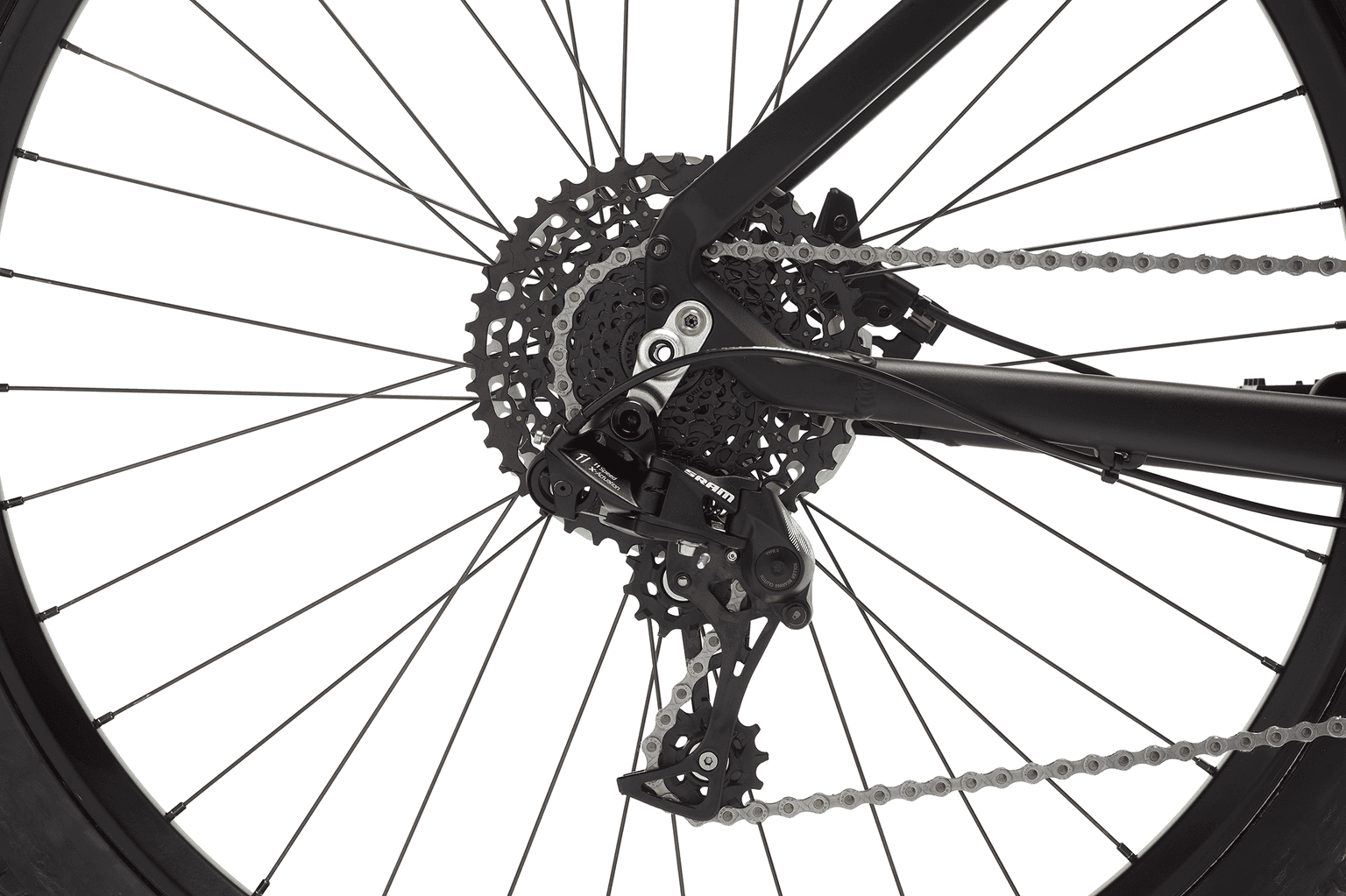

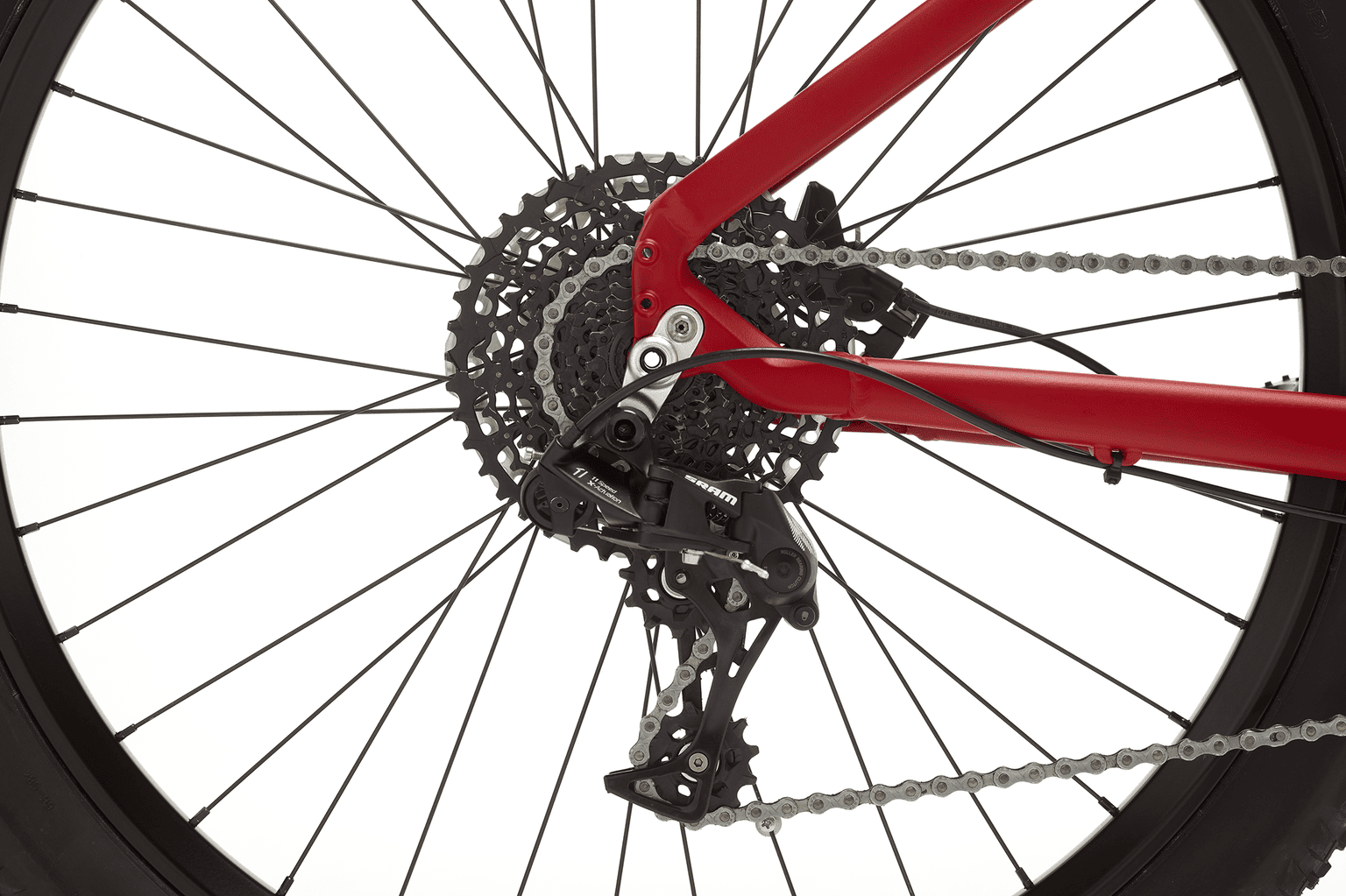

REAR DERRAILEUR
SRAM NX 11S
CASSETTE
SRAM Power Glid 1130 11-42
CHAINRING
MIRANDA ChainFlow 3D BCD104 38T
CRANK
SAMOX Shape 170/0
CHAIN
KMC E11 Turbo e-bike series
CHAINGUARD
Yes - FSA
SAFETY & ACESSORIES

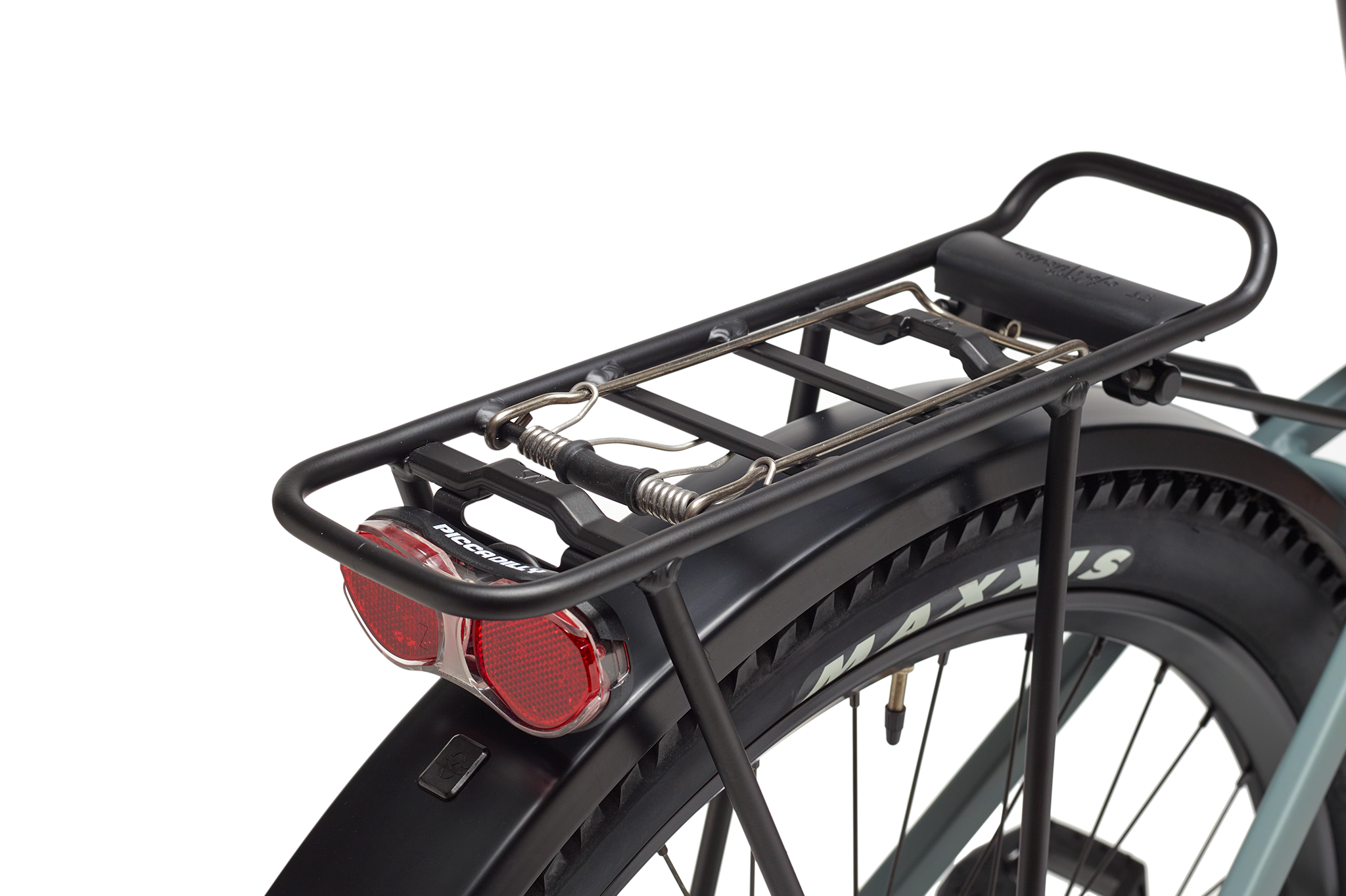

RACK
ATRANVELO Tour AVS (max.: 25Kg)

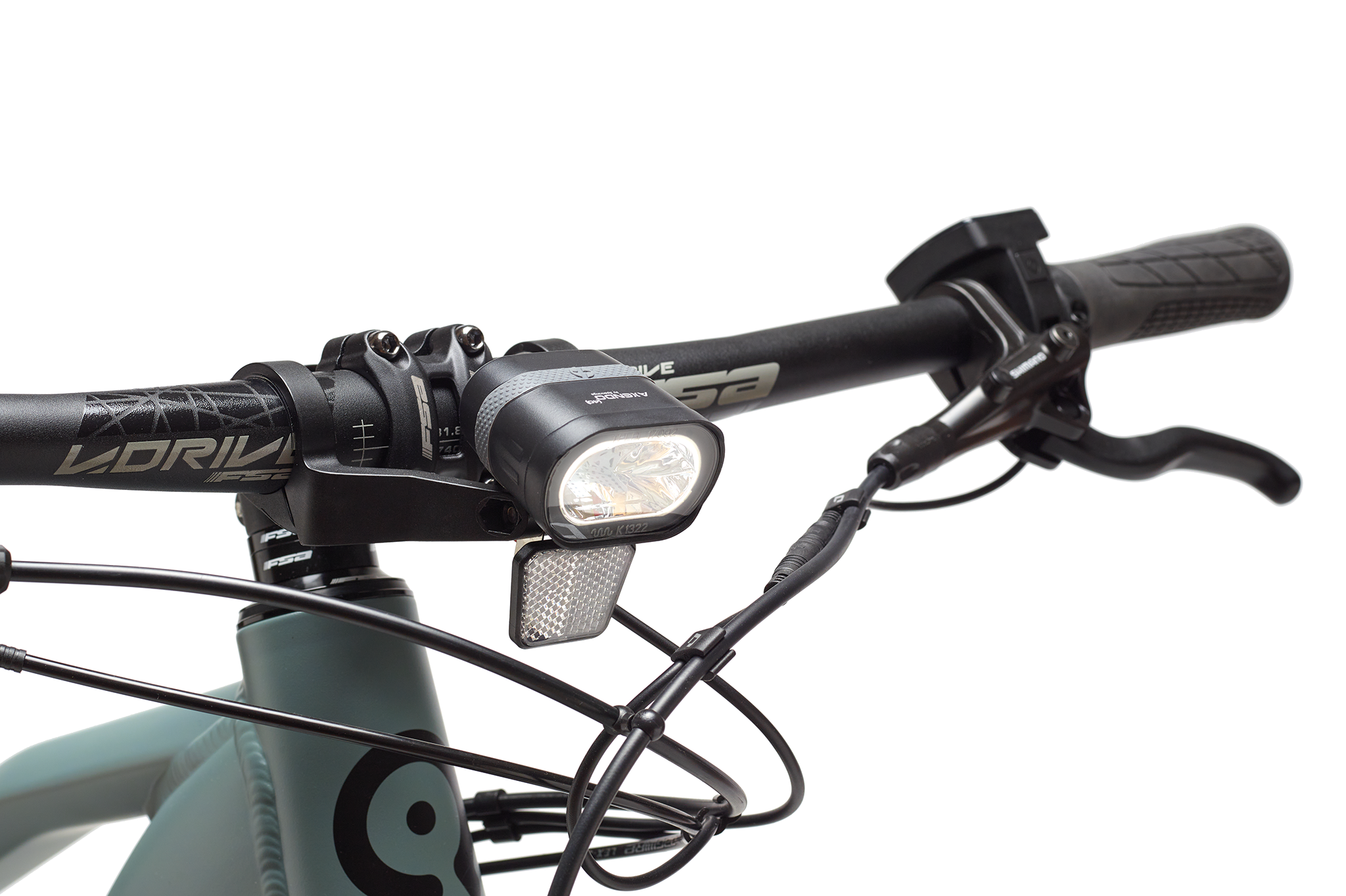

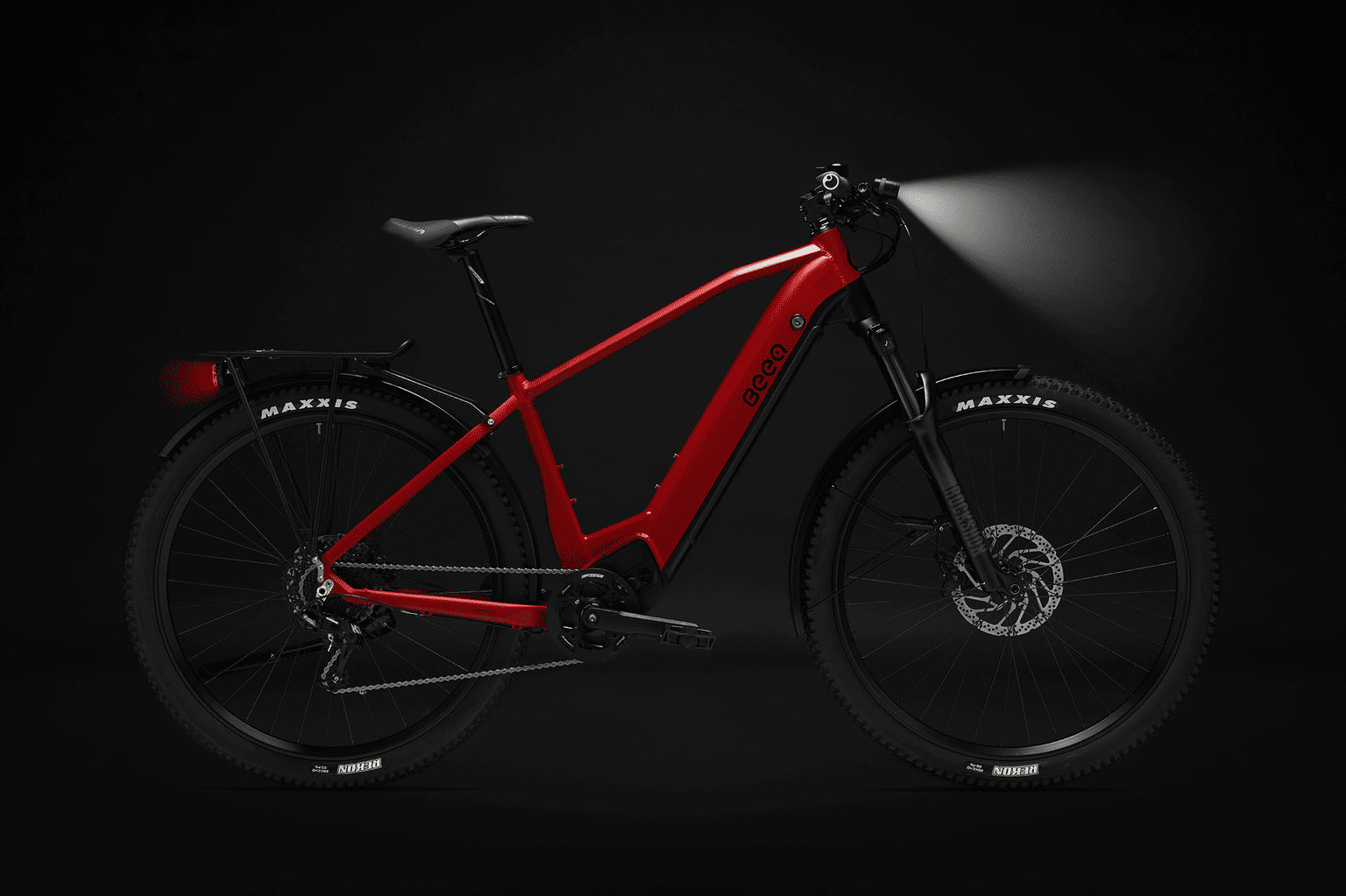

FRONT LIGHT
SPANNINGA Axendo 40 with reflector
REAR LIGHT
PICCADILY with reflector
KICKSTAND
ATRANVELO Dux
MUDGUARD
SKS
BELL
Yes
BOTTLE CAGE
Not included. Sold separately.

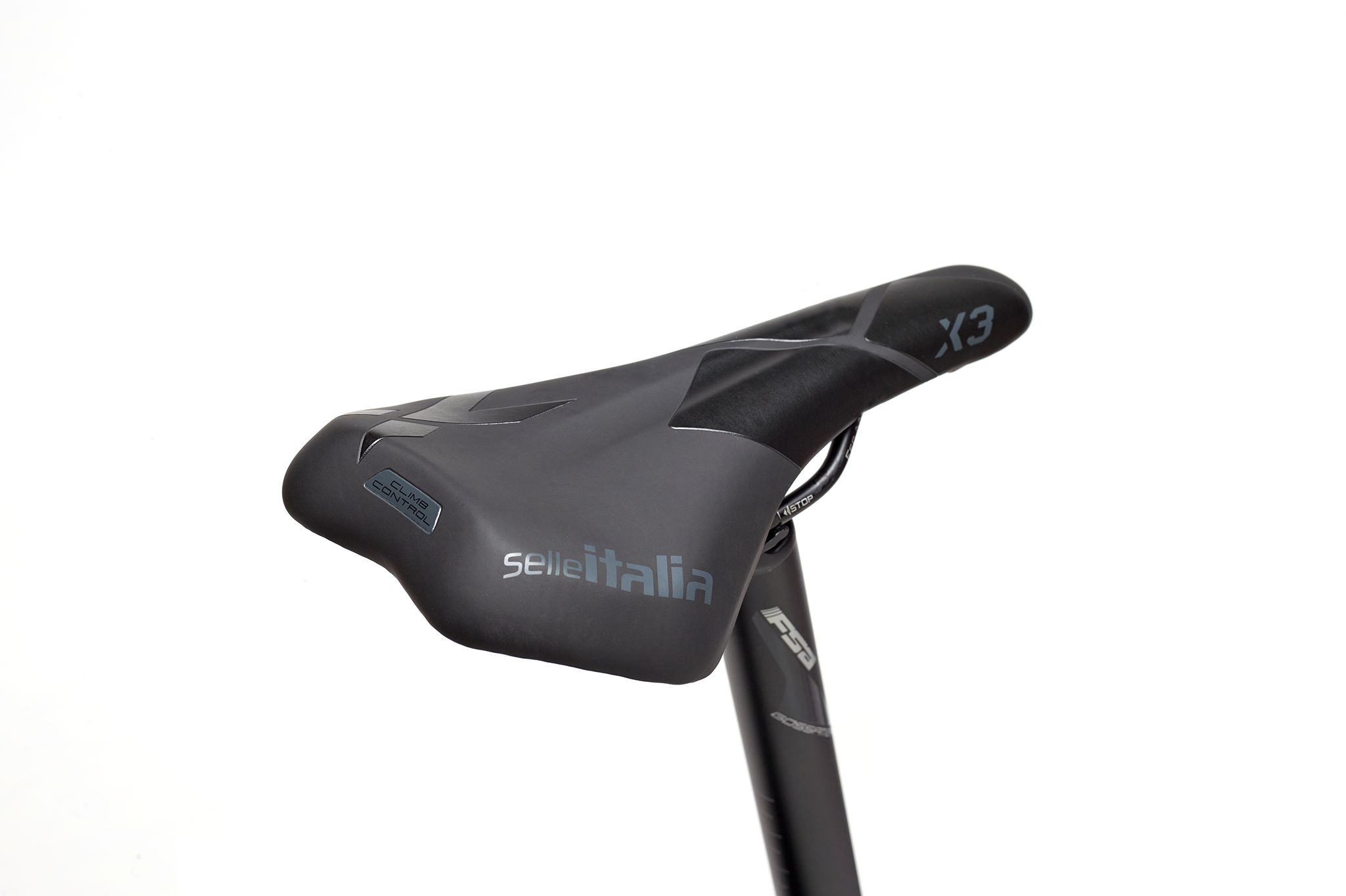

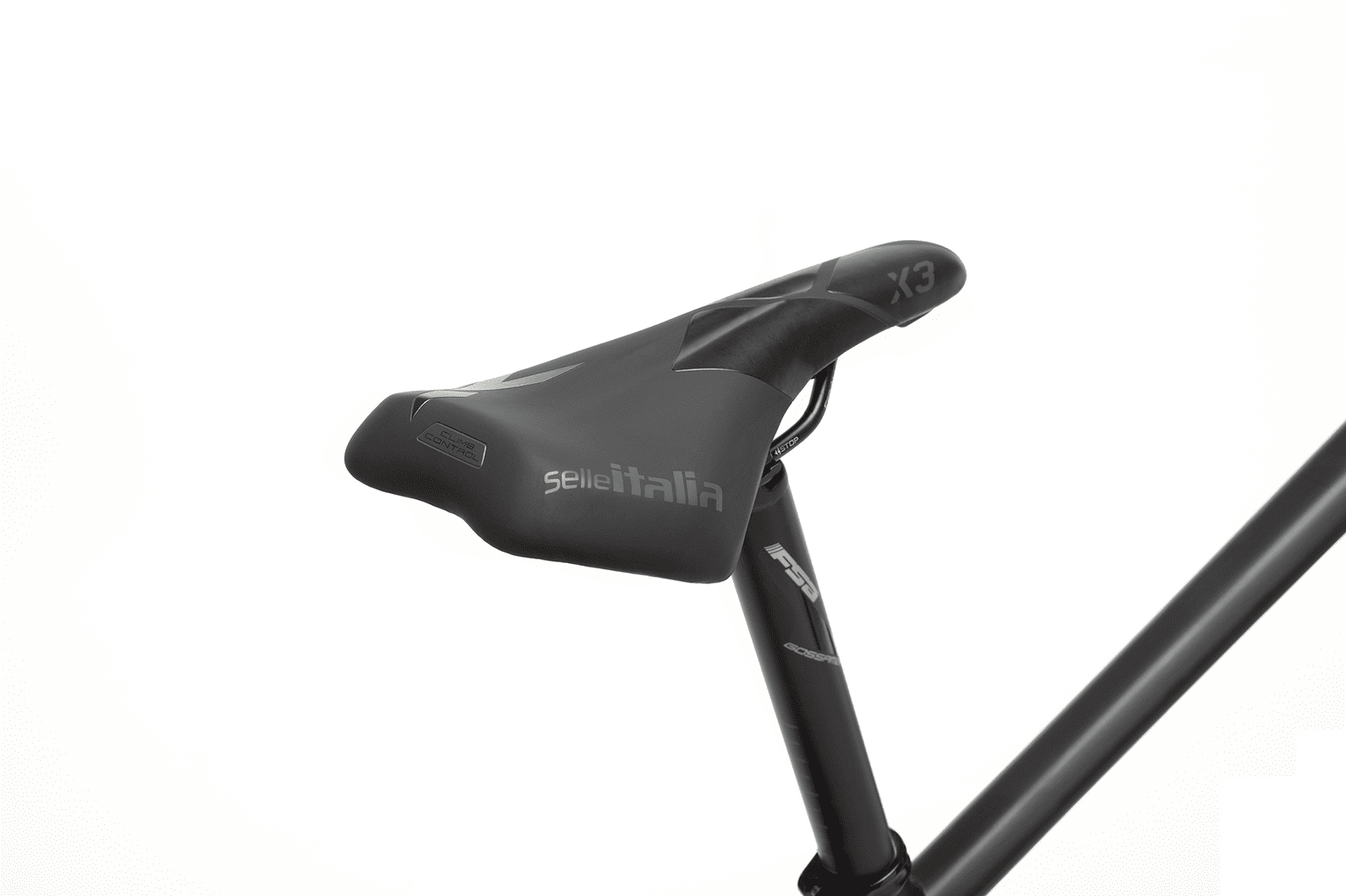

SADDLE
SELLE SAN MARCO X3 e-bike black
SEAT POST
FSA Gossamer 31.6mm / 350mm /20mm
SEAT CLAMP
Alloy black with screw
PEDALS
UNION SP-400 Flat with reflectors
FRAMELOCK
Not included. Sold separately.
M700 Wild ATB
Conquer the mountain, defy limits and enjoy the ride with M700 Wild ATB!
