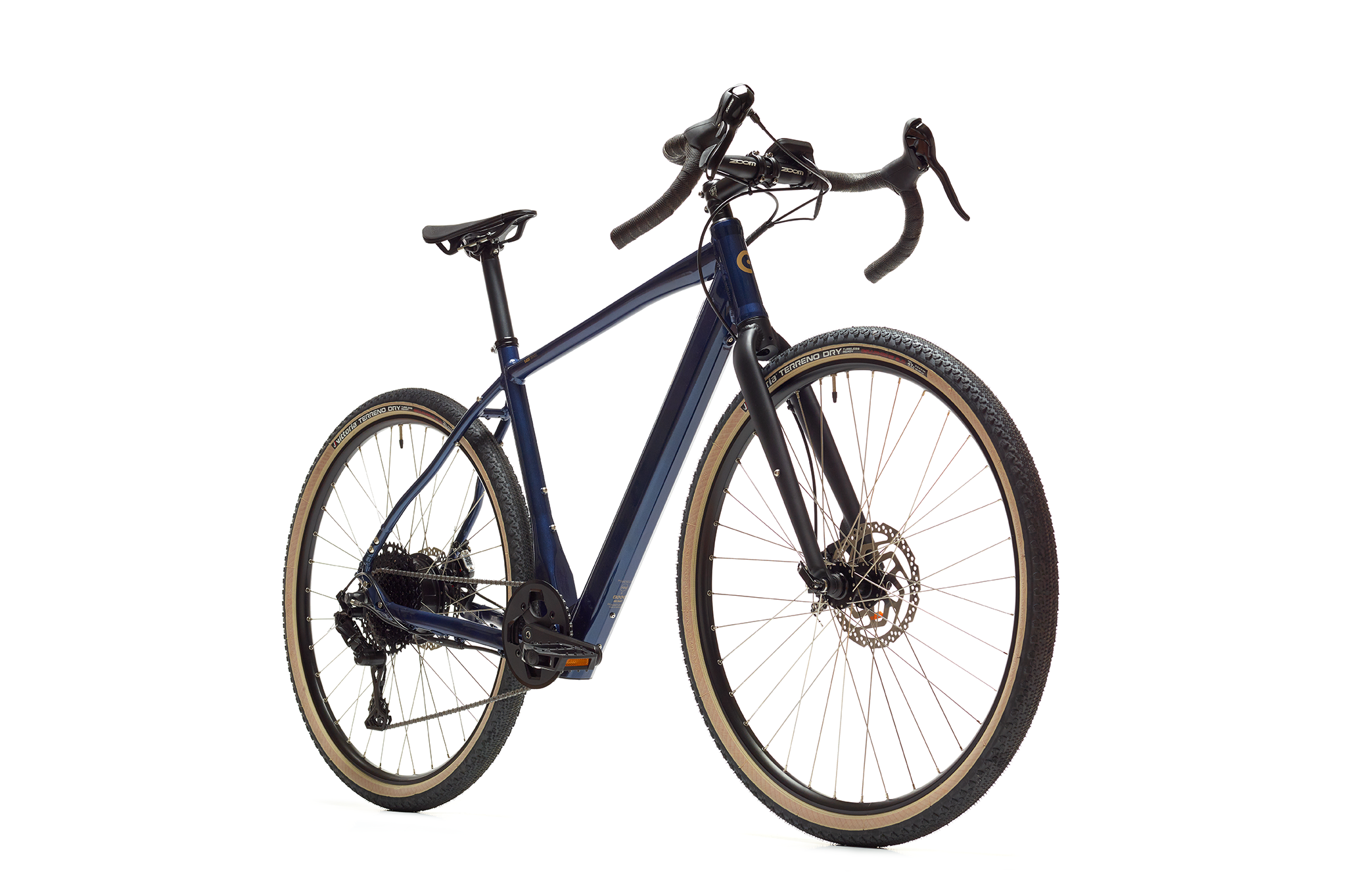

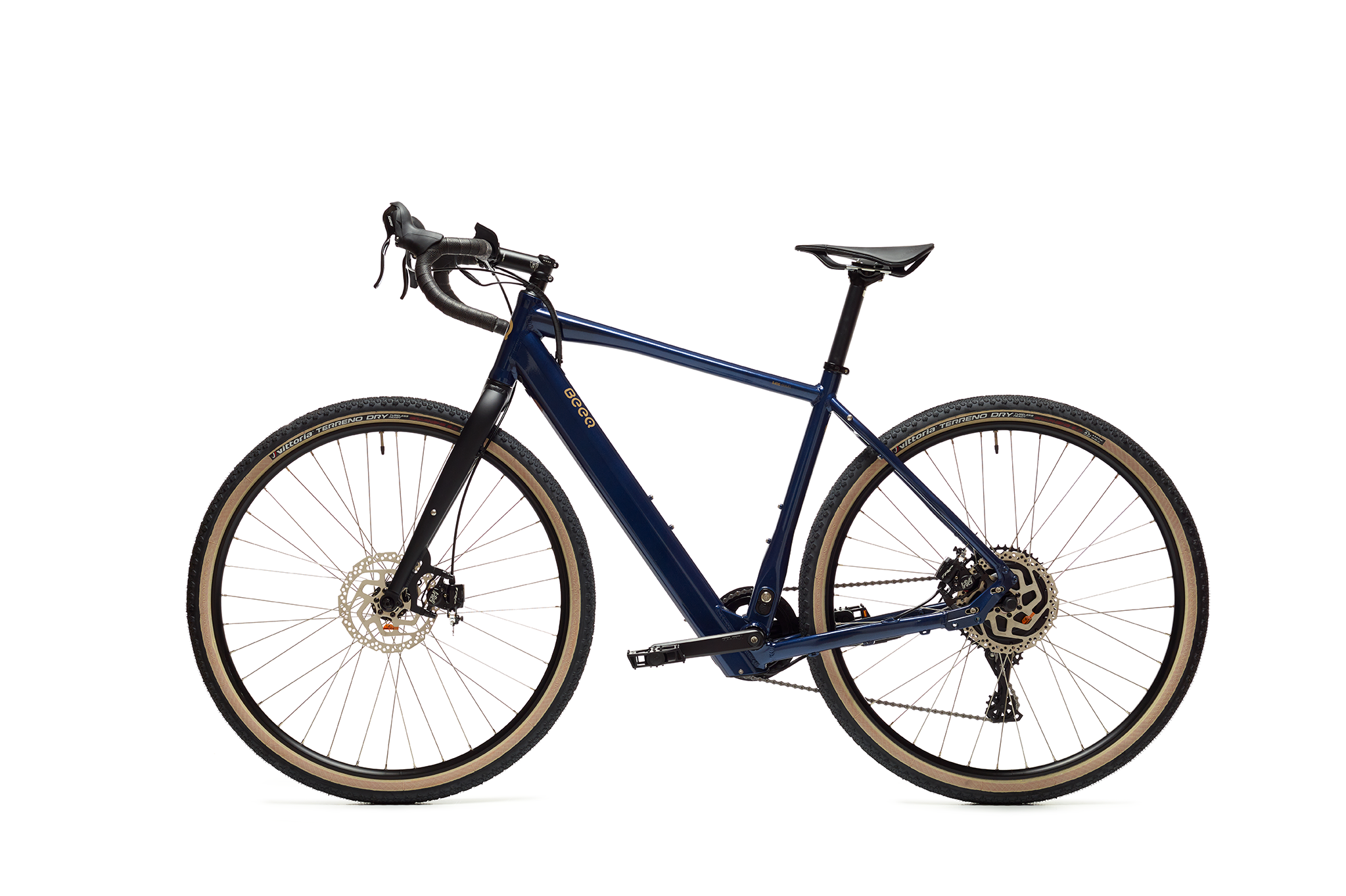

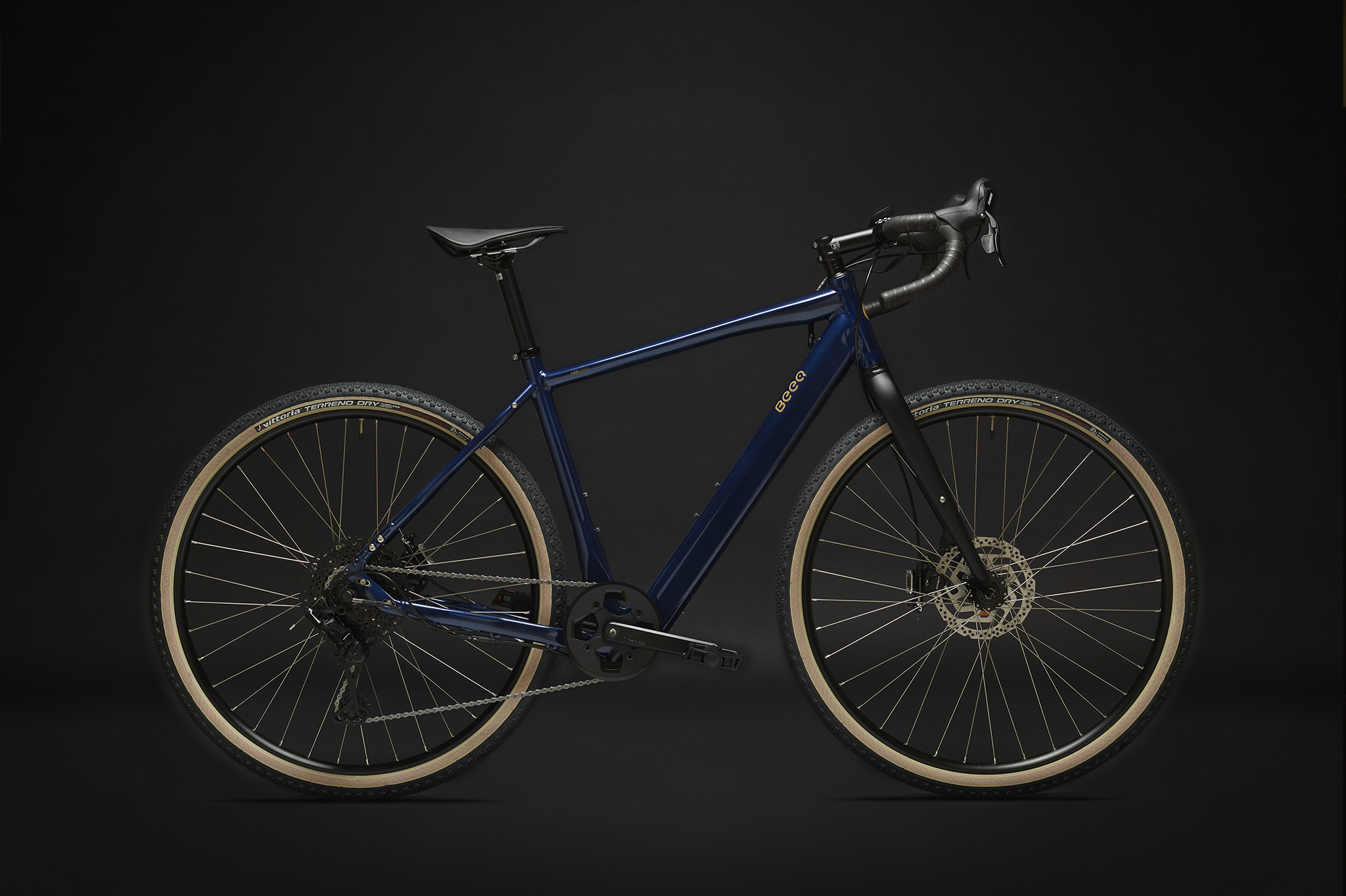

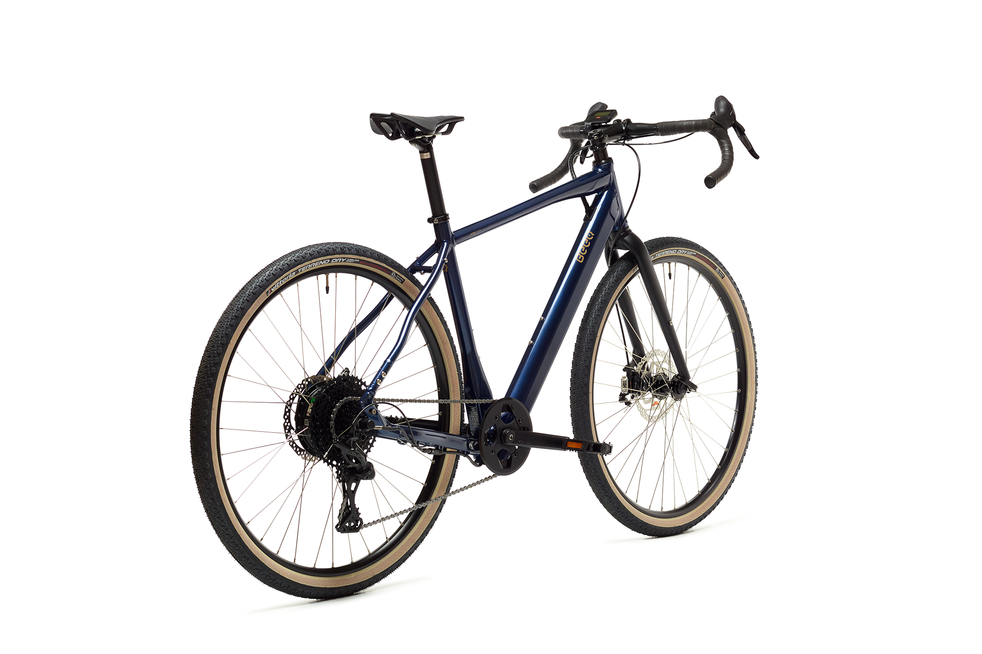

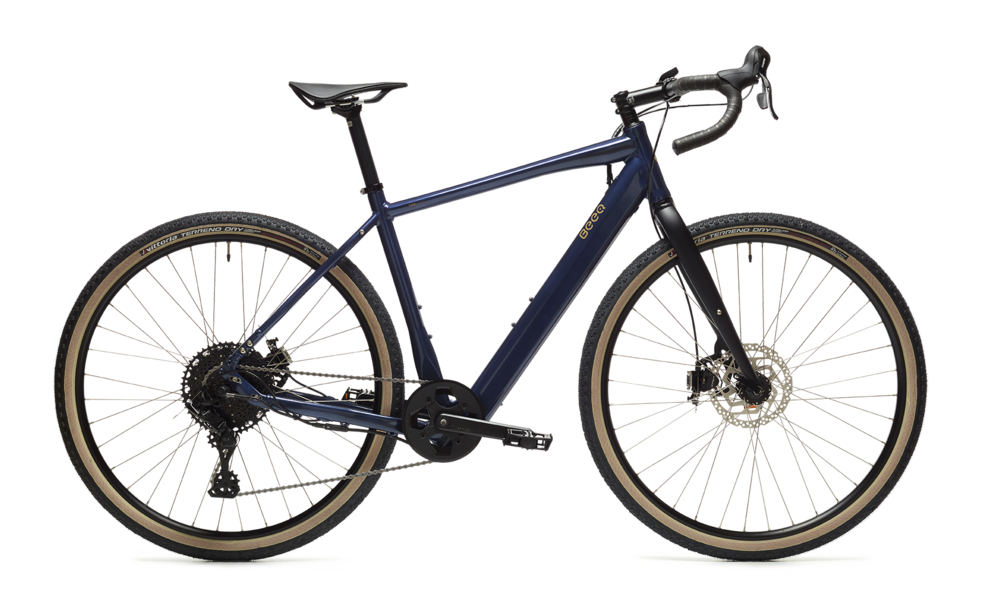

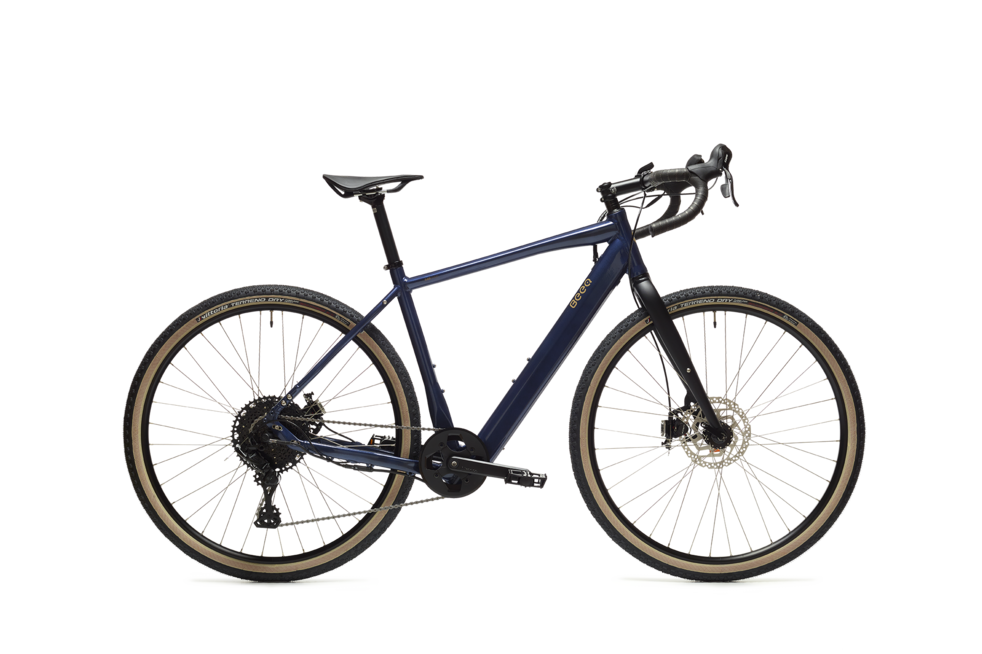

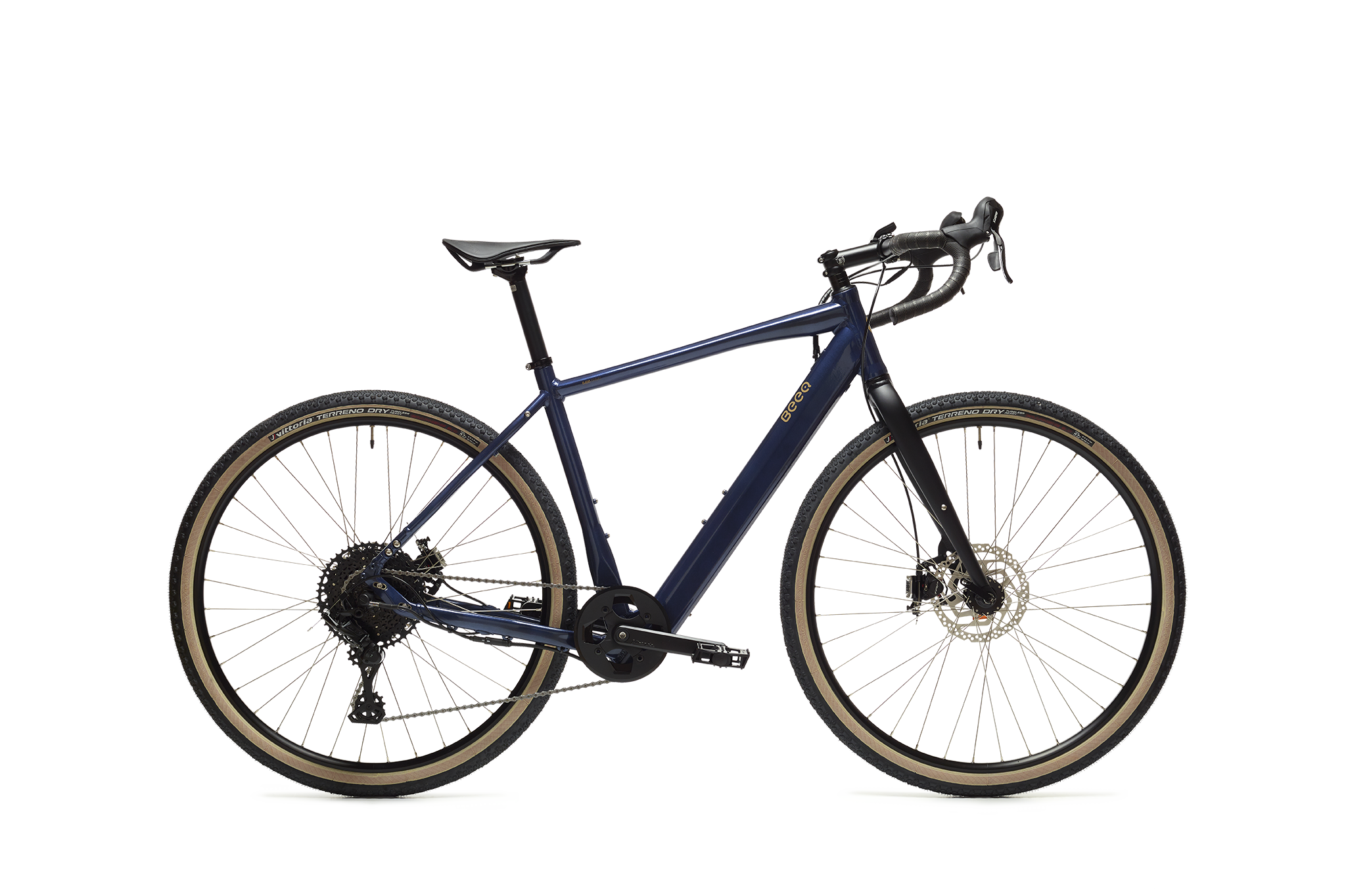

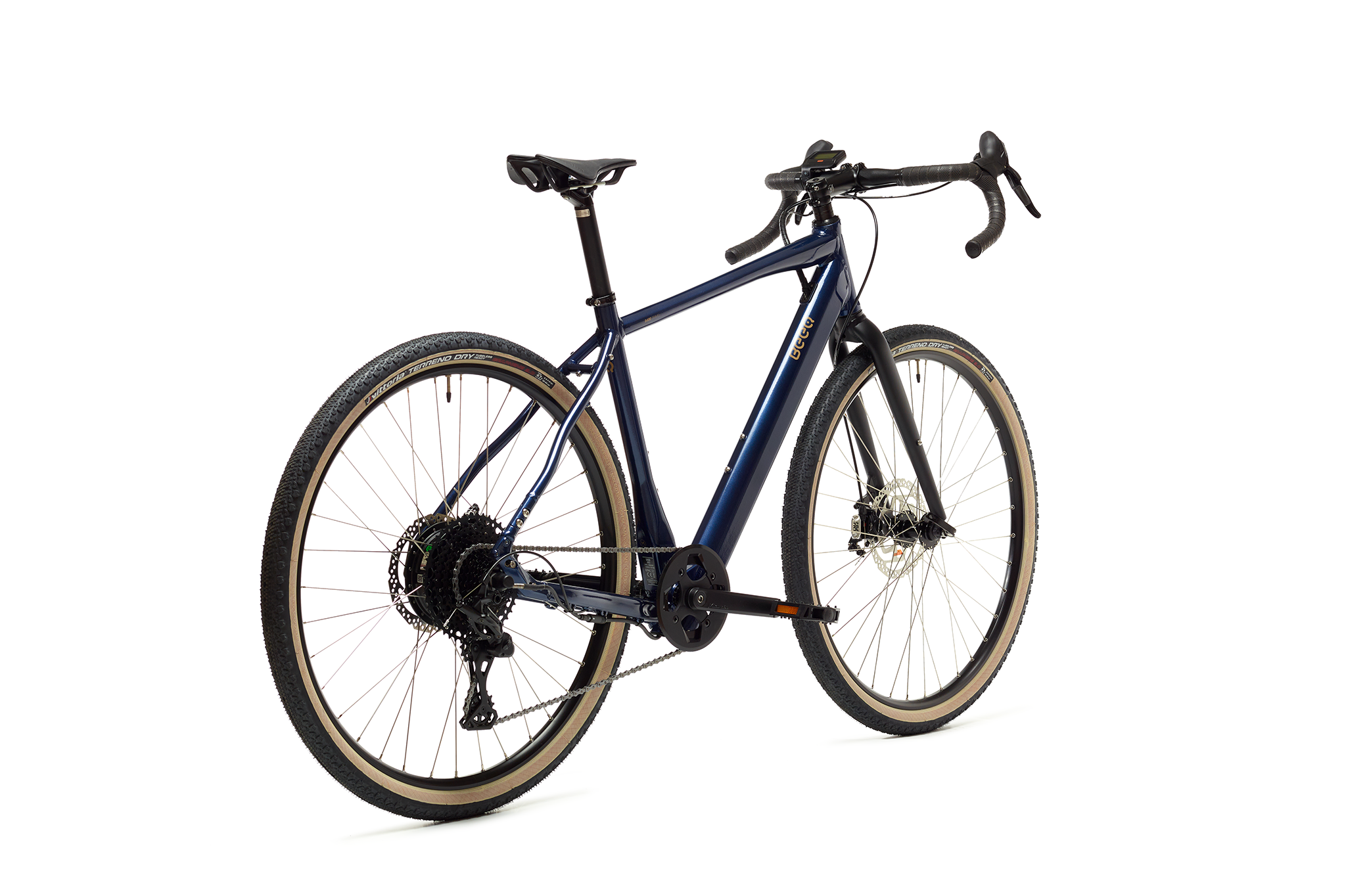

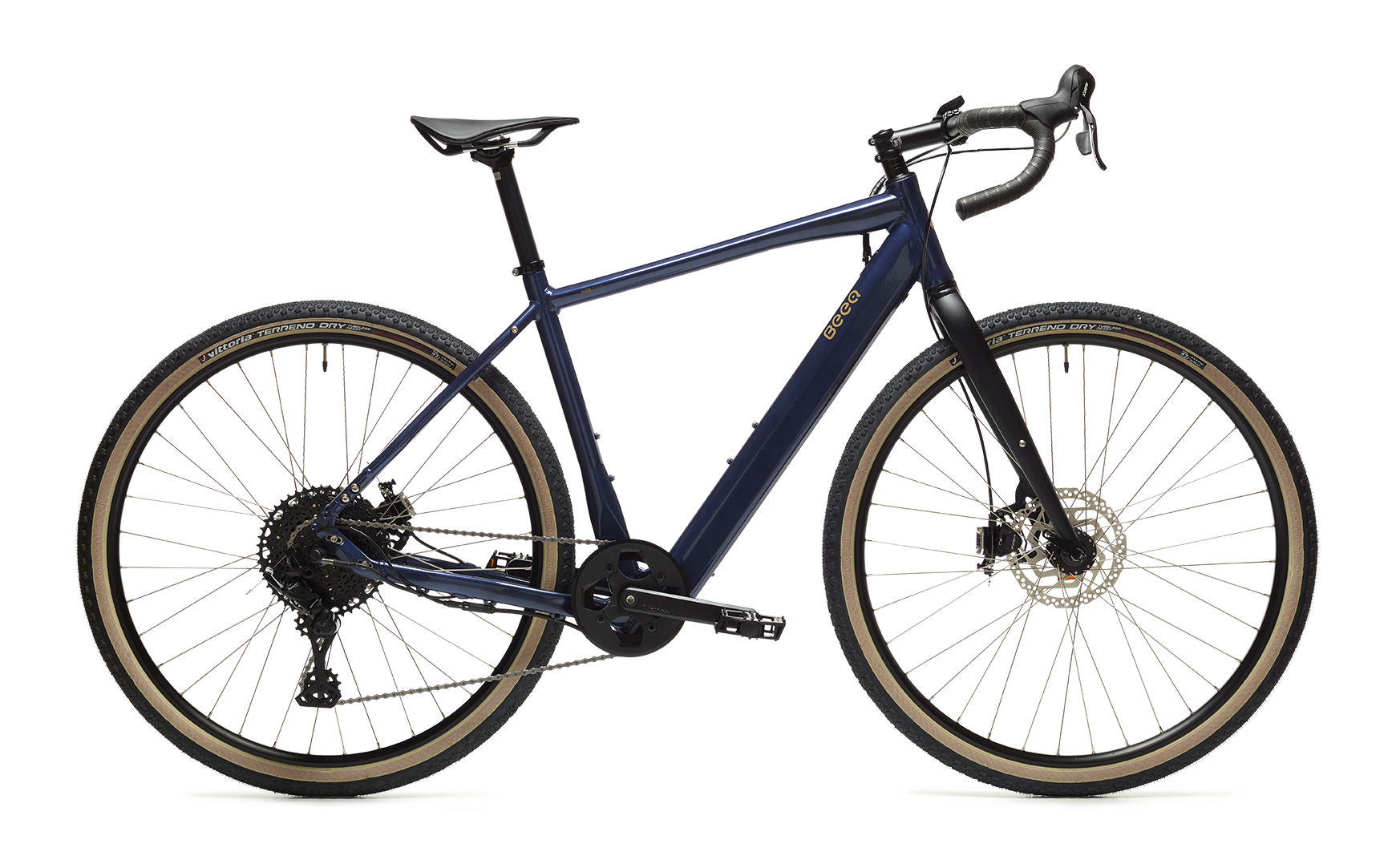

G400 Gravel
24 months
66,28 £
- 24 months - 66,28 £ / month
3 Year Guarantee
30 Days For Returns
Deliveries in 5 Working Days
RANGE
Experience the convenience of traveling up to 100 km on a single battery charge with assisted riding, thanks to the fully integrated 360Wh battery. Estimated autonomy of 40 to 100km depending on user’s weight, road conditions or altitude range.
POWER

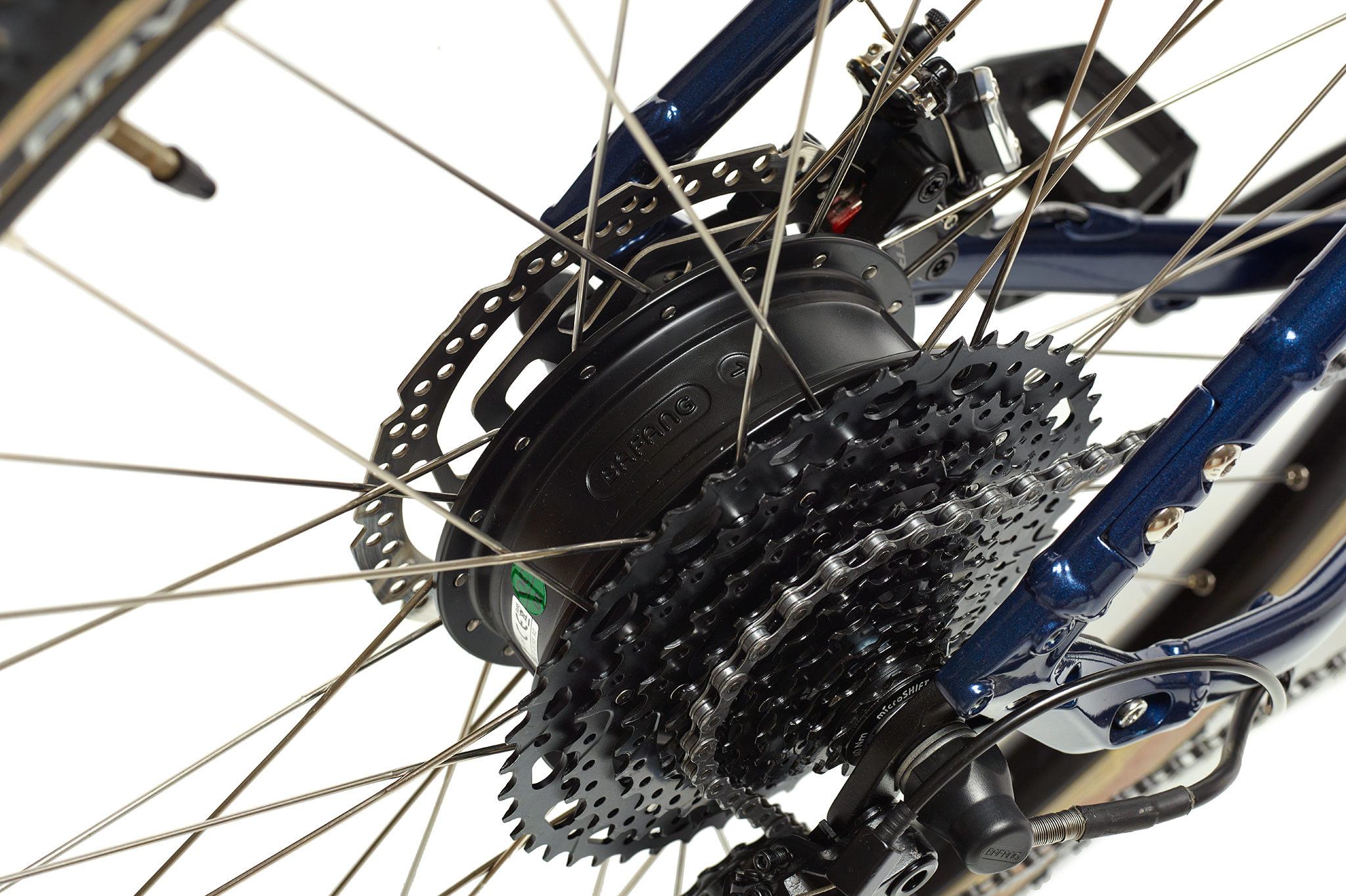

Go farther with less effort and enjoy the pleasure of pedaling thanks to the BAFANG rear hub motor with 45Nm, providing you with an immediate response while riding.
COMFORT
Thanks to the frame geometry, you will experience the stiffness of the frame construction, providing you with maximum agility. The grips and saddle are the perfect details to maximize your comfort, so that your only concern is enjoying the journey!
Technical details
PRODUCT INFORMATION
FRAME SIZES
M (52cm) - L (56cm)
WEIGHT
Approx. 20kg
MAXIMUM BIKE & RIDER WEIGHT
150kg
PAINTING
Powder painting scratch resistant with Glossy Varnish
COLOUR(s)
Metallic Blue
FRAME
FRAME
Aluminium High Step

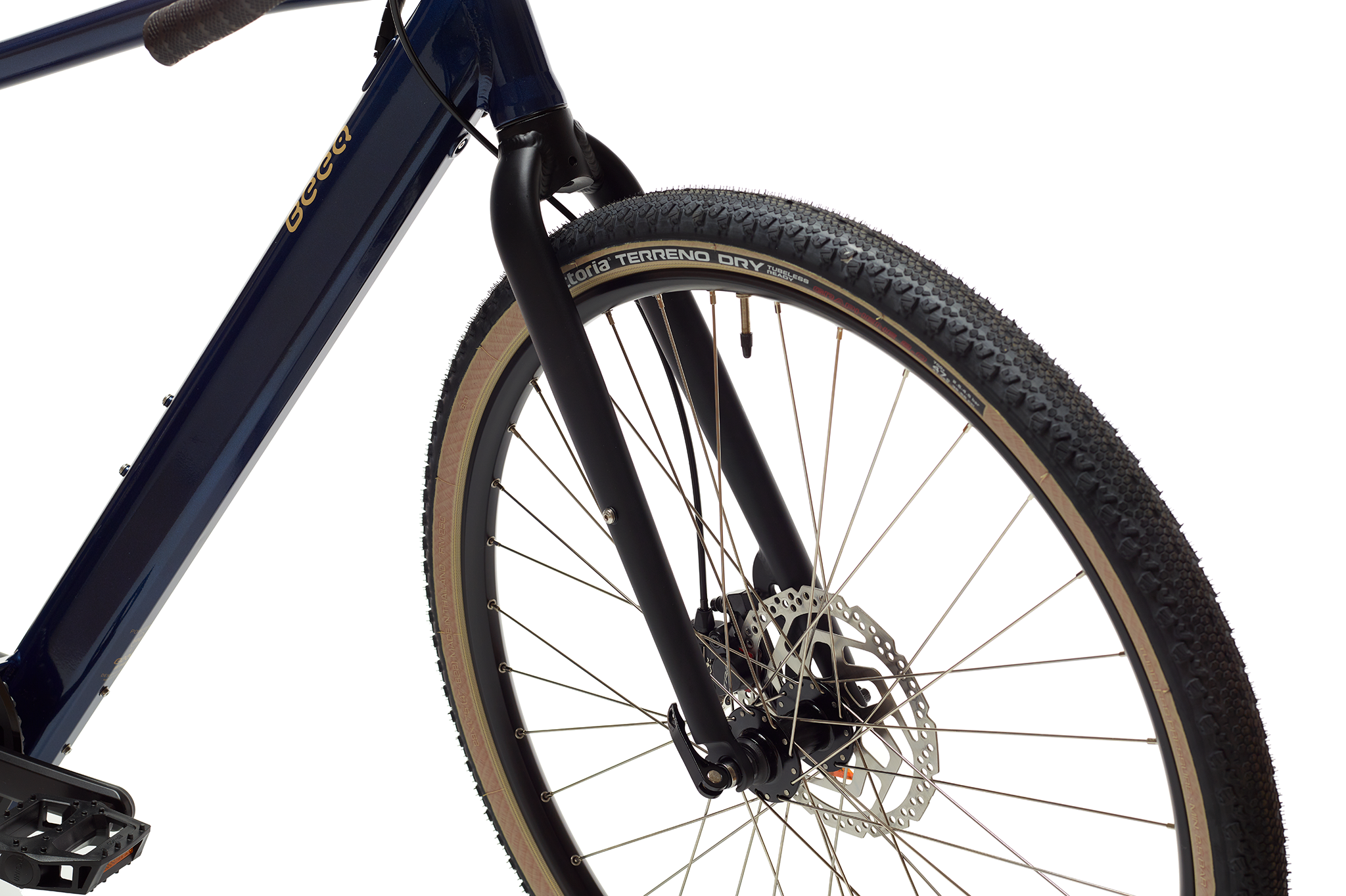

FORK
Rigid Alloy 28"
HEADSET
Semi integrated 1-1/8"
E-BIKE SYSTEM
DRIVE UNIT
BAFANG H400B Rear Wheel 45Nm
BATTERY

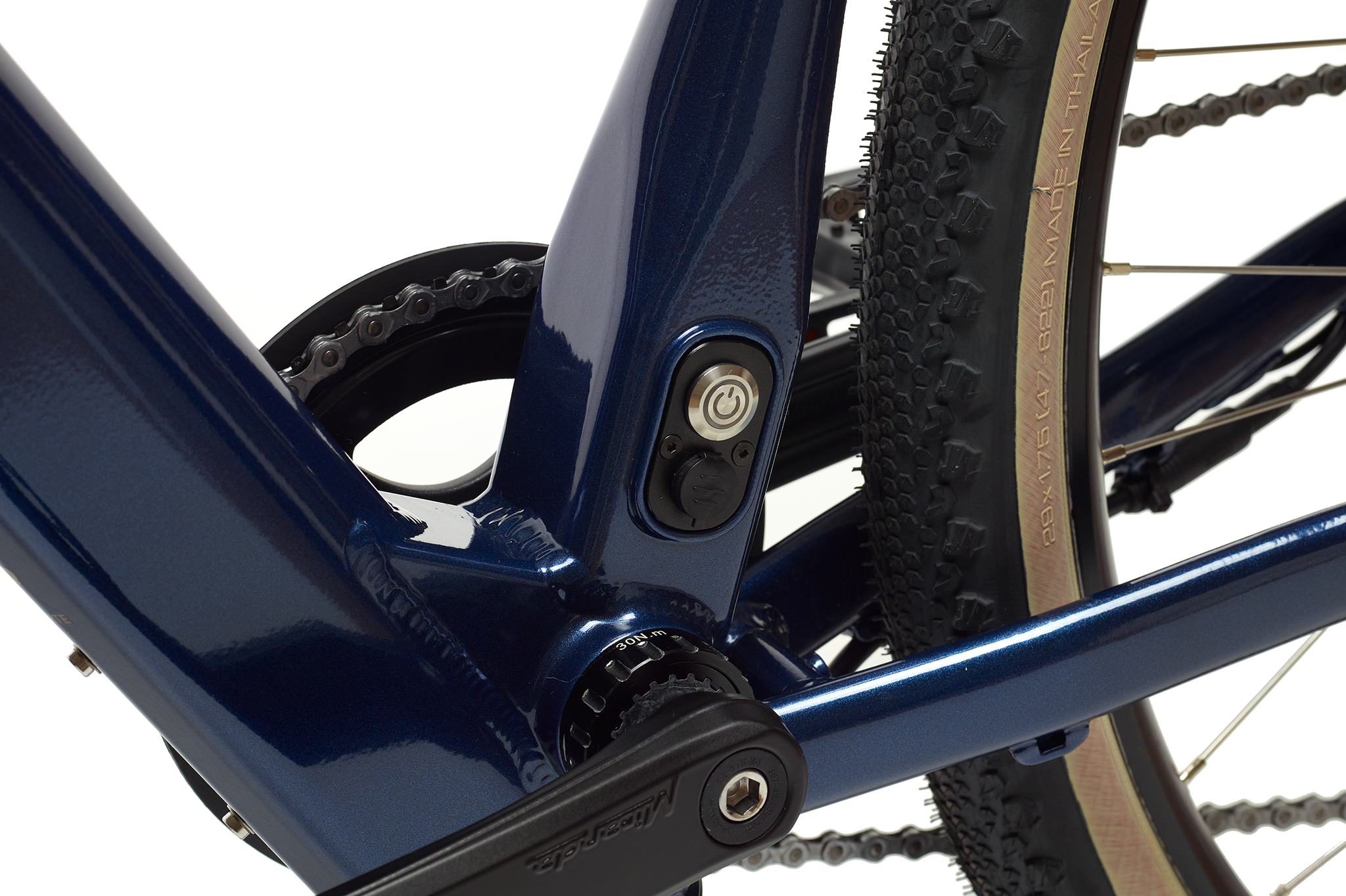

36V 360Wh - Integrated on Downtube - Non Removable
RANGE
40km to 100km
CHARGER
2A - 5 hours total charge time

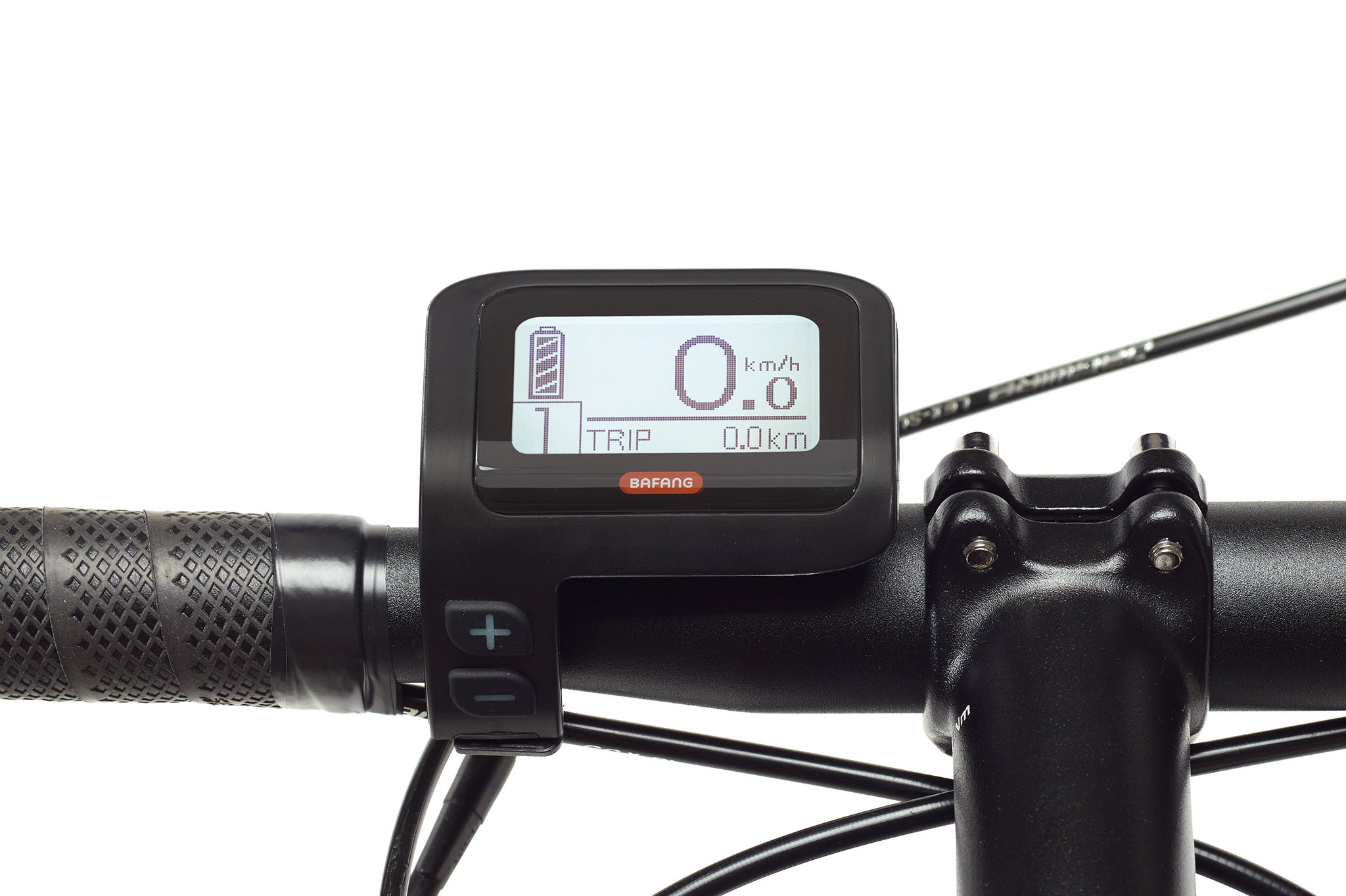

DISPLAY
BAFANG DP.C11
COCKPIT

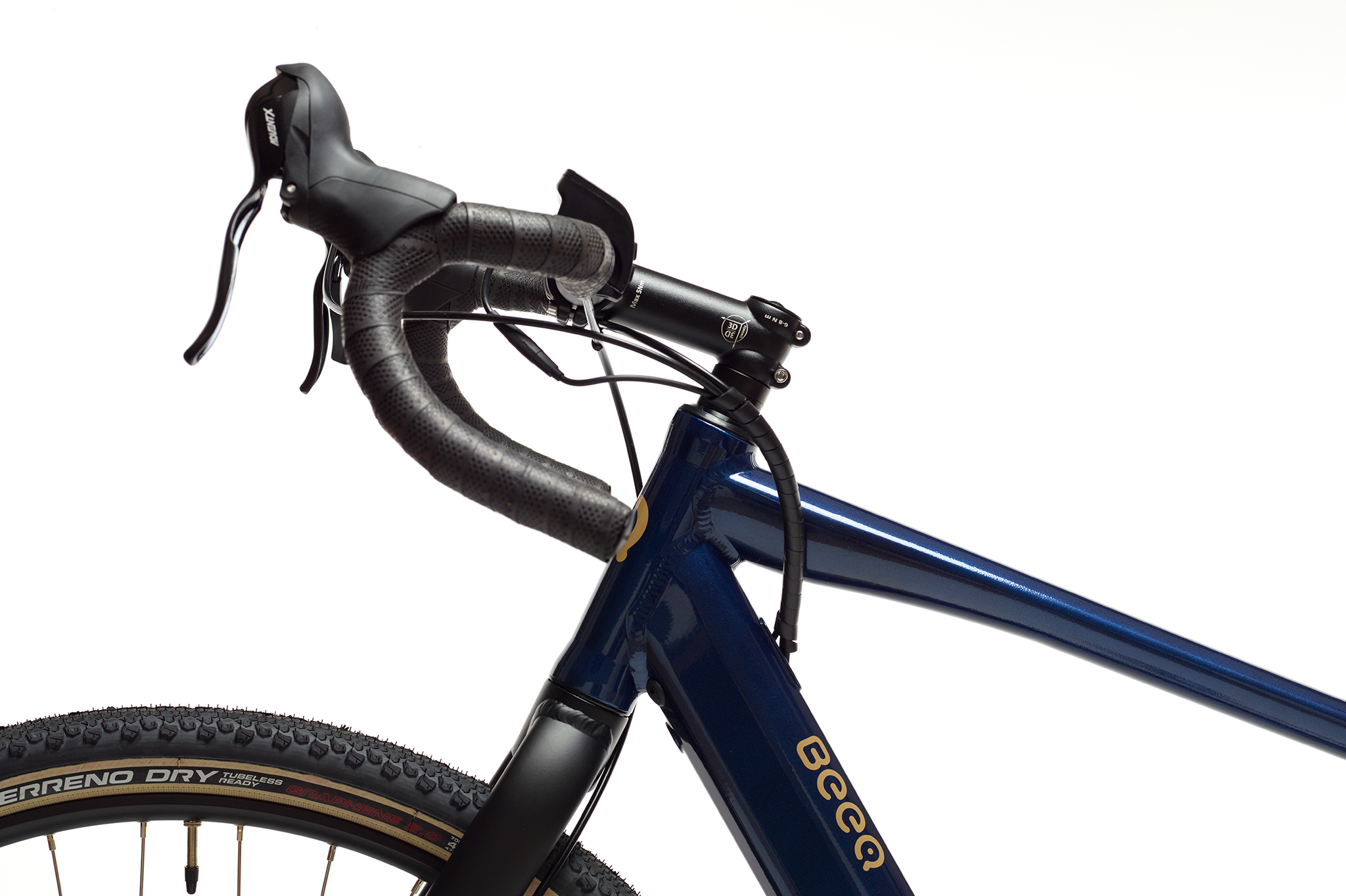

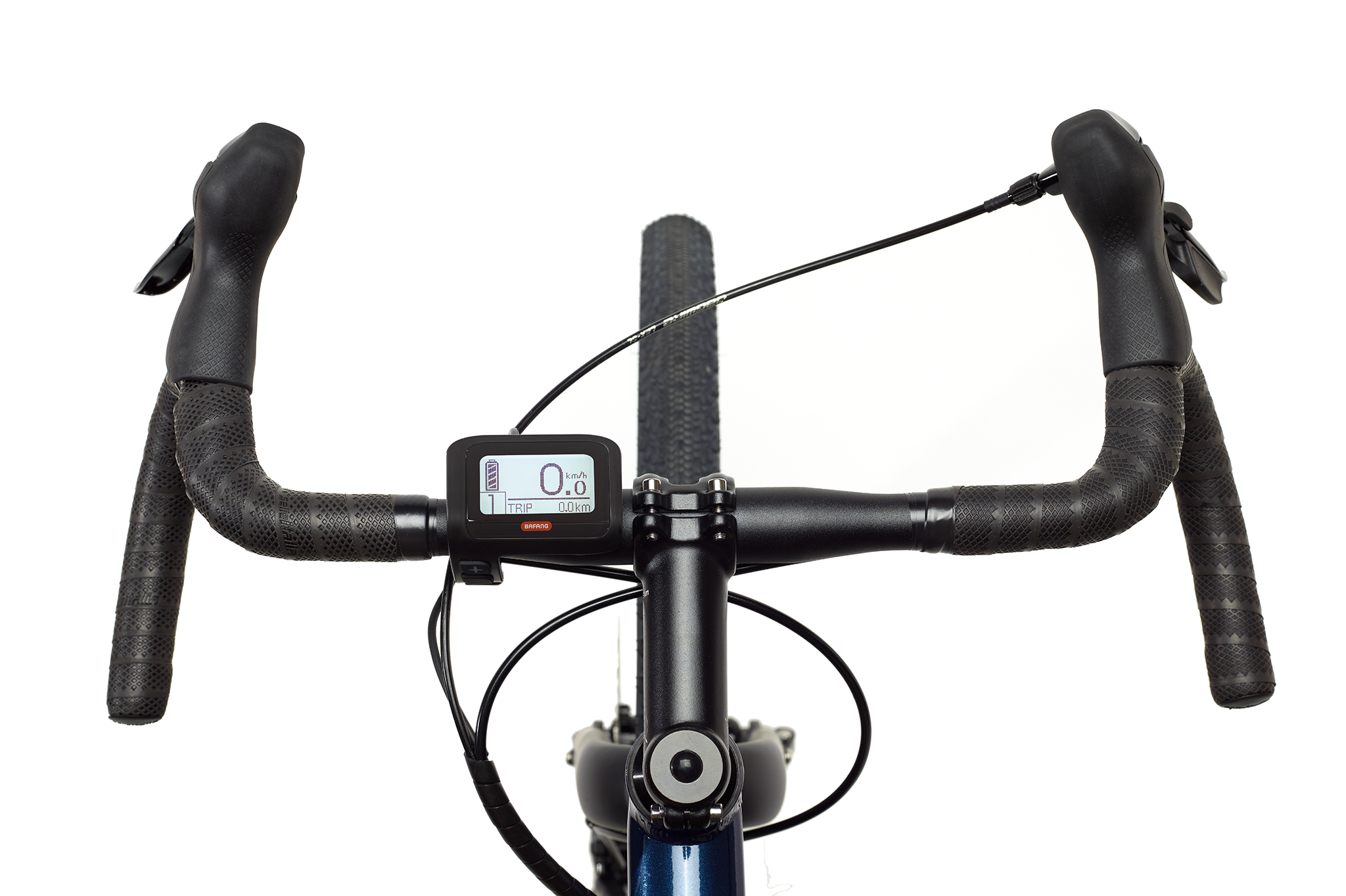

HANDLEBAR

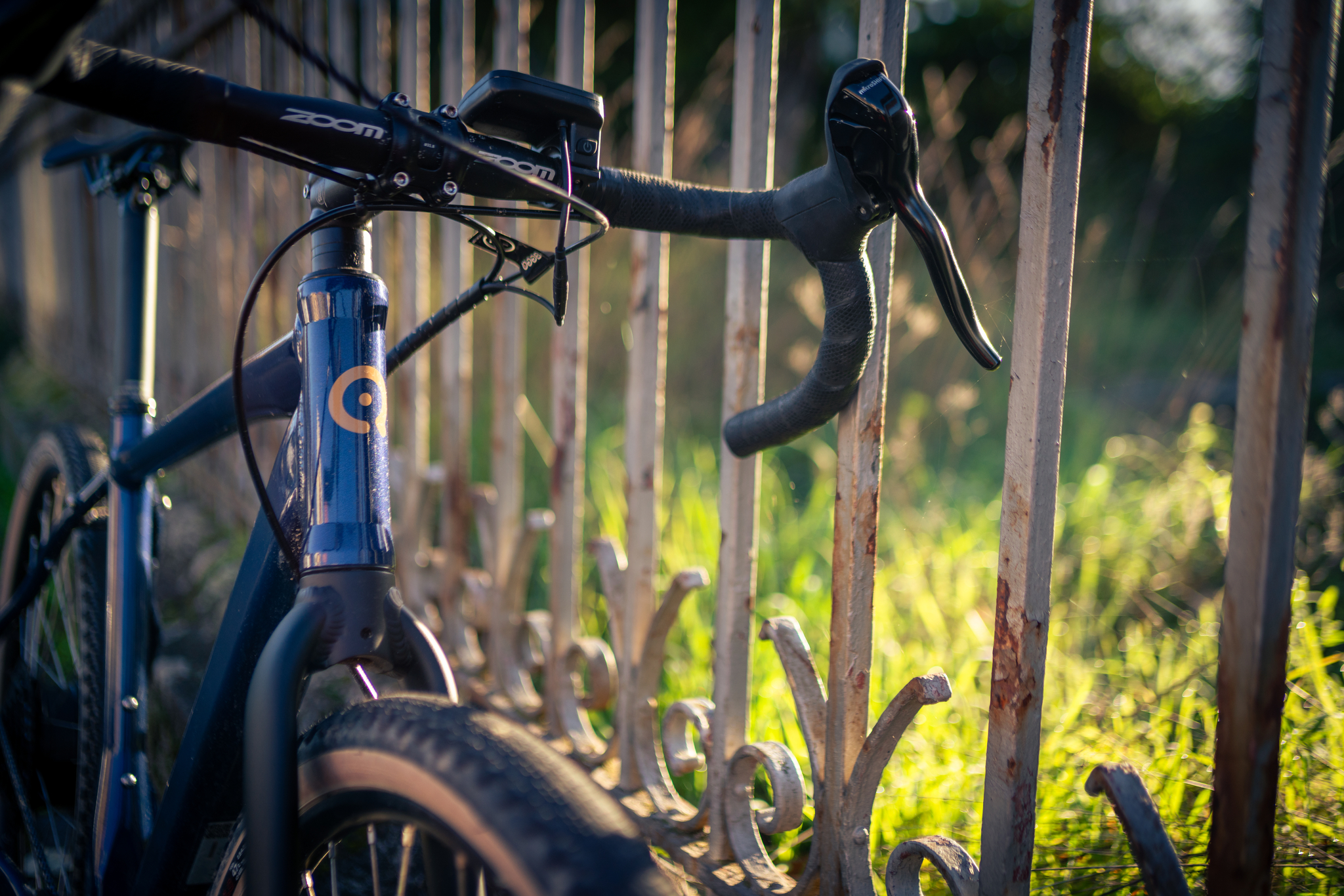

ZOOM Gravel 400mm / 31.8mm / Flare 25º
STEM
AL 100mm - 31.8mm - 7º
GRIPS
SELLE ITALIA SG Tape
WHEELSET
TYRES
VITTORIA Terreno Dry 29''x1,75''
WHEEL SIZE
29''
RIMS
Alloy Double Wall 25mm
SPOKES
Stainless Steel
FRONT HUB
Alloy 9x135mm QR

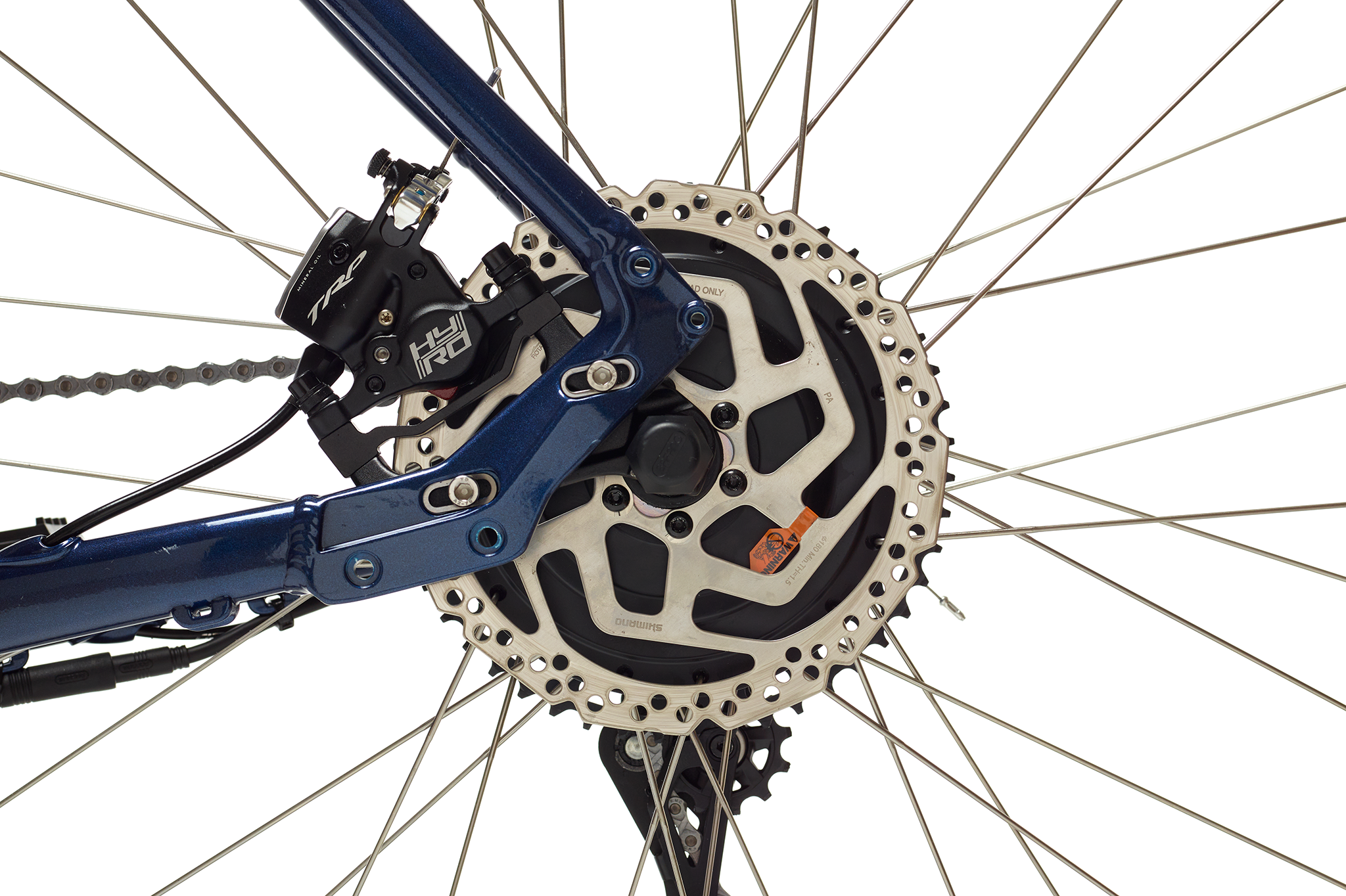

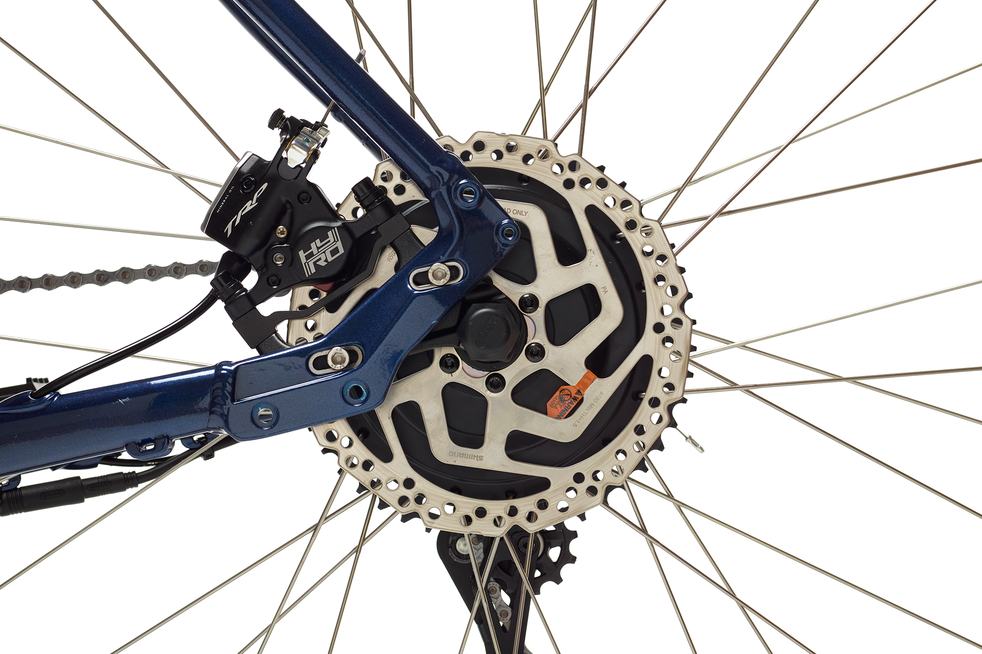

REAR HUB
BAFANG H400B 135mm
DRIVETRAIN & BRAKES
BRAKES
TEKTRO Cable Activated Hydraulic HD-C705

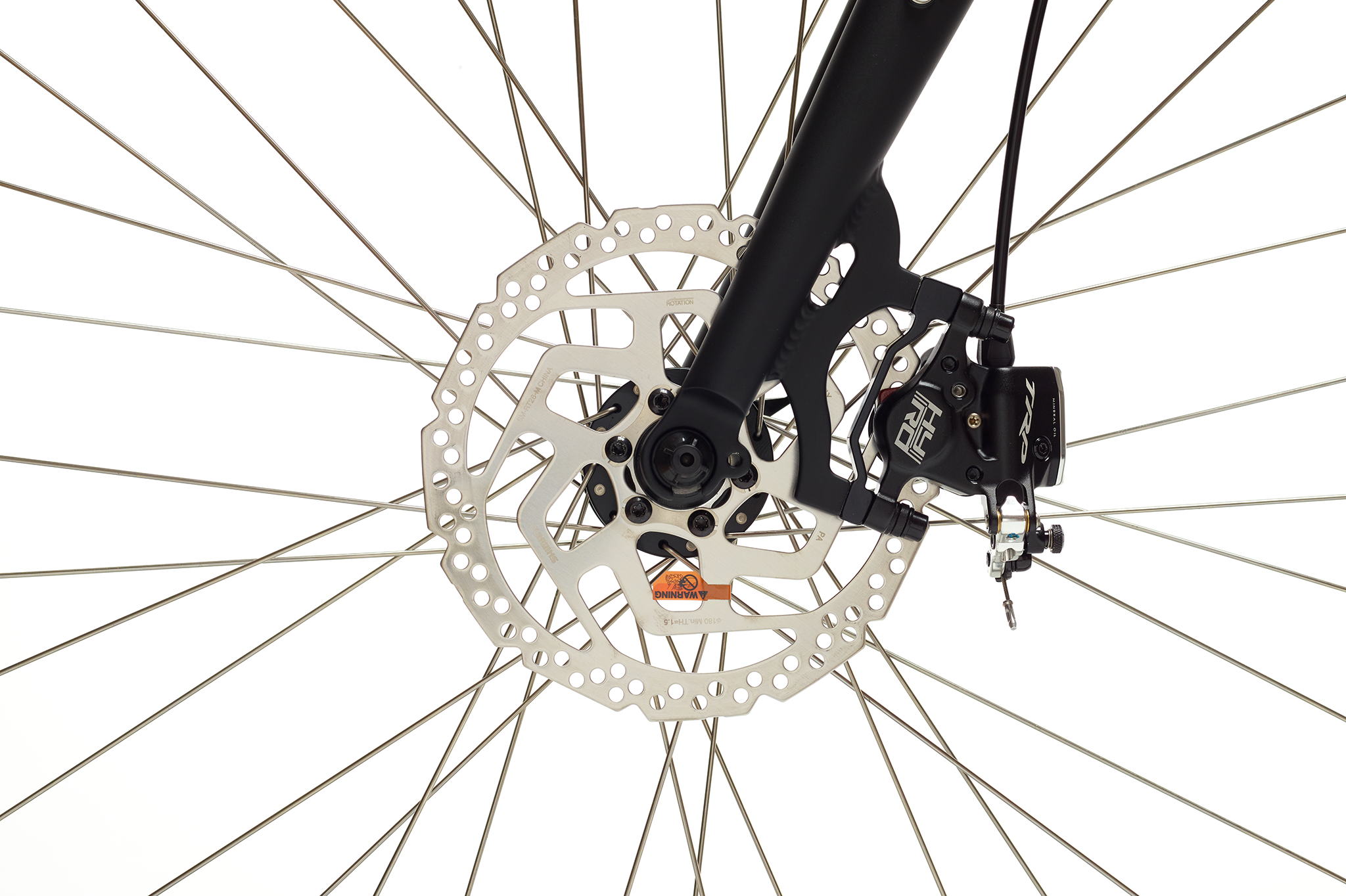

BRAKE ROTOR - Front
SHIMANO SM-RT26 180mm
BRAKE ROTOR - Rear
SHIMANO SM-RT26 180mm

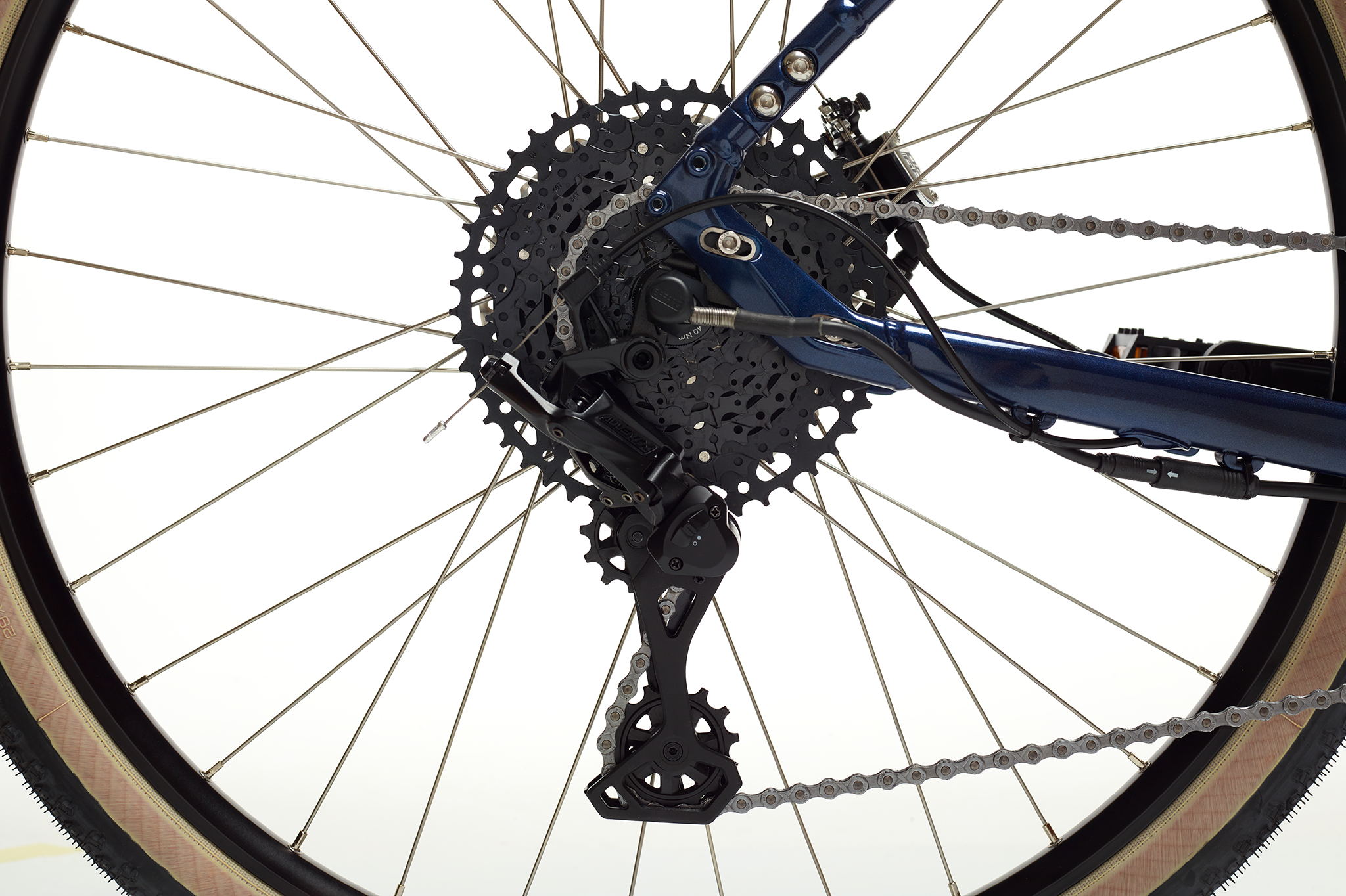

REAR DERRAILEUR
MICROSHIFT AdventX 10S
CASSETTE
MICROSHIFT AdventX 10S 11-48T
SHIFTERS
MICROSHIFT AdventX 10S
CHAINRING
MIRANDA ChainFlow BCD104 38T
CRANK
MIRANDA JIS 170
CHAIN
KMC e10 Turbo e-bike series
CHAINGUARD
Yes - MIRANDA
SAFETY & ACESSORIES
BELL
Yes
BOTTLE CAGE
Not included. Sold separately.
SADDLE

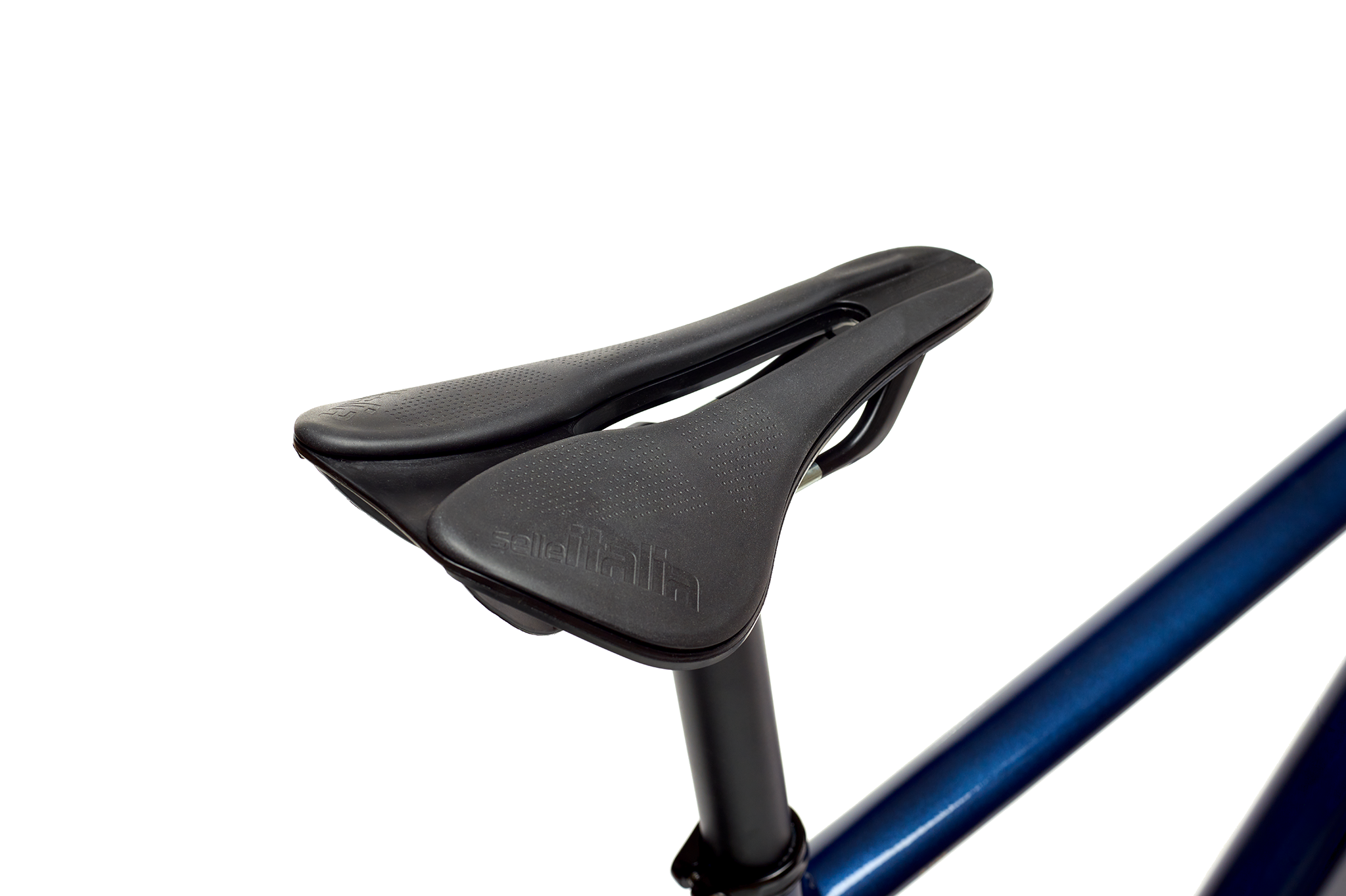

SELLE ITALIA Model X Superflow
SEAT POST
AL Black 300mm 31,6mm /15mm
SEAT CLAMP
Alloy black with screw
PEDALS
MARWI SP-400 Flat with reflectors
FRAMELOCK
Not included. Sold separately.
