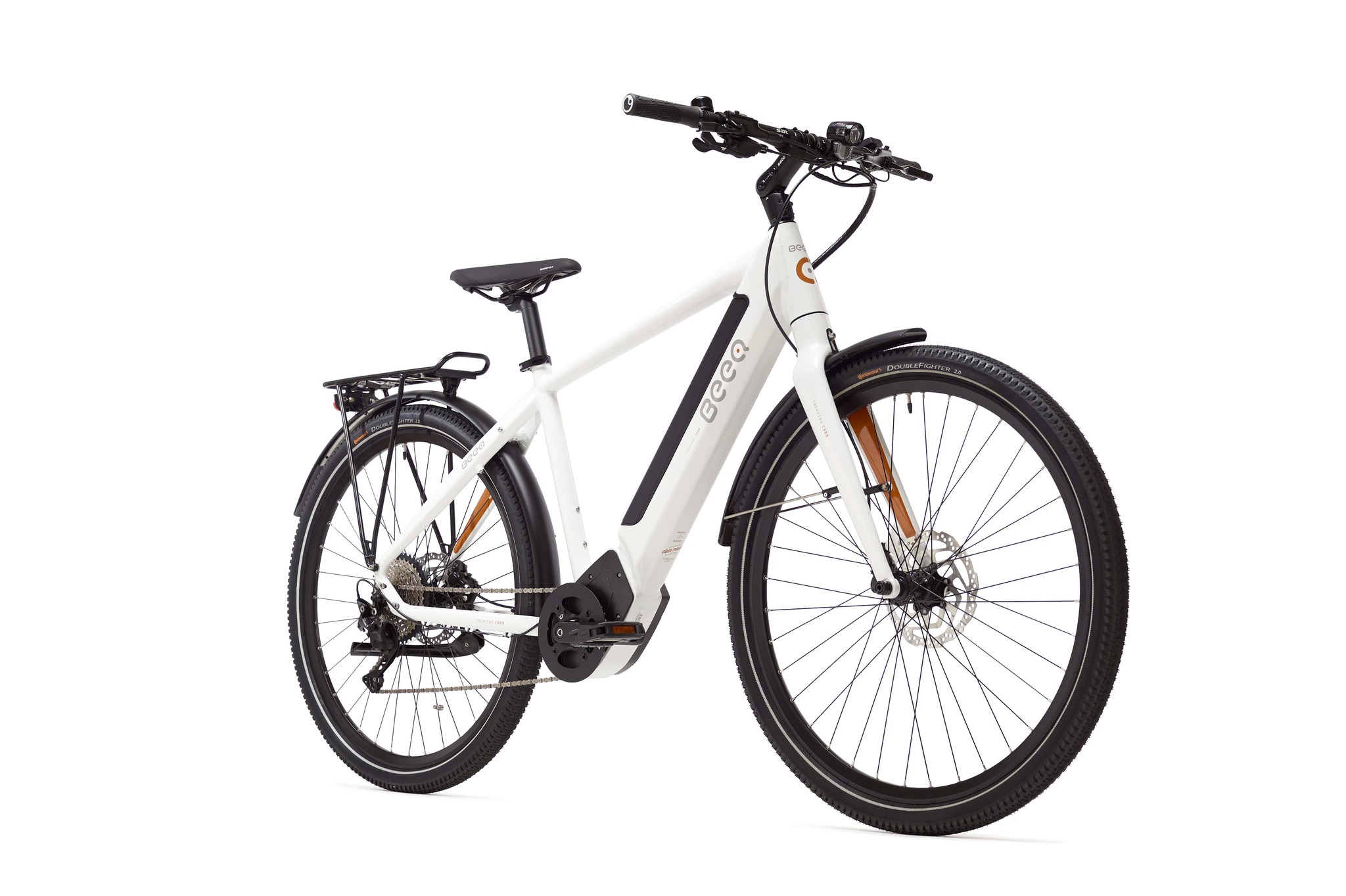

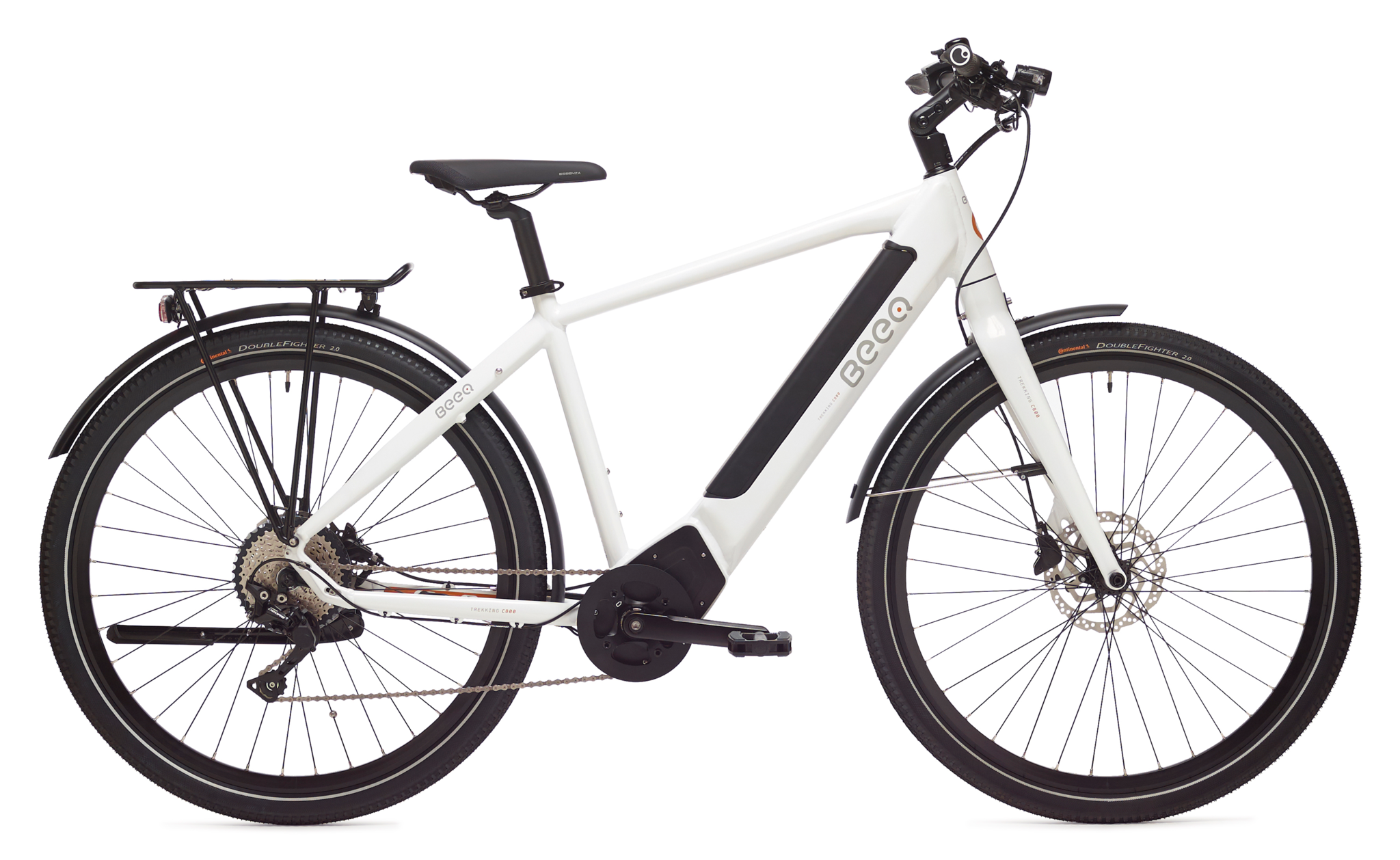

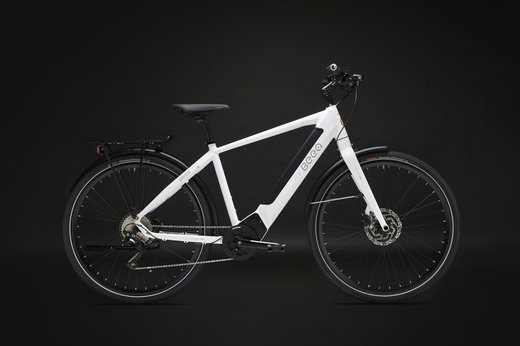

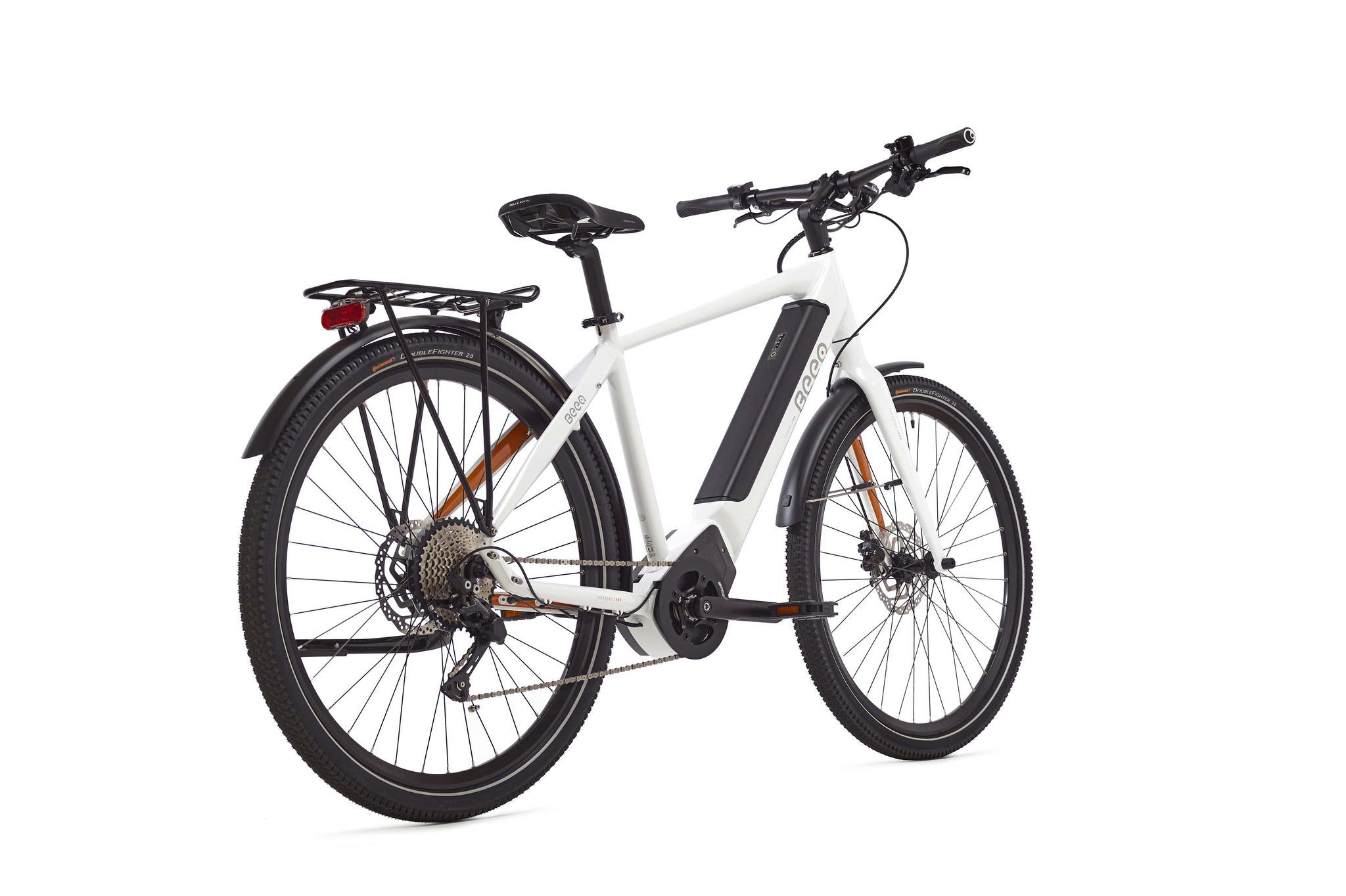

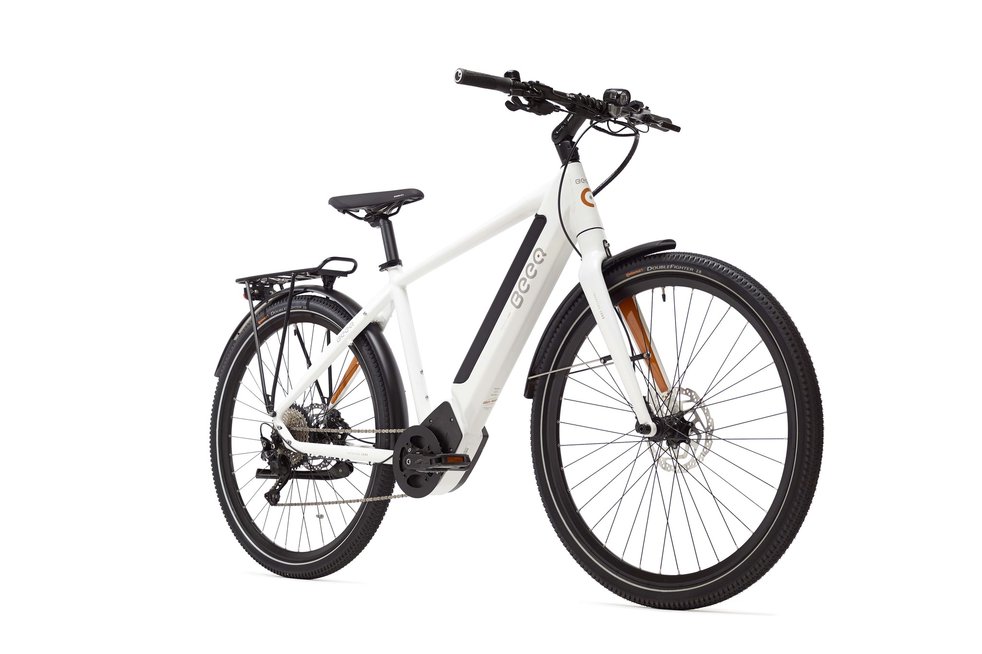

C800 Trekking
POWER
Climb any slope thanks to the BROSE DRIVE S motor of 250W with 90 Nm of torque and 380% assistance.
CONTROL
Thanks to the central integrated motor with cadence, torque and speed sensors, the sturdy aluminium frame, the hydraulic brakes, the wide tyres and the 680mm handlebar.
COMFORT
Thanks to the frame geometry, wide tires, Selle Royal Gel seat and ERGON grips.
RANGE
Pedal 40 to 100km (depending on the user’s weight, terrain conditions and altitude range), thanks to the efficient motor and the 504W/h, 36V battery.
Vox Pop
Exame Informática [PT]
"(...) a clean and elegant design and an engine with a capacity above the common in this type of vehicle."
GLOBAL MOBIE AWARDS 2021
BEST LIGHT ELECTRIC VEHICLE WINNER
Radfahren.de
"Powerful in all ways
Even on the first few kilometers without support, the motor convinces with a slight freewheeling despite the selective route profile. The C800 is easy to pedal, the gear spread of the cassete is sufficient. Plus points for the tires: little resistance on asphalt, good grip on easy terrain."
TESTSIEGER.DE
"If you are looking for an e-bike in the medium price range, you won't go wrong with the BEEQ C800 Trekking."
Technical details
PRODUCT INFORMATION
FRAME SIZES
M (50cm) - L (56cm)
WEIGHT
Approx. 27kg
MAXIMUM BIKE & RIDER WEIGHT
120kg
The weight refers to the combined weight of the rider and bike including all clothing and equipment carried on the rider's person (backpacks etc.) and must not be exceeded.
PAINTING
Powder Painting Scratch Resistant with Matte or Glossy Varnish
COLOUR(s)
White Star with glossy varnish | Happy Blue with matte finish | Black Suit with matte finish
NOTE
We reserve the right to modify the information of the products that appear on this website without prior notice, including equipment, specifications, models, colors and materials

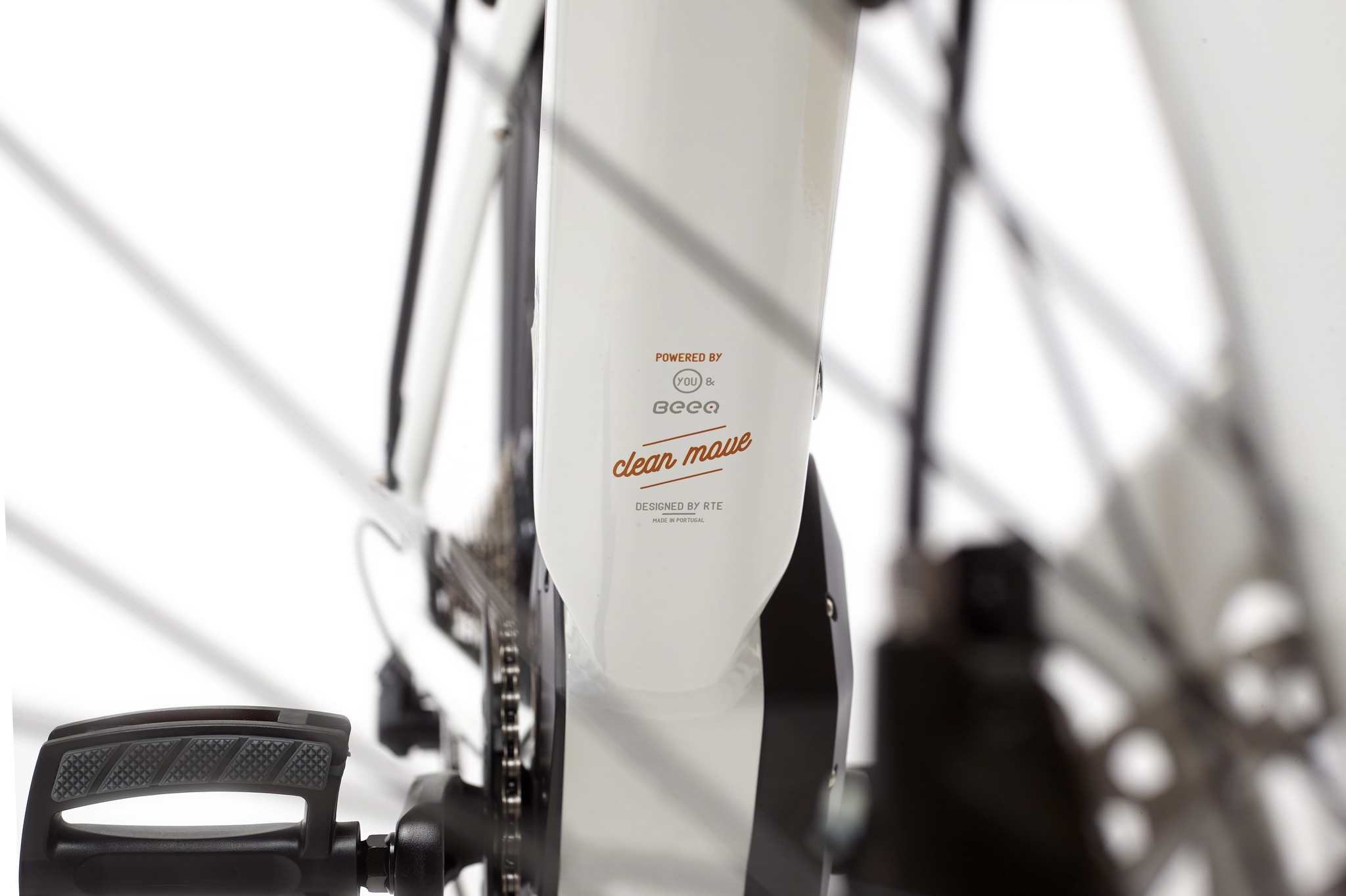

FRAME
FRAME
Aluminium High Step
6061 with hydroformed tubes to ensure greater sturdiness and complete integration of the battery and motor.
Available in 2 sizes:
M: from 1,65m to 1,79m
L: taller than 1,80m
Available in 2 sizes:
M: from 1,65m to 1,79m
L: taller than 1,80m

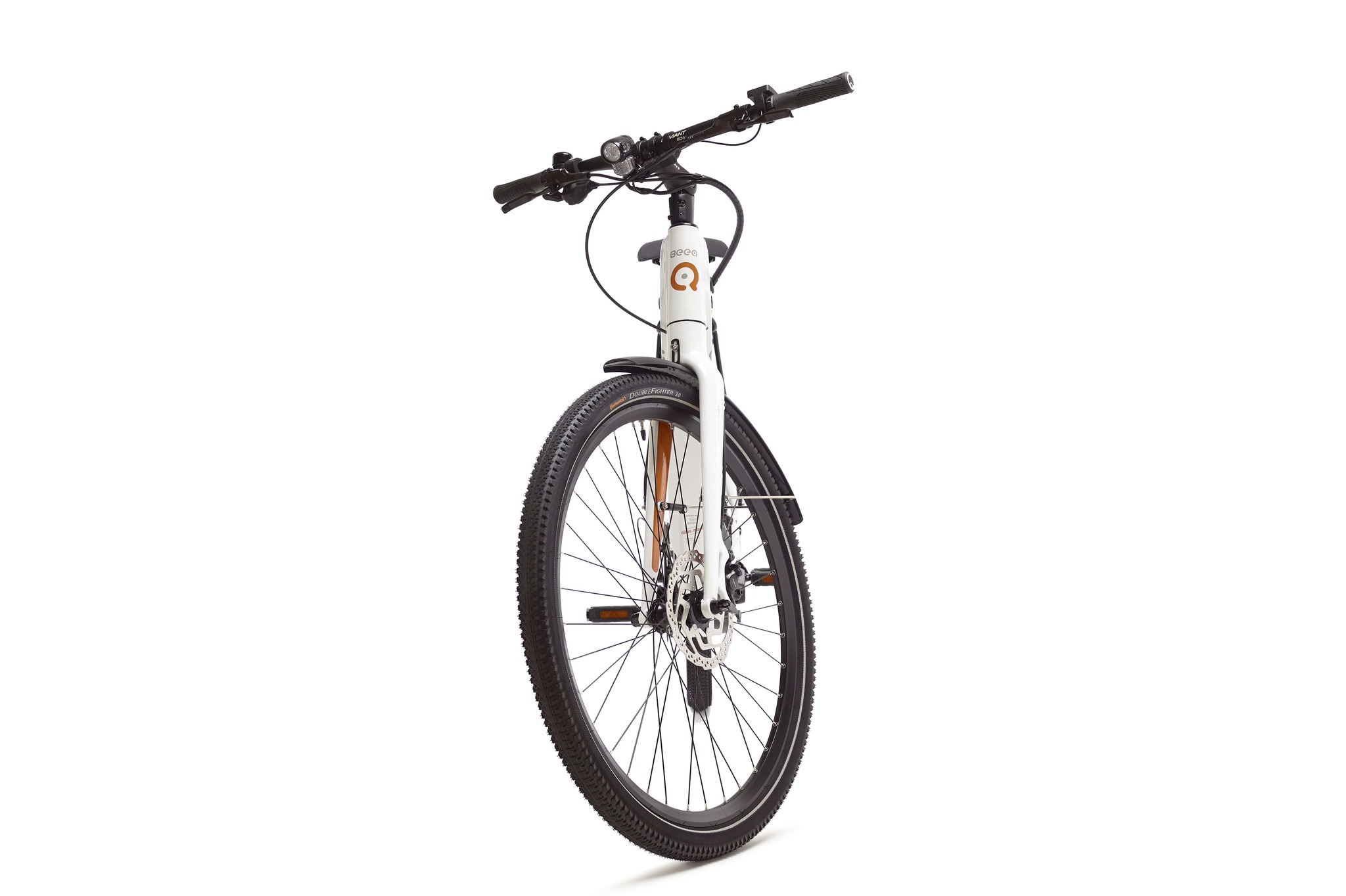

FORK
Rigid Alloy 28"
- hollow shaft with 100mm for greater sturdiness with safe “quick release” system for easy removal of the front wheel
HEADSET
FSA 1.5" to 1-1/8" Tapered SHIS
E-BIKE SYSTEM

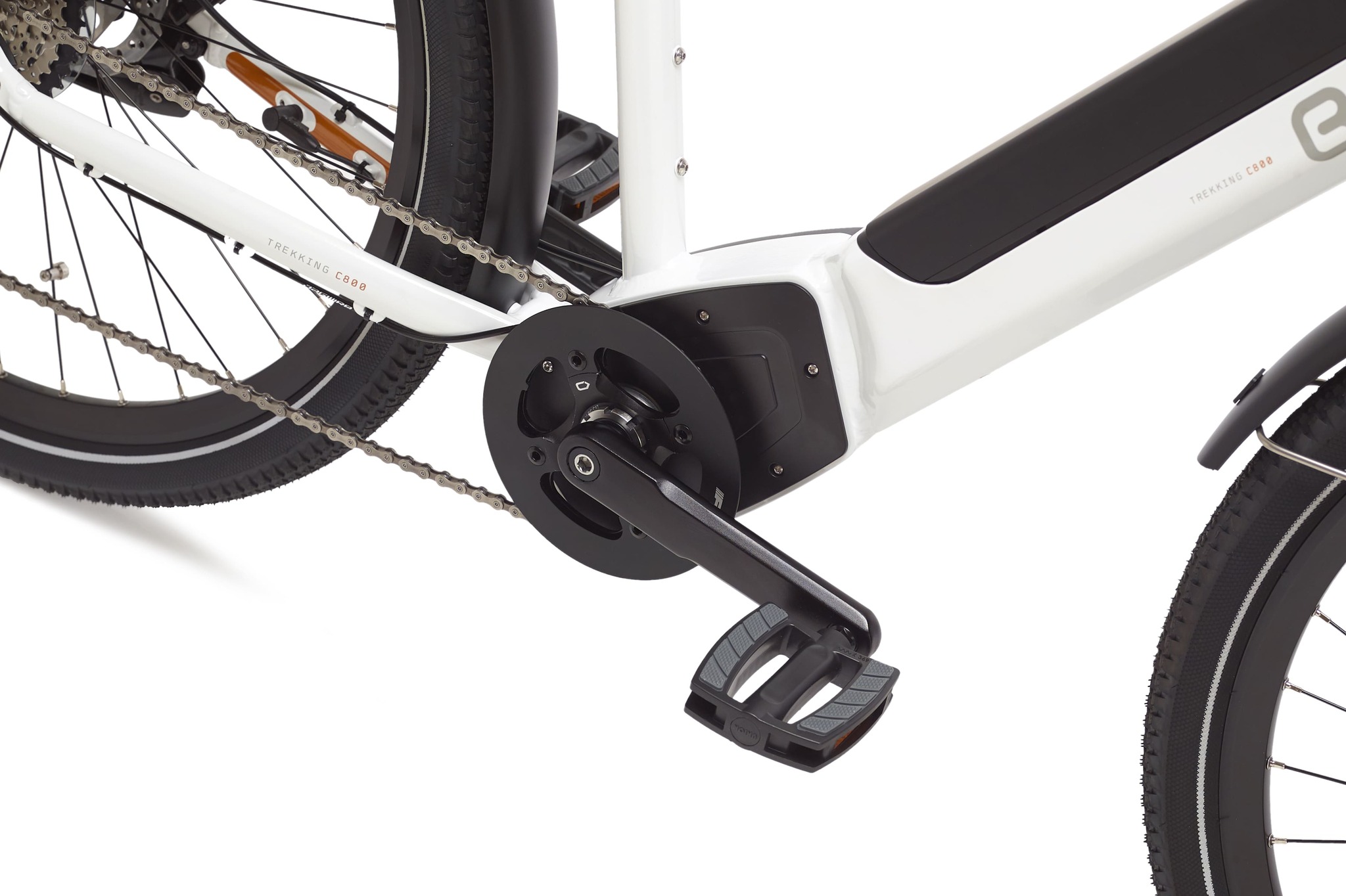

DRIVE UNIT

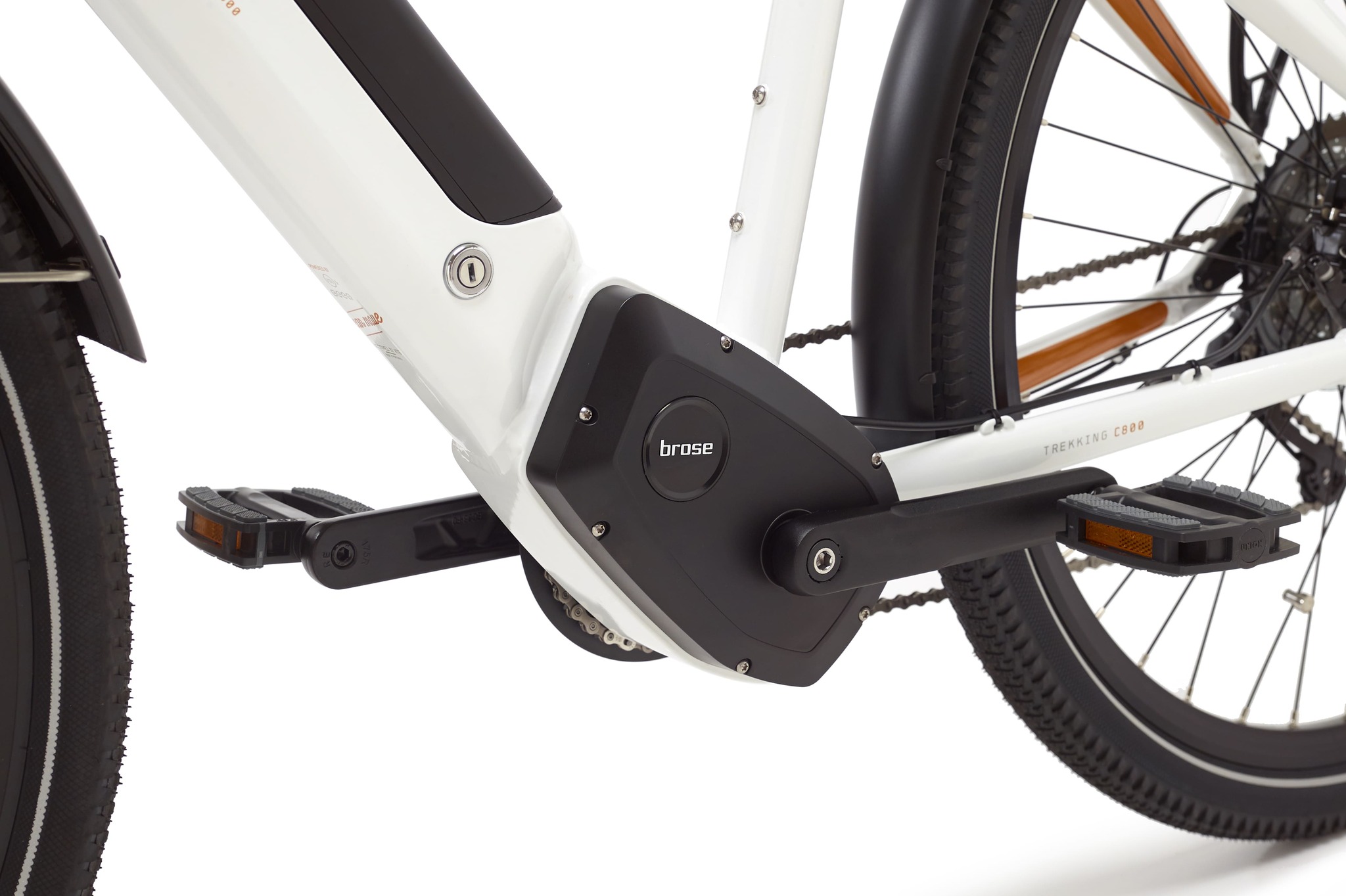

BROSE DRIVE S ALU 90Nm
POWERFUL BROSE DRIVE S MOTOR with 90Nm of torque:
Resistant aluminium crank case;
Chain gears allowing for a very silent operation of the motor
Sealed bearings to withstand harsh climate conditions.
0 - No assistance - The battery is not used.
1 - ECONOMIC: Assistance up to 40%: Save battery to extend your trip, 40% assistance is enough to help you face small slopes.
2 - STANDARD: Assistance up to 80%: Perfect for great control of the bicycle and to climb steeper slopes with reasonable effort, this way you can easily keep up with other mountain bikers.
3 - PLUS: Assistance up to 160%: To climb any slope without difficulties, without getting tired and keeping reasonable battery consumption.
4 - BOOST: Assistance up to 320%: to climb steep slopes with technical difficulty or to always ride fast.
Resistant aluminium crank case;
Chain gears allowing for a very silent operation of the motor
Sealed bearings to withstand harsh climate conditions.
0 - No assistance - The battery is not used.
1 - ECONOMIC: Assistance up to 40%: Save battery to extend your trip, 40% assistance is enough to help you face small slopes.
2 - STANDARD: Assistance up to 80%: Perfect for great control of the bicycle and to climb steeper slopes with reasonable effort, this way you can easily keep up with other mountain bikers.
3 - PLUS: Assistance up to 160%: To climb any slope without difficulties, without getting tired and keeping reasonable battery consumption.
4 - BOOST: Assistance up to 320%: to climb steep slopes with technical difficulty or to always ride fast.
BATTERY
504Wh 36V - Semi-integrated on Downtube - Removable
BMZ V7 BATTERY:
- Locked with a key, it can easily be removed for charging outside the bicycle, but it can also be charged directly on the bicycle.
- Between 40~100km Autonomy
- Locked with a key, it can easily be removed for charging outside the bicycle, but it can also be charged directly on the bicycle.
- Between 40~100km Autonomy
RANGE
40km to 100km

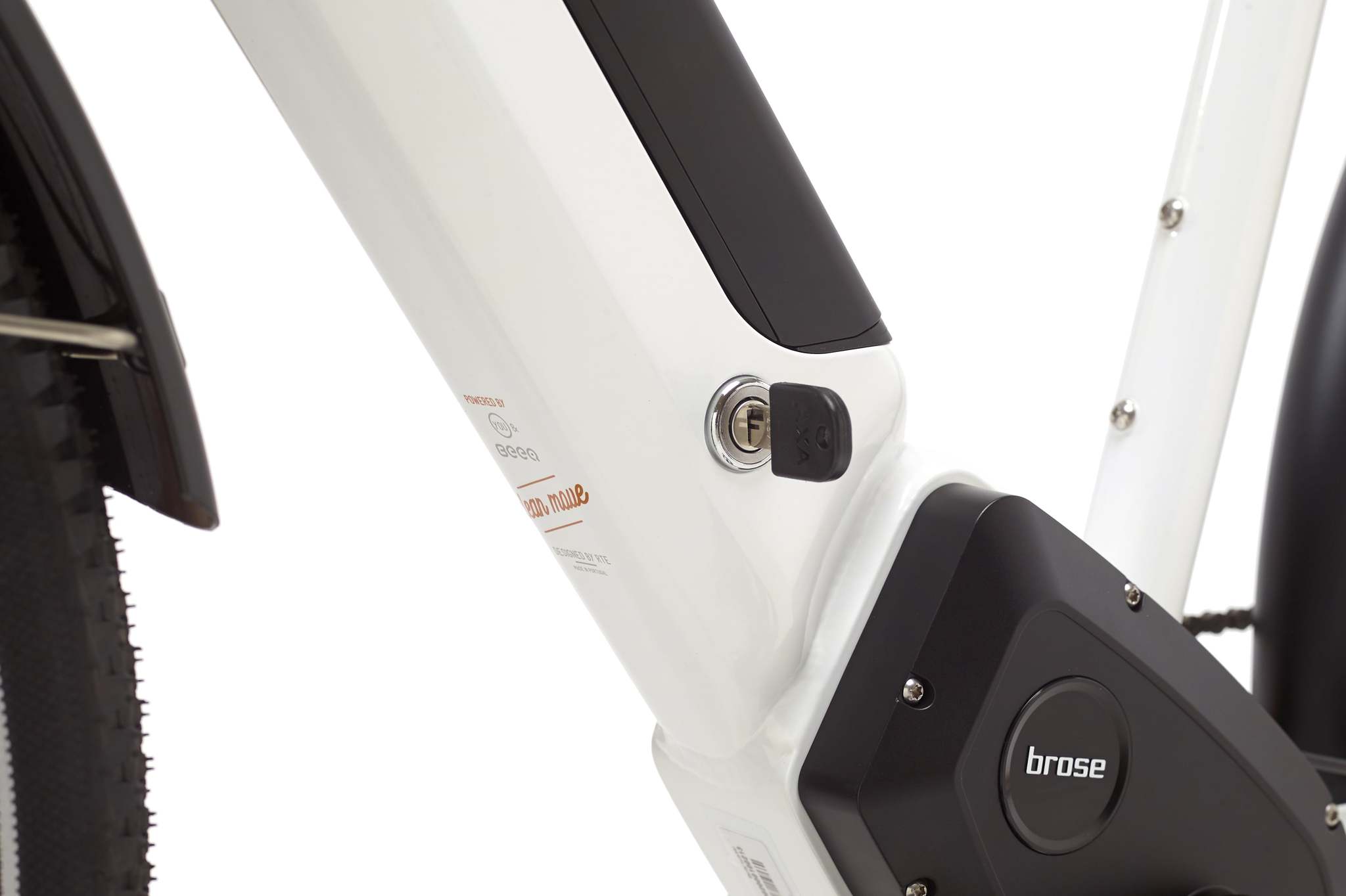

BATTERY LOCK KEY
Yes
CHARGER
4A - 3 to 6 hours total charge time

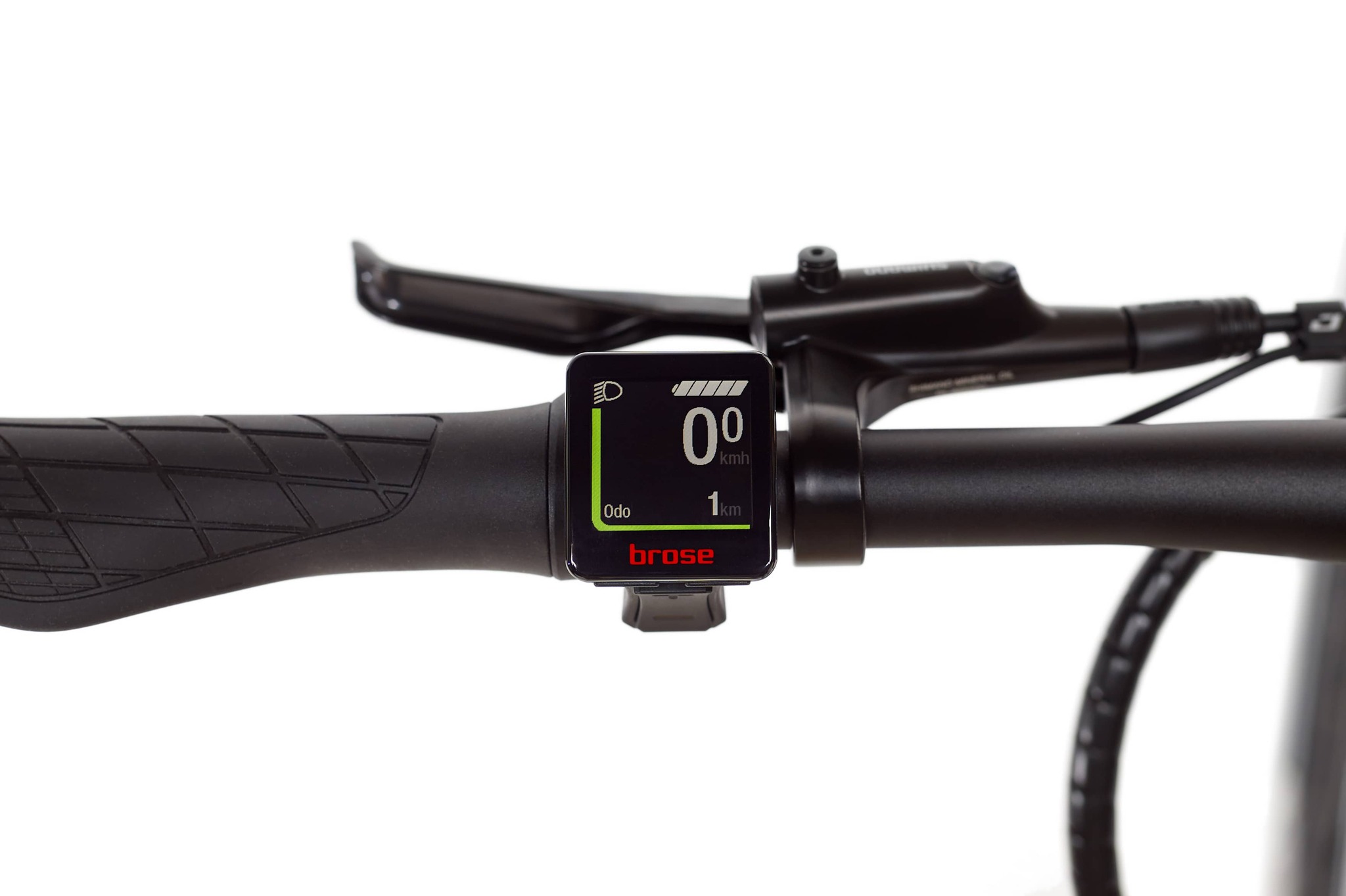

DISPLAY
BROSE Allround
The display presents the following information:
- Assistance level and battery;
- Speed: instantaneous, average, maximum;
- Power provided by the user in Watts;
- Remaining autonomy;
- Distance Travelled: total and trip;
- Walk Assist button up to 5m/h in pedestrian mode to help push the bike.
- Assistance level and battery;
- Speed: instantaneous, average, maximum;
- Power provided by the user in Watts;
- Remaining autonomy;
- Distance Travelled: total and trip;
- Walk Assist button up to 5m/h in pedestrian mode to help push the bike.

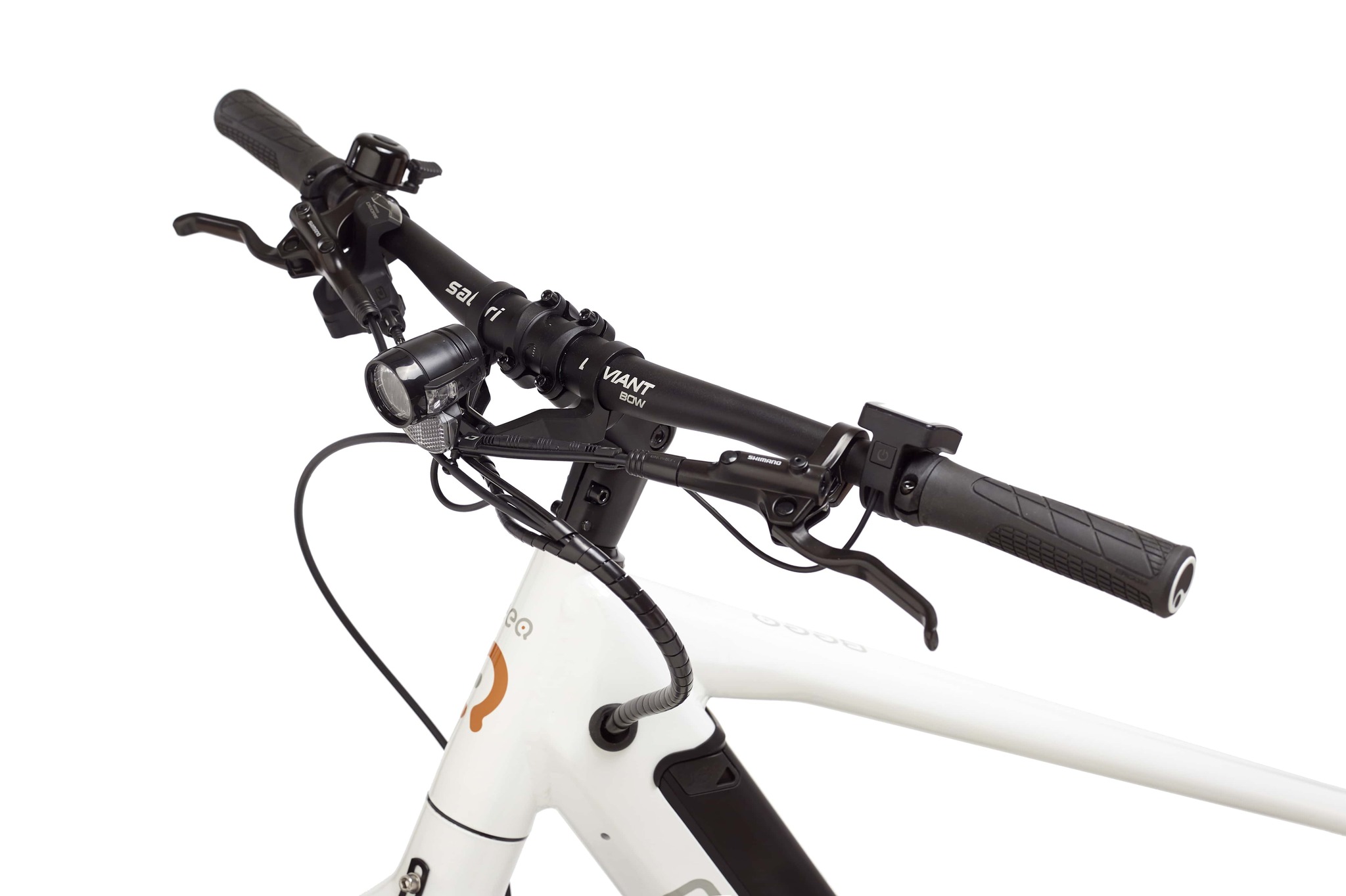

COCKPIT
WHEELSET

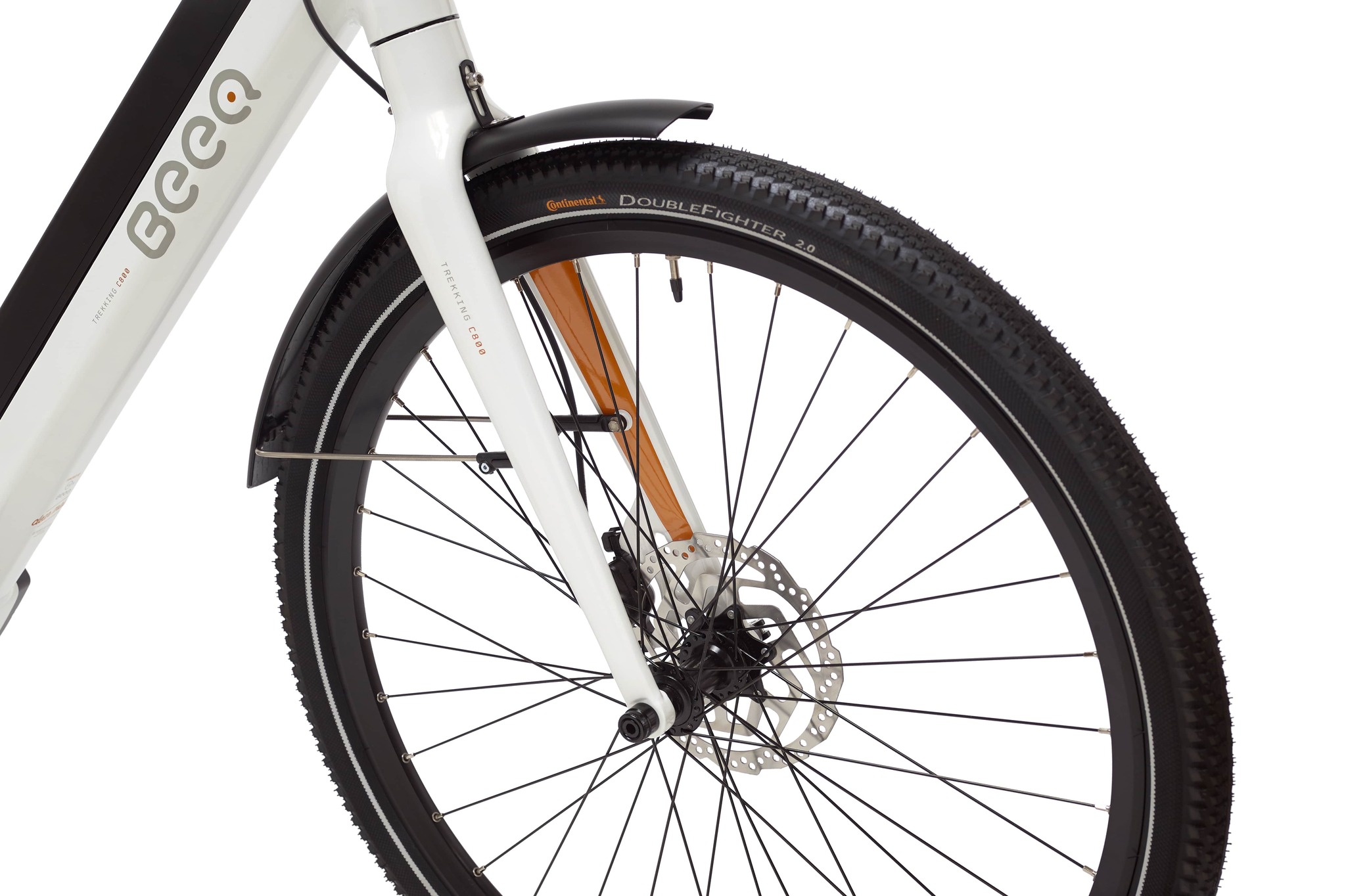

TYRES
CONTINENTAL Double Fighter III 29''x2,0''
- ETRTO 50-622
- Offer good adherence when curving and braking, traction and comfort in the various types of terrain.
- Offer good adherence when curving and braking, traction and comfort in the various types of terrain.
WHEEL SIZE
29''
FRONT HUB
SHIMANO HB-MT400 100 Thru-axle 15mm
SHIMANO 100mm hub with hollow shaft with quick release for
SHIMANHO Centerlock discs
SHIMANHO Centerlock discs
REAR HUB
SHIMANO Deore M6000 135mm
DRIVETRAIN & BRAKES

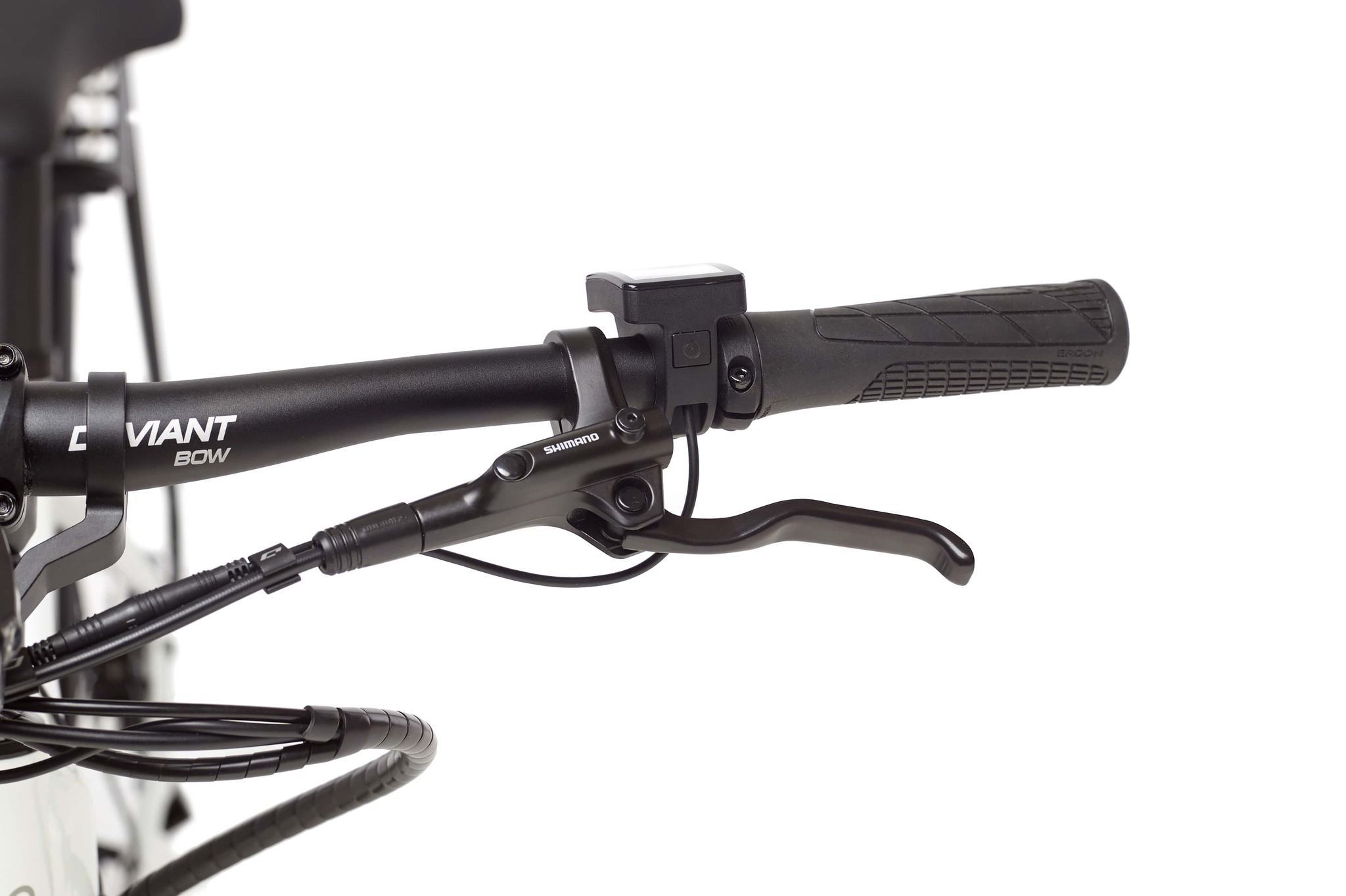

BRAKES
SHIMANO Hydraulic MT200
BRAKE ROTOR - Front
SHIMANO SM-RT10 180mm
BRAKE ROTOR - Rear
SHIMANO SM-RT10 180mm

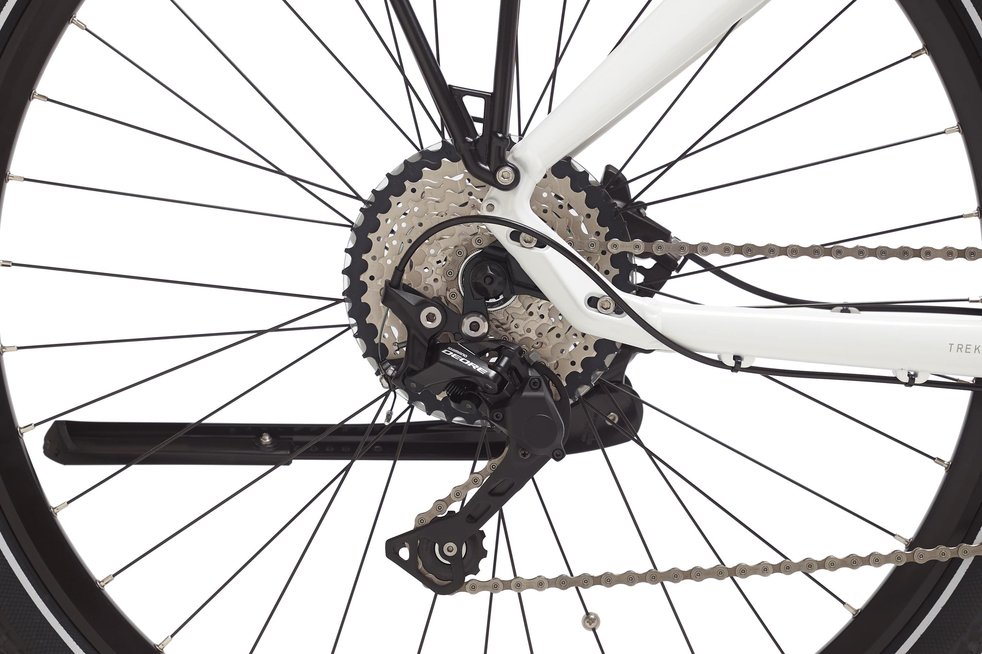

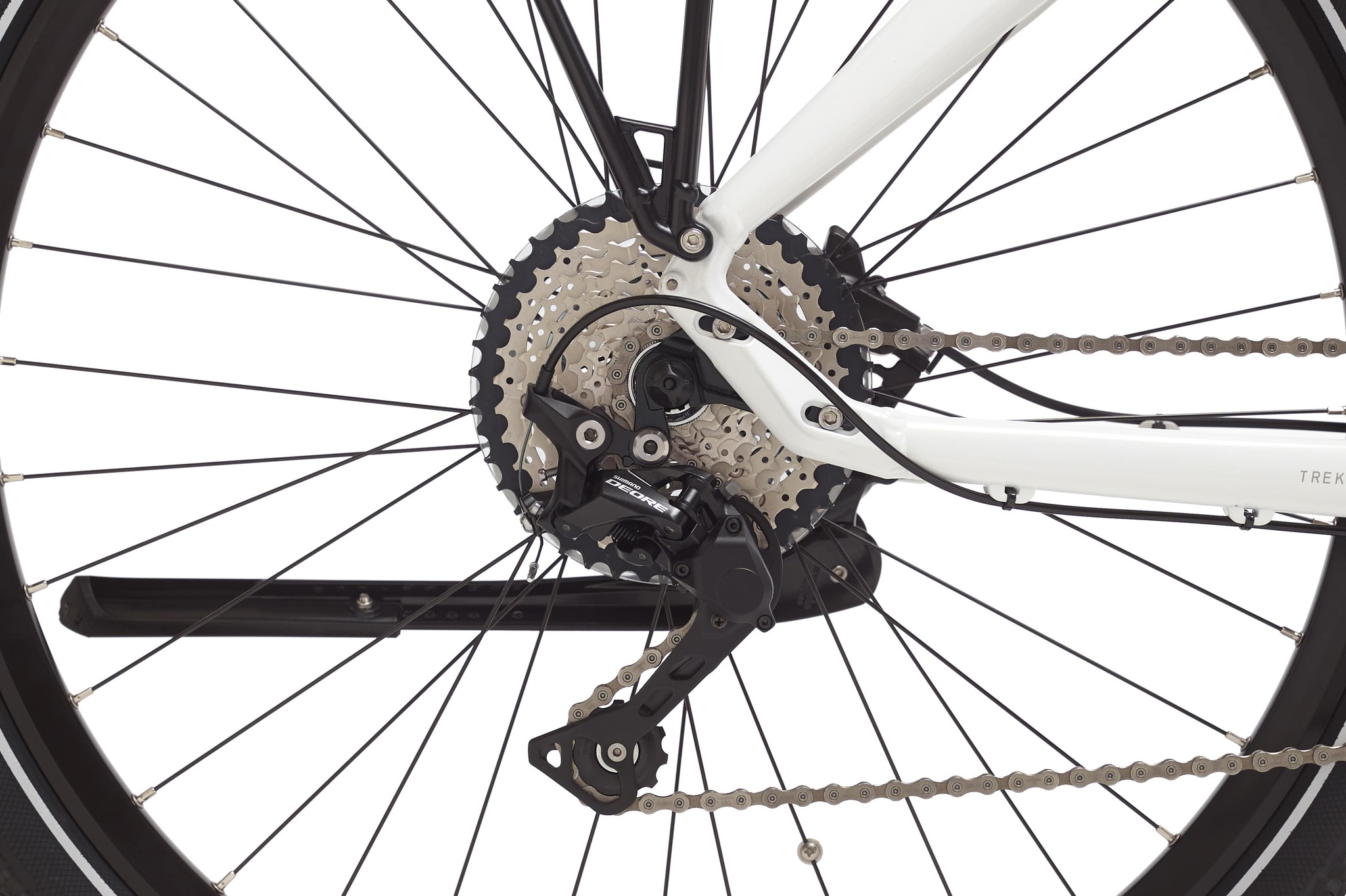

REAR DERRAILEUR
SHIMANO Deore 10S

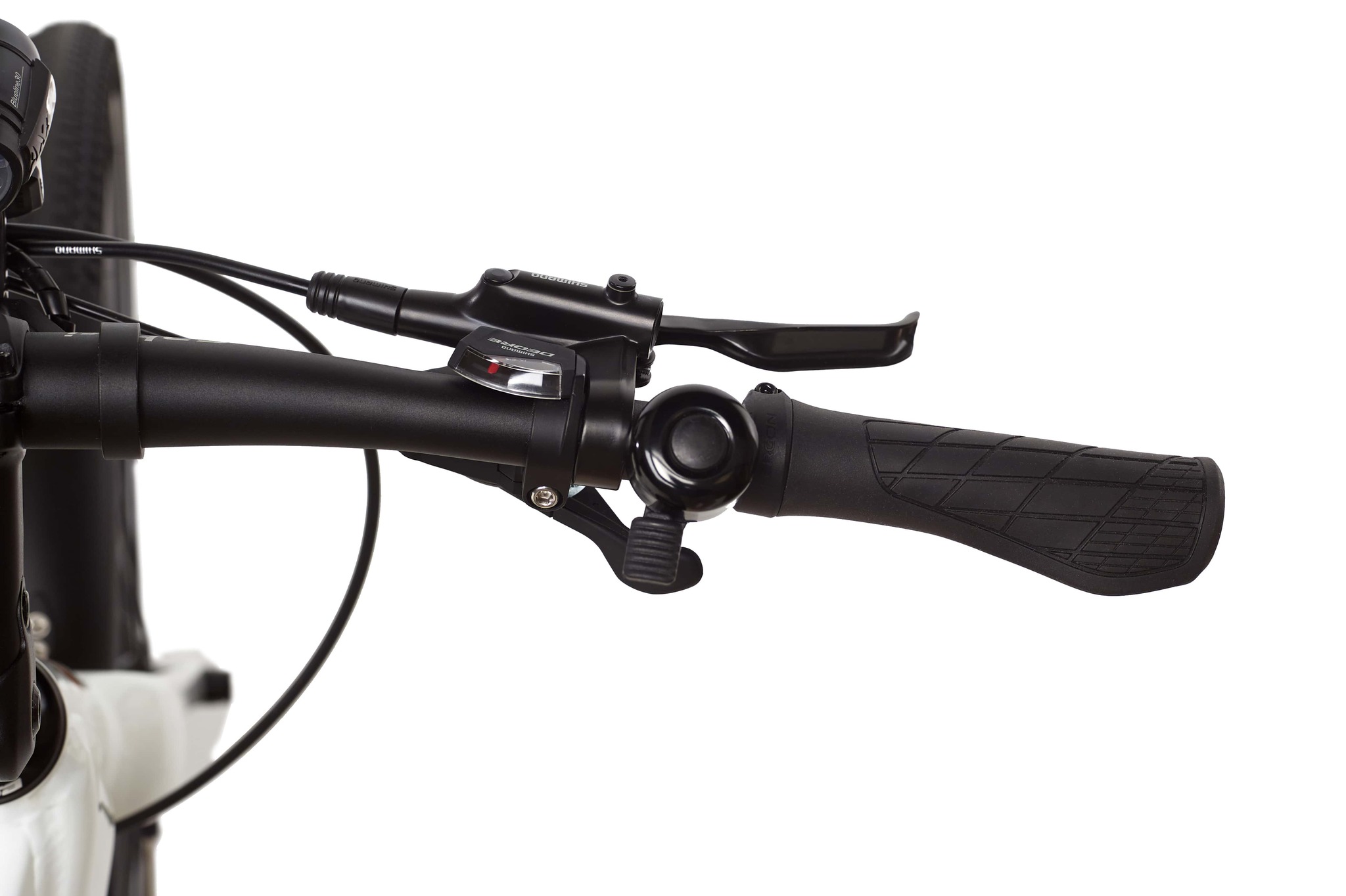

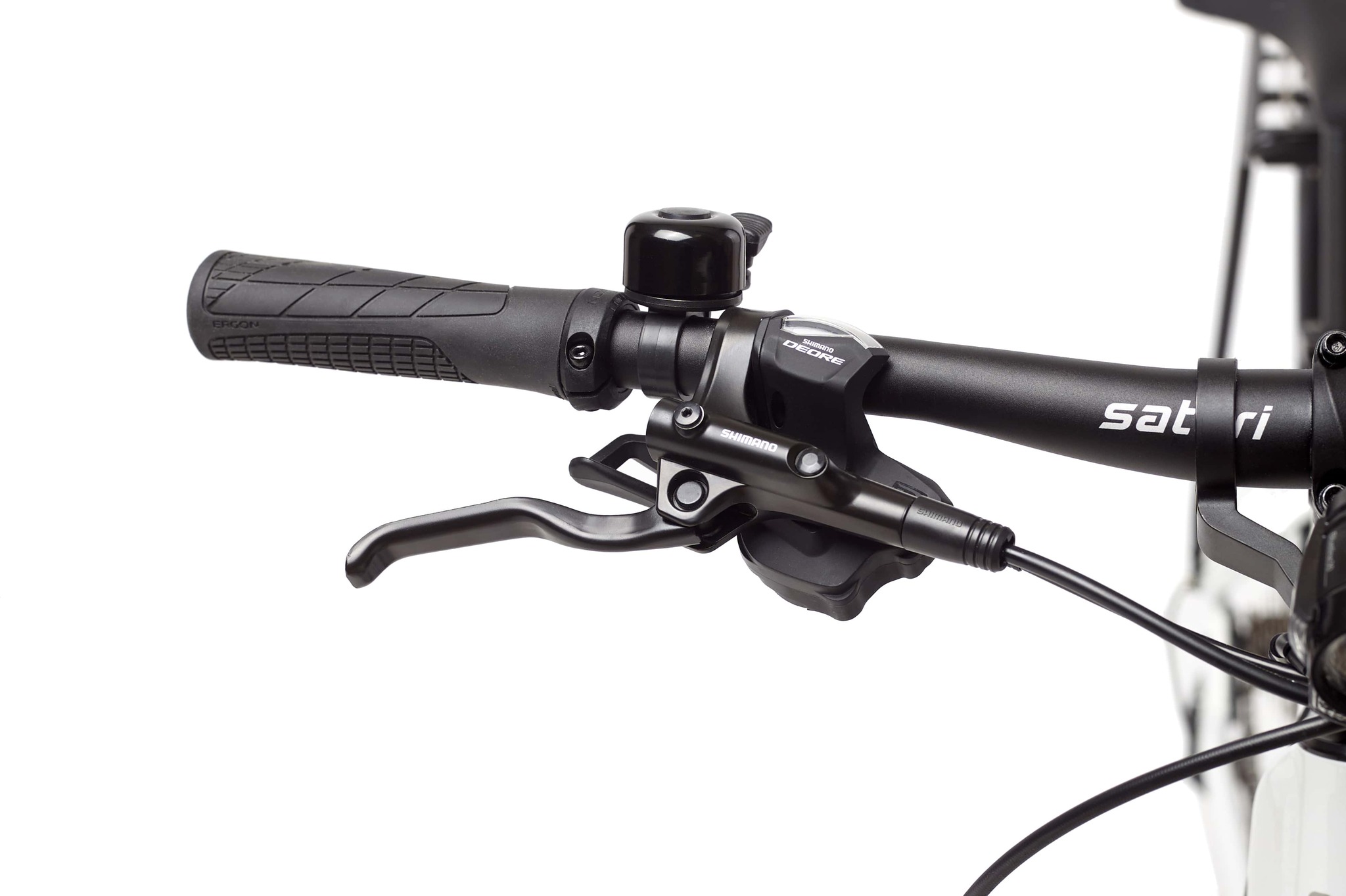

SHIFTERS
SHIMANO Deore 10S
CHAINRING
SAMOX BCD 104 36T
CRANK
SAMOX Shape 175/0
CHAIN
SHIMANO CN-E6090
CHAINGUARD
Yes - FSA
SAFETY & ACESSORIES

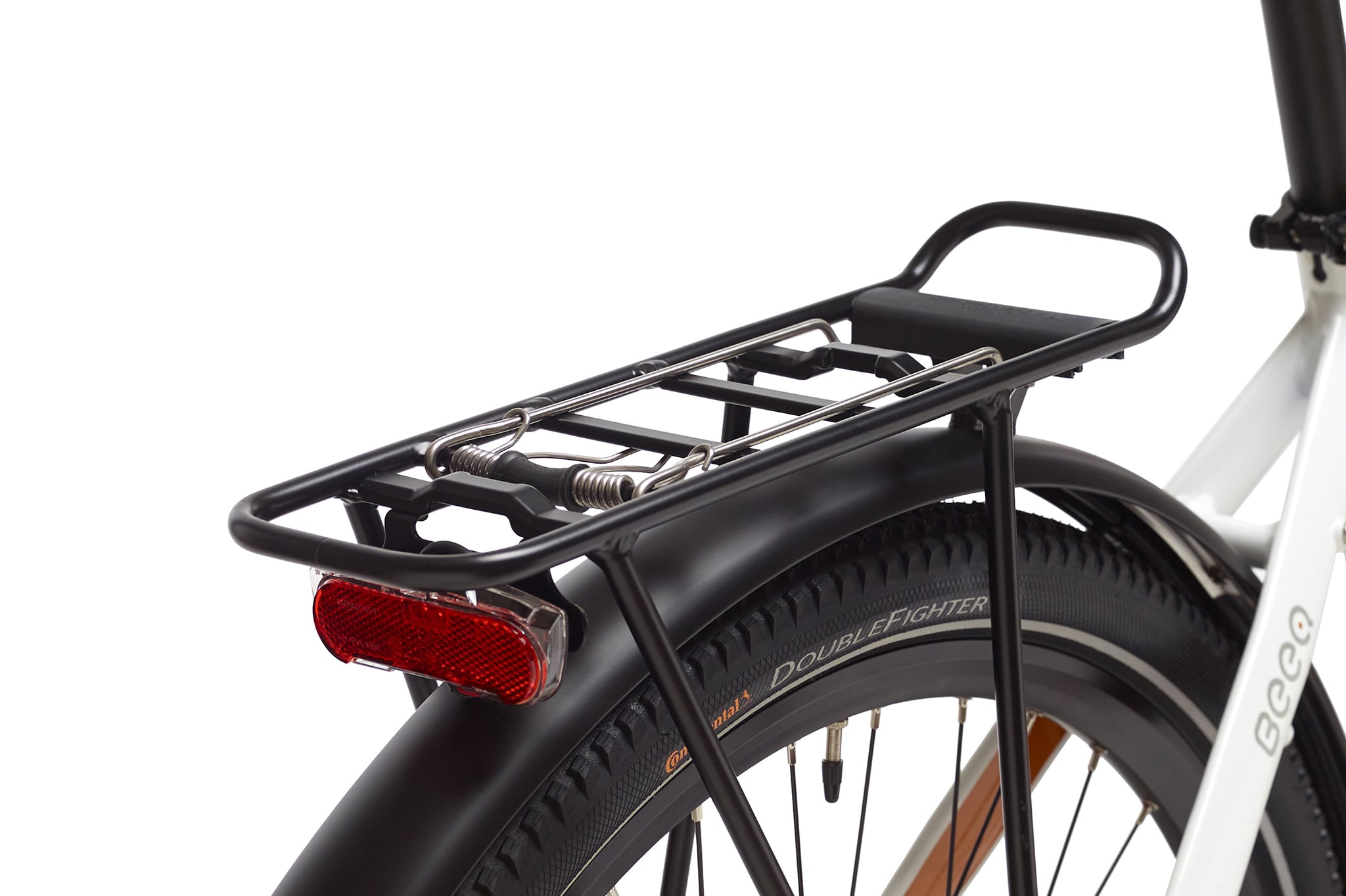

RACK
ATRANVELO Tour AVS (max.: 25Kg)

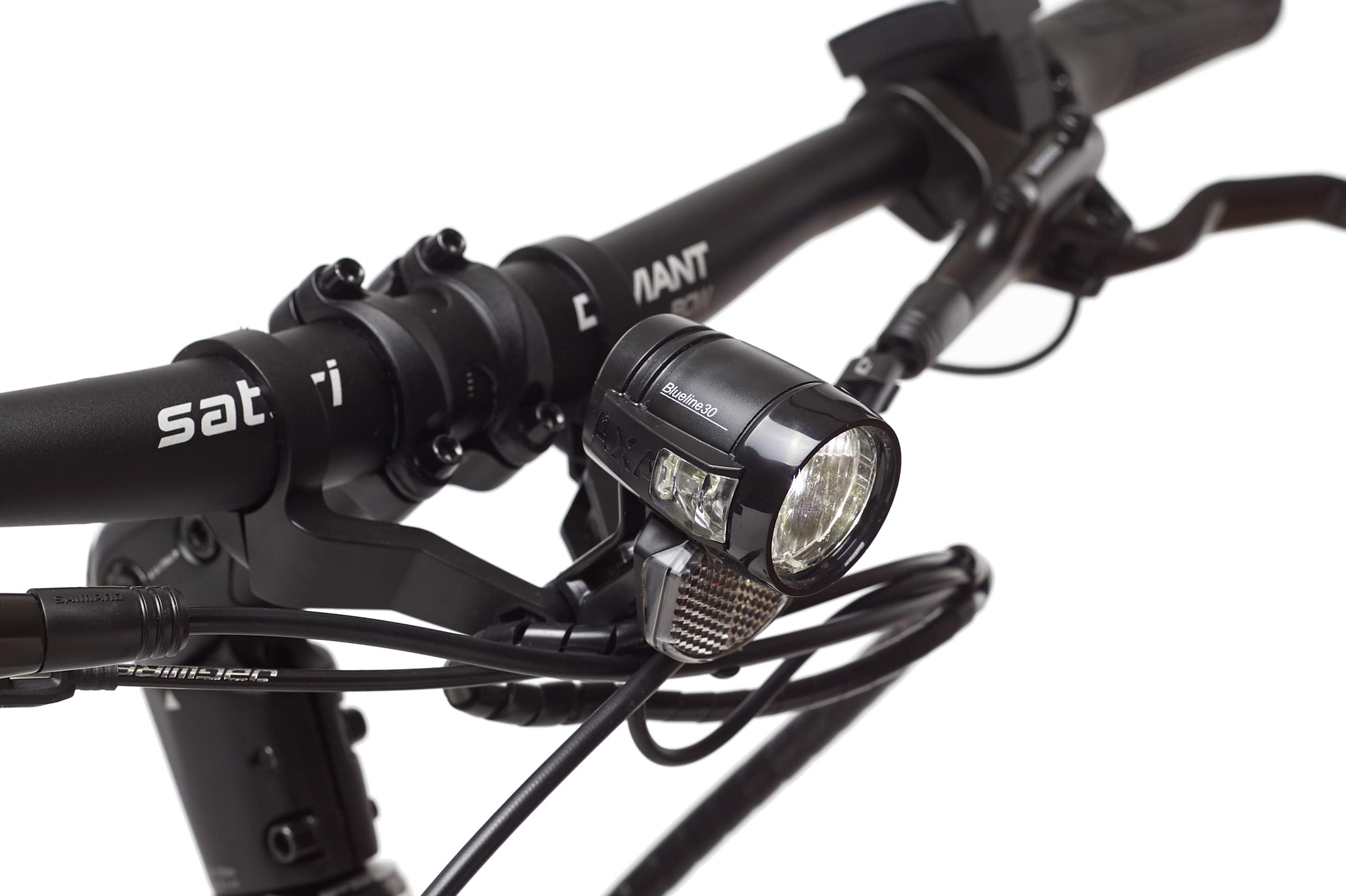

FRONT LIGHT
AXA Blueline 30 with reflector
REAR LIGHT
PICCADILLY with reflector
KICKSTAND
ATRANVELO Dux
MUDGUARD
SKS
BELL
Yes
BOTTLE CAGE
Not included. Sold separately.
SADDLE
SELLE ROYAL Essenza Moderate Gel
SEAT POST
AL Black 350mm 31,6mm/15mm
SEAT CLAMP
Alloy black with quick release
PEDALS
UNION SP-827 Flat with reflectors
FRAMELOCK
Not included. Sold separately.
