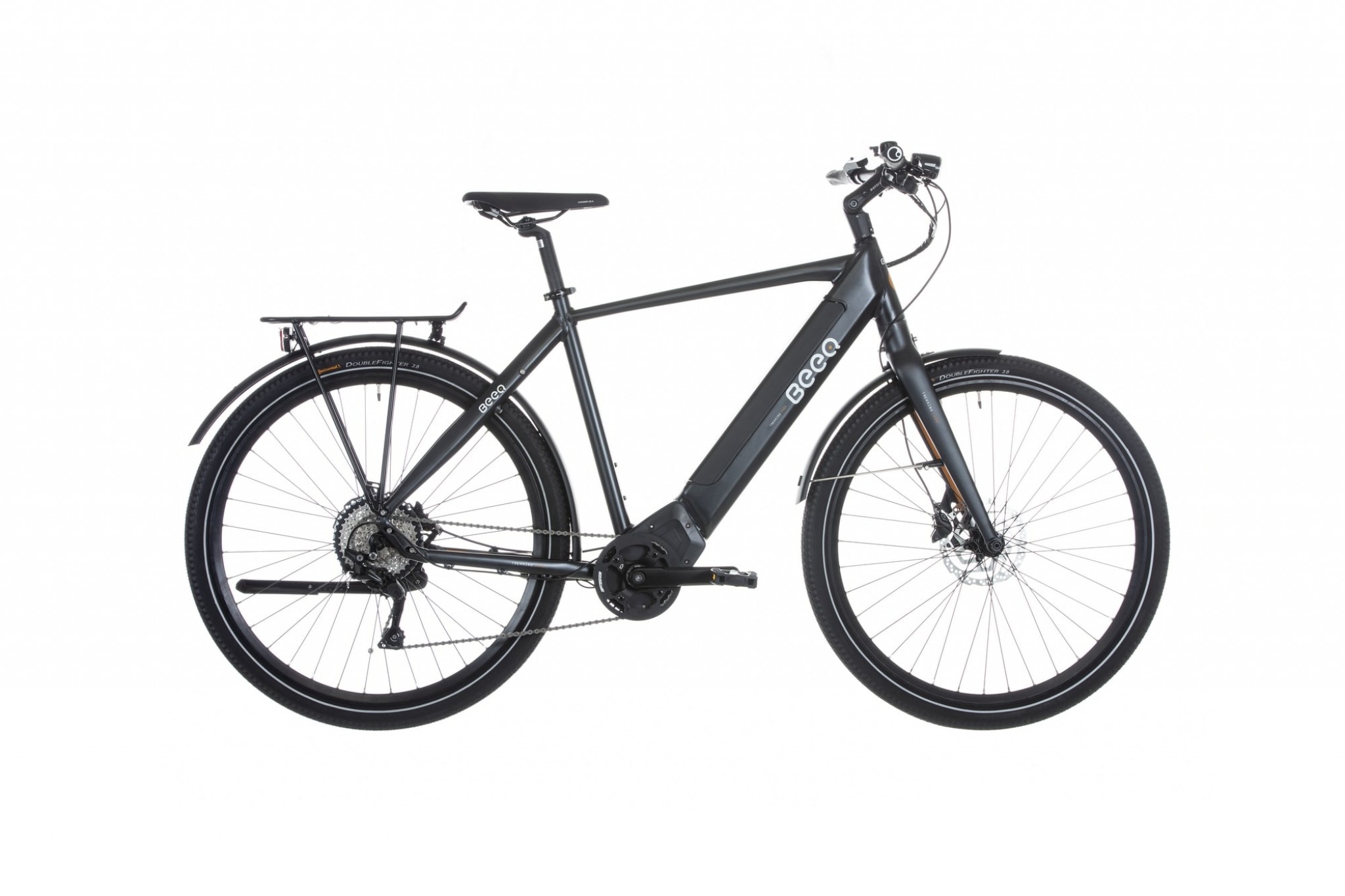

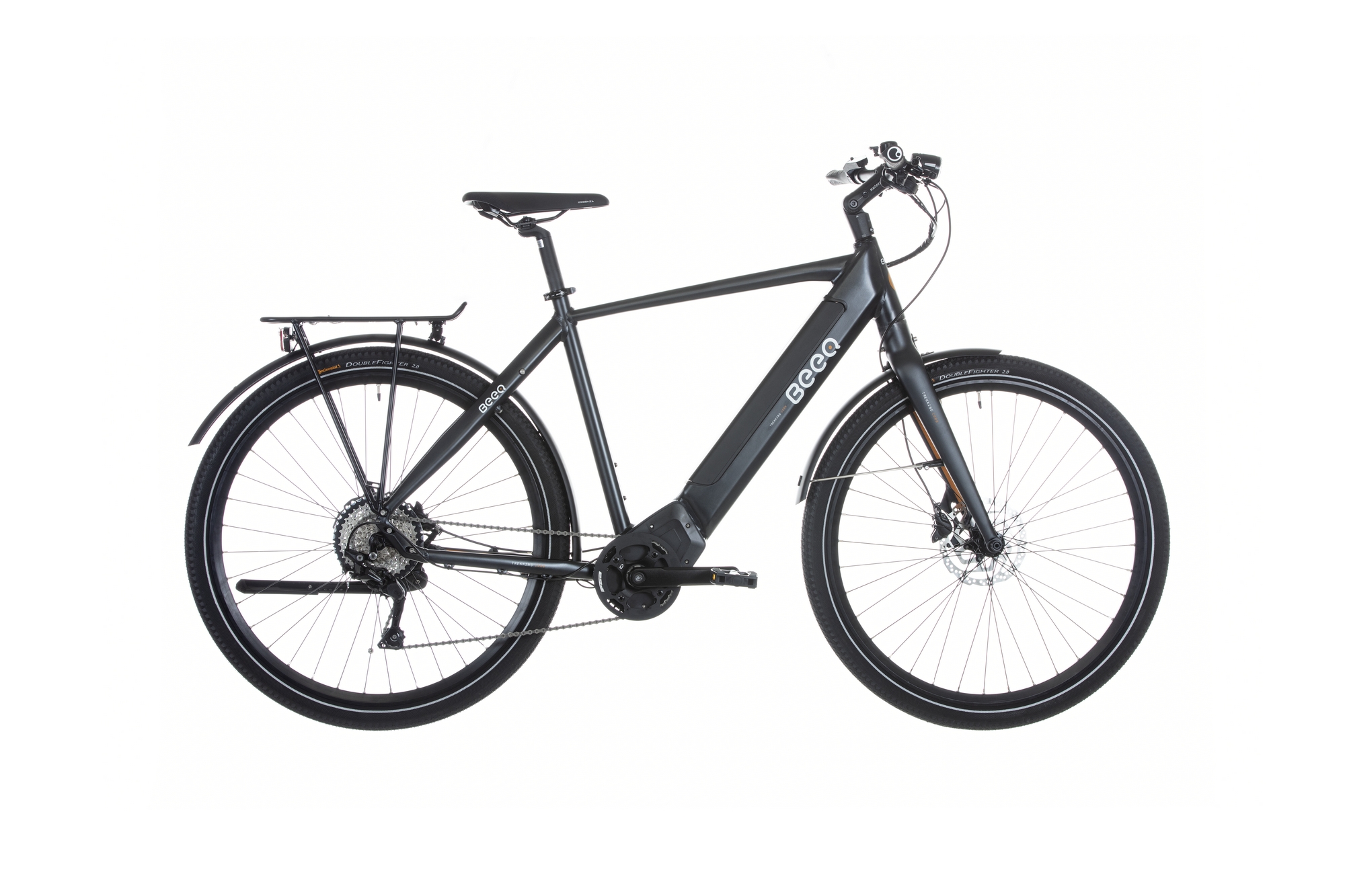

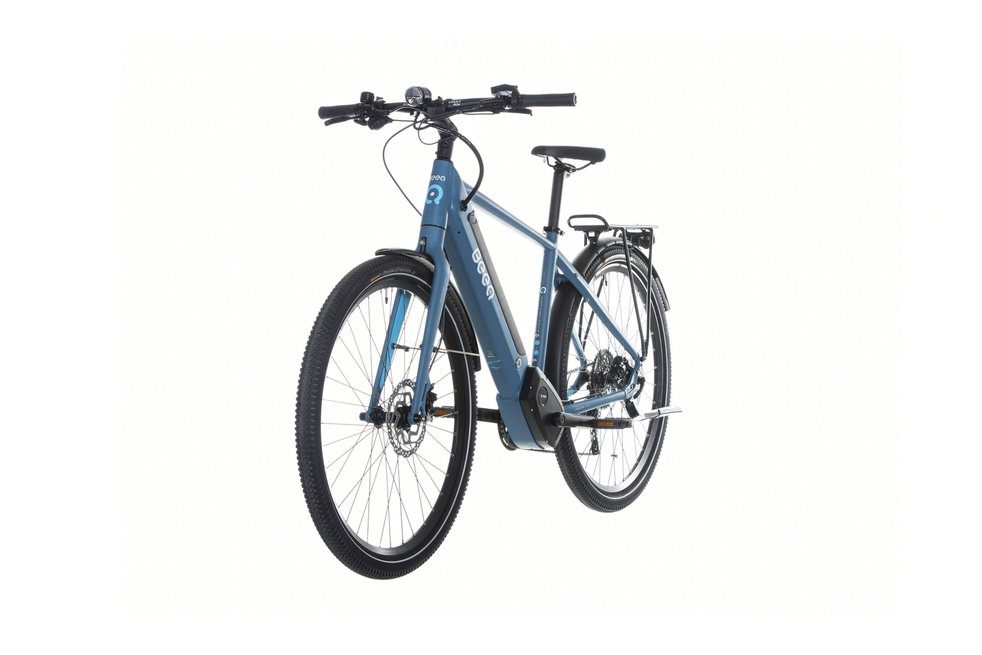

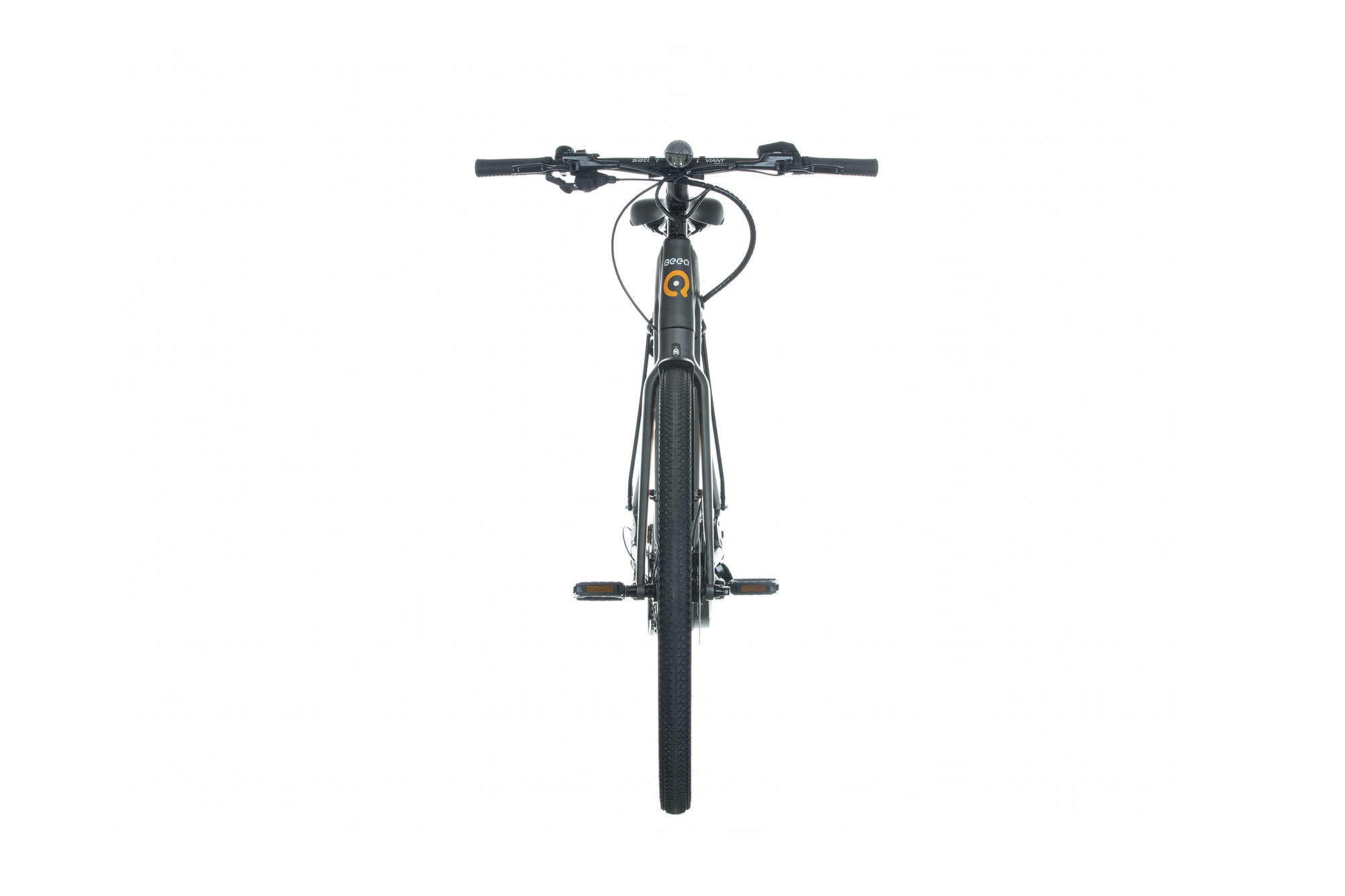

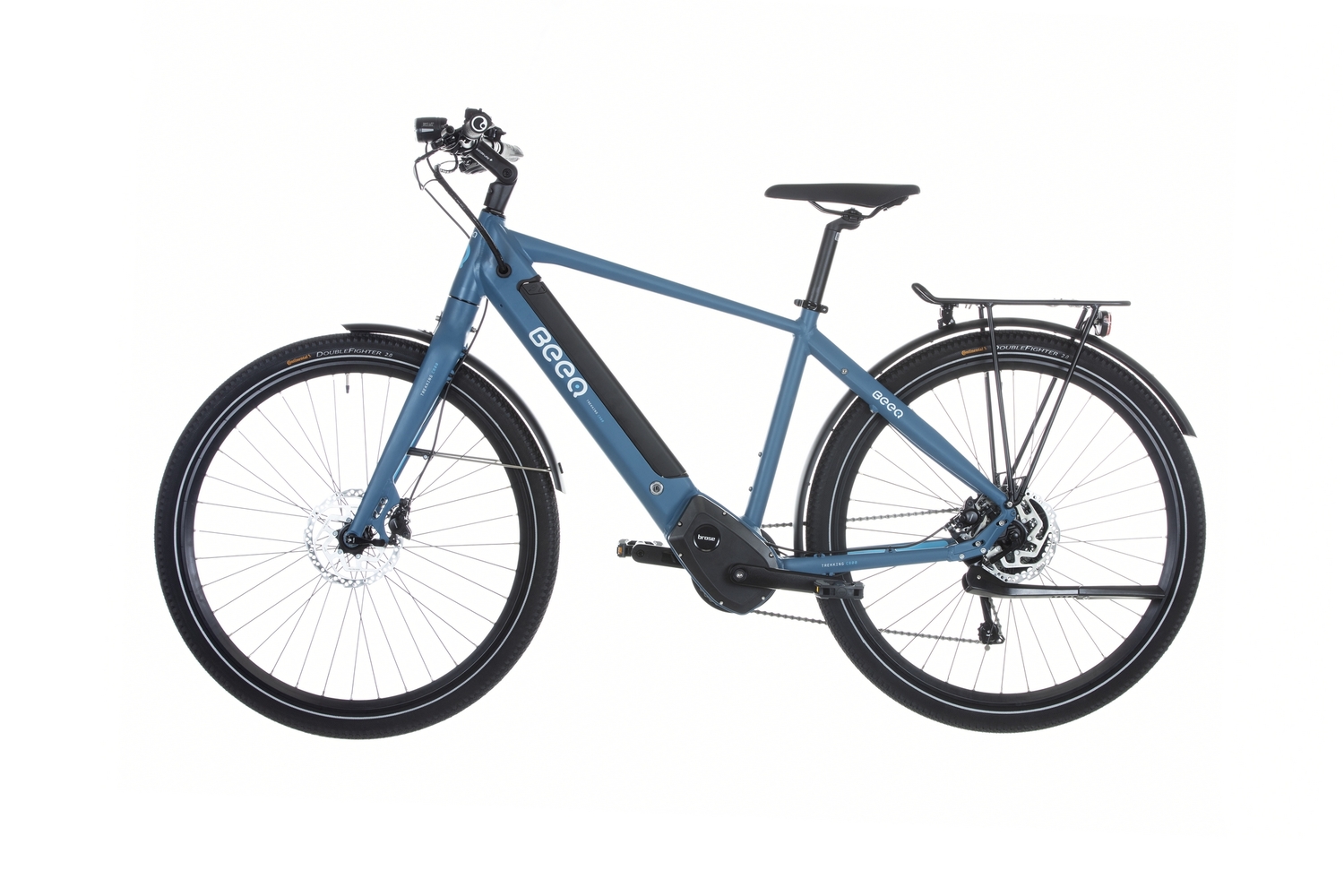

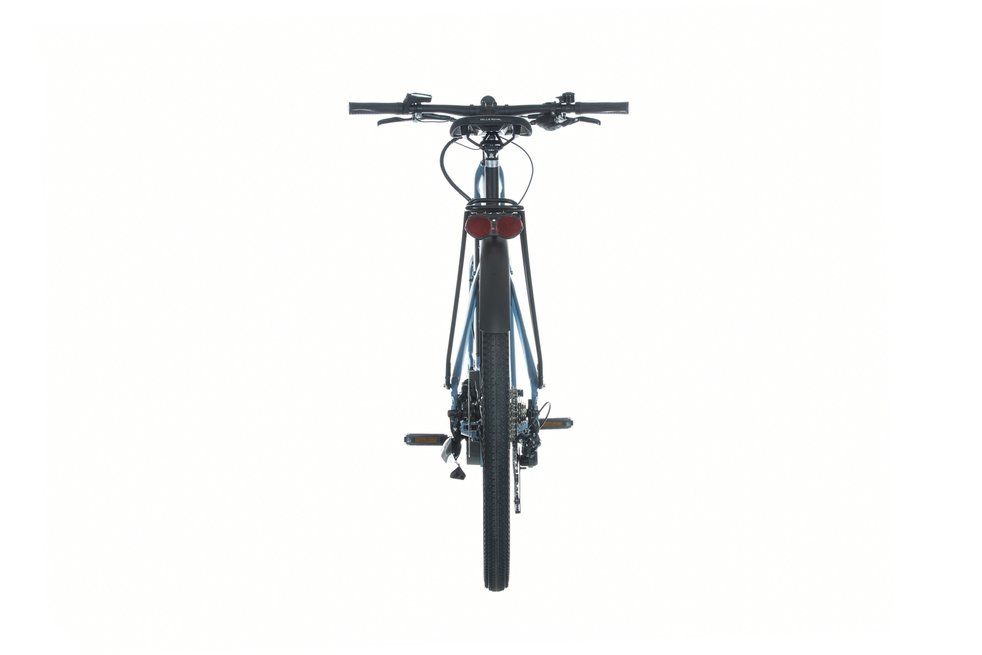

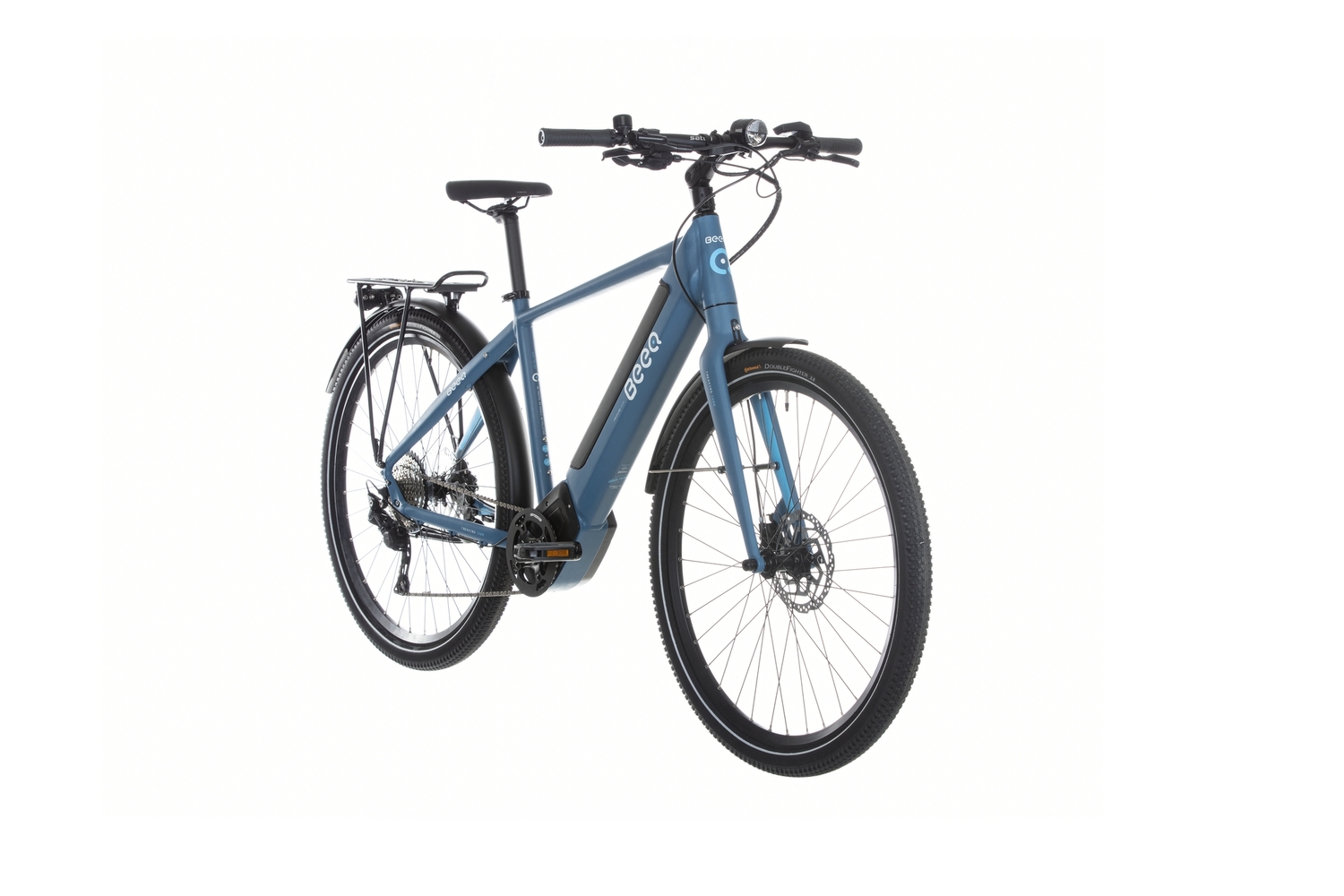

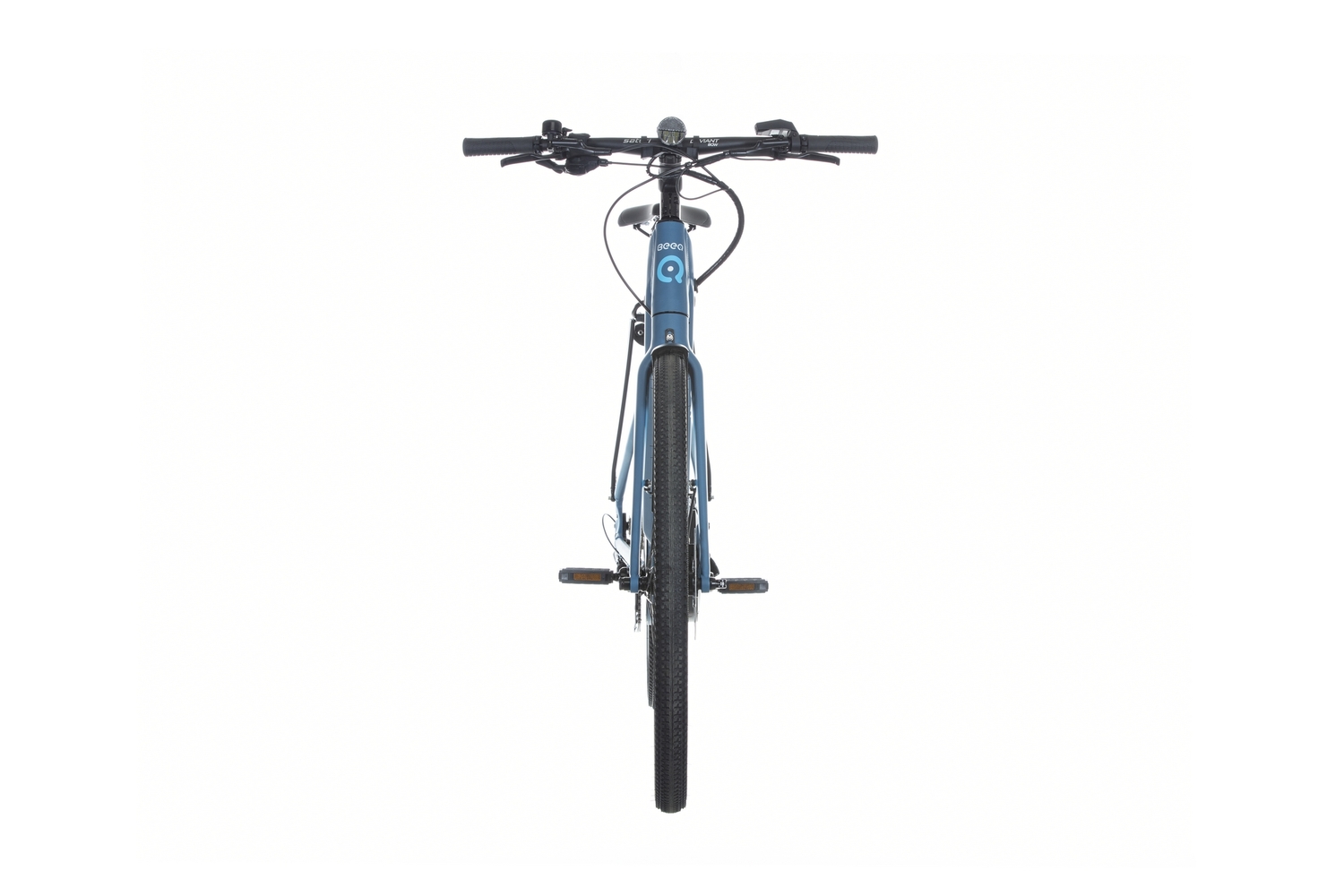

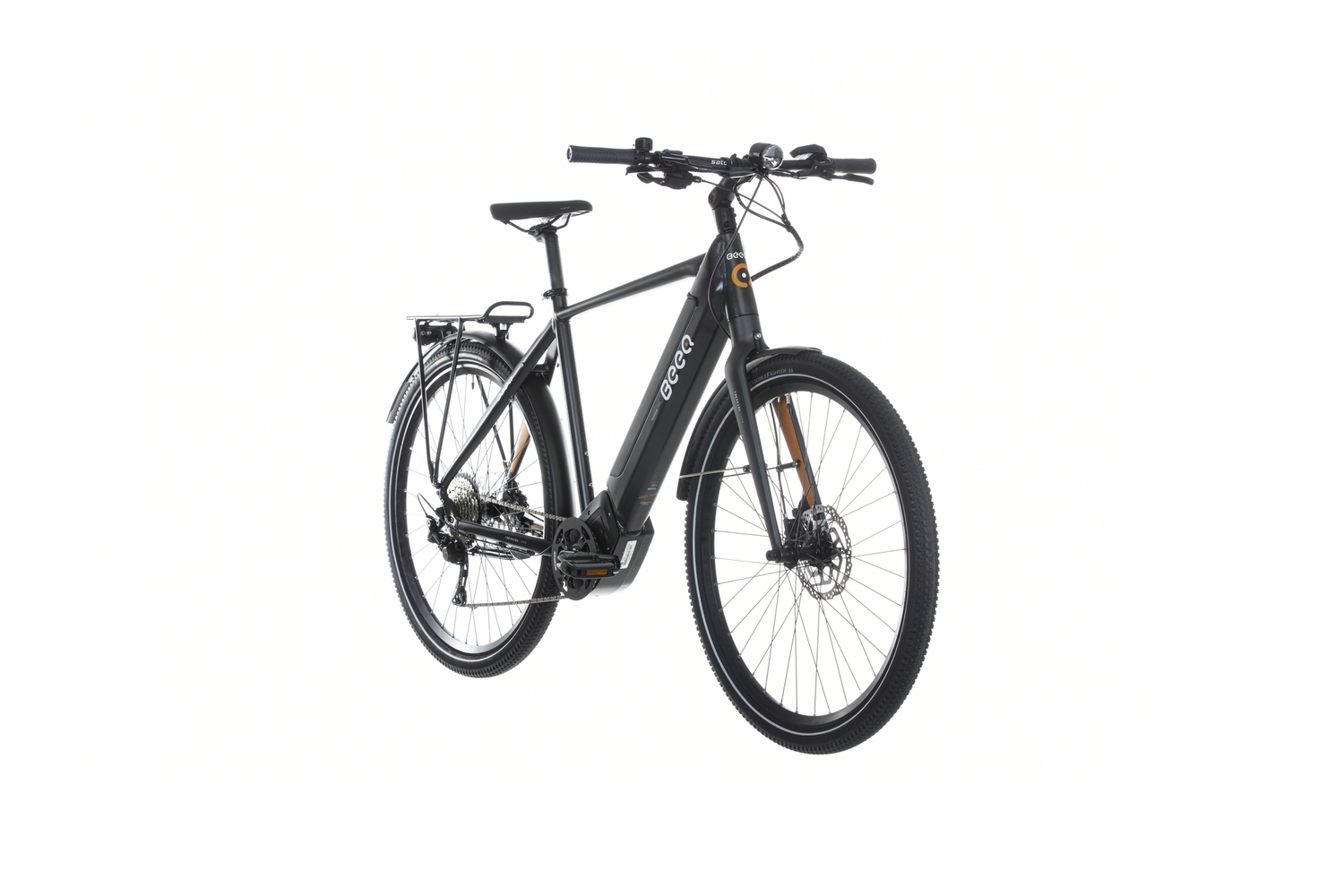

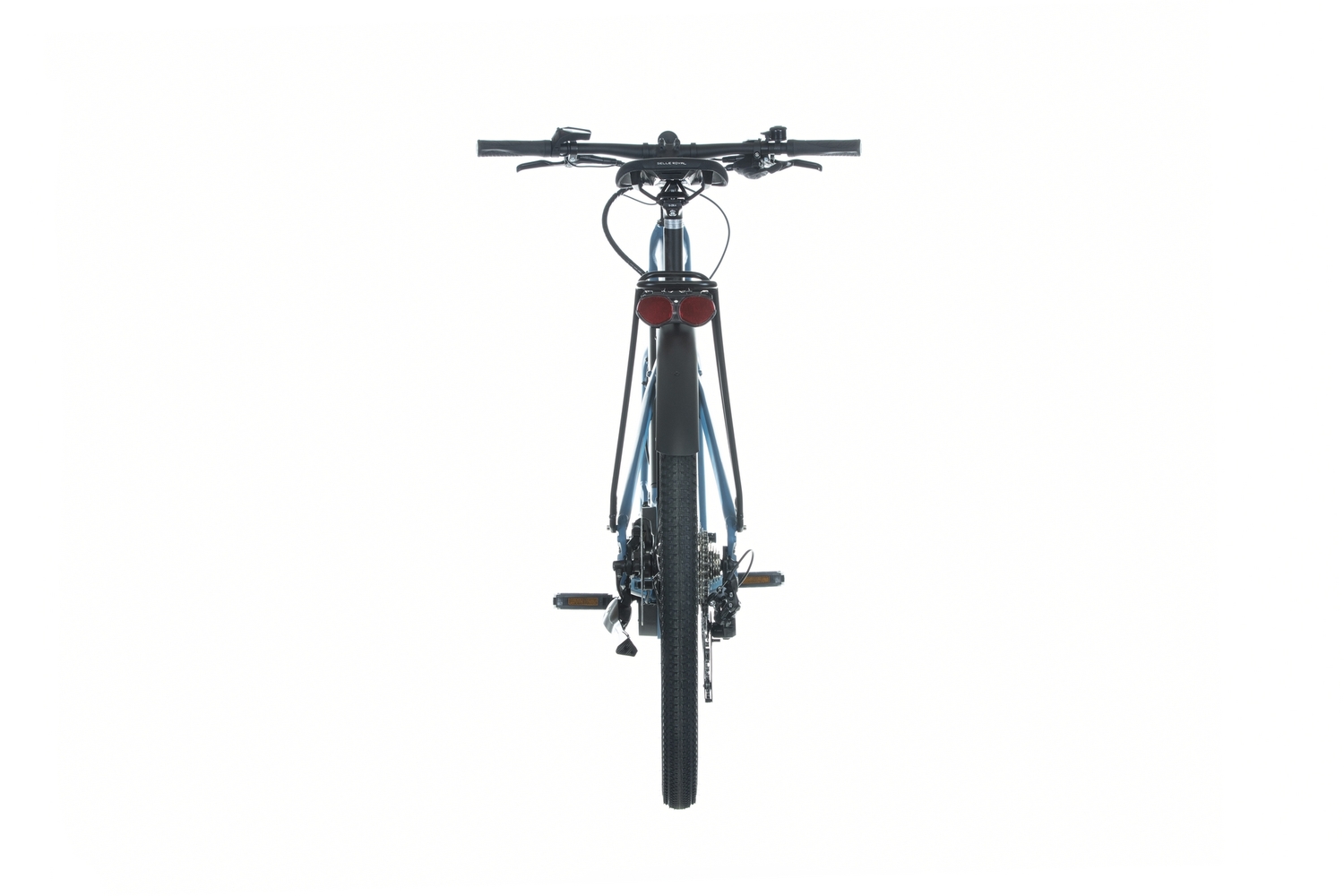

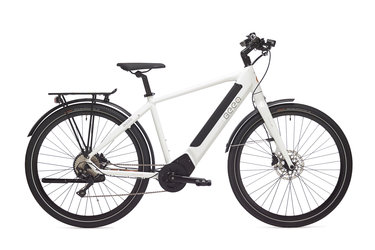

C800 Trekking

Click to zoom in

Arrive in effortless style with the C800 TREKKING. The electric bike designed to withstand the thrill of the outdoor lifestyle and the rush of the daily routine

Photo gallery Main highlights Technical information Technical details

Highlights

RANGE

Pedal 40 to 100km (depending on the user’s weight, terrain conditions and altitude range), thanks to the efficient motor and the 504W/h, 36V battery.

POWER

Climb any slope thanks to the BROSE DRIVE S motor of 250W with 90 Nm of torque and 320% assistance.

CONTROL

Good control of the bicycle thanks to the central integrated motor with cadence, torque and speed sensors, the sturdy aluminium frame with integrated battery, the SHIMANO hydraulic brakes, the wide 29 x 2,0 tires, and the wide 680mm handlebar.

CONFORT

Thanks to the frame geometry, wide tires, Selle Royal Gel seat and ERGON grips.

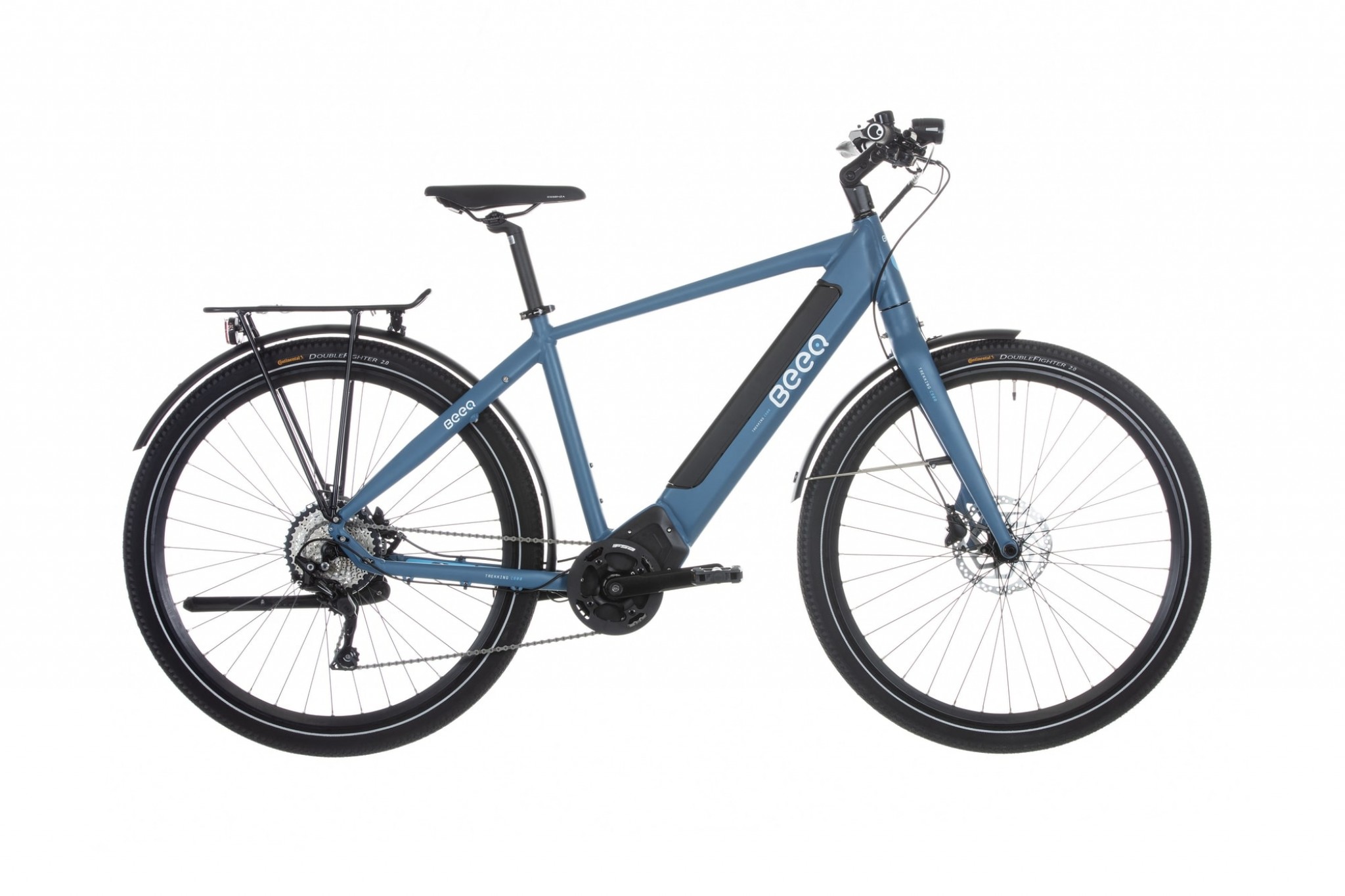

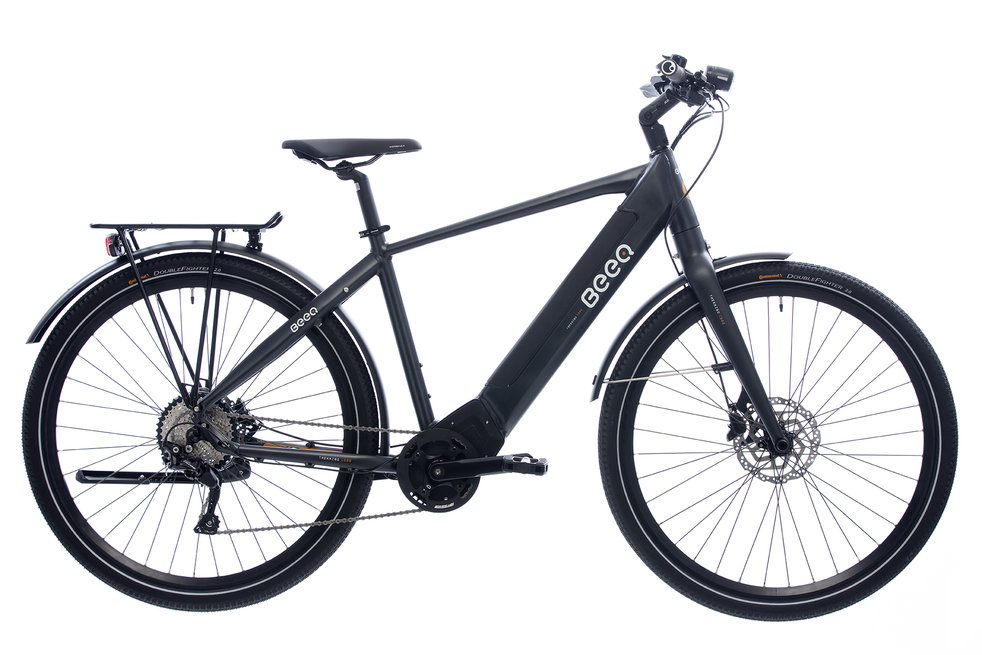

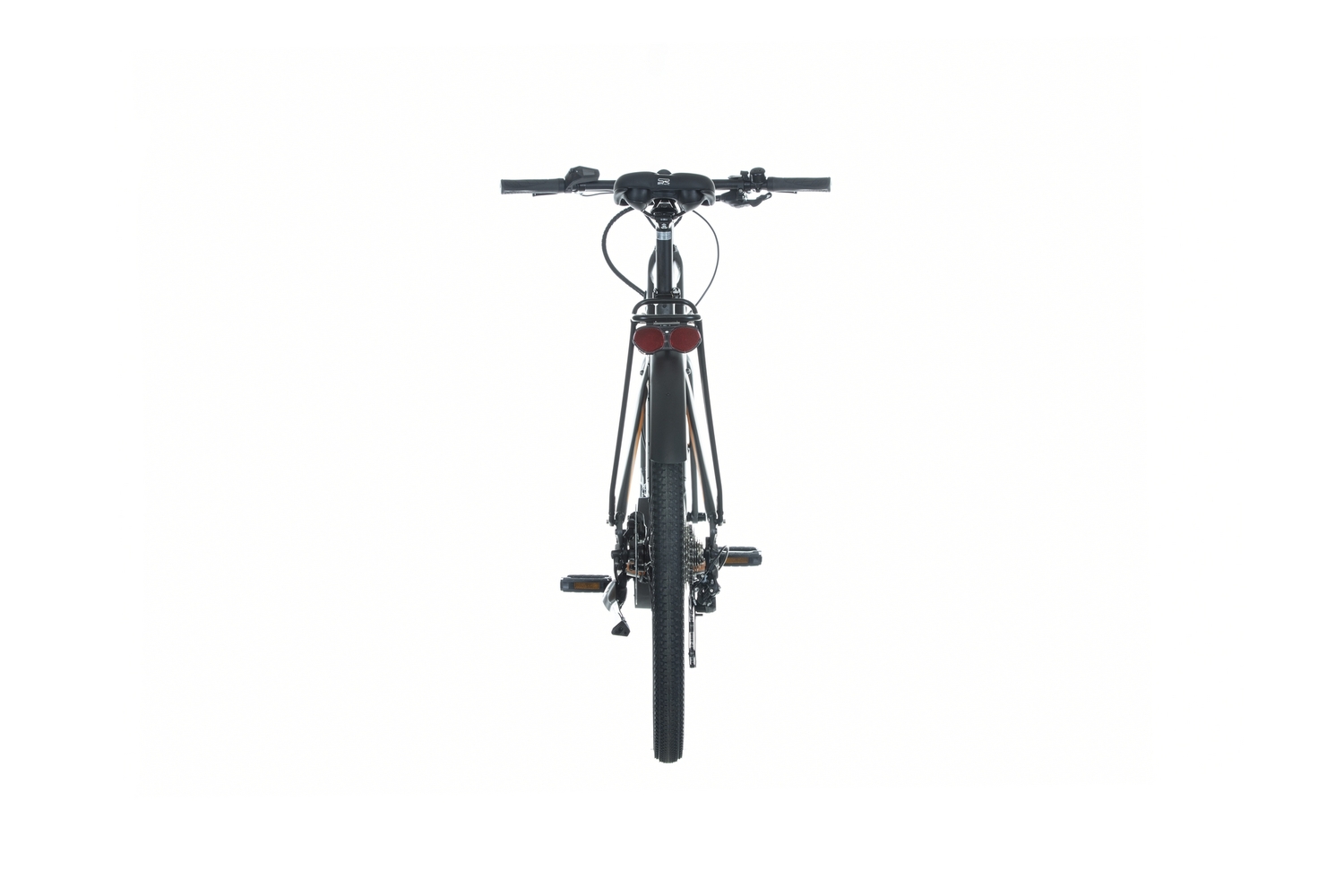

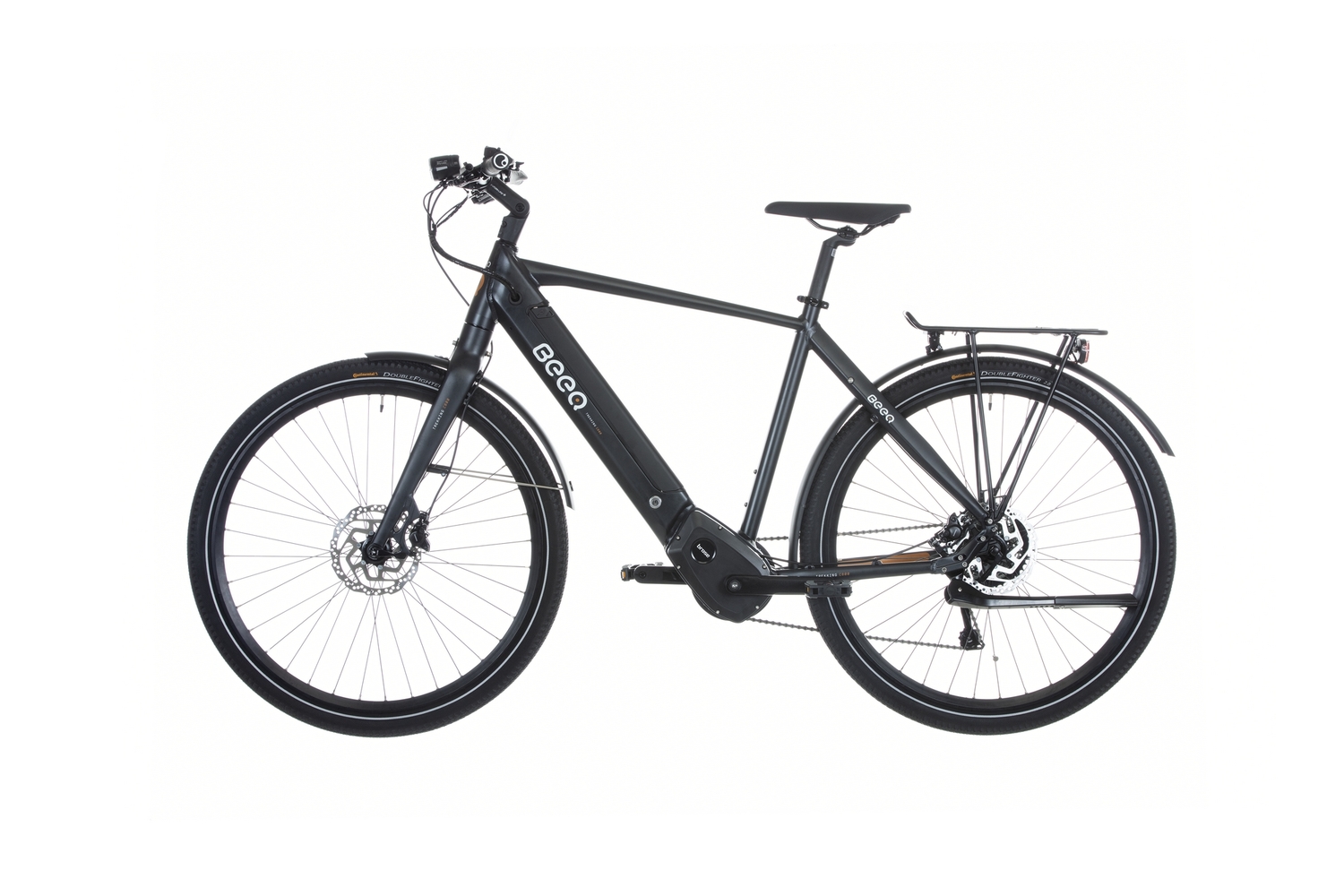

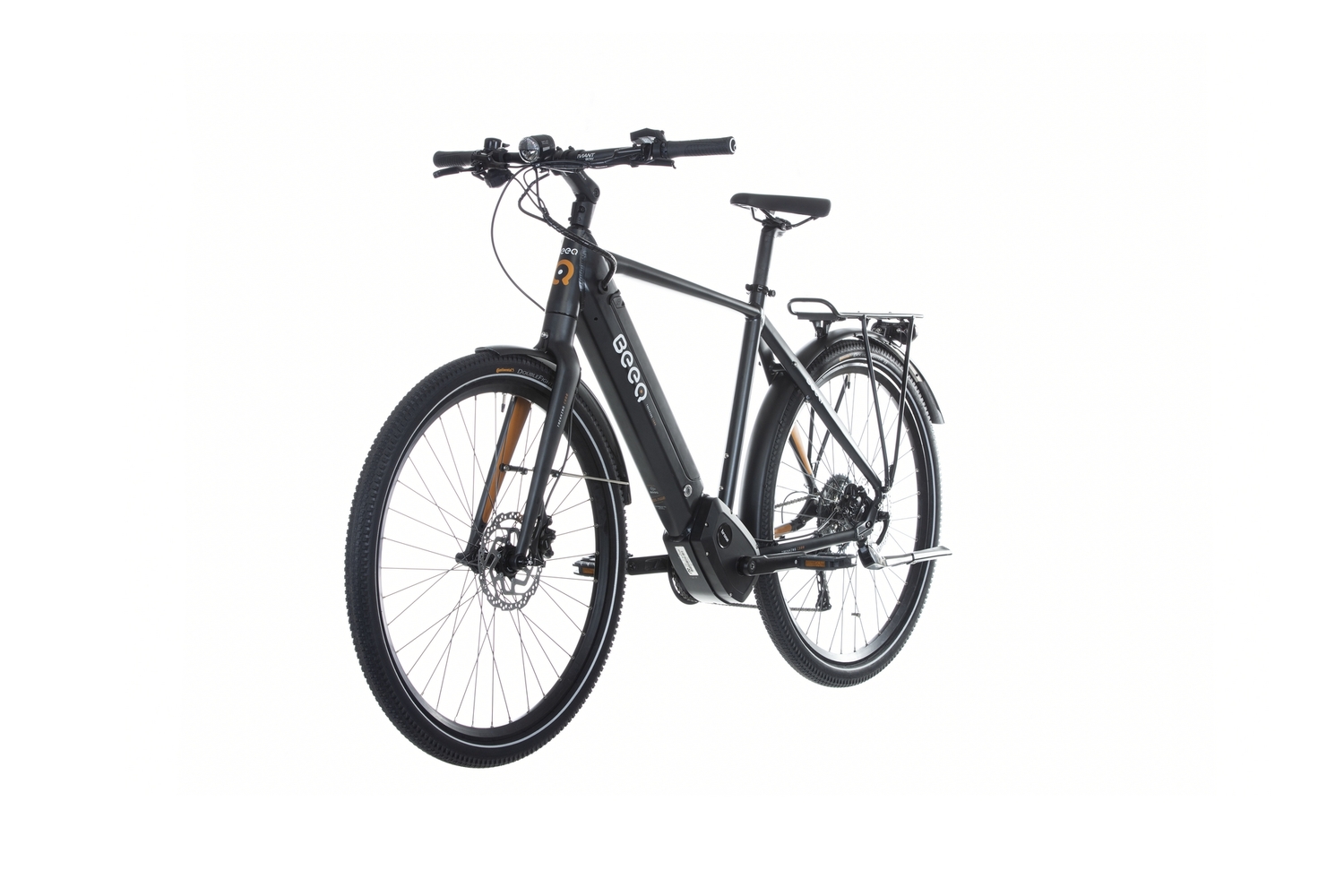

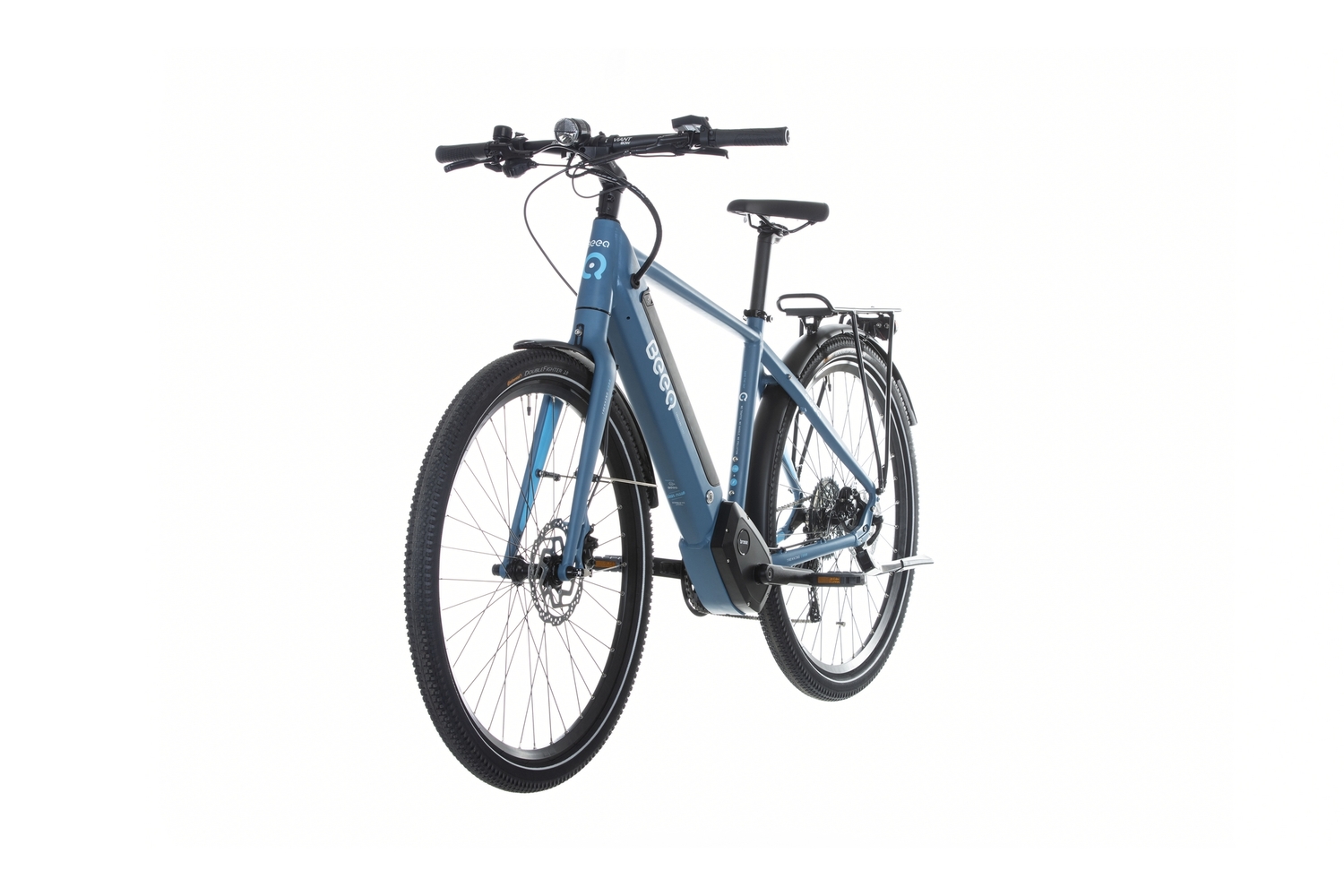

The C800 Trekking

Bike lovers ride to get close to people, to nature and to themselves.

That’s why BEEQ keeps it local. E-Bikes designed and produced right here in Europe and distributed by experienced hands.

We are close enough to provide the support that you need.

Straight forward and smart. Ready to start? Hop on.

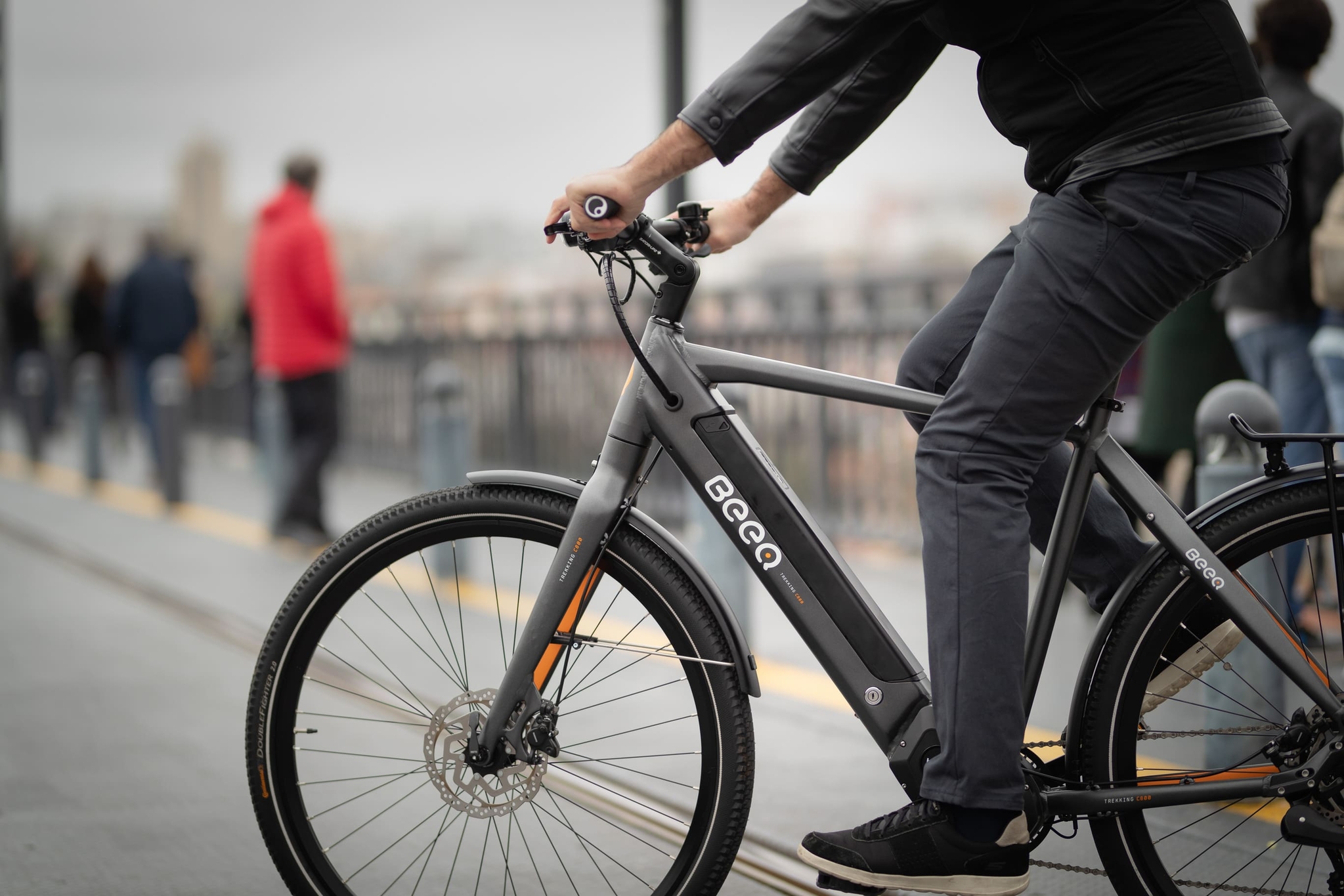

Arrive in effortless style with the C800 TREKKING. The electric bike designed to withstand the thrill of the outdoor lifestyle and the rush of the daily routine.

Its solid design fits the demands of mountain trails, country lanes and busy urban roads, guaranteeing kilometers of great, reliable fun.

See how to unbox your C800 Trekking here:

Technical information

Frame E-BIKE SYSTEM FORK TRANSMISSION WHEELS Brakes COCKPIT

In aluminium 6061 with hydroformed tubes to ensure greater sturdiness and complete integration of the battery and motor.

Available in 2 sizes:

- M: between 1,65m and 1,79m

- L: larger than 1,80m

If betwen 2 sizes:

- For steering flexibility choose the smaller size since the bicycle is easier to manoeuvre and to overcome obstacles.

- For comfort and longer distances, choose the larger size.

POWERFUL BROSE DRIVE S MOTOR with 90Nm of torque:

Resistant aluminium crank case;

Chain gears allowing for a very silent operation of the motor

Sealed bearings to withstand harsh climate conditions.

DISPLAY CONFORT:

Ergonomic allowing for 4 modes of assistance:

0 - No assistance - The battery is not used.

1 - ECONOMIC: Assistance up to 40%: Save battery to extend your trip, 40% assistance is enough to help you face small slopes.

2 - STANDARD: Assistance up to 80%: Perfect for great control of the bicycle and to climb steeper slopes with reasonable effort, this way you can easily keep up with other mountain bikers.

3 - PLUS: Assistance up to 160%: To climb any slope without difficulties, without getting tired and keeping reasonable battery consumption.

4 - BOOST: Assistance up to 320%: to climb steep slopes with technical difficulty or to always ride fast.

The display presents the following information:

Assistance level and battery;

Speed: instantaneous, average, maximum;

Power provided by the user in Watts;

Remaining autonomy;

Distance Travelled: total and trip;

Micro USB socket to charge smartphone or GPS

Assistance button up to 5m/h in pedestrian mode to help push the byke.

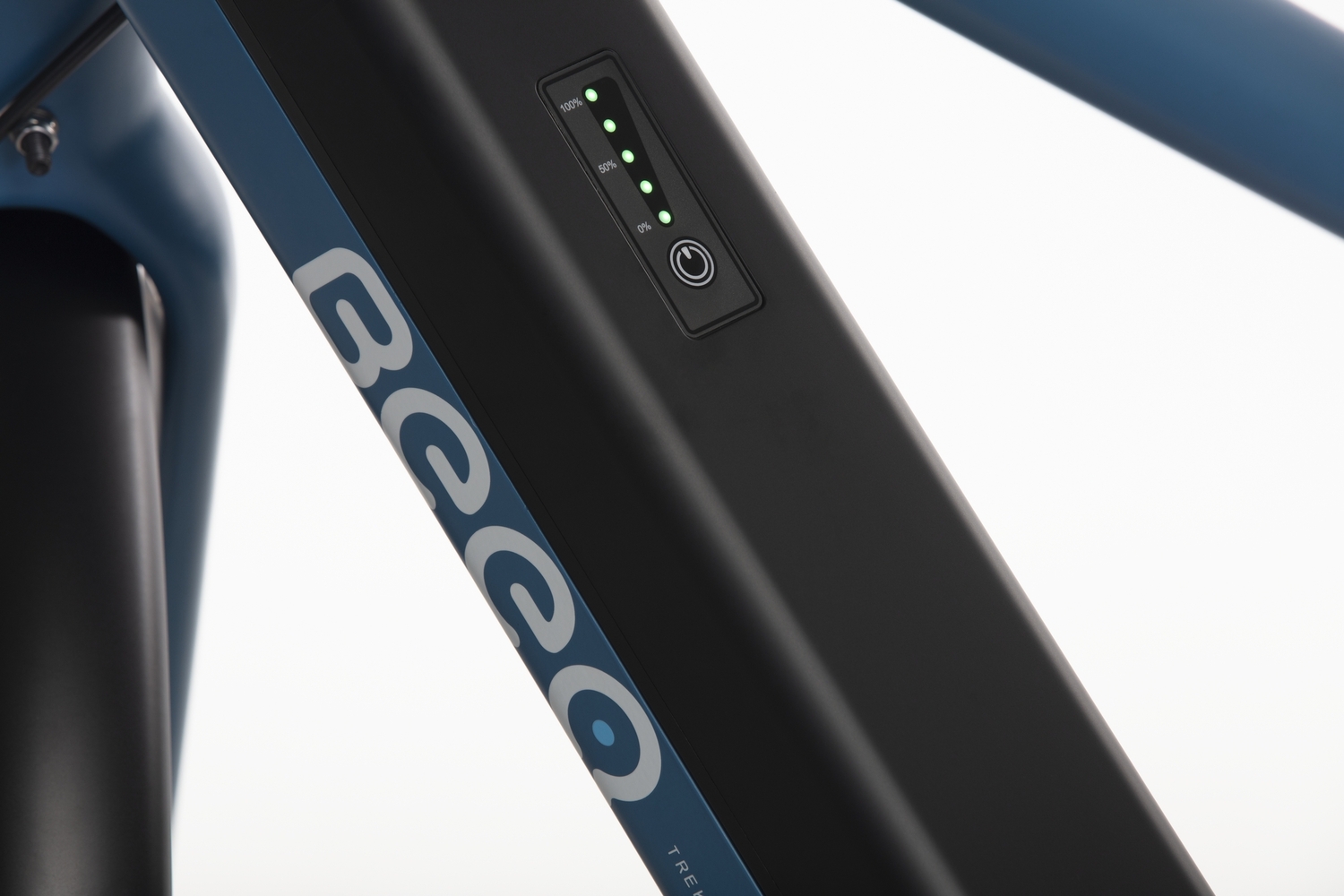

BMZ V7 BATTERY:

POWERFUL 504Wh BATTERY. Locked with a key, it can easily be removed for charging outside the bicycle, but it can also be charged directly on the bicycle.

RIGID ALUMINIUM FORK

- hollow shaft with 100mm for greater sturdiness with safe “quick release” system for easy removal of the front wheel

SHIMANO DEORE 10 SPEEDS

Selected to allow ease of use and sturdiness, the transmission has the following characteristics:

- single plate at the front with 36 teeth with chain retention system to avoid chain skipping.

- rear derailleur SHIMANO DEORE M6005 Shadow

- handle SHIMANO DEORE M6005

- cassete sprocket SHIMANO DEORE 10 speeds (11-42)

- chain SHIMANO CN-E6090-10 for E-BIKE with “Easy Link” connector

- chain guard FSA

The wheels were designed for great safety and sturdiness.

SHIMANO Hubs front 100mm with hollow shaft and rear 135mm with quick release for SHIMANHO CENTER LOCK disks

Double wall aluminium rims with 36 black anti-corrosion spokes decorated with pad printing.

Tubeless ready compatible

Equipped with mixed use CONTINENTAL 28" tires with 2,0” in width which offer good adherence when curving and braking, traction and comfort in the various types of terrain.

We chose the SHIMANO MT-200 hydraulic brakes with 180mm disks front and rear for greater braking power in steep and prolonged slopes.

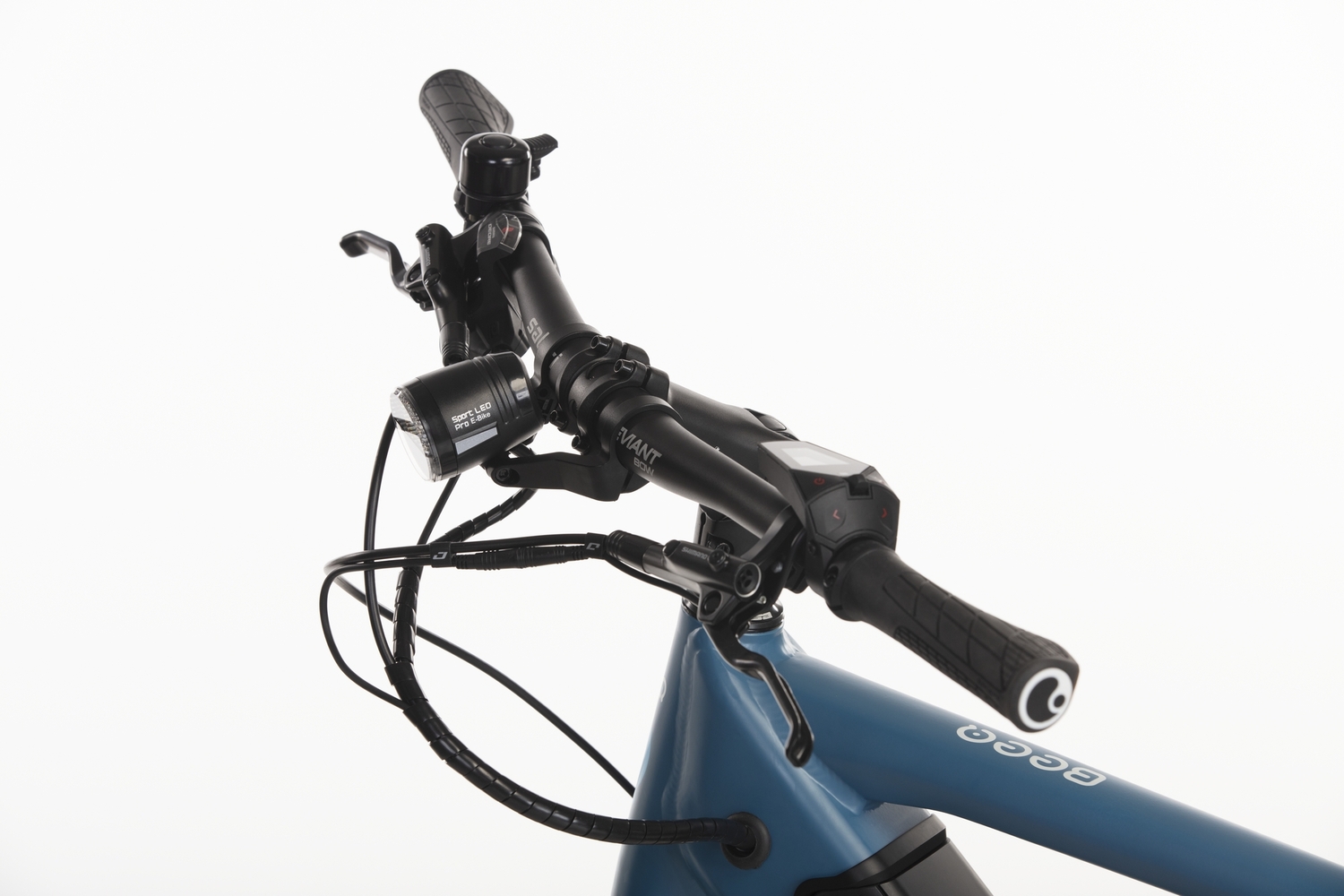

Designed for greater control and comfort, we offer a 680mm handlebar with an extension ADJUSTABLE in height 0-90 degrees for adjustment in height to the user's driving position.

ERGON handles with safety lock and driving grips arranged for ergonomics and ease of access.

Technical details

FRAME 28" TREKKING FRAME - 6061 Hydroformed Aluminum

FRAME SIZES M (50) - L (56)

PAINTING 1 Color Powder Painting Scratch Resistant + Matt Varnish or GLOSSY Varnish

FORK Rigid Alloy Fork 28" 463mm thru15 OLD 100mm

MOTOR BROSE DRIVE S 90Nm

BATTERY 504 Wh 36V - Integrated on Downtube - 40~100km Autonomy

DISPLAY Brose Display Allround

CHARGER 4A charger - 4 hours total charge time

HEADSET FSA 1.5" to 1-1/8" Tapered SHIS

SPACERS NO

RIMS AND SPOKES ALLOY DOUBLE WALL RIM 36 HOLES WITH SILVER EYELETS AND BLACK STELL SPOKES

FRONT HUB SHIMANO HB-MT400 CENTER LOCK DISC 36H FOR 15MM THRU TYPE AXLE OLD

REAR HUB SHIMANO FH-M6000 DEORE FOR CENTER LOCK DISC10-SPEED 36H OLD

TYRES CONTINENTAL Tire 29x2,00 Double Fighter III ETRTO 50-622

CRANKSET MONO CHAINRING 36T NORROW WIDE STEEL 1/2 x 3/32“ and 11/128

CHAINGUARD FSA Alloy Black

CASSETTE SHIMANO DEORE CS-HG500-10 10-SPEED, 11-13-15-18-21-24-28-32-37-42T

FRONT DERRAILEUR No

REAR DERRAILEUR SHIMANO RD-M6000 DEORE GS 10-SPEED SHADOW PLUS DESIGN DIRECT ATTACHMENT FOR CS

CHAIN SHIMANO CN-E6090-10 FOR E-BIKE REAR 10 SPEED/FRONT SINGLE

SHIFTERS SHIMANO SHIFT LEVER, SL-M6000-R, DEORE, RIGHT, REAR 10-SPEED RAPIDFIRE PLUS

BRAKES SHIMANO Hydraulic MT200 - FRONT 180mm - REAR 180mm

HANDLEBAR ALLOY BLack Ø31,8 - 680mm

GRIPS Grip GA30 BLACK - MTB 128/128

BELL YES

STEM Steam Ahed - Adjustable 0-90º - Ø31.8mm

SADDLE SELLE GEL Essenza Moderate Man Black

SEAT POST ALLOY Black 31,6mm x 350mm 22mm Offset

SEAT CLAMP Seatclamp alloy black with quick release and clamp 35mm

MUDGUARD SKS 60mm Plastic Black Matt with stainless steel stays

HANDLEBAR BAGS No

PANNIER/RACK BAGS No

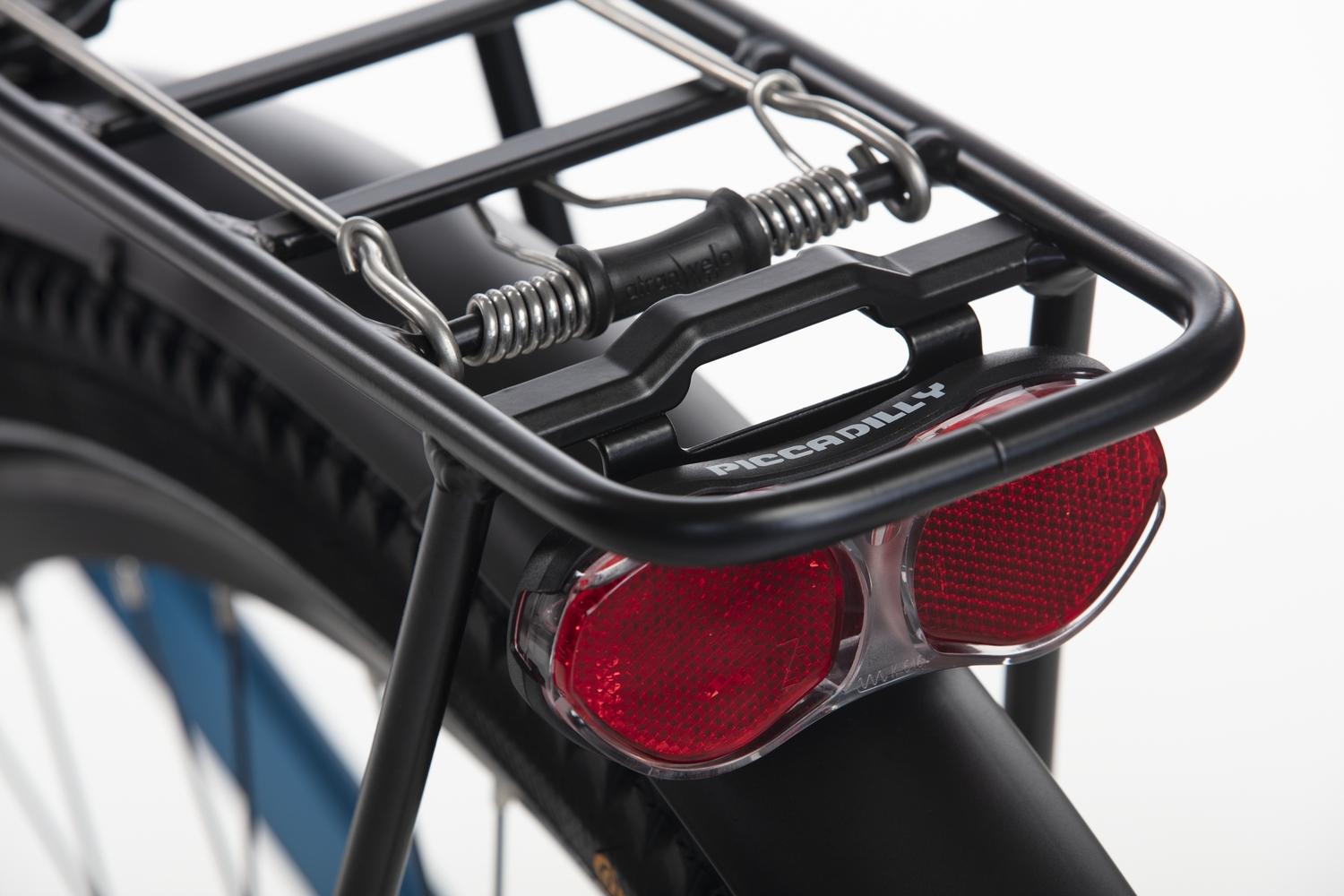

RACK Alloy Matt Black with clamp and ATRANVELO AVS Easy System

FRONT LIGHT AXA Blueline 30 with reflector

REAR LIGHT Yes with Reflector

PEDALS Union Ball Ring with "non-slip" and Reflectors

BOTTLE CAGE Not Suplied. Frame prepared for standard.

WEIGHT Approx. 28 Kg
