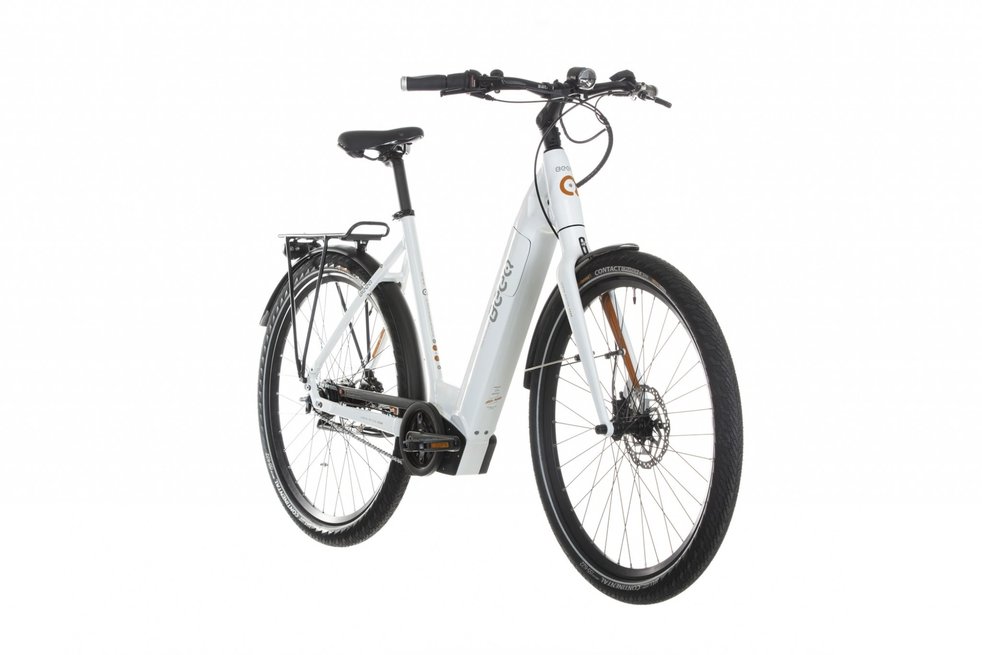

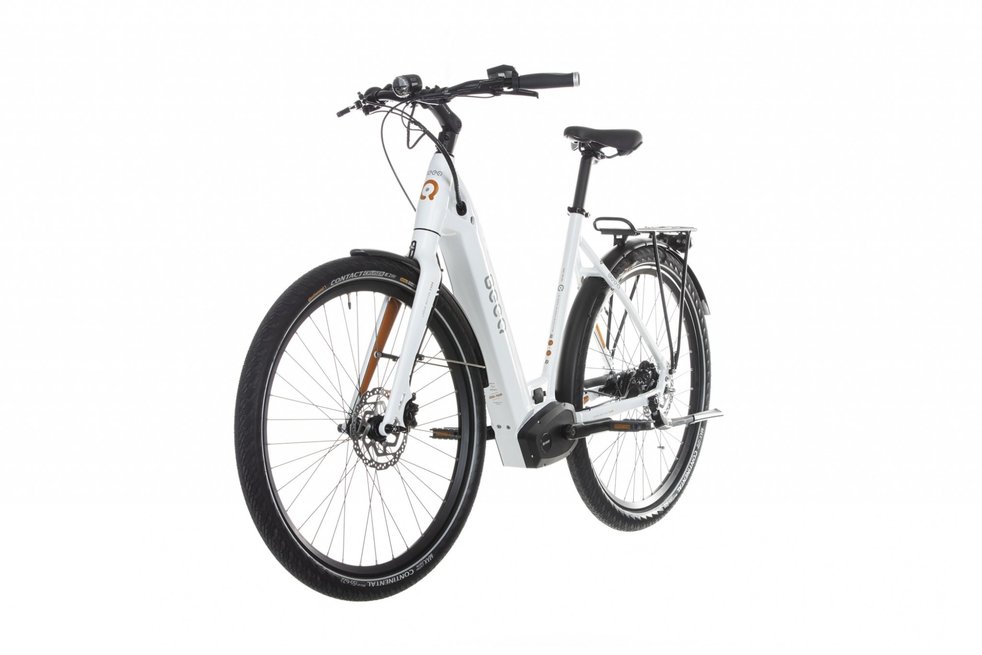

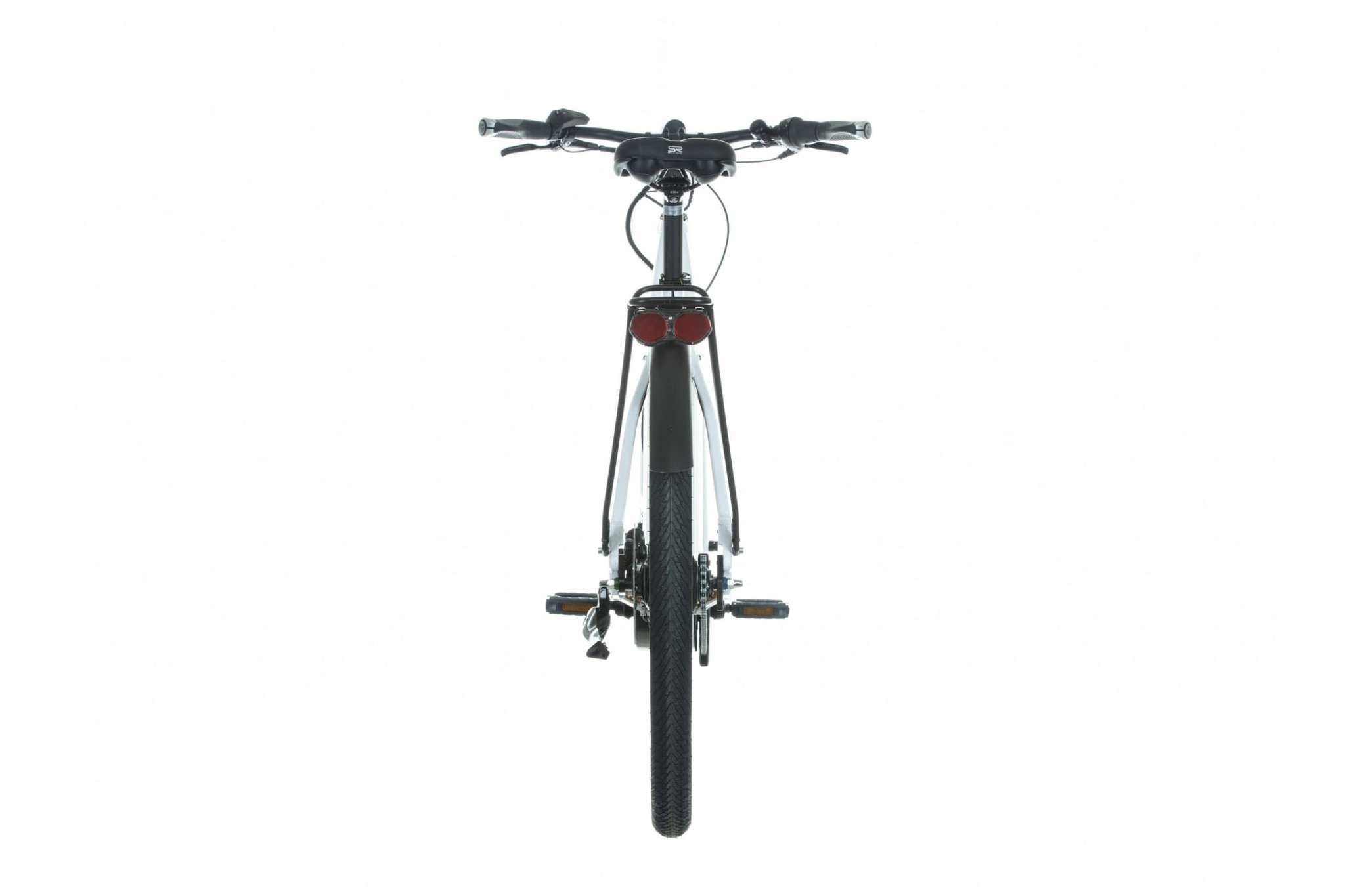

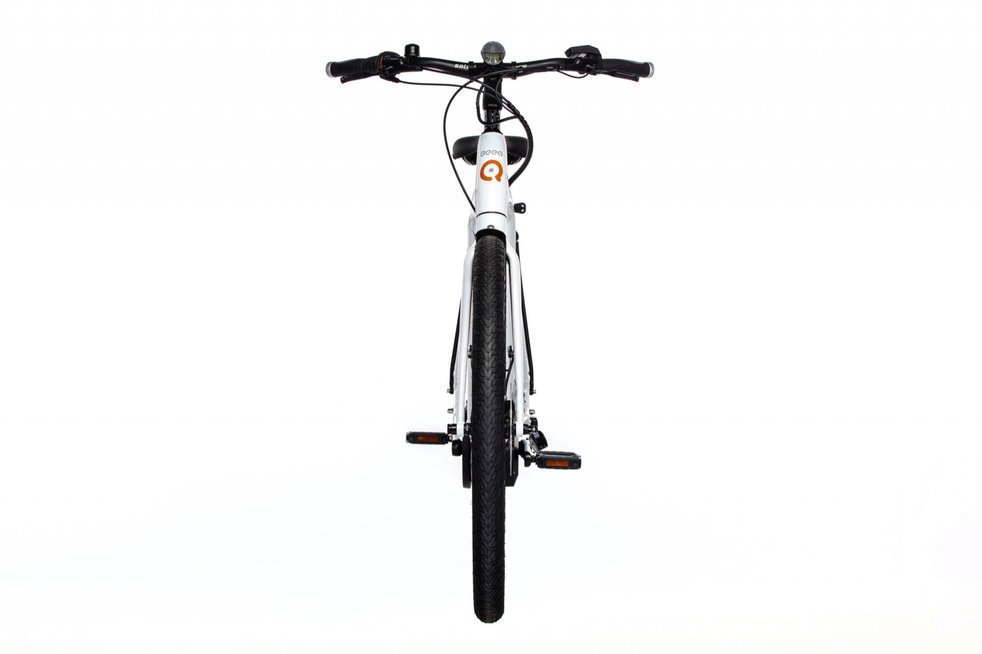

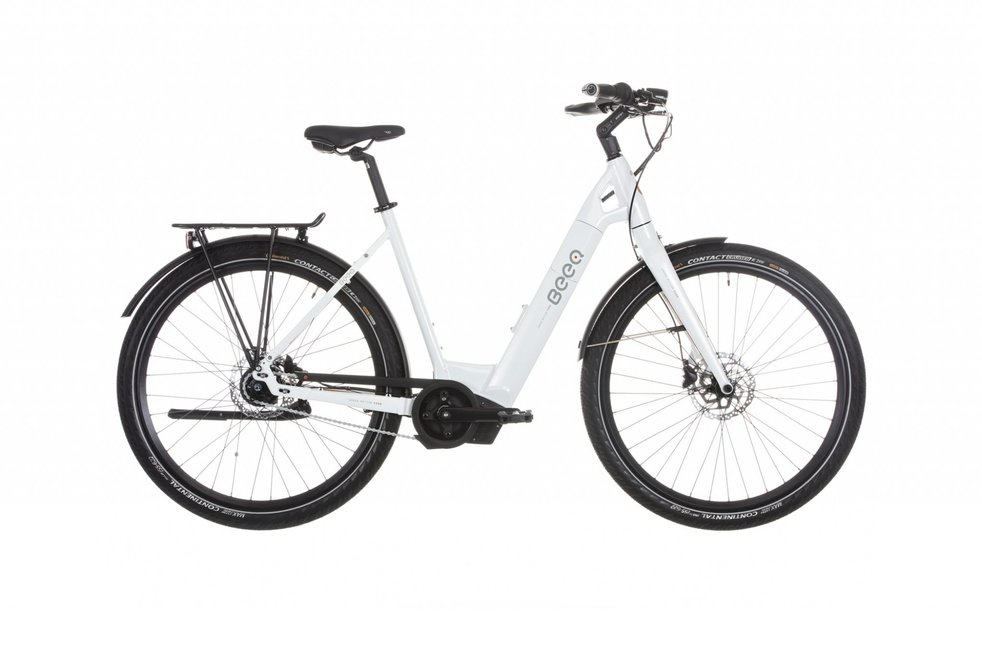

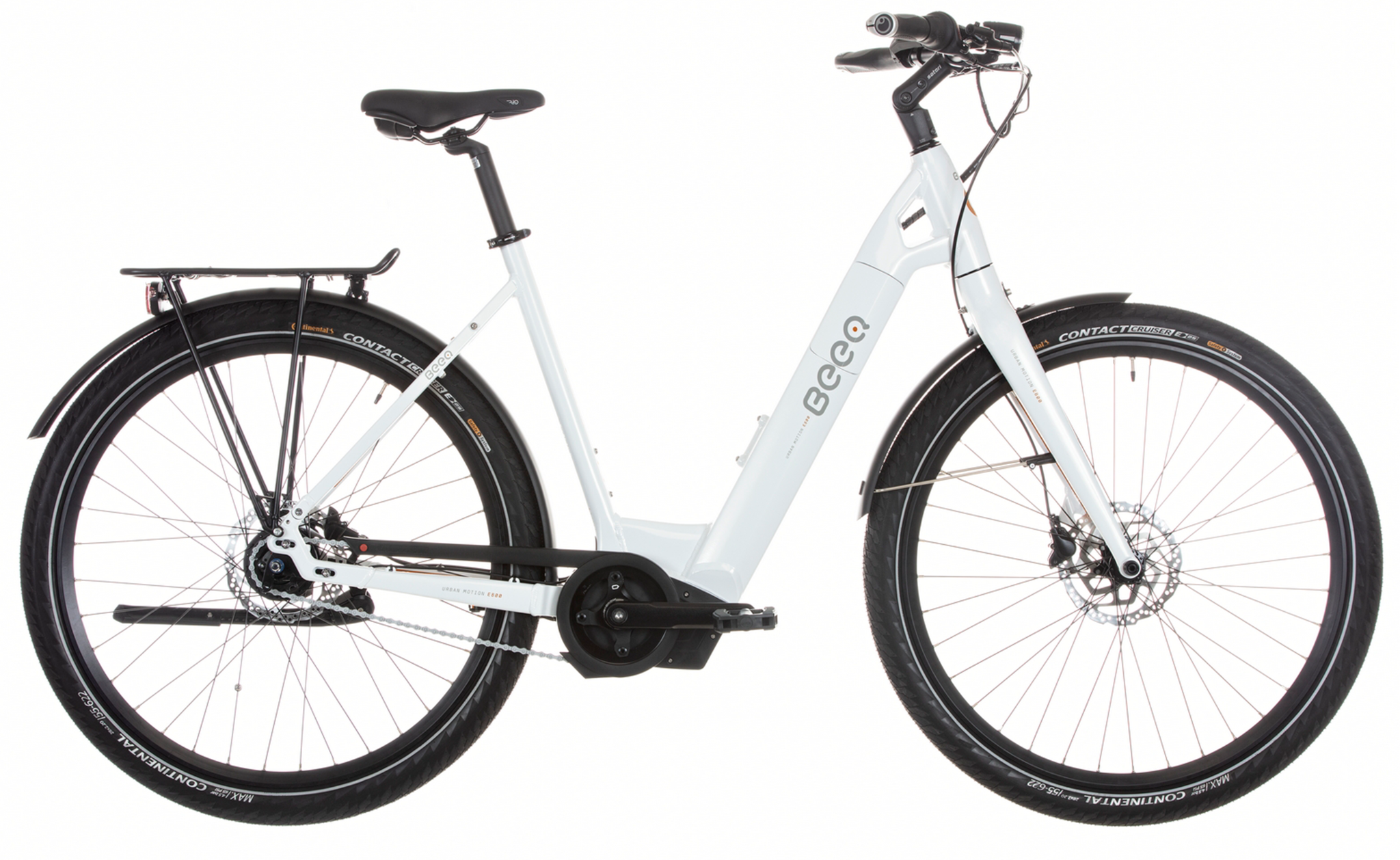

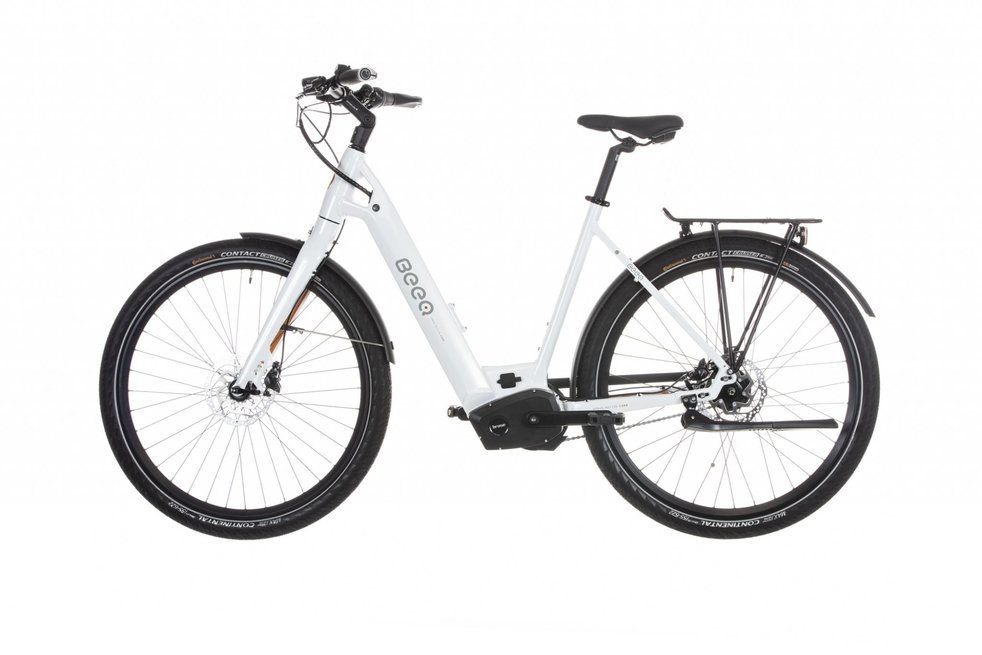

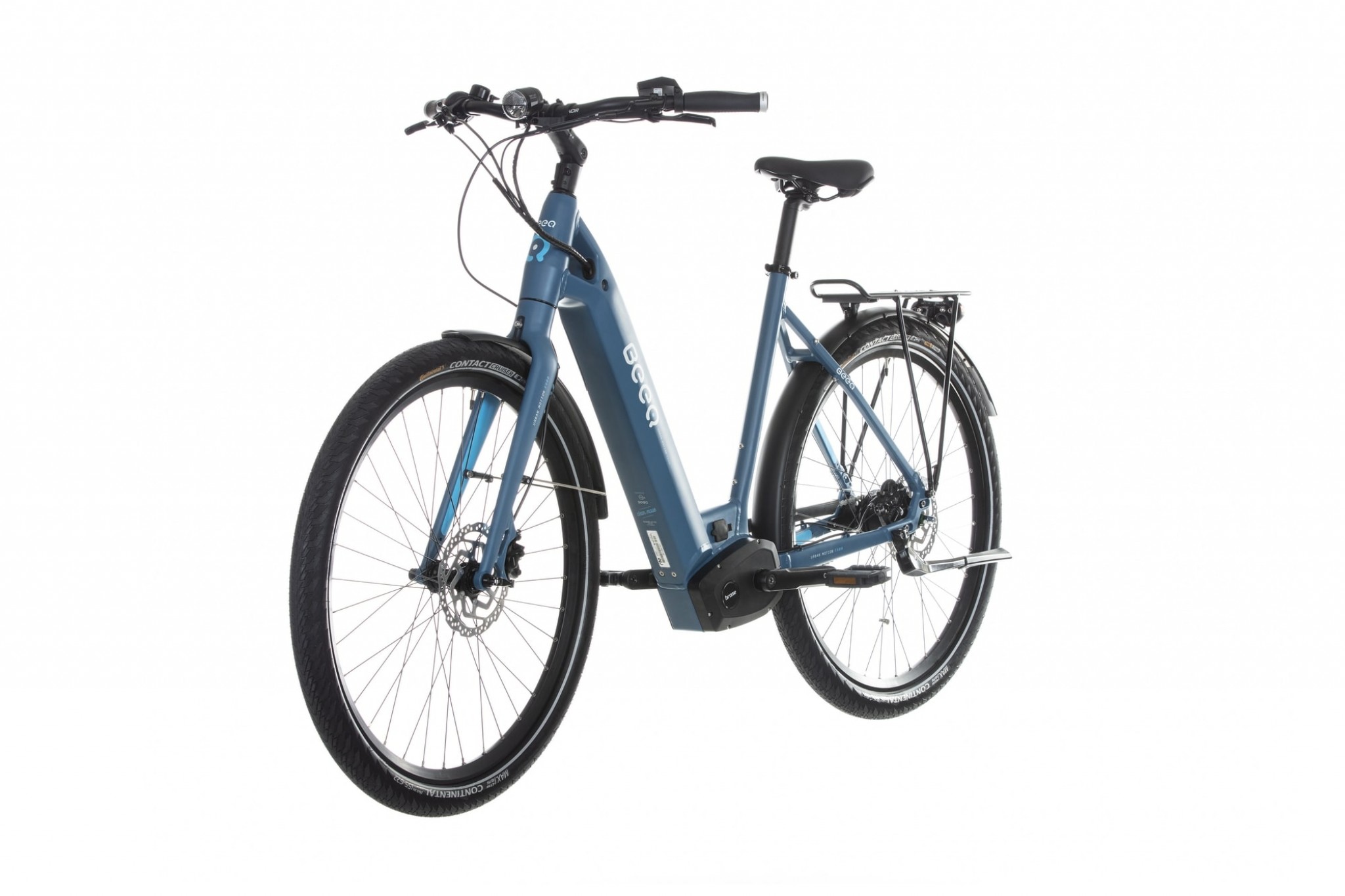

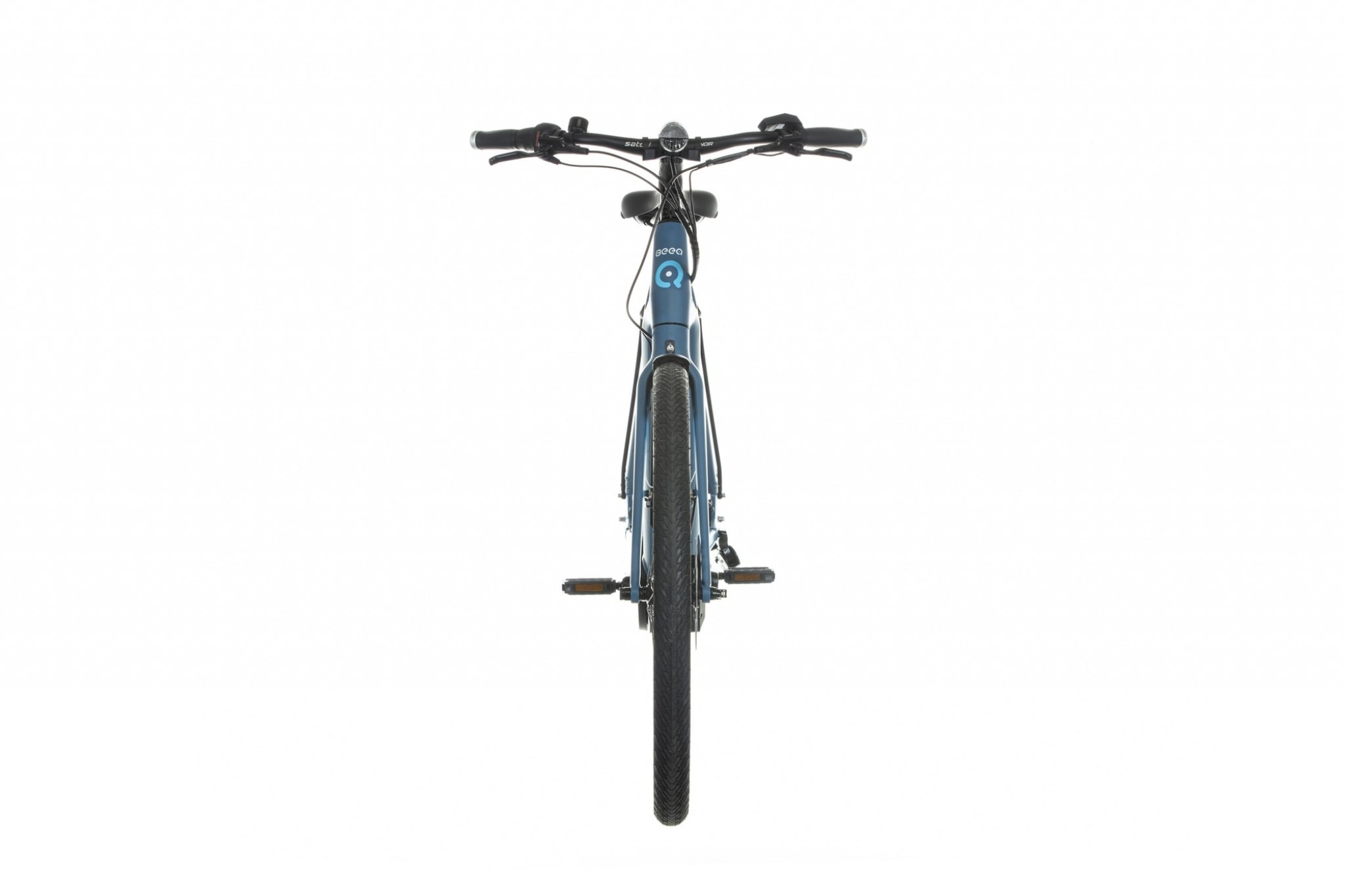

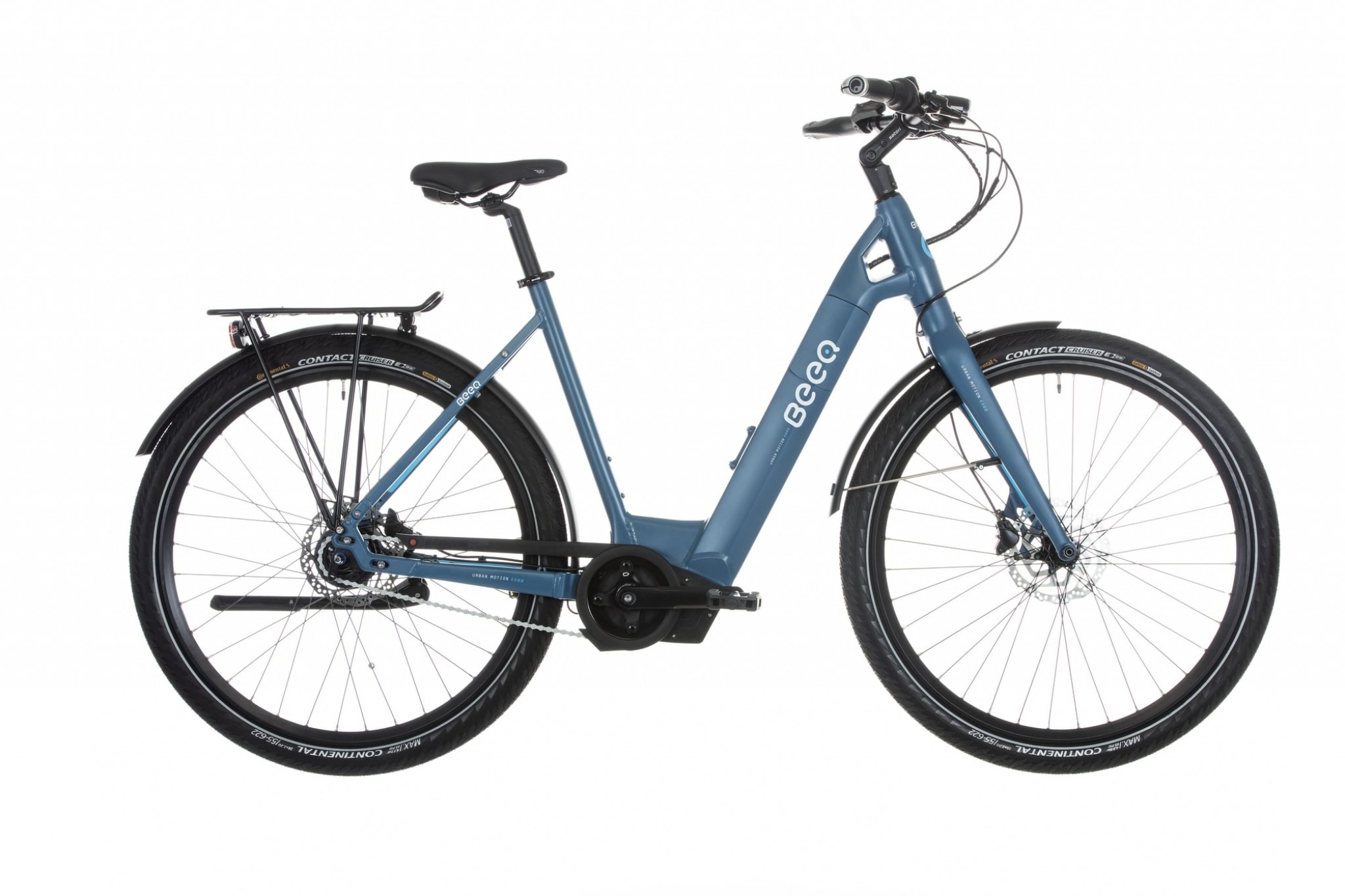

E800 Urban Motion Lite
POWER
Climb any slope thanks to the BROSE DRIVE C 250W motor with 50 Nm torque and 280% assistance.
CONTROL
Good control of the bicycle thanks to the central integrated motor with cadence, torque and speed sensors, the sturdy aluminium frame with integrated battery, the CLARKS hydraulic brakes, the wide 28 x 2,2 tires and the wide 660mm handlebar.
COMFORT
Thanks to the frame geometry, wide tires, Selle Royal Gel seat and ERGON grips.
RANGE
Pedal 40 to 100km (depending on the user’s weight, terrain conditions and altitude range), thanks to the efficient motor and the 504W/h, 36V battery.
Vox Pop
TESTSIEGER.DE
"With the E800 BEEQ has developed a reliable and balanced e-bike for the city."
Technical details
PRODUCT INFORMATION
FRAME SIZES
S (45cm) - M (50cm) - L (55cm)
WEIGHT
Approx. 28kg
MAXIMUM BIKE & RIDER WEIGHT
120kg
The weight refers to the combined weight of the rider and bike including all clothing and equipment carried on the rider's person (backpacks etc.) and must not be exceeded.
PAINTING
Powder Painting Scratch Resistant with Matte or Glossy Varnish
COLOUR(s)

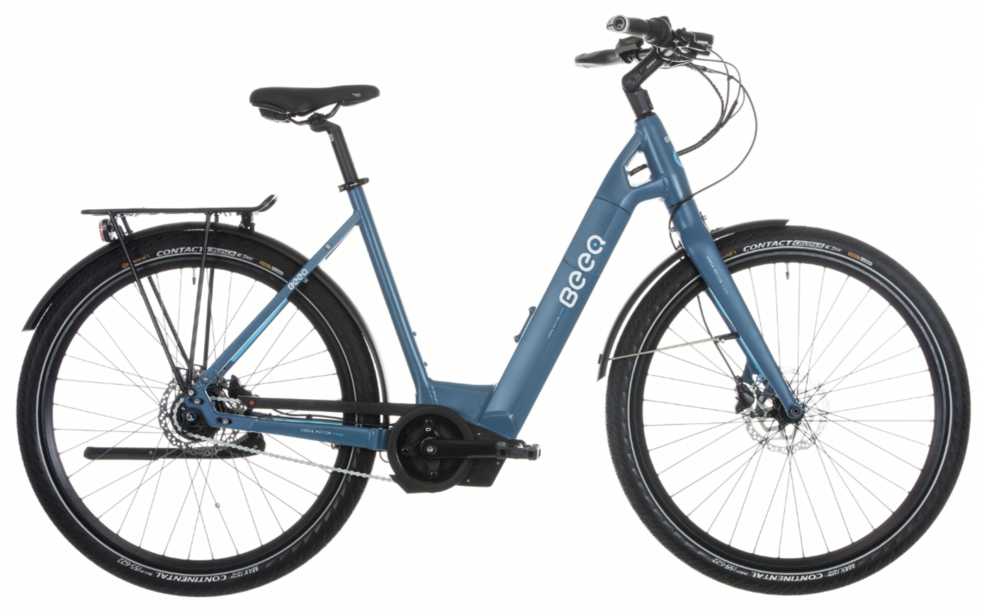

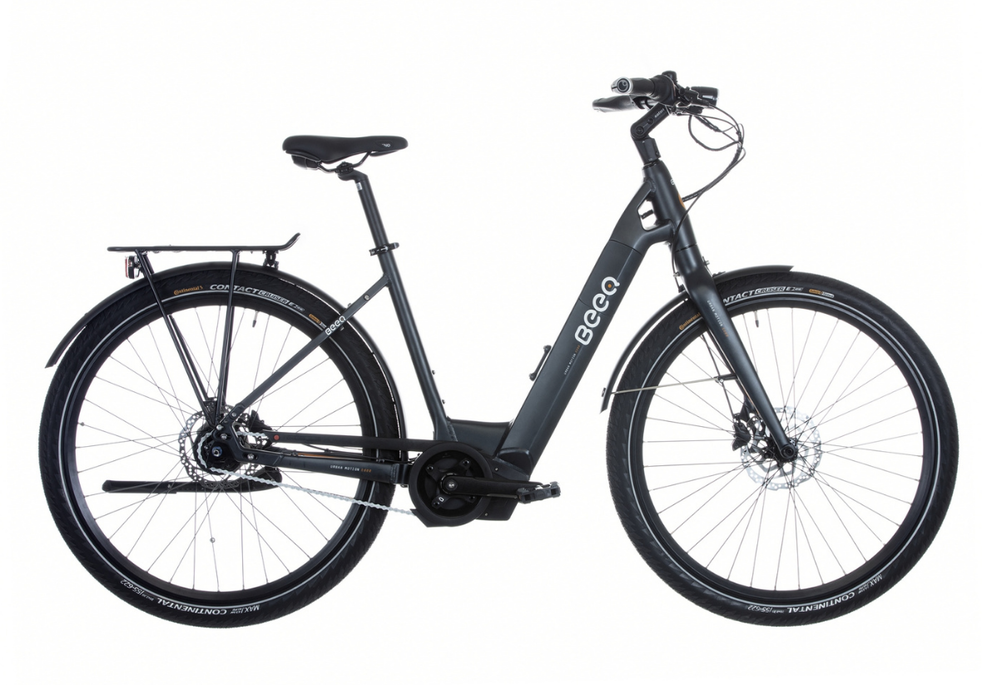

White Star with glossy varnish | Happy Blue with matte finish | Black Suit with matte finish
FRAME
FRAME
Aluminium Low Step
- 6061 with hydroformed tubes
- Available in 3 sizes:
S: between 1,55m and 1,65m
M: between 1,65m and 1,79m
L: taller than 1,80m
- If between 2 sizes:
For steering flexibility choose the smaller size since the bicycle is easier to manoeuvre and to overcome obstacles.
For comfort and longer distances, choose the larger size.
- Available in 3 sizes:
S: between 1,55m and 1,65m
M: between 1,65m and 1,79m
L: taller than 1,80m
- If between 2 sizes:
For steering flexibility choose the smaller size since the bicycle is easier to manoeuvre and to overcome obstacles.
For comfort and longer distances, choose the larger size.
FORK
Rigid Alloy 28"
- 463mm
- thru axle 15mm
- hollow shaft with 100mm for greater sturdiness with safe “quick release” system for easy removal of the front wheel
- thru axle 15mm
- hollow shaft with 100mm for greater sturdiness with safe “quick release” system for easy removal of the front wheel
HEADSET
FSA 1.5" to 1-1/8" Tapered SHIS
E-BIKE SYSTEM
DRIVE UNIT
BROSE DRIVE C ALU 50Nm
THE CITY CHAMPION - BROSE DRIVE C MOTOR with 50Nm of torque:
- Resistant aluminium crank case
- Chain gears allowing for a very silent operation of the motor
- Sealed bearings to withstand harsh climate conditions.
- 4 modes of assistance:
0 - No assistance - The battery is not used.
1 - ECONOMIC: Assistance up to 40%: Save battery to extend your trip, 40% assistance is enough to help you face small slopes.
2 - STANDARD: Assistance up to 80%: Perfect for great control of the bicycle and to climb steeper slopes with reasonable effort, this way you can easily keep up with other mountain bikers.
3 - PLUS: Assistance up to 160%: To climb any slope without difficulties, without getting tired and keeping reasonable battery consumption.
4 - BOOST: Assistance up to 280%: to climb steep slopes with technical difficulty or to always ride fast.
- Resistant aluminium crank case
- Chain gears allowing for a very silent operation of the motor
- Sealed bearings to withstand harsh climate conditions.
- 4 modes of assistance:
0 - No assistance - The battery is not used.
1 - ECONOMIC: Assistance up to 40%: Save battery to extend your trip, 40% assistance is enough to help you face small slopes.
2 - STANDARD: Assistance up to 80%: Perfect for great control of the bicycle and to climb steeper slopes with reasonable effort, this way you can easily keep up with other mountain bikers.
3 - PLUS: Assistance up to 160%: To climb any slope without difficulties, without getting tired and keeping reasonable battery consumption.
4 - BOOST: Assistance up to 280%: to climb steep slopes with technical difficulty or to always ride fast.
BATTERY
504Wh 36V - Integrated on Downtube - Removable
- SNAKE BATTERY
- 504Wh
- 100% integrated in the frame, very protected from external elements and with absence of noise and vibrations.
- Locked with a key, it can easily be removed for charging outside the bicycle, but it can also be charged directly on the bicycle.
- Around 40~100km Autonomy
- 504Wh
- 100% integrated in the frame, very protected from external elements and with absence of noise and vibrations.
- Locked with a key, it can easily be removed for charging outside the bicycle, but it can also be charged directly on the bicycle.
- Around 40~100km Autonomy
RANGE
40km to 100km
BATTERY LOCK KEY
Yes
DISPLAY
BROSE Allround
The display presents the following information:
- Assistance level and battery;
- Speed: instantaneous, average, maximum;
- Power provided by the user in Watts;
- Remaining Autonomy;
- Distance Travelled: total and trip;
- Walk Assist button up to 5m/h in pedestrian mode to help push the bike.
- Assistance level and battery;
- Speed: instantaneous, average, maximum;
- Power provided by the user in Watts;
- Remaining Autonomy;
- Distance Travelled: total and trip;
- Walk Assist button up to 5m/h in pedestrian mode to help push the bike.
COCKPIT
WHEELSET
TYRES
CONTINENTAL Contact Cruiser 28''x2,2''
- ETRTO 55-622
- Balloon effect
- Offer good adherence when curving and braking, traction and PLENTY of comfort in the various types of terrain
- Balloon effect
- Offer good adherence when curving and braking, traction and PLENTY of comfort in the various types of terrain
WHEEL SIZE
28''
FRONT HUB
SHIMANO HB-MT400 100 Thru-axle 15mm
- 100mm
- 36H
- 15mm Thru axle typle
- For SHIMANO Centerlock discs
- 36H
- 15mm Thru axle typle
- For SHIMANO Centerlock discs
DRIVETRAIN & BRAKES
SAFETY & ACESSORIES
RACK
ATRANVELO Tour AVS (max.: 25Kg)
FRONT LIGHT
AXA Blueline 30 with reflector
REAR LIGHT
PICCADILLY with reflector
KICKSTAND
ATRANVELO Dux
MUDGUARD
SKS
BELL
Yes
BOTTLE CAGE
Not included. Sold separately.
SADDLE
SELLE ROYAL Rio Gel
PEDALS
UNION SP-827 Flat with reflectors
FRAMELOCK
Not included. Sold separately.
