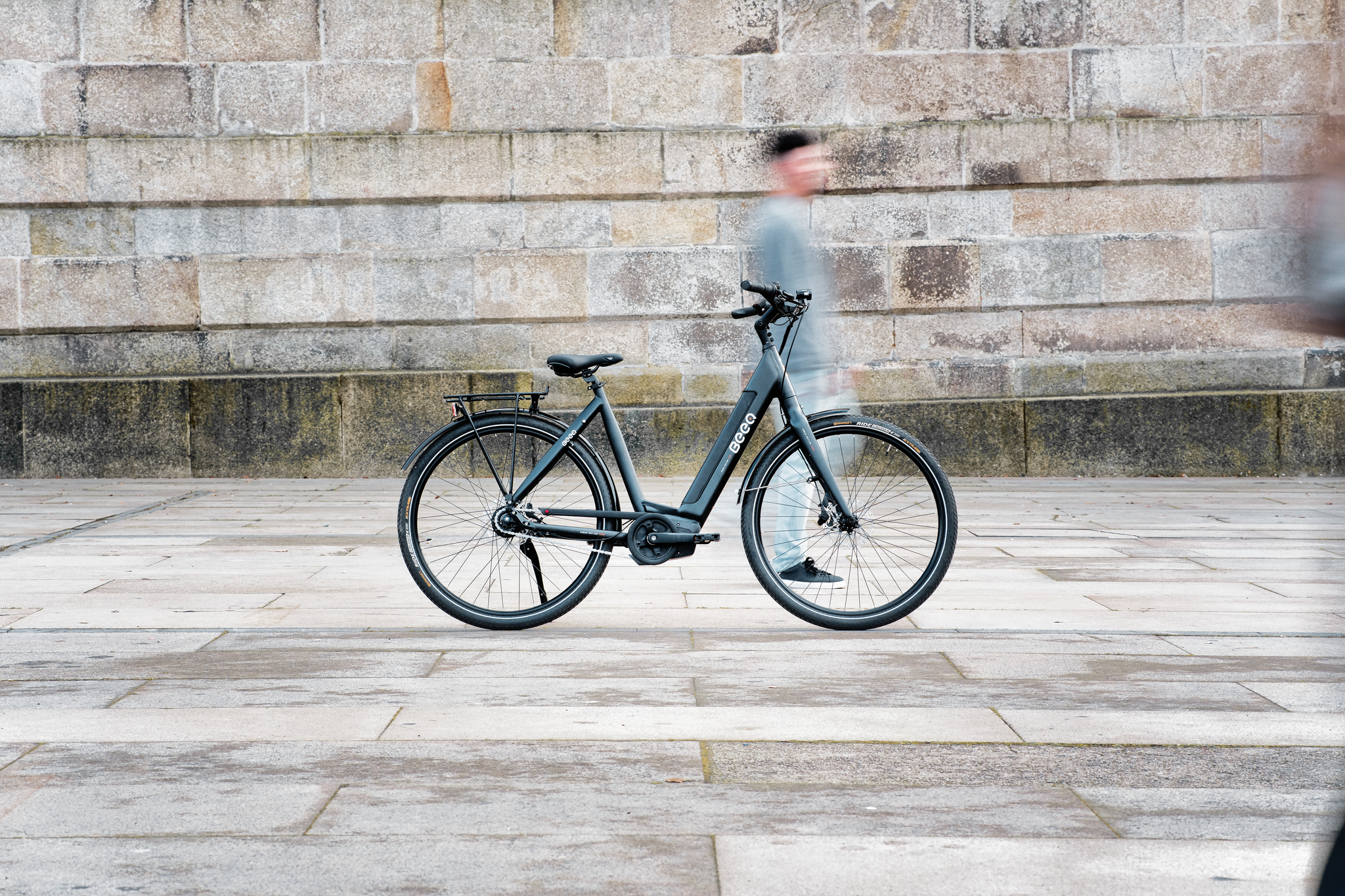

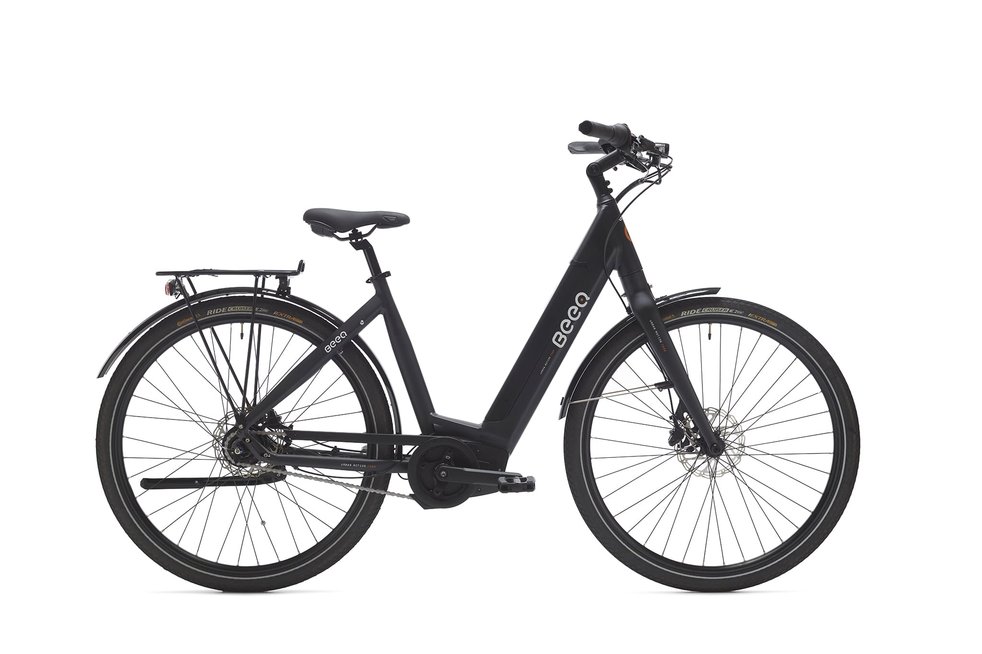

C800 Urban Motion
Click to zoom in
Arrive in effortless style with the C800 Urban Motion. The electric bike designed to withstand the thrill of the outdoor lifestyle and the rush of the daily routine
Book a Test Drive
Highlights
RANGE
Pedal 40 to 100km (depending on the user’s weight, terrain conditions and altitude range), thanks to the efficient motor and the 504W/h, 36V battery.
POWER
Climb any slope thanks to the BROSE DRIVE C 250W motor with 50 Nm torque and 280% assistance.
CONTROL
Good control of the bicycle thanks to the central integrated motor with cadence, torque and speed sensors, the sturdy aluminium frame with integrated battery, the CLARKS hydraulic brakes, the wide 28 x 2,2 tires and the wide 660mm handlebar.
COMFORT
Thanks to the frame geometry, wide tires, Selle Royal Gel seat and ERGOTECH grips.
Technical information
Currently available in 2 sizes:
- M: for riders between 1.65m and 1.79m
- L: for riders taller than 1.80m
{SIZEGUIDE}
If between 2 sizes:
- For steering flexibility choose the smaller size since the bicycle is easier to manoeuvre and to overcome obstacles.
- For comfort and longer distances, choose the larger size.
Technical details
Frameset
FRAME
28" Aluminium Wave Frame
PAINTING
Powder Painting Scratch Resistant with Matt Varnish or GLOSSY Varnish
FORK
Rigid Alloy Fork 28"
HEADSET
FSA 1.5" to 1-1/8" Tapered SHIS
SPACERS
NO
Drivetrain
CRANKSET
MONO Chainring 38 teeth Steel - CRANKS 175mm 0mm offset - SIPDER For BROSE SYSTEM BD 104 - With Chai
CHAINGUARD
Chainguard HEBBIE for 38T
CASSETTE
No
FRONT DERRAILEUR
No
REAR DERRAILEUR
No
CHAIN
SHIMANO CN-NX10
SHIFTERS
SHIMANO SHIFT LEVER SL-C6000-8 NEXUS 8
PEDALS
Union Ball Ring with "non-slip" and Reflectors
E-Bike System
DISPLAY
Brose Display MARQUARDT
MOTOR
BROSE DRIVE C 50Nm
BATTERY
504 Wh 36V - Semi-Integrated on Downtube
CHARGER
4A charger
Wheelset
RIMS AND SPOKES
ALLOY DOUBLE WALL RIM
FRONT HUB
SHIMANO HB-MT400
REAR HUB
SHIMANO NEXUS SG-C6001-8D
TYRES
CONTINENTAL Ride Cruiser 28x2,2mm
Cockpit
HANDLEBAR
ALLOY Black
GRIPS
Grip ERGOTECH EG-AMBITION BLACK
BELL
YES
STEM
Steam Ahead
SADDLE
SELLE ROYAL RIO GEL
SEAT POST
ALLOY Black
SEAT CLAMP
Seatclamp alloy black with quick release and clamp
Safety
MUDGUARD
SKS 60mm Plastic Black Gloss with stainless steel stays
KICKSTAND
KSA 18 Stainless and Alloy Black
RACK
ATRANVELO F-Fix Matt Black with clamp with AVS Easy System
FRONT LIGHT
AXA Blueline 30 with reflector
REAR LIGHT
Yes with Reflector
Brakes
BRAKES
CLARKS Hydraulic M2
Data
MAXIMUM BIKE & RIDER WEIGHT
120 Kg
The weight refers to the combined weight of the rider and bike including all clothing and equipment carried on the rider's person (backpacks etc.) and must not be exceeded.
SIZES
M (50) - L (55)
COLOUR(s)
Black Suit w/ Matte Finish
BOTTLE CAGE
Not Suplied. Frame prepared for standard.
WEIGHT
Approx. 28 Kg
We reserve the right to modify the information of the products that appear on this website without prior notice, including equipment, specifications, models, colors and materials
