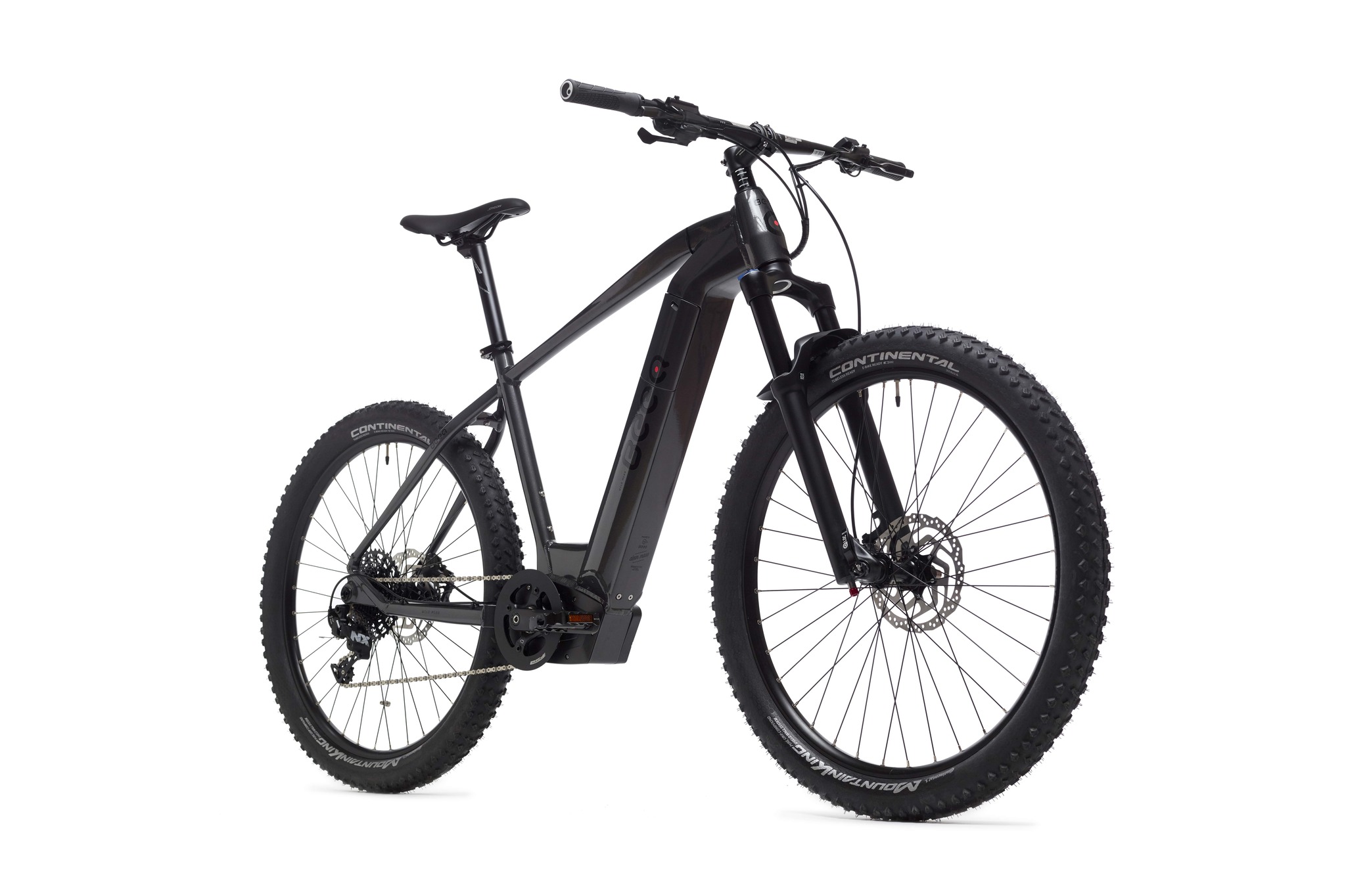

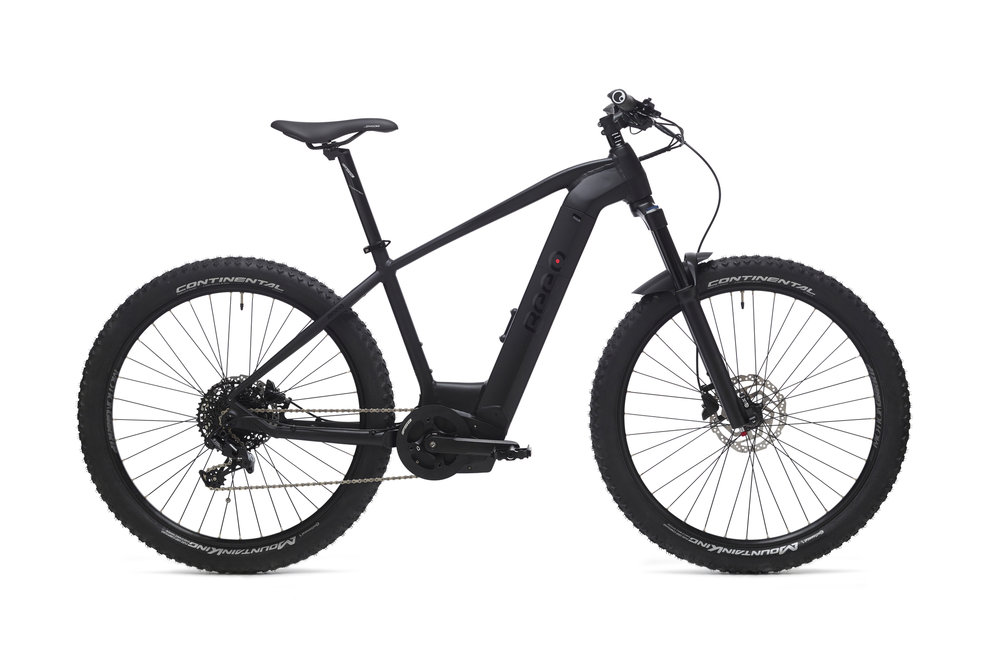

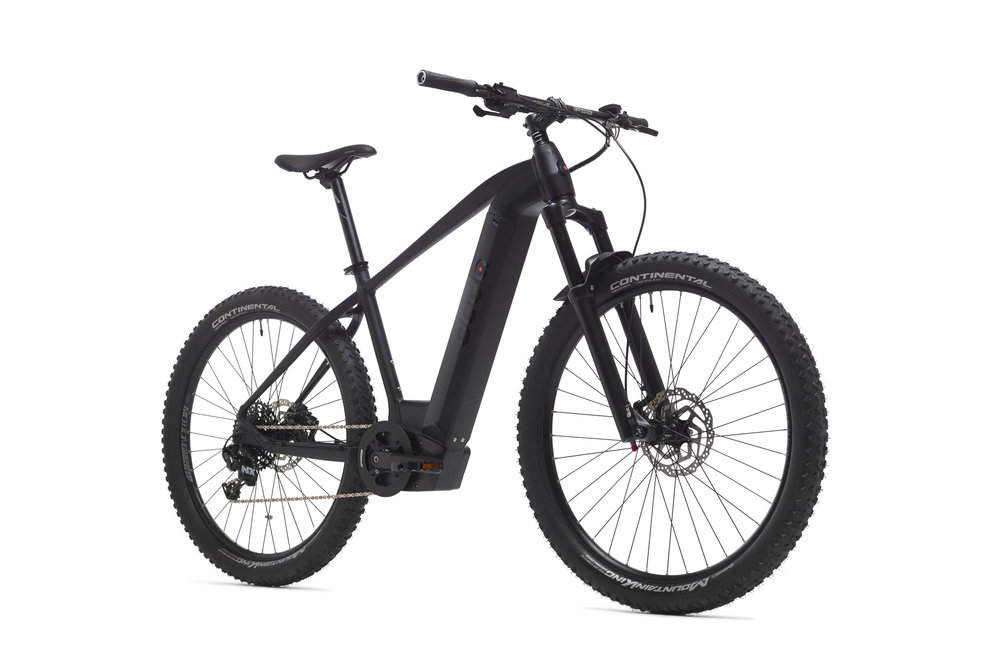

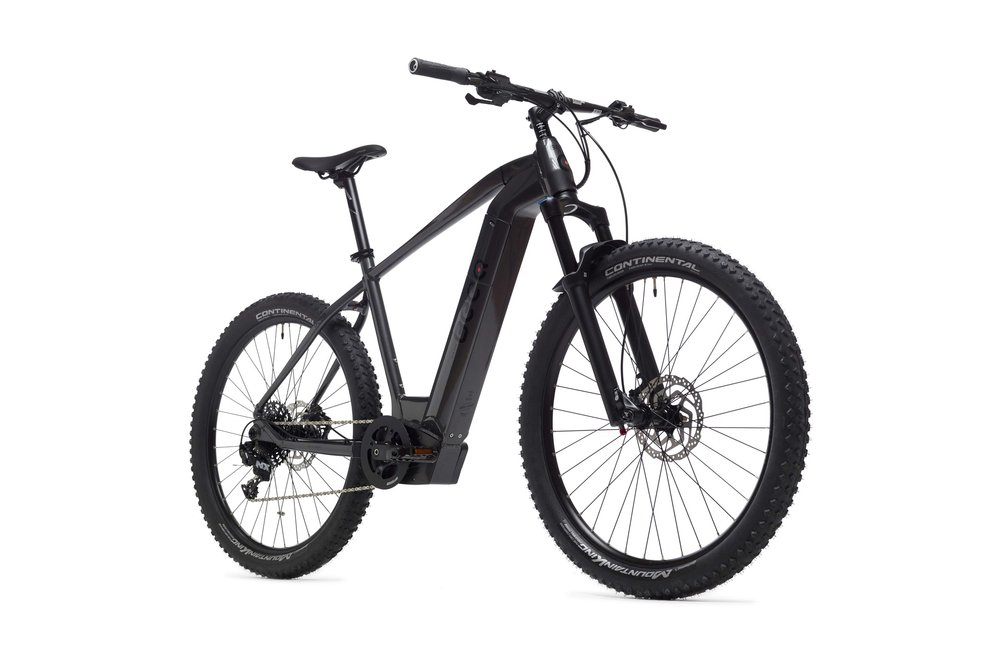

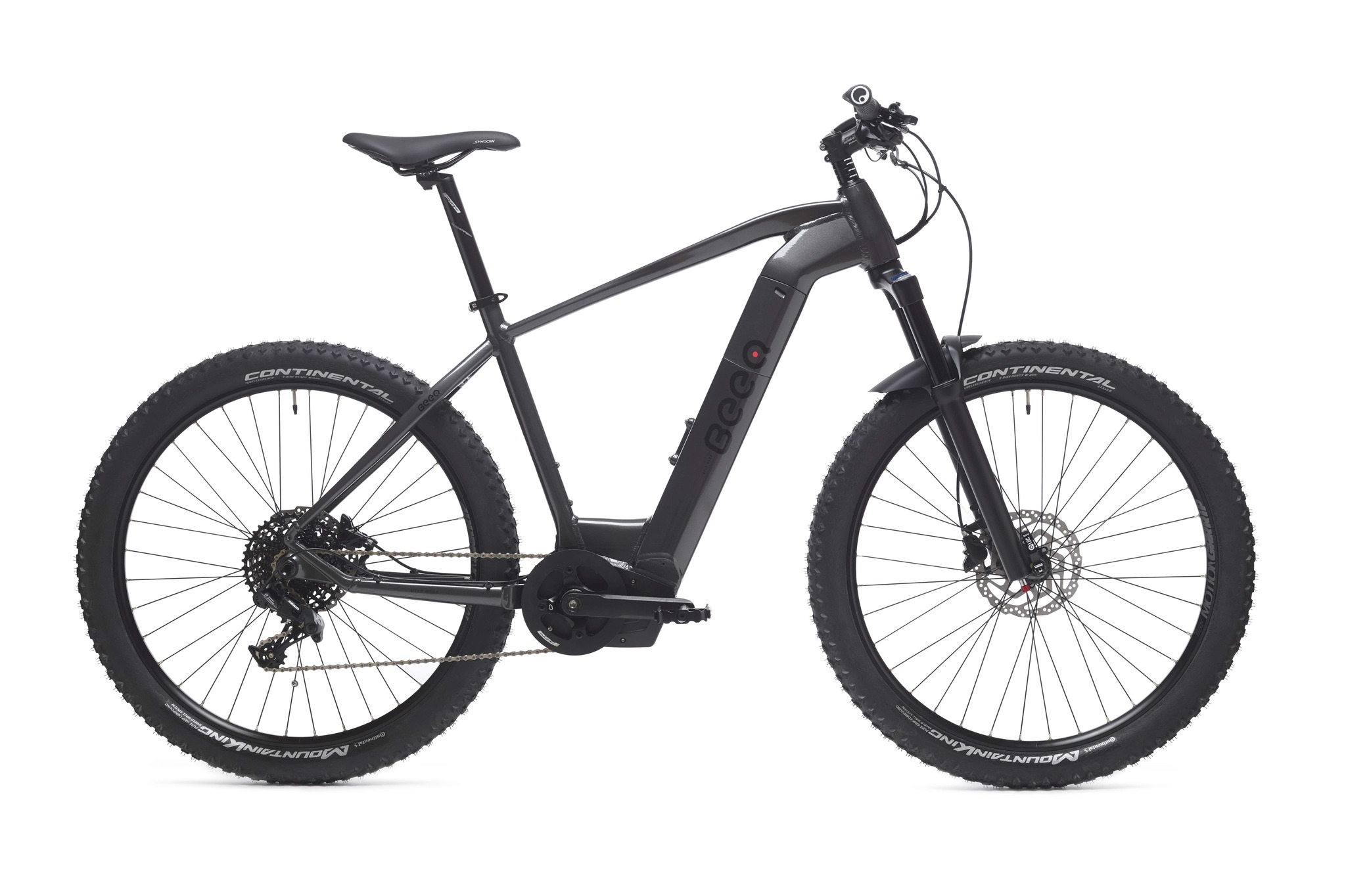

M500 Wild
Highlights
Pedal an average of 3h00 in mountain bike mode (40 to 100km depending on user’s weight, road conditions or altitude range), thanks to the efficient motor and the 504W/h and 36V battery.
Climb any hill thanks to the BROSE DRIVE S 250W motor with 90 N torque and 380% Assistance.
Good control of the bike thanks to the built-in central motor with cadence, torque and speed sensors, the robust aluminium frame with built-in battery, the efficient air suspension Raidon 34 BOOST with hollow shaft and treated sheaths, the hydraulic SHIMANO brakes, the large 27,5 x 2,6 tyres and the ample 740mm handlebar.

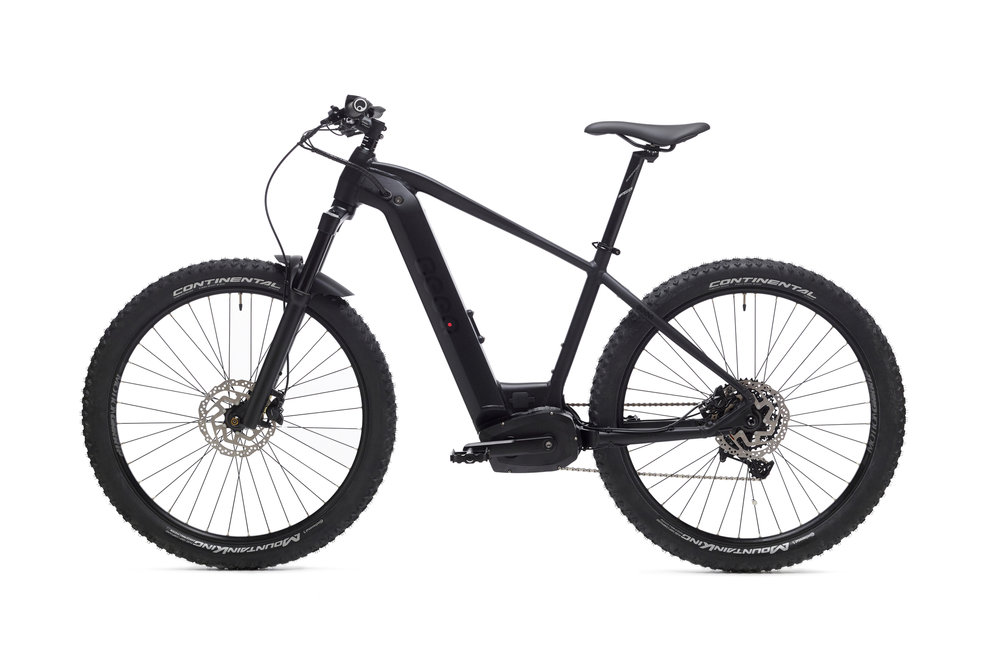

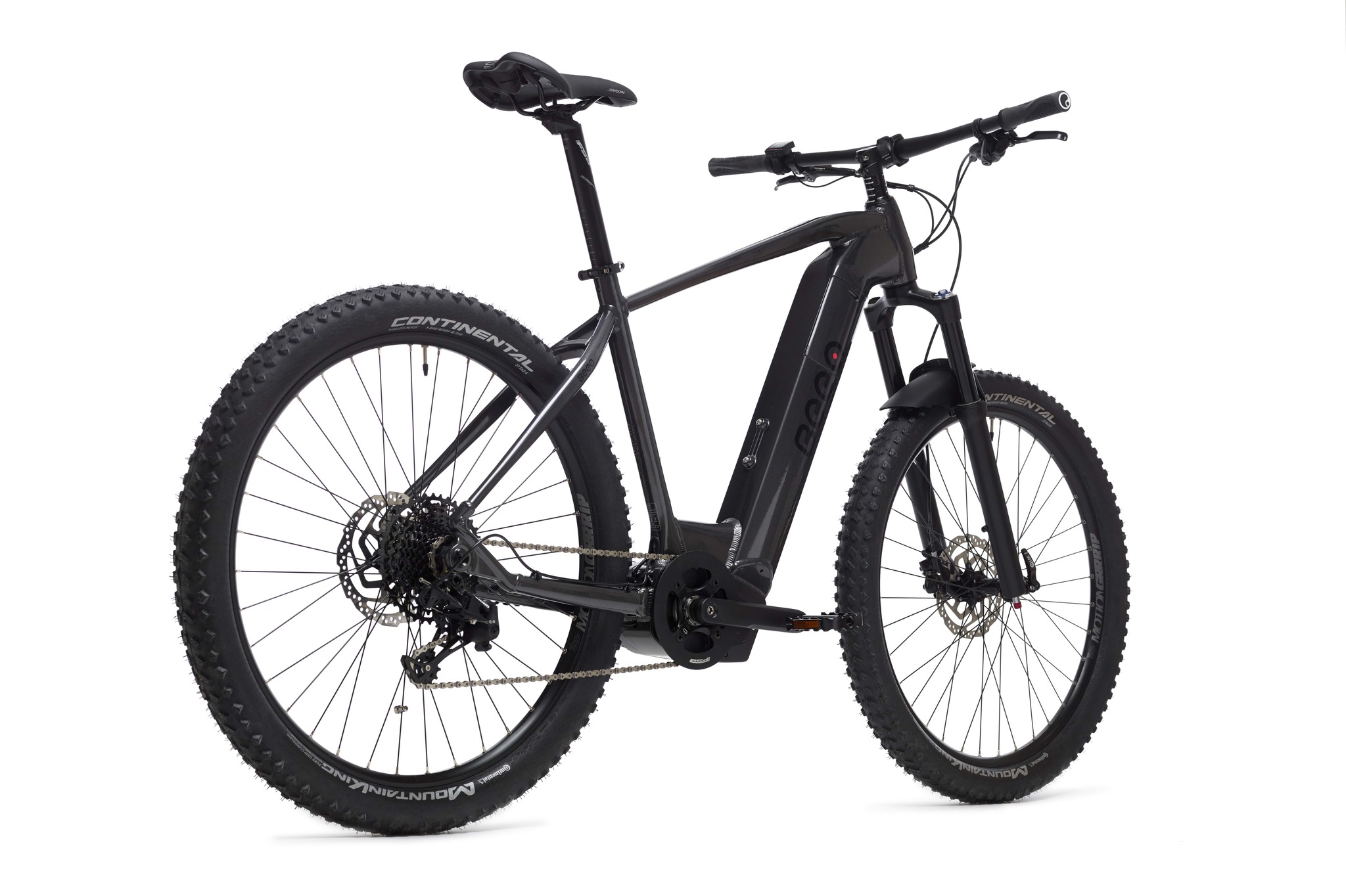

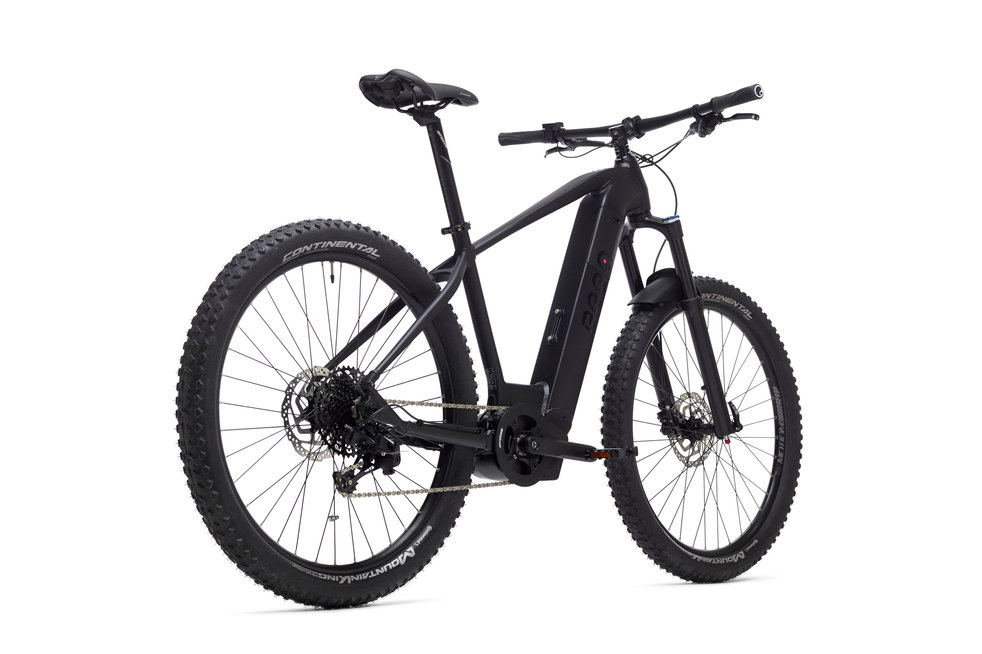

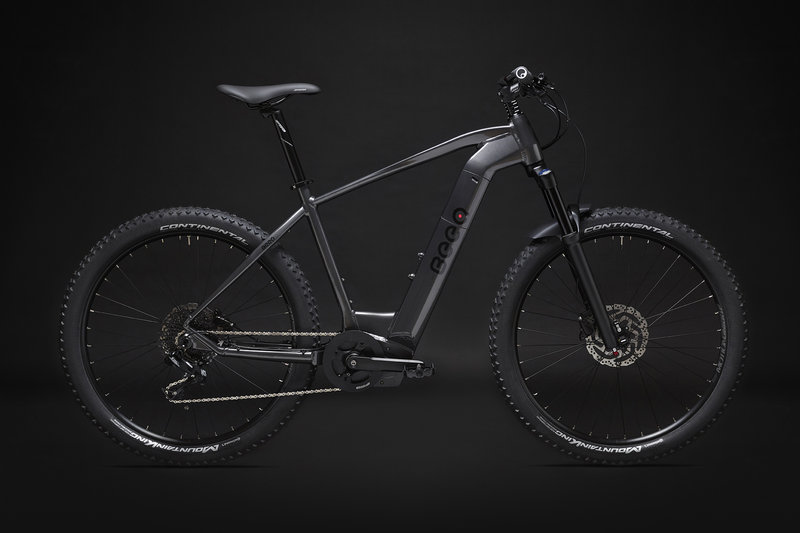

The M500 Wild
Bike lovers ride to get close to people, to nature and to themselves.
That’s why BEEQ keeps it local. E-Bikes designed and produced right here in Europe and distributed by experienced hands.
We are close enough to provide the support that you need.
Straight forward and smart. Ready to start? Hop on.
Spark up your mountain biking with the M500. This energizing electric bike, ideal for Cross Country riding, but also a very fun when ripping through the city, is an e-bike built for the toughest routes, featuring a robust engine, reliable autonomy and sporty design.
Feature focus
Brose Drive S: silent, powerful, smart
The precise sensor system provides exactly the right amount of extra power.
Brose drives run extremely quietly with hardly any vibration.
No pedaling resistance when the motor is switched off.

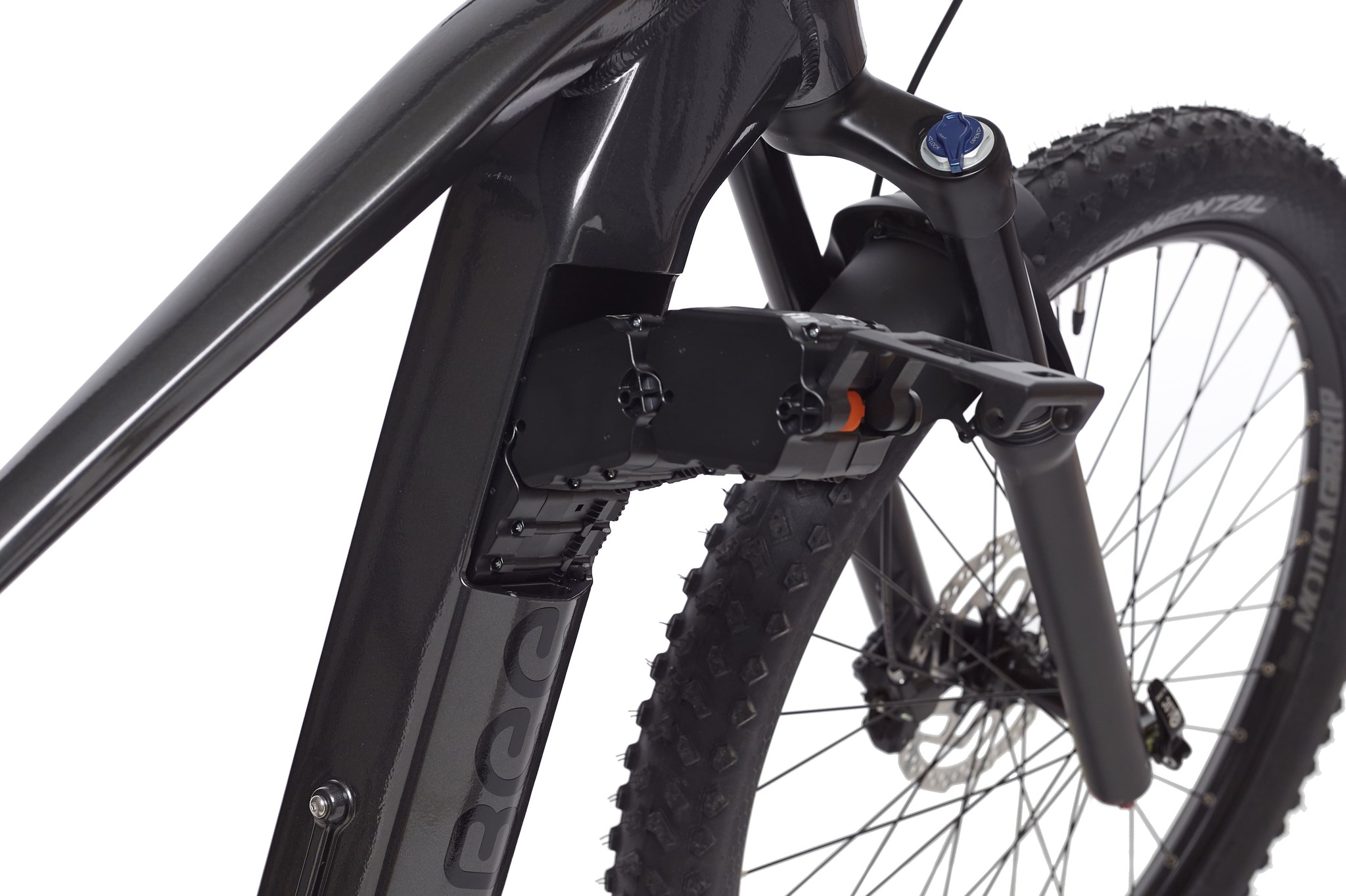

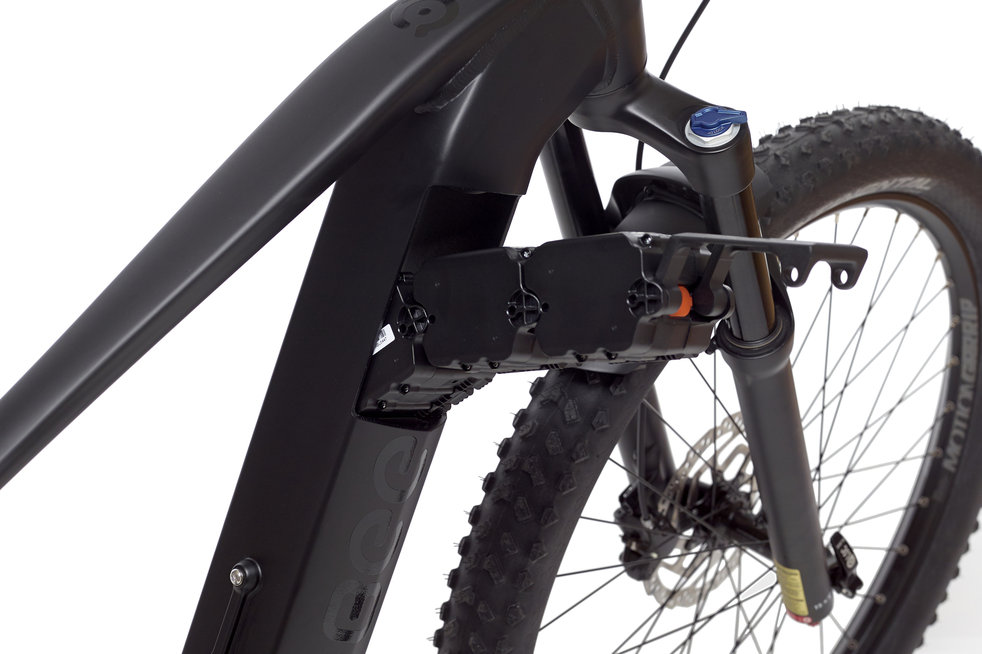

Removable battery
Discretely integrated in the frame, the battery is totally removable for easy charging wherever you might be.
Don't have a plug near by? Don't worry.
Just open the access port and pull on the articulated lever. The battery will slide out like a happy little snake.
Technical information
In aluminium 6061 with hydroformed tubes to ensure greater sturdiness and complete integration of the battery and motor.
Available in 2 sizes:
- M: from 1,65m to 1,79m
- L: taller than 1,80m
| M500 Mountain Frame (27.5") | M | L | |
|---|---|---|---|
| A | Seat Tube Lenght | 460 | 500 |
| Top Tube Lenght | 566 | 583 | |
| B | Top Tube Horizontal | 615 | 639 |
| C | Headtube | 120 | 130 |
| D | Chainstays | 453 | 453 |
| E | Headtube Angle | 69º | 69º |
| F | Seat Tube Angle | 73º | 73º |
| G | Wheelbase | 1148 | 1173 |
| H | Reach | 418 | 439 |
| J | Stack | 646 | 655 |
If you are between 2 sizes:
- For steering flexibility choose the smaller size, the bicycle is easier to manoeuvre and to overcome obstacles.
- For comfort and longer distances choose the larger size.

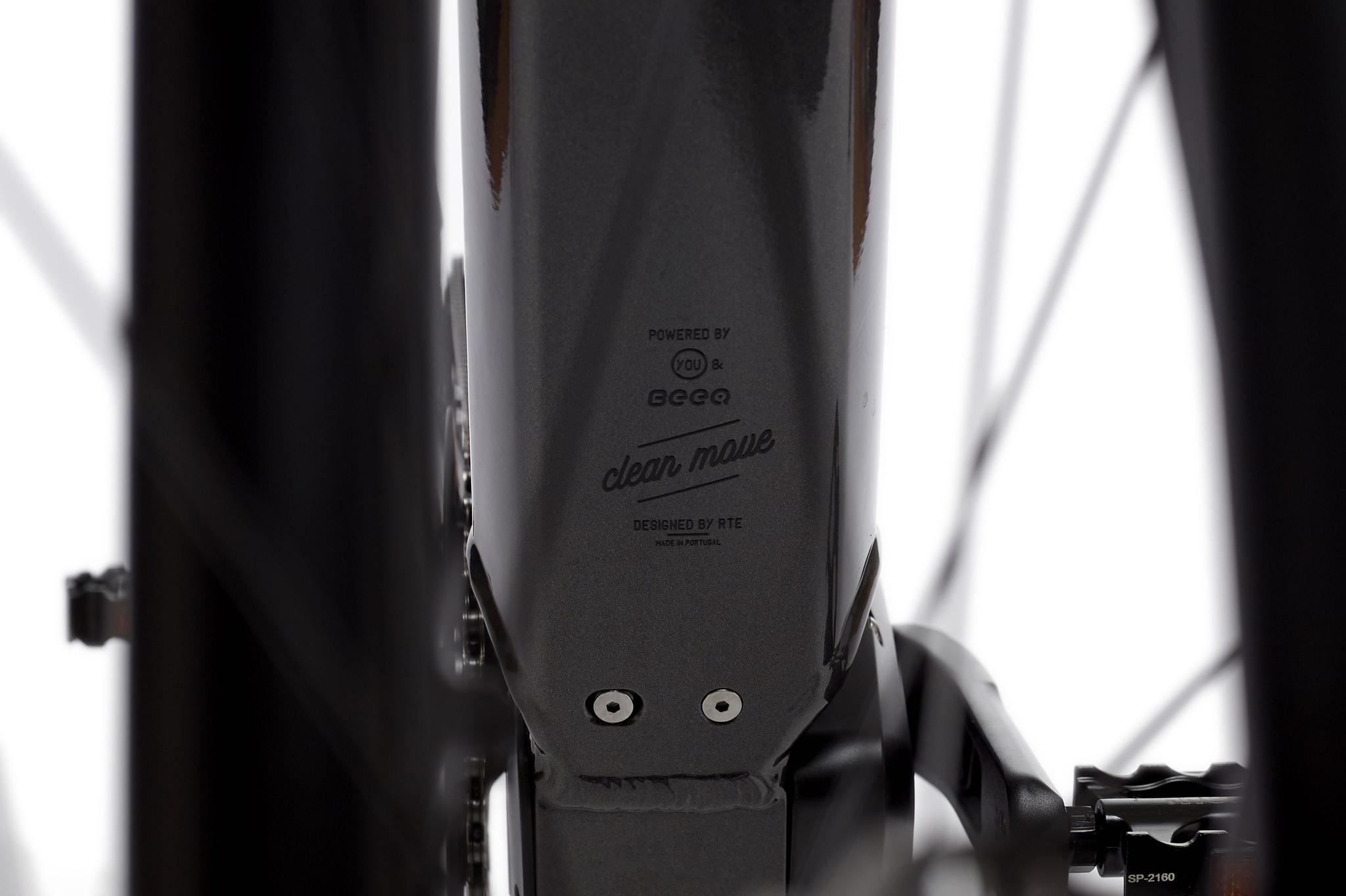

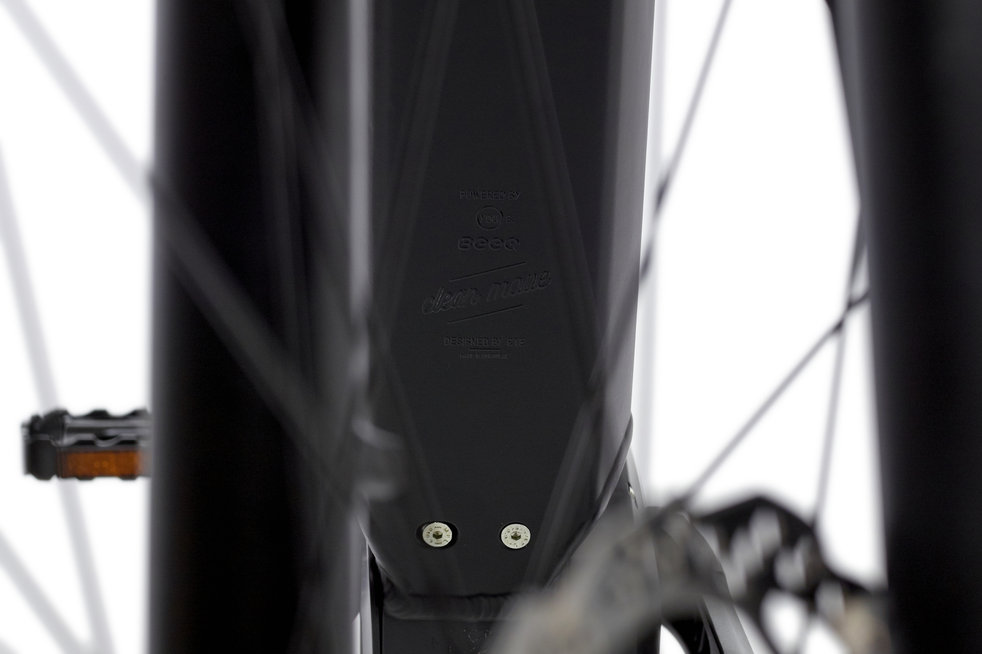

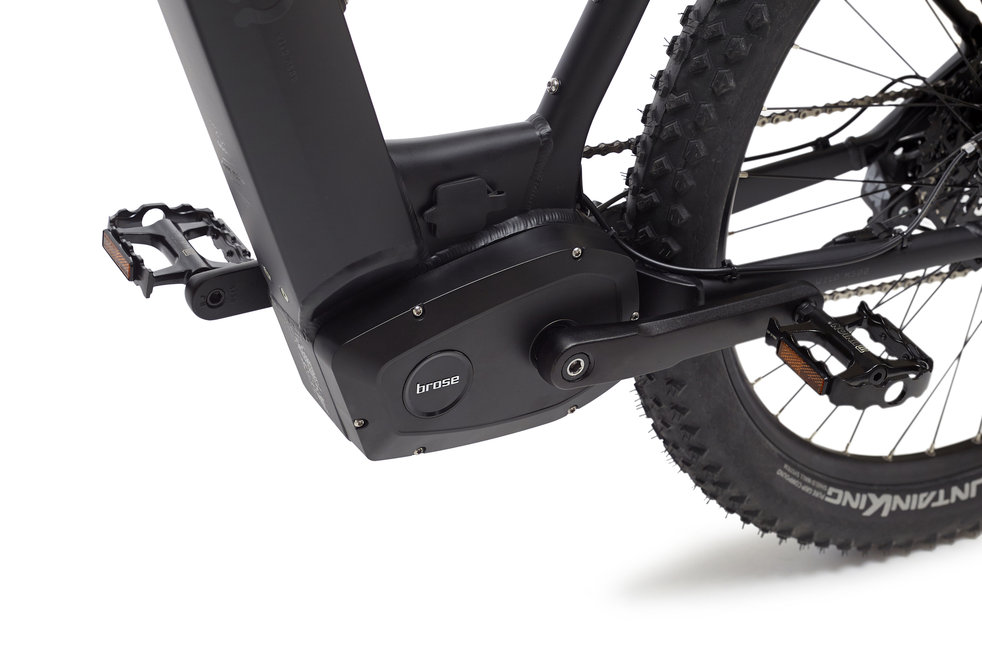

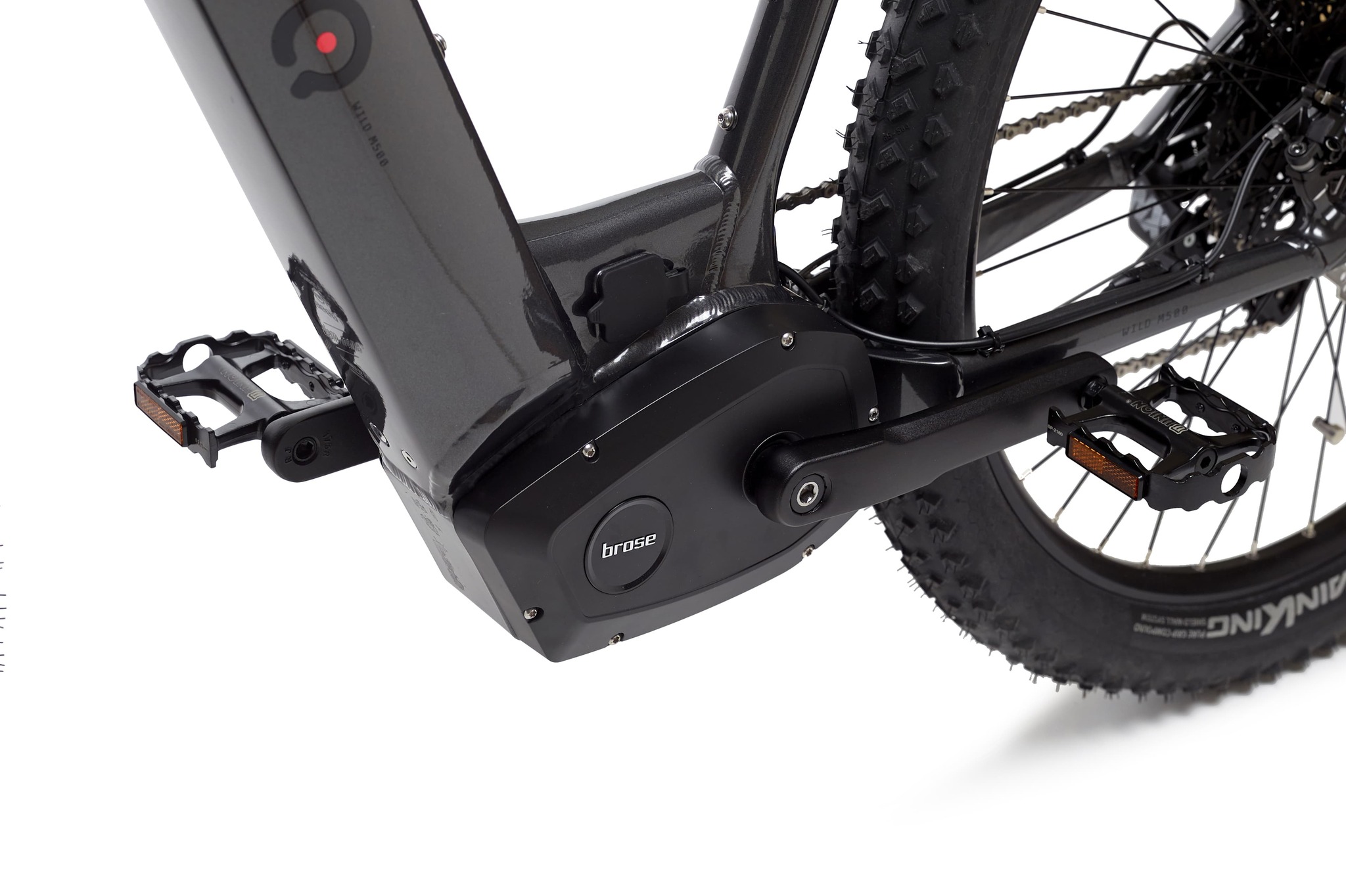

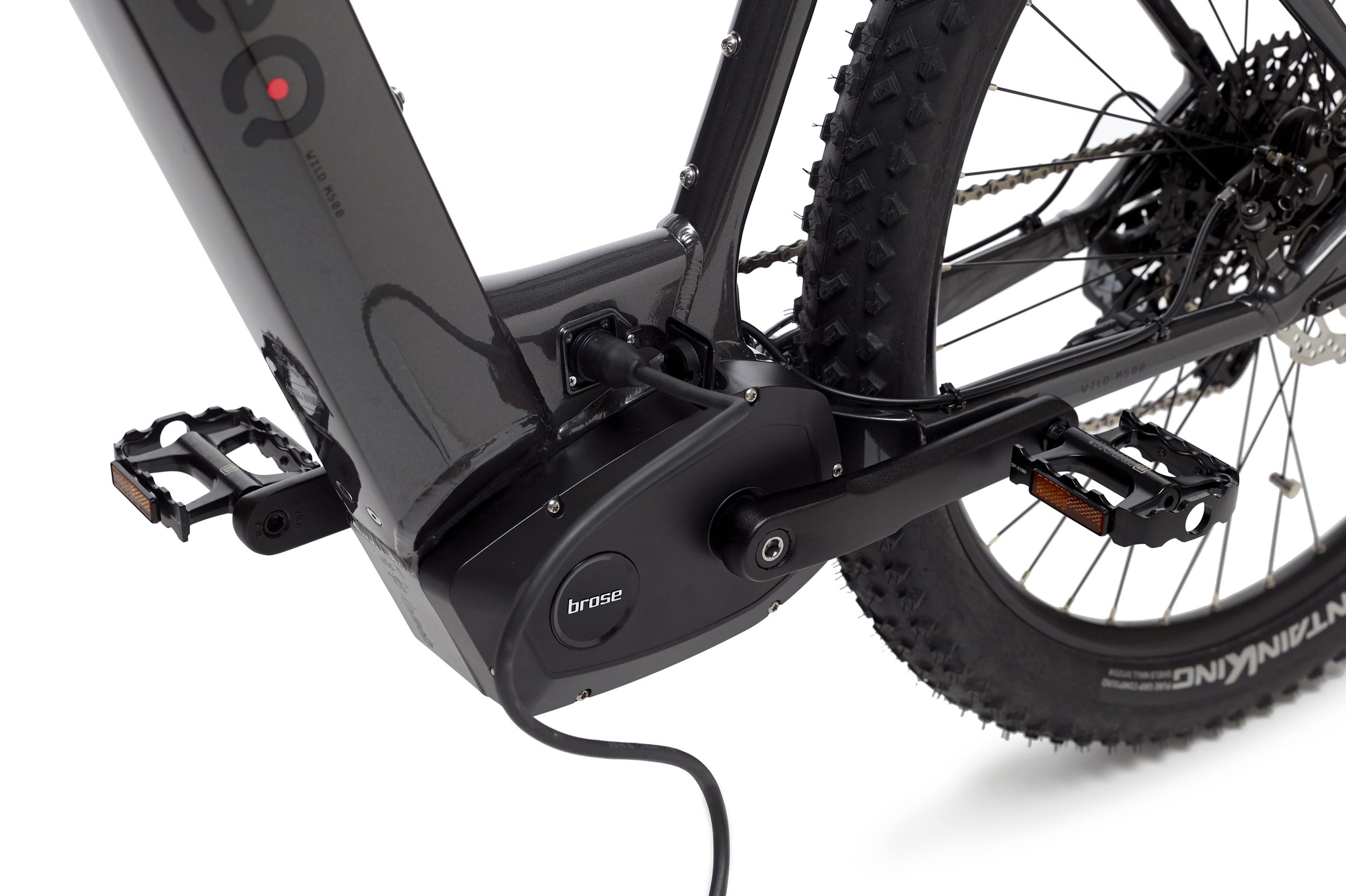

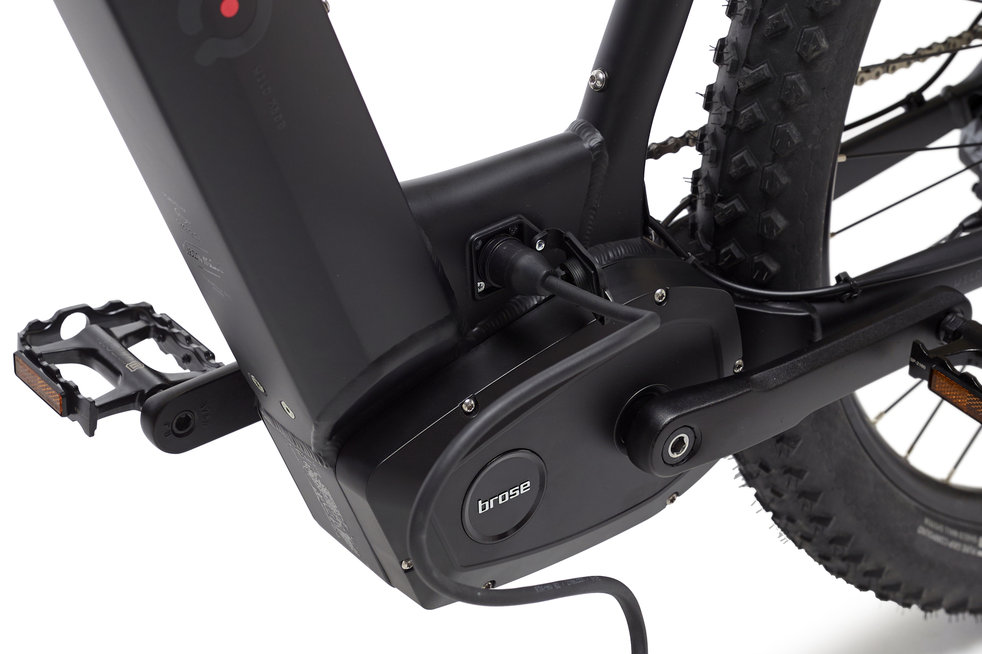

POWERFUL BROSE DRIVE S MOTOR with 90Nm of torque:
Sturdy aluminium crankcase;
Synchronized gears which allow the engine to run silently
Sealed bearings to better endure more adverse weather conditions.

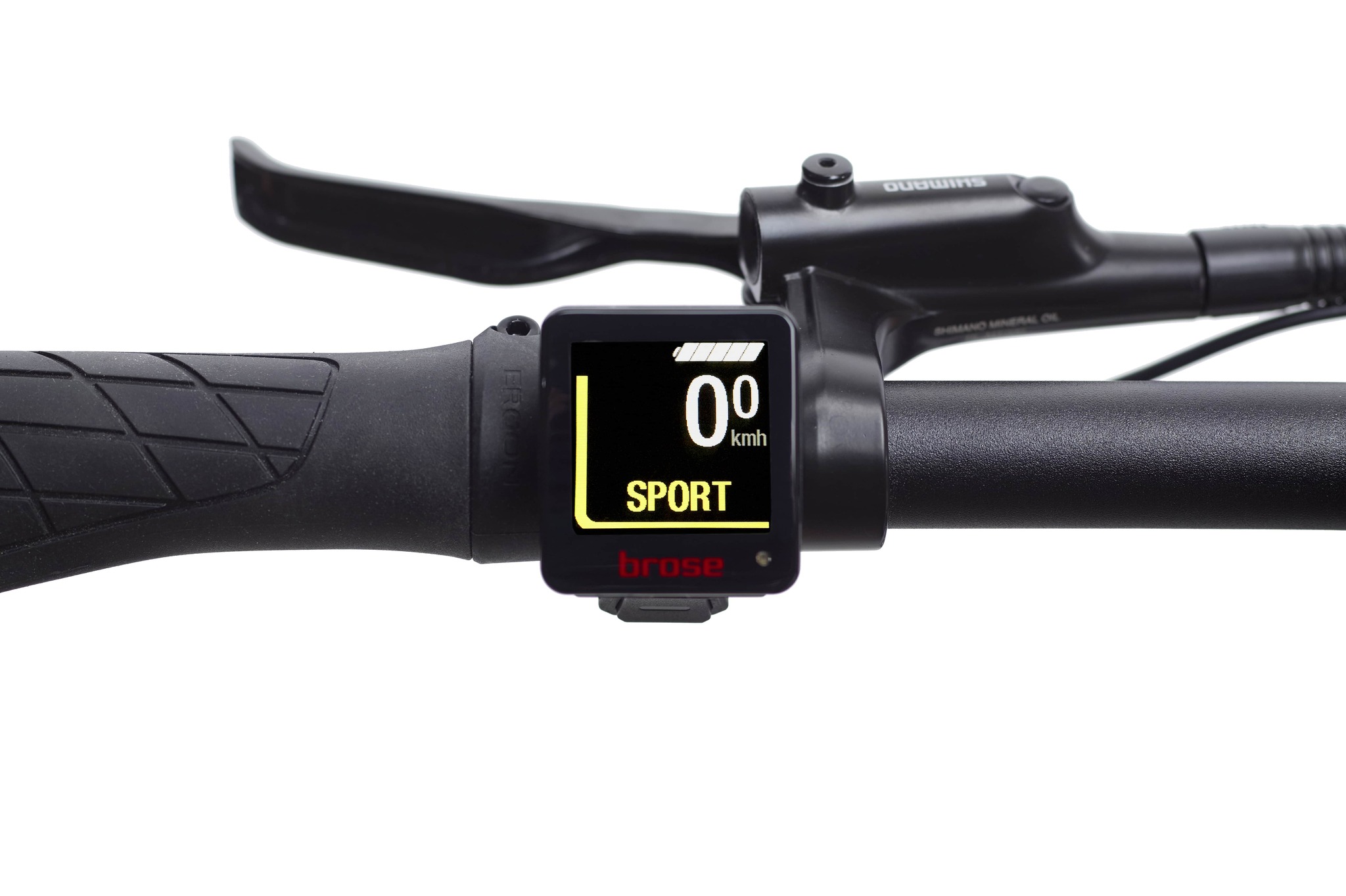

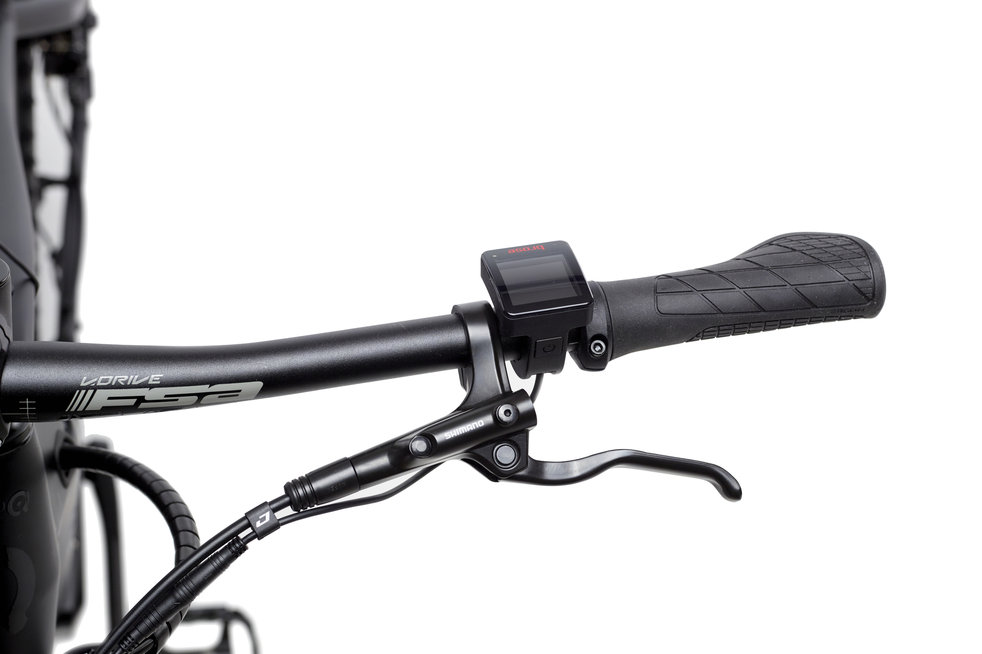

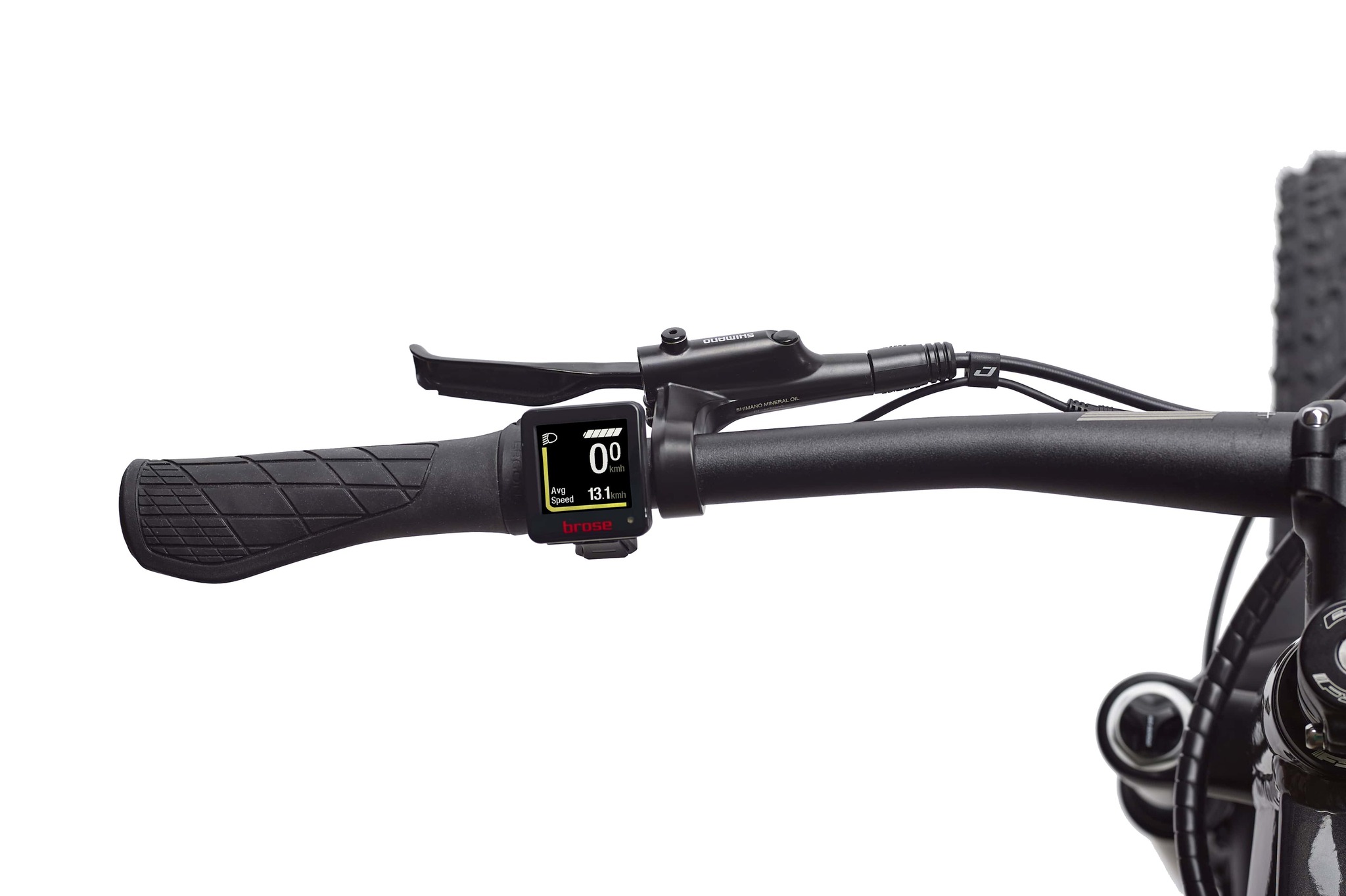

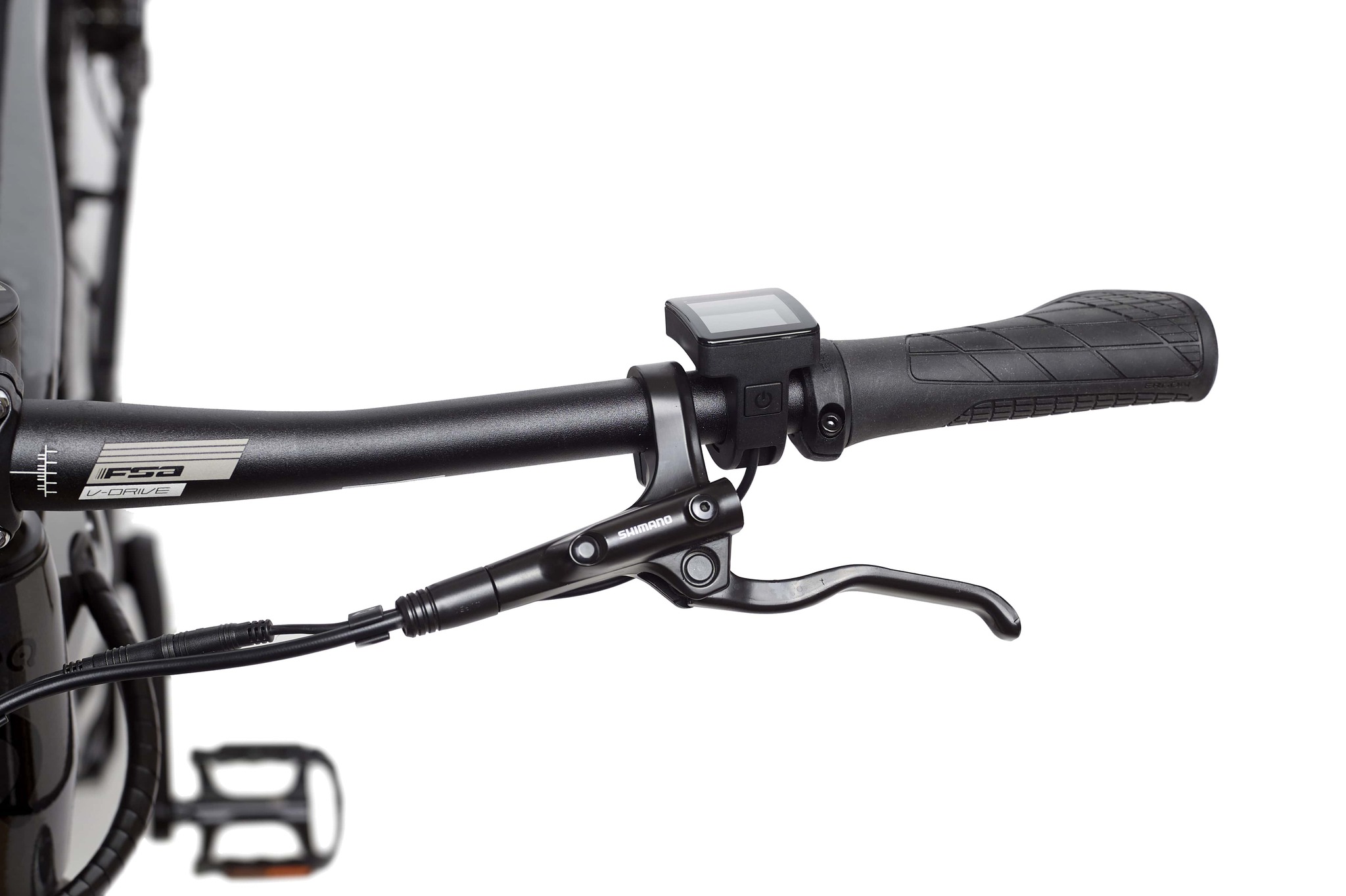

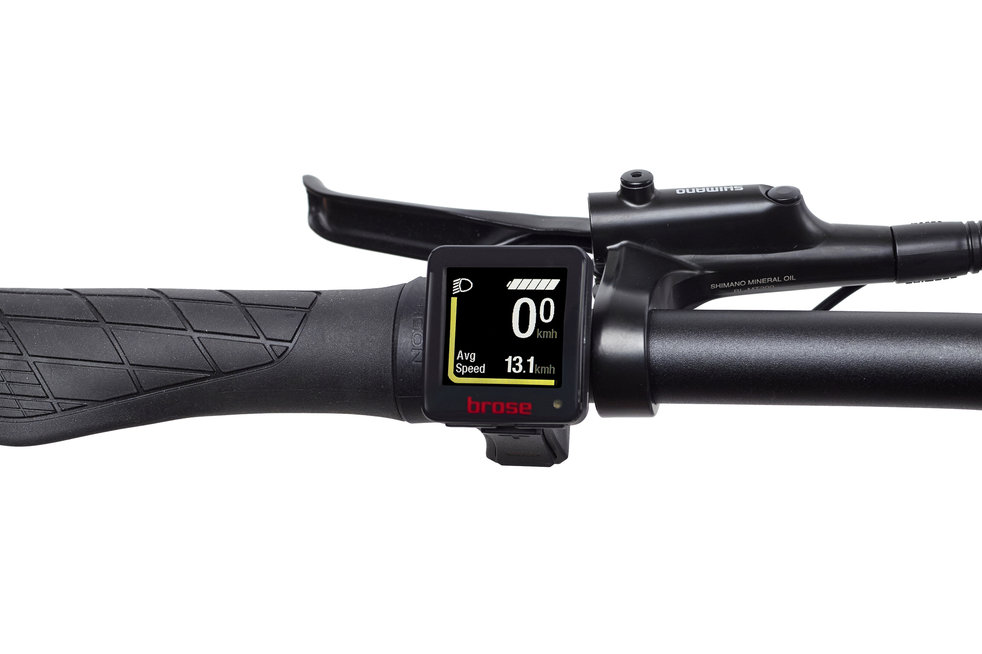

DISPLAY CONFORT:
Ergonomic which allows for 4 assistance modes:
0 - No assistance - Battery is not used.
1 - ECONOMIC: Assistance up to 40%: Save battery to extend your ride; the assistance at 40% is enough to help you face small slopes.
2 - STANDARD: Assistance up to 80%: Perfect for great control of the bicycle and to climb steeper slopes with reasonable effort; this mode allows you to easily keep up with other mountain bikers.
3 - PLUS: Assistance up to 160%: To climb any slope without difficulties, without getting tired and keeping reasonable battery consumption.
4 - BOOST: Assistance up to 320%: to climb steep slopes with technical difficulty or to always ride quite fast.
The display presents the following information:
- Assistance level and battery;
- Speed: instantaneous, average, maximum;
- Power Supplied by the user in Watts;
- Remaining Autonomy;
- Distance travelled; total and trip;
- Assistance button up to 5m/h in pedestrian mode to help push the byke.

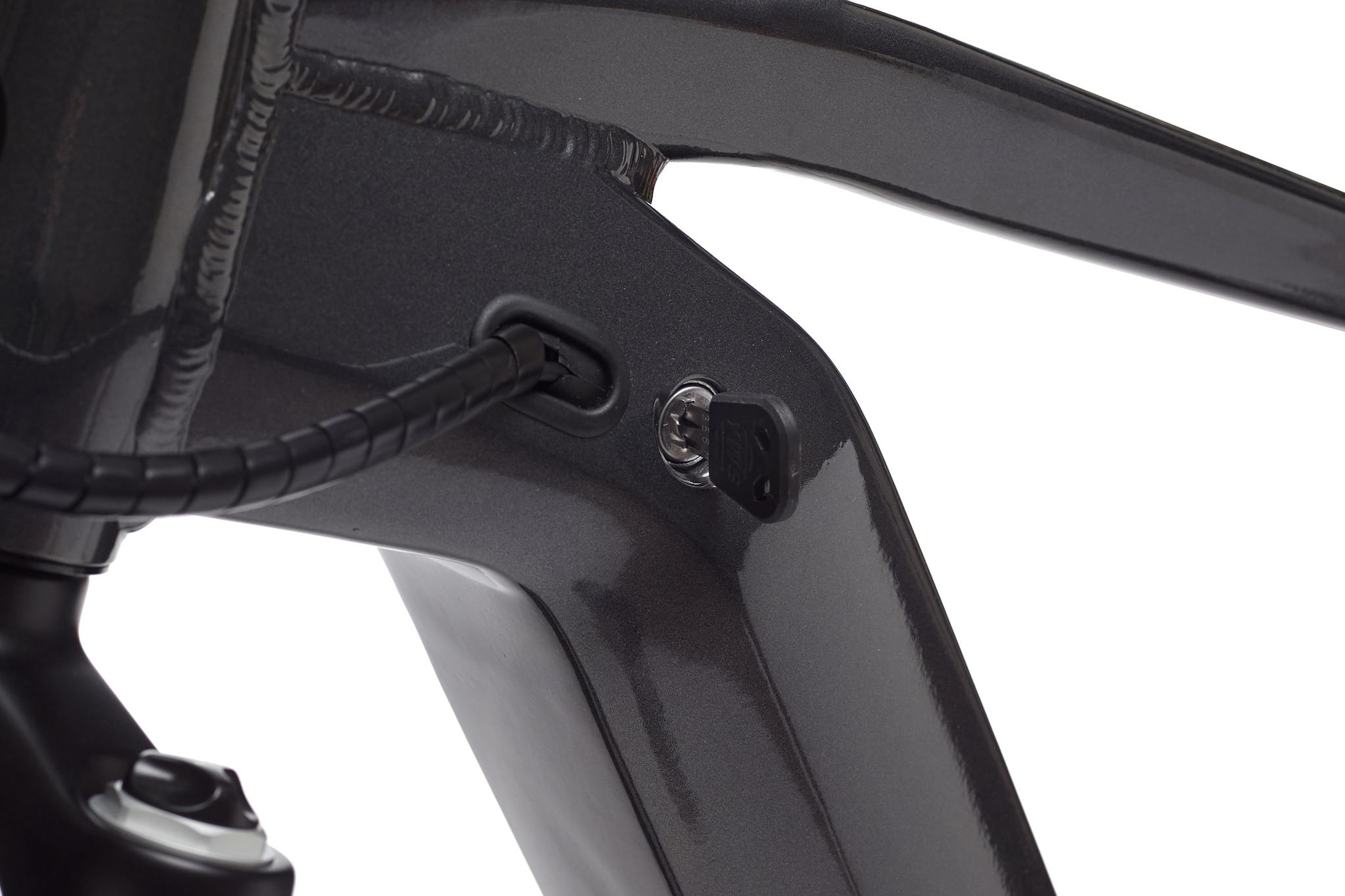

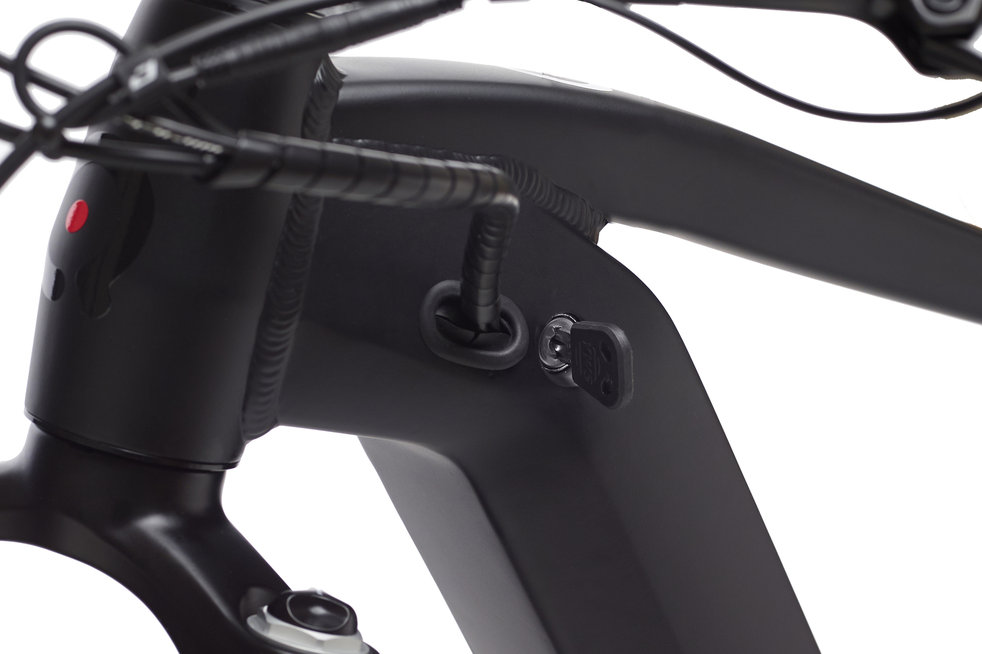

BATTERY SNAKE:
POWERFUL 504Wh BATTERY, 100% integrated into the frame, very protected from external elements and with absence of noise and vibrations. Locked with a key, it can easily be removed for charging outside the bicycle, but it can also be charged directly on the bicycle.

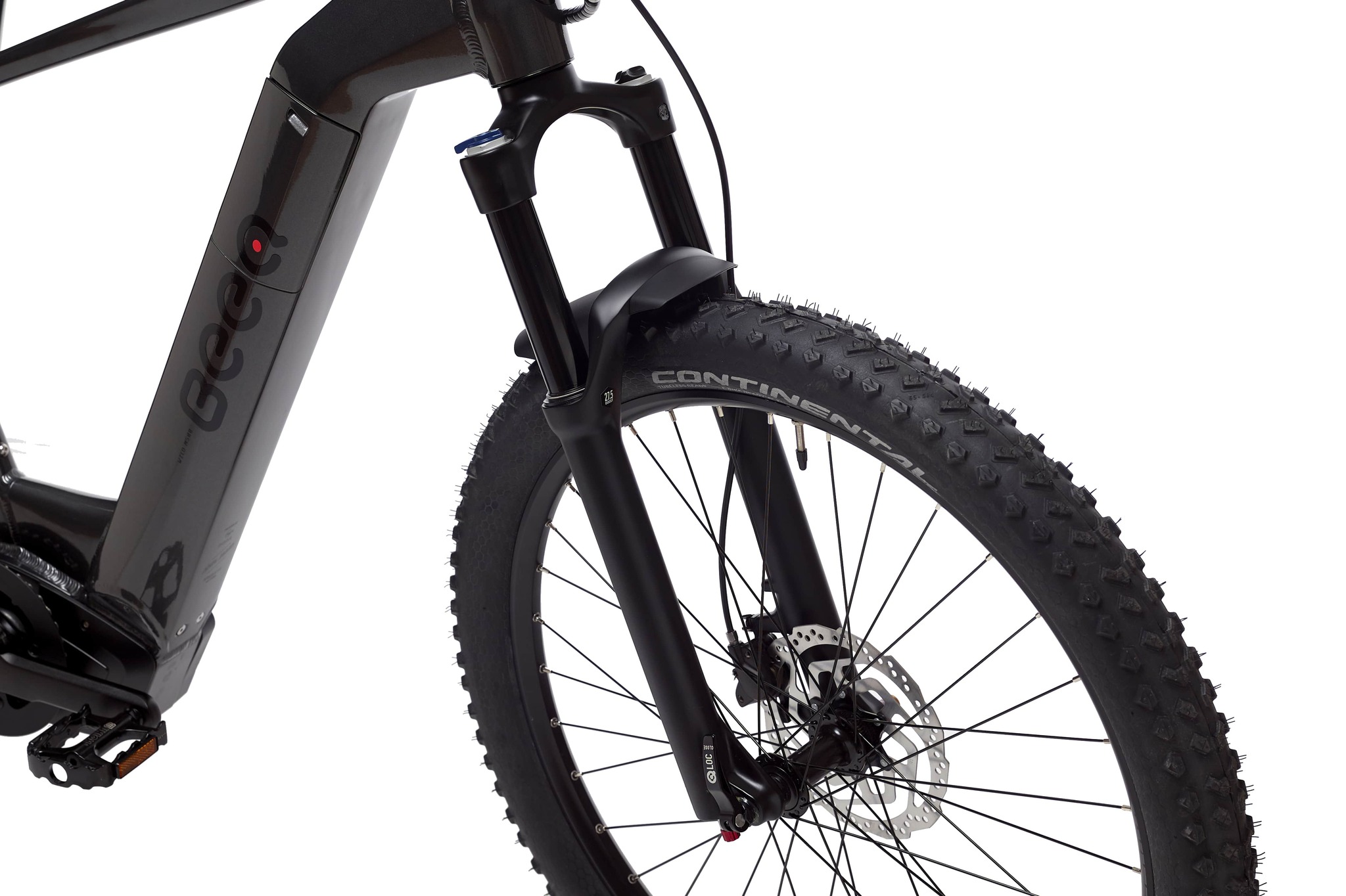

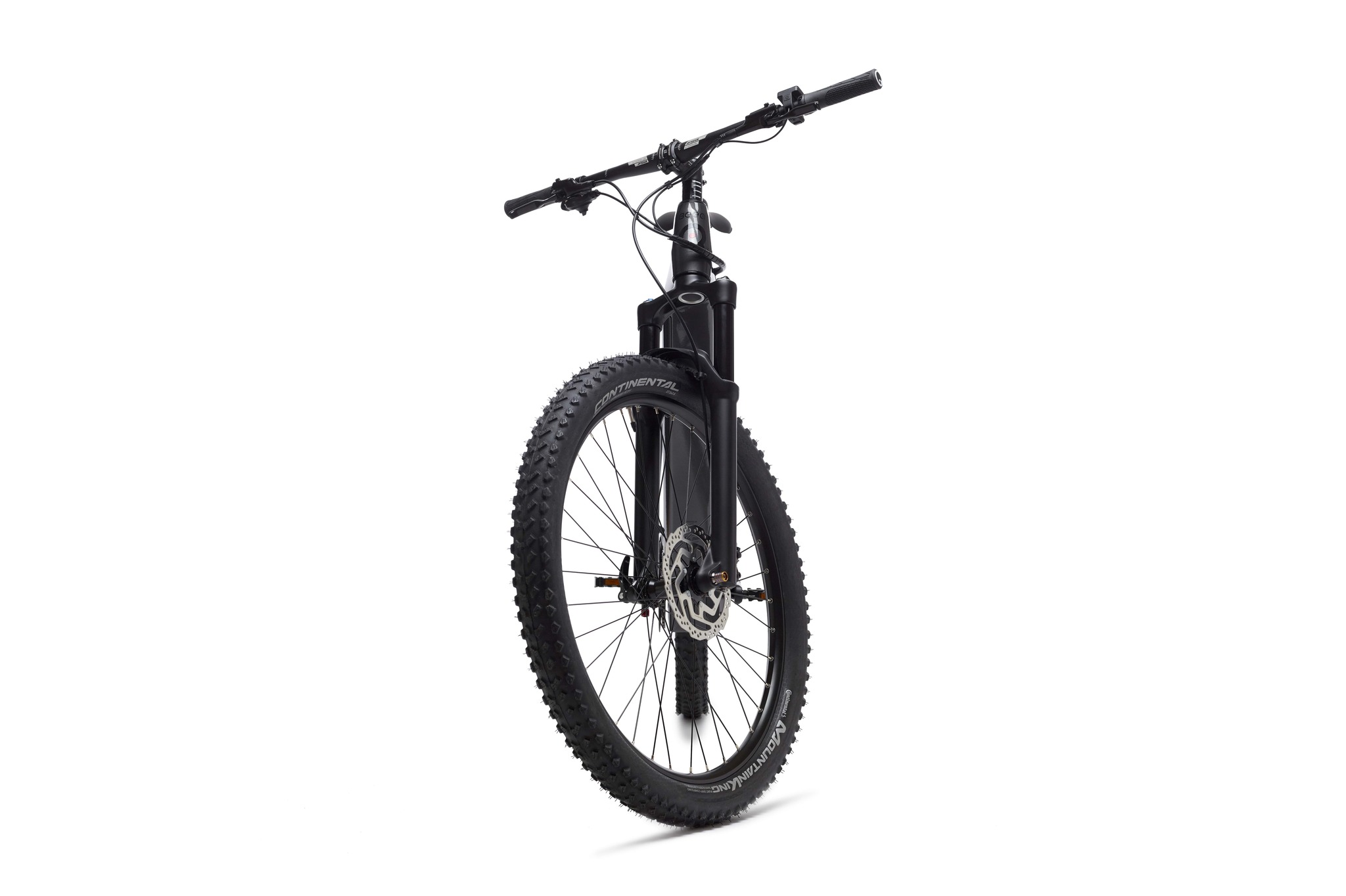

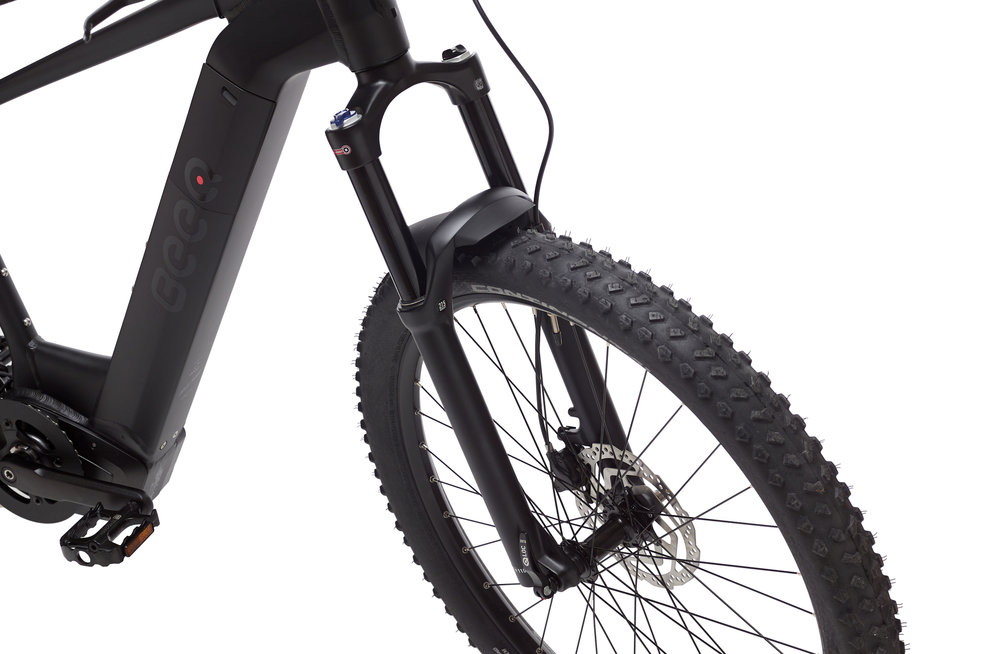

FRONT SUSPENSION ROCKSHOX 35 SILVER TK BOOST HYDRAULIC
Overcome ground irregularities with ease and safety with the new suspension ROCKSHOX 35 SILVER TK with 130 mm of play.
This suspension has:
- hollow shaft with 110mm for greater sturdiness
- pneumatic spring for easy adjustment according to your weight;
- blockage and adjustment in distension for greater control, according to the type of terrain.

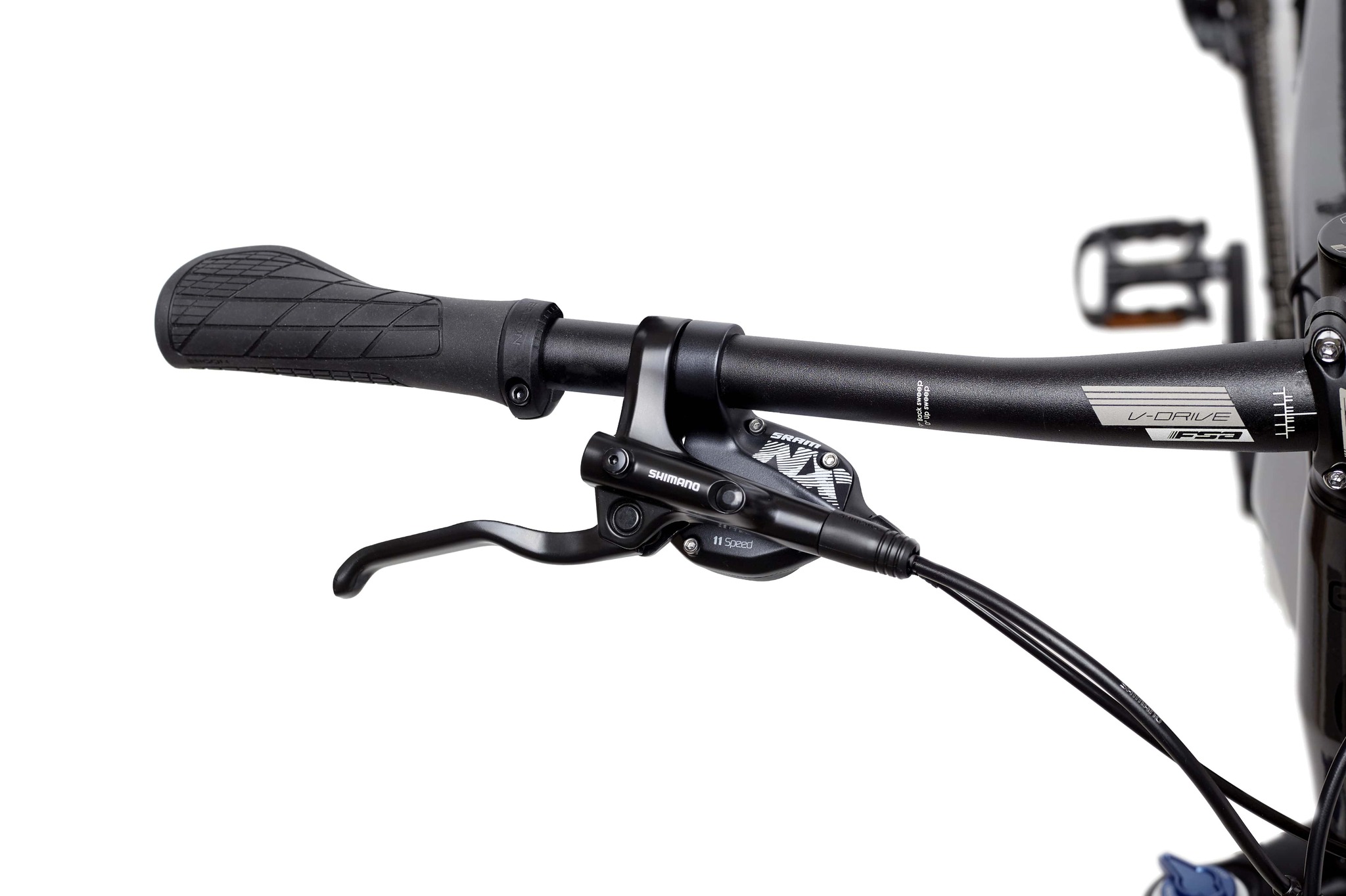

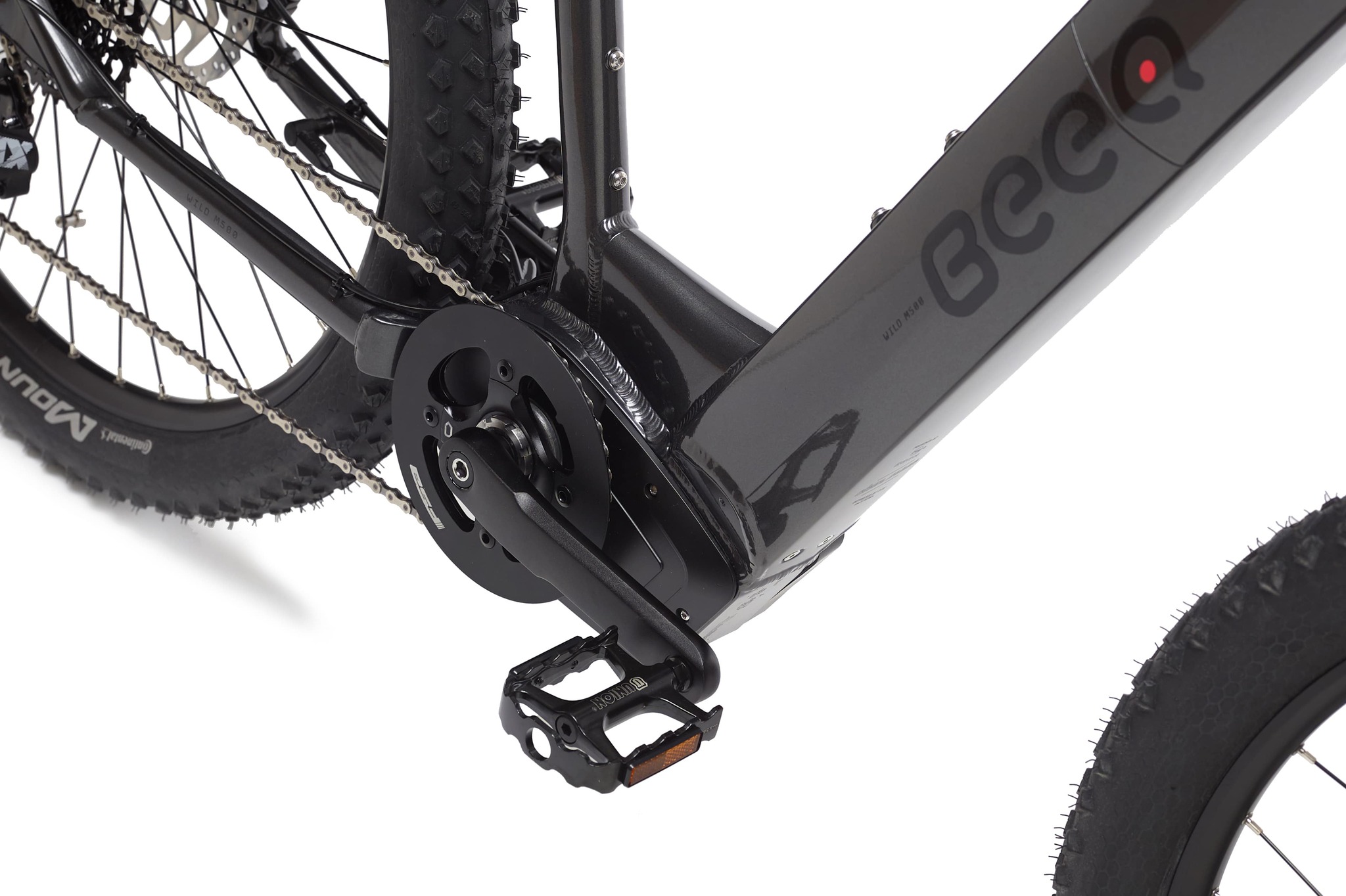

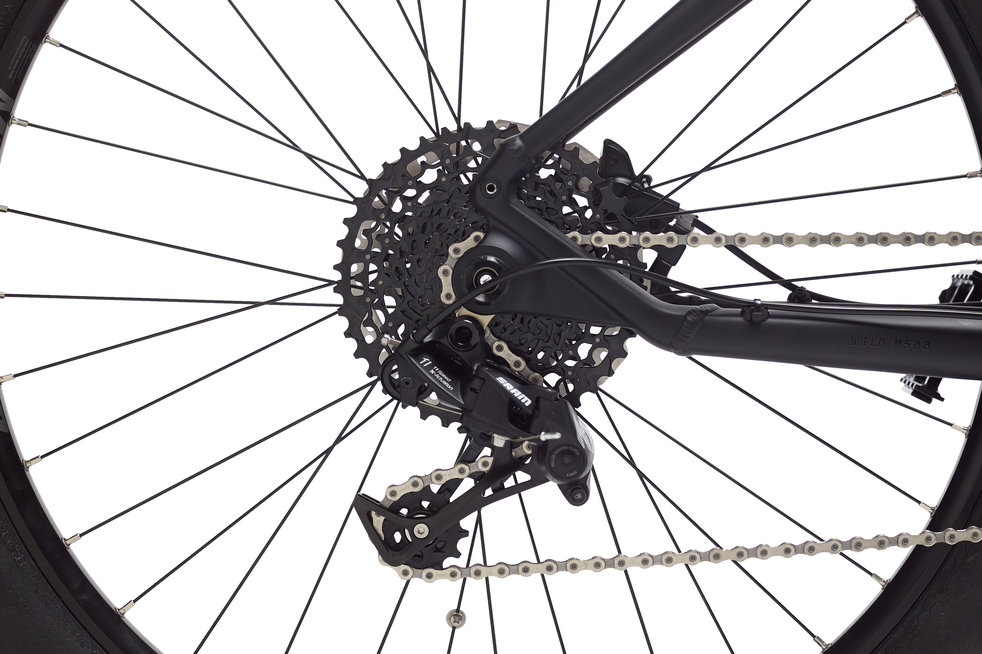

SRAM NX 11 speed
Selected to allow ease of use and sturdiness, the transmission has the following characteristics:
- single plate at the front with 36 teeth with chain retention system to avoid skipping.
- rear derailleur SRAM NX 11
- trigger SRAM NX 11 speed x-actuation
- cassette sprocket SRAM NX 11 Speed PG-1130 (11-42)
- chain SRAM PC1130 116 links with “Power Link”
-
chainguard FSA
The wheels were designed for safety and sturdiness.
- SHIMANO BOOST Hubs Front 110mm and Back 148mm of hollow shafts for SHIMANHO CENTER LOCK disks
- +C94:D94 rims with double aluminium wall with 36 black spokes anti-corrosion decorated by pad printing. Tubeless ready compatible
-
Equipped with CONTINENTAL Mountain King 27.5x2.6” tyres offering good adherence when curving and braking , traction and comfort in the various types of terrain.

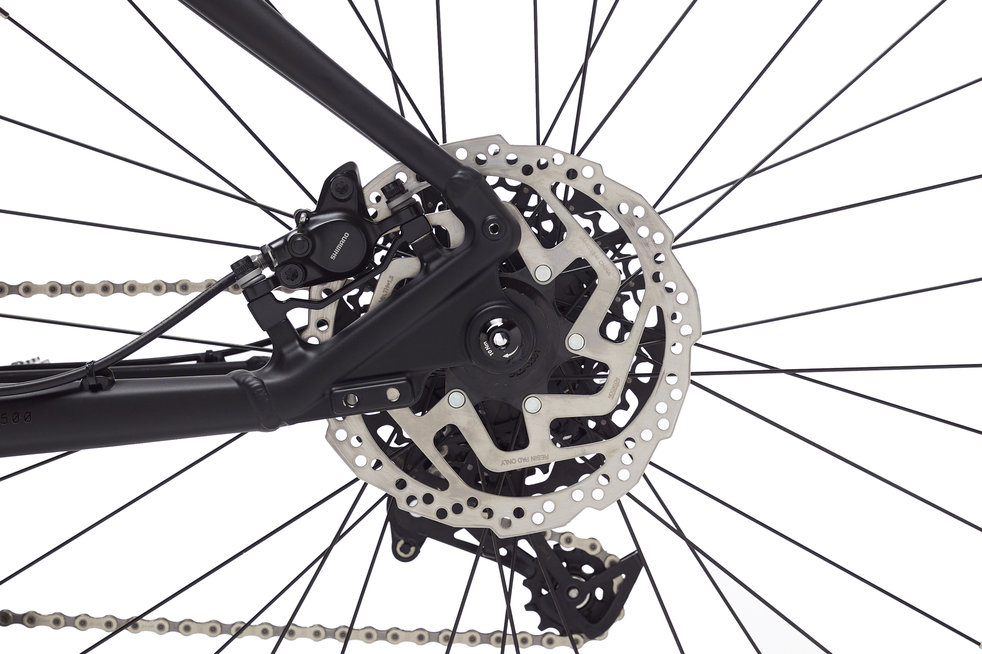

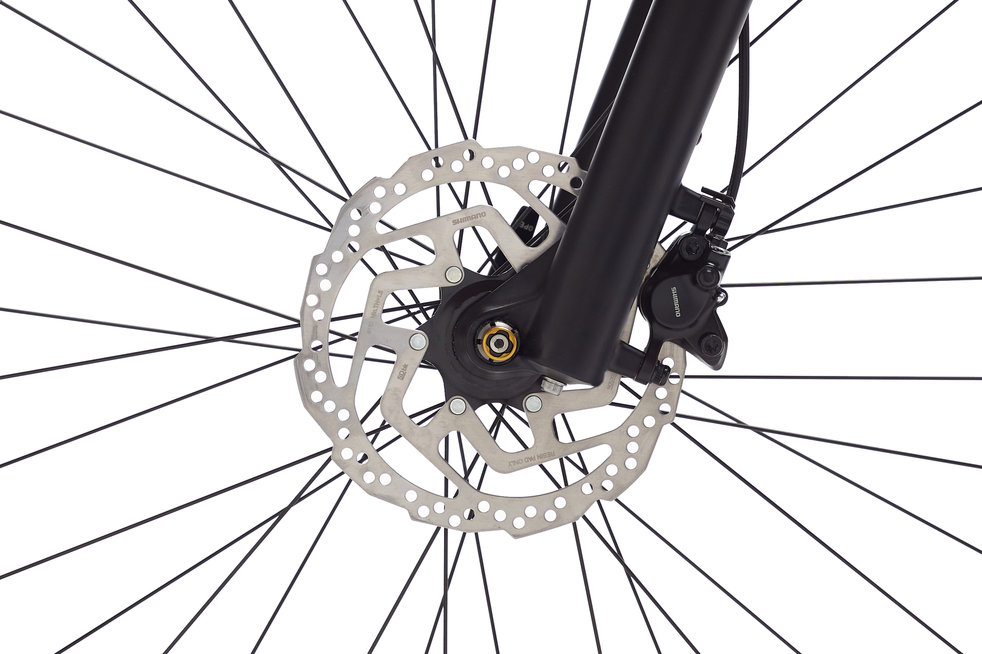

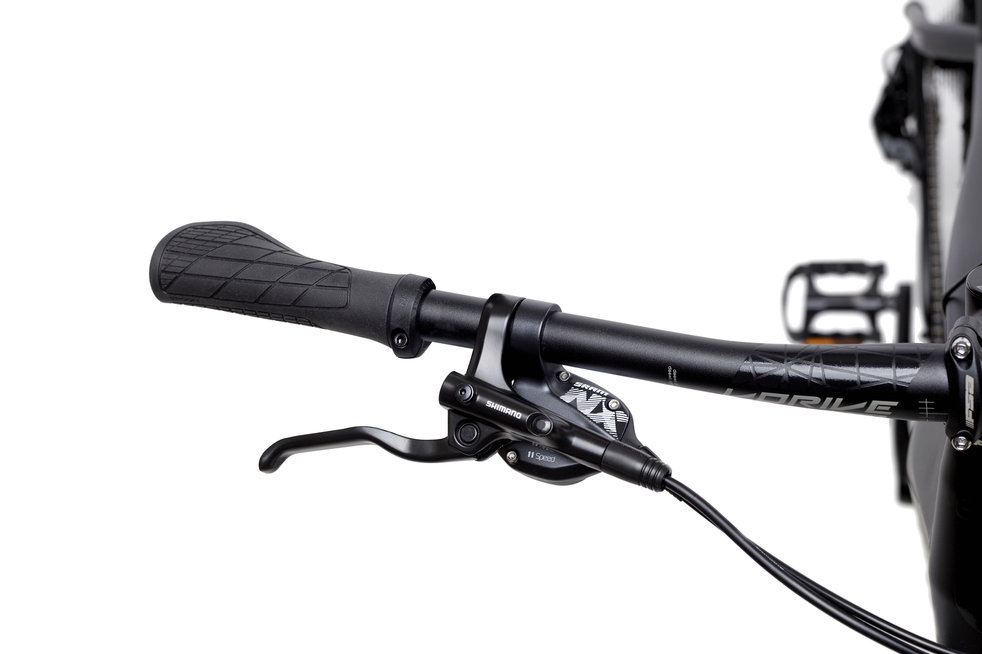

We chose hydraulic brakes SHIMANO MT-200 with 180mm disks on the rear and front for greater braking power during steep and prolonged descents.

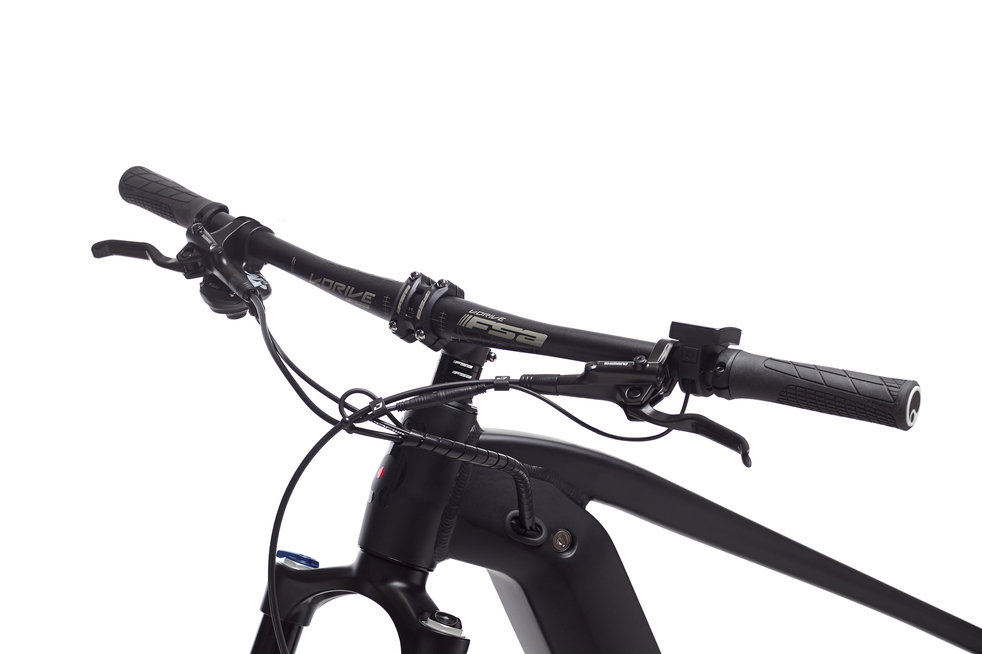

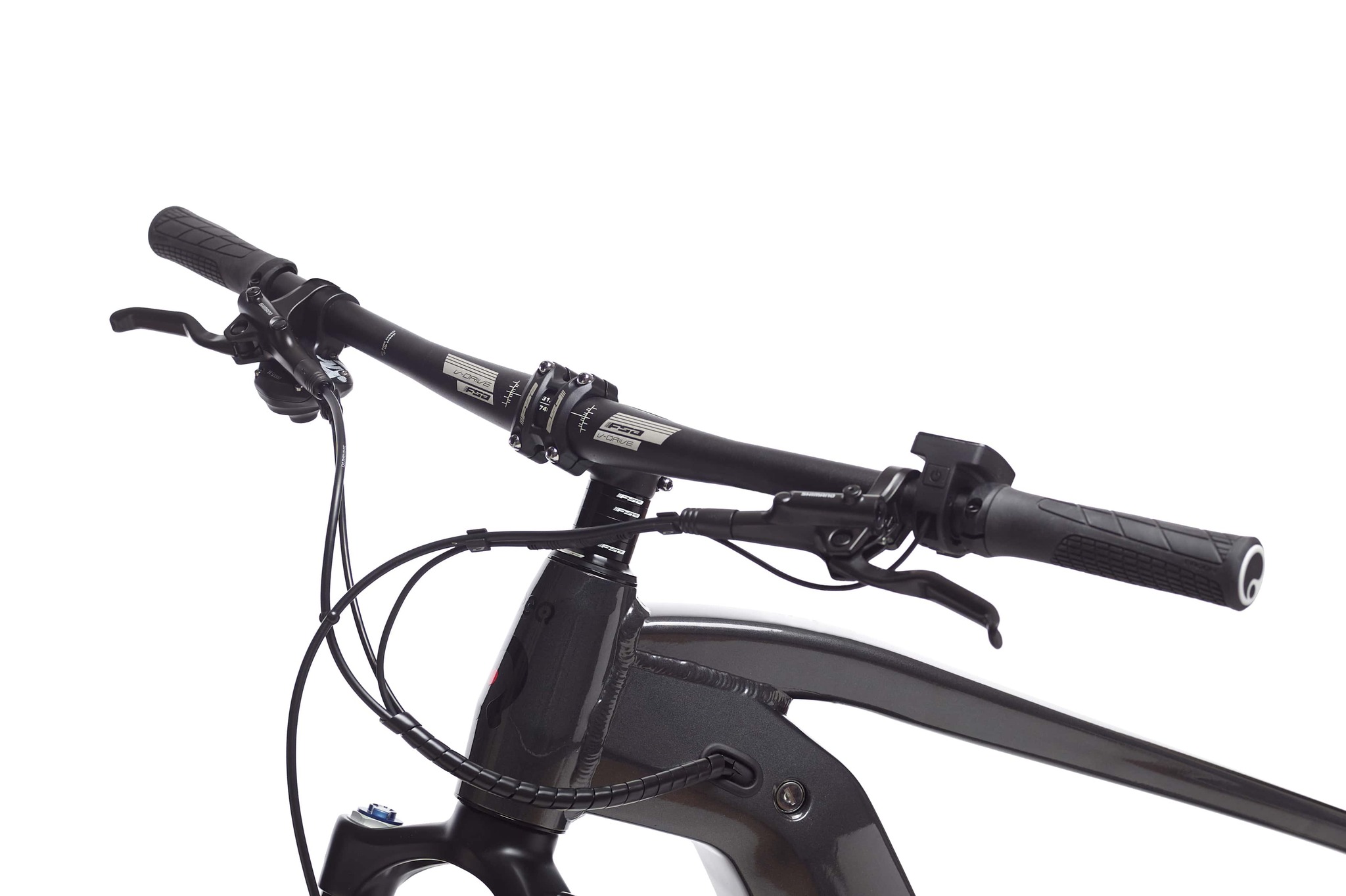

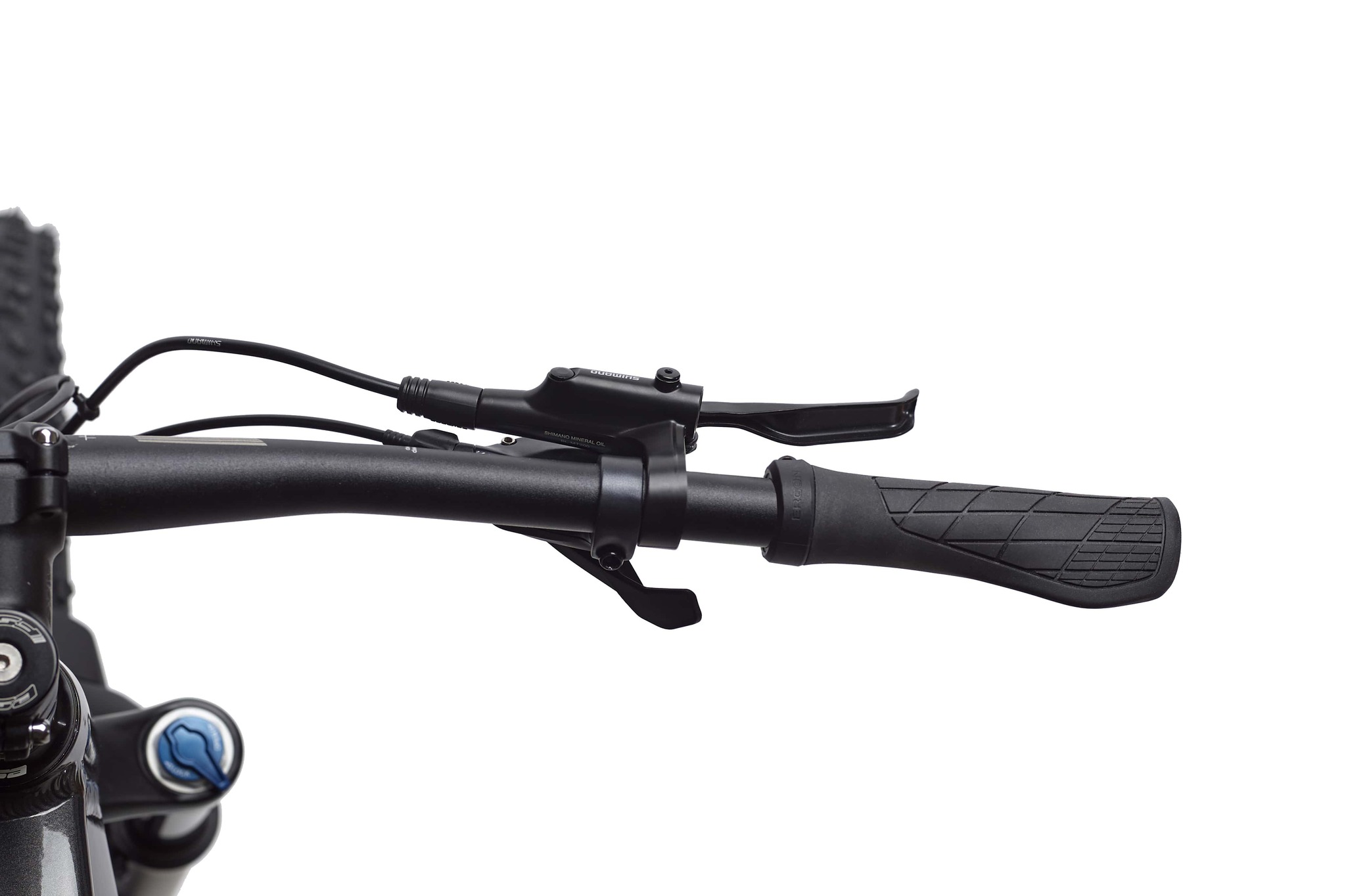

Designed for greater control and comfort, we offer a FSA 740mm handlebar
- with FSA 7º stem which can be assembled in two positions.
- We provide the bicycle with several spacers for adjustment of the height of the extension in order to adapt to the user's driving position.
- ERGON grips with safety lock and driving grips arranged for ergonomics and ease of access.
