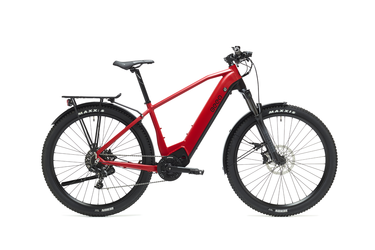

M700 Wild ATB
RANGE
Experience the convenience of traveling from 40km up to 100km on a single battery charge with assisted riding, thanks to the efficient 522Wh 36V battery.
MOTOR
Feel the power of the Brose Drive S MAG motor with 90Nm of torque, driving you into thrilling adventures no matter which path you choose.
VERSATALITY
Experience a bold and sporty look that empowers you to tackle any off-road adventure while making a statement during your city rides.
Touring Essentials
Technical details
PRODUCT INFORMATION
FRAME SIZES
S-M (42cm) - L/XL (46cm)
WEIGHT
Approx. 26Kg
MAXIMUM BIKE & RIDER WEIGHT
135Kg
PAINTING
Powder Painting Scratch Resistant with Matte Varnish
COLOUR(s)
Black Fog with matte finish | Pure Red with matte finish | Rock Blue with matte finish
We reserve the right to modify the information of the products that appear on this website without prior notice, including equipment, specifications, models, colors and materials.
FRAME
FRAME
MTB Hardtail Aluminum
SUSPENSION
Rockshox 35S Air Travel 120mm Axle Boost 110mm 27.5''/29''
HEADSET
FSA 1.5" to 1-1/8" Tapered SHIS
E-BIKE SYSTEM
DRIVE UNIT
BROSE DRIVE S MAG Horizontal 90Nm
BATTERY
522Wh 36V - Integrated on Downtube - Removable
RANGE
40km to 100km
BATTERY LOCK KEY
Yes
CHARGER
4A - 3 to 6 hours total charge time
DISPLAY
Brose Allround
COCKPIT
HANDLEBAR
FSA V-Drive 740mm / 31.8mm (Straight)
STEM
FSA V-Drive 60mm/ 31.8mm / ±6°
GRIPS
ERGON GA30
WHEELSET
TYRES
MAXXIS Rekon
S - 27,5''x2,6'' / M - L/XL- 29''x2,4''
WHEEL SIZE
27,5" (S) / 29" (M-L/XL)
RIMS
Alloy Double Wall 30mm (Tubeless Ready)
SPOKES
Black Stainless Steel
FRONT HUB
SHIMANO HB-MT400-B Boost 110 Thru-axle 15mm
REAR HUB
SHIMANO HB-MT400-B Boost 148 Thru-axle 12mm
DRIVETRAIN & BRAKES
BRAKES
SHIMANO Hydraulic MT400
BRAKE ROTOR - Front
SHIMANO SM-RT30 203mm
BRAKE ROTOR - Rear
SHIMANO SM-RT30 180mm
SHIFTERS
SRAM NX 11S
REAR DERRAILEUR
SRAM NX 11S
CASSETTE
SRAM Power Glid 1130 11-42
CHAINRING
MIRANDA ChainFlow 3D BCD104 38T
CRANK
SAMOX Shape 170/0
CHAIN
KMC E11 Turbo e-bike series
CHAINGUARD
Yes - FSA
SAFETY & ACESSORIES
RACK
ATRANVELO Tour AVS (max.: 25Kg)
FRONT LIGHT
SPANNINGA Axendo 40 with reflector
REAR LIGHT
PICCADILY with reflector
KICKSTAND
ATRANVELO Dux
MUDGUARD
SKS
BELL
Yes
BOTTLE CAGE
Not included. Sold separately.
SADDLE
SELLE SAN MARCO X3 e-bike black
SEAT POST
FSA Gossamer 31.6mm / 350mm /20mm
SEAT CLAMP
Alloy black with screw
PEDALS
UNION SP-400 Flat with reflectors
FRAMELOCK
Not included. Sold separately.
M700 Wild ATB
Conquer the mountain, defy limits and enjoy the ride with M700 Wild ATB!
