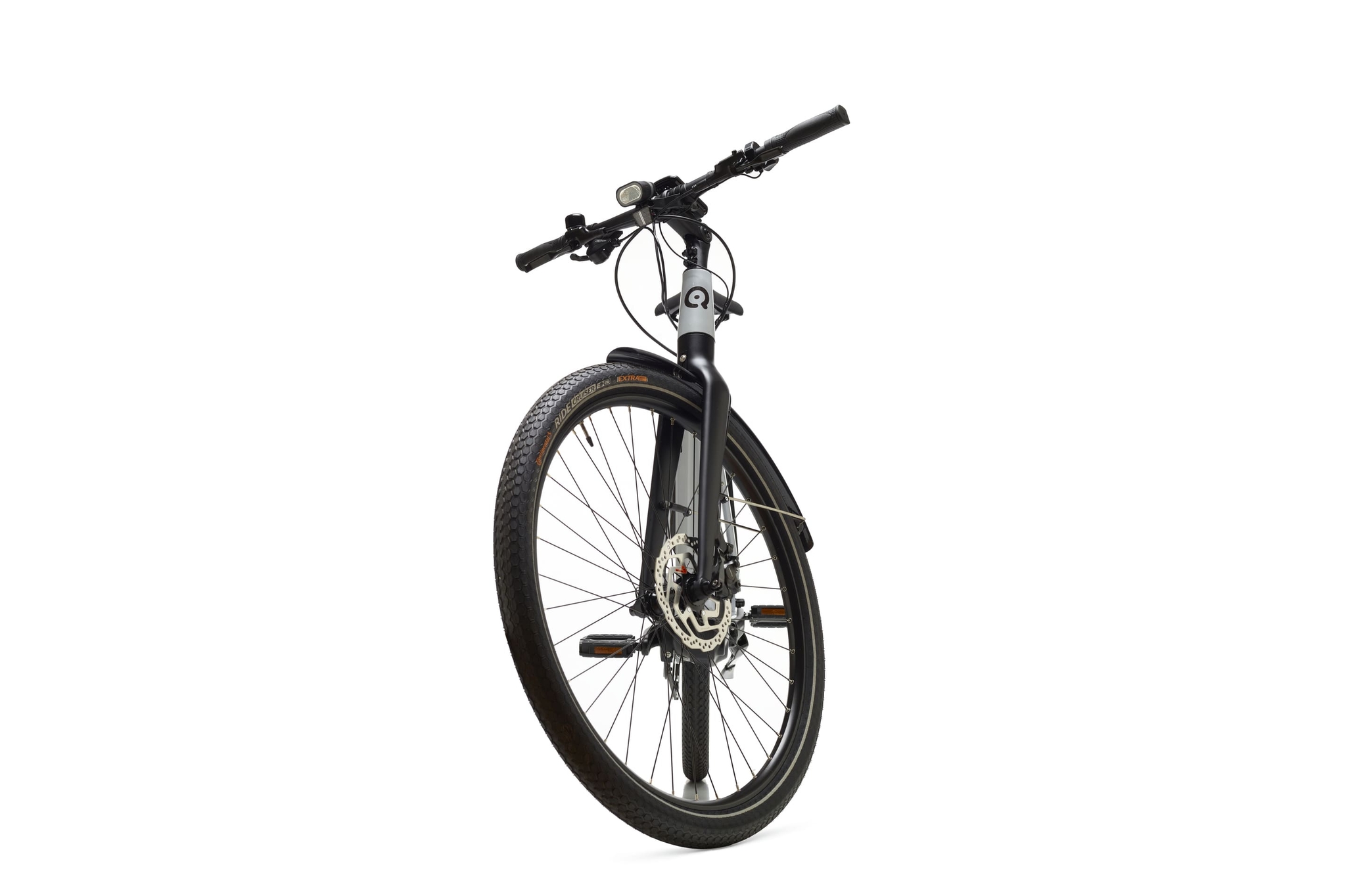

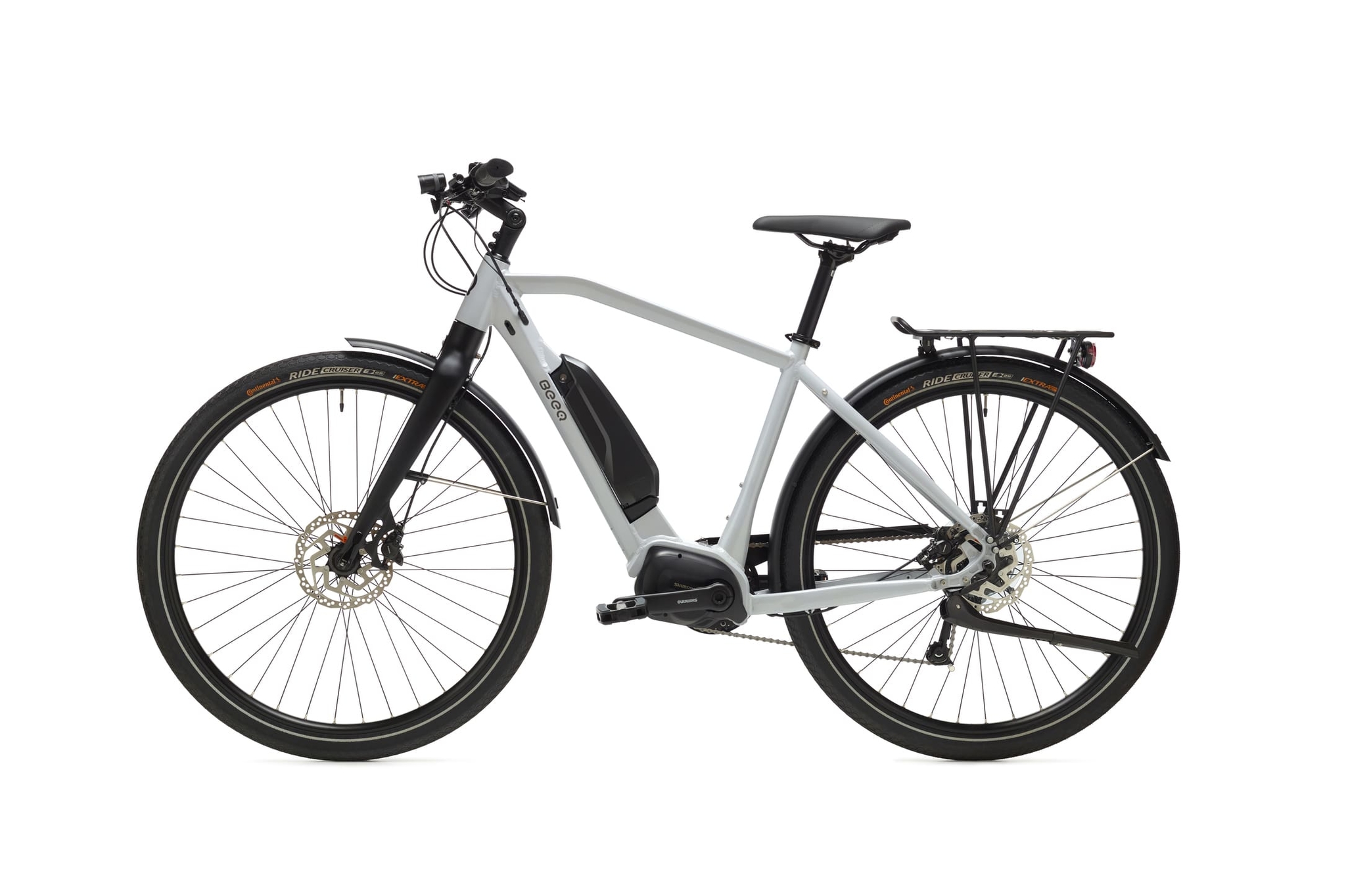

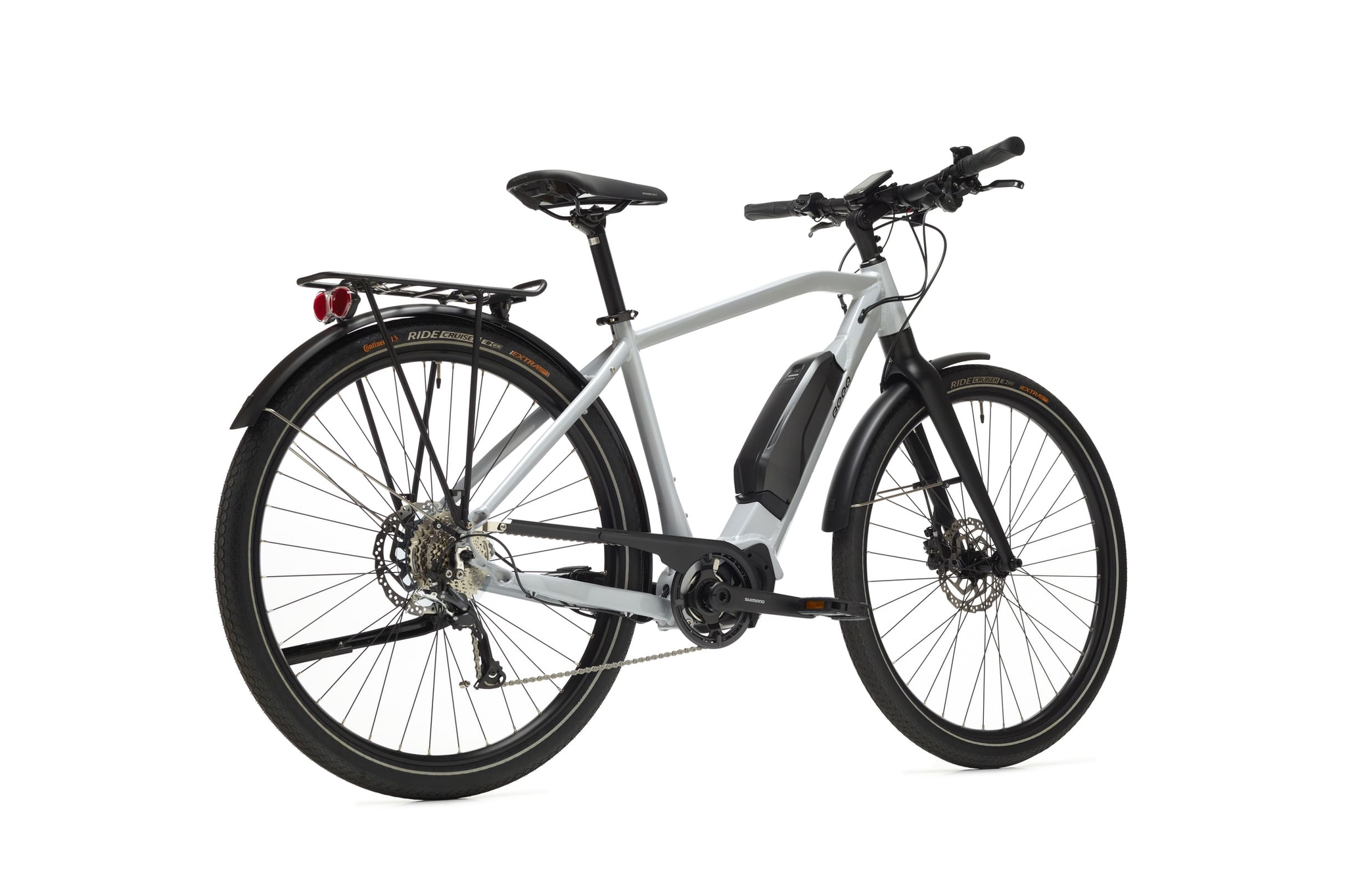

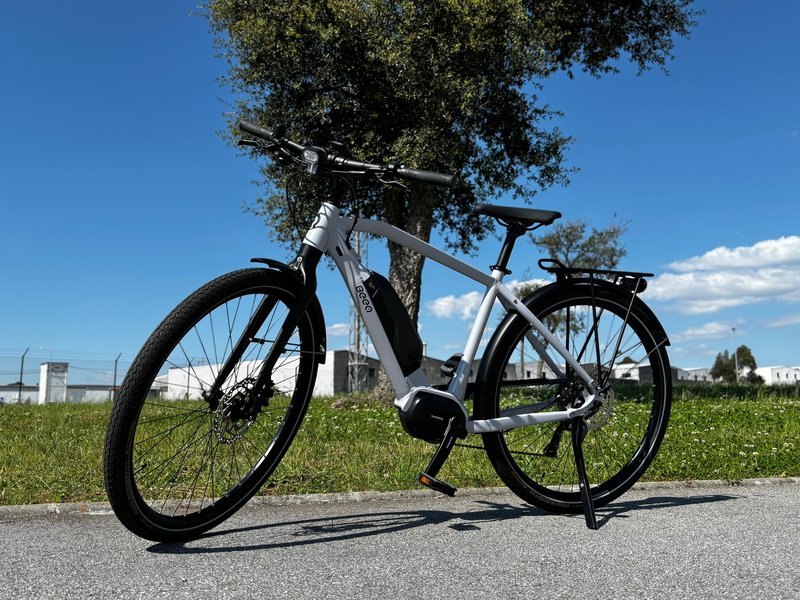

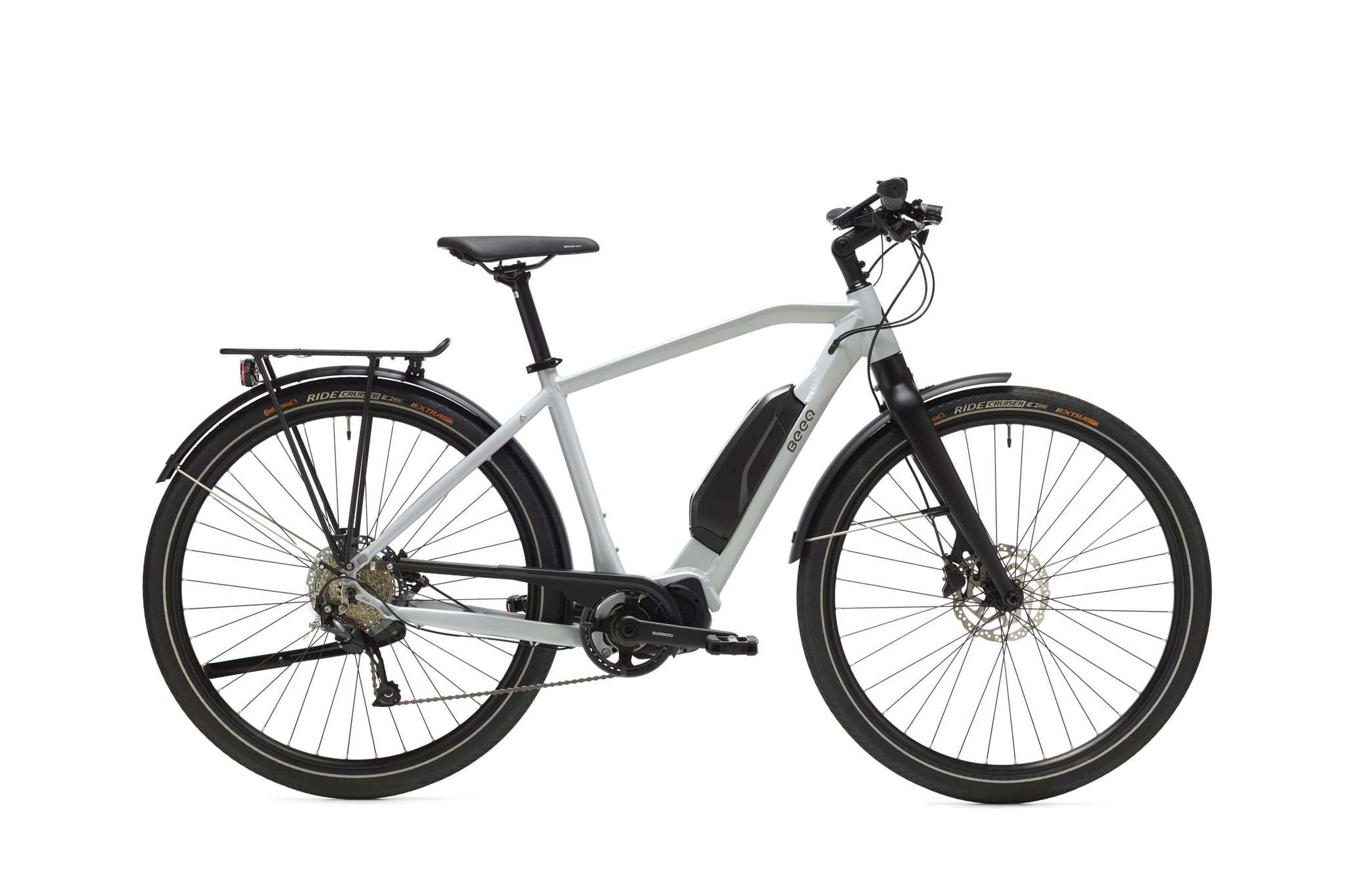

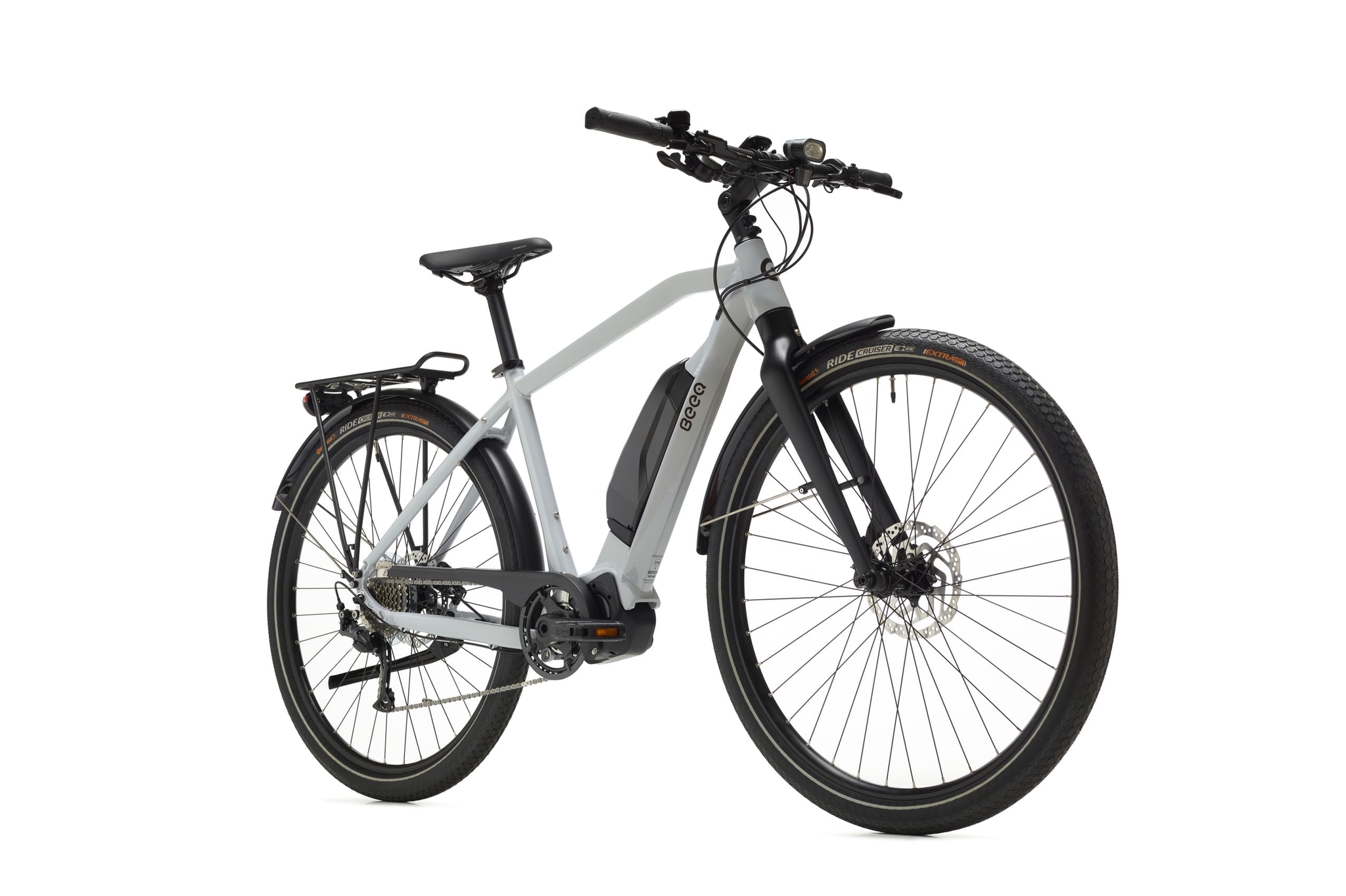

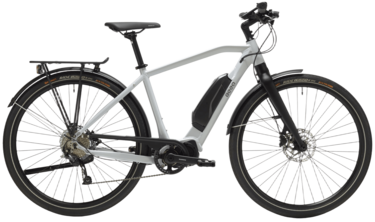

C500 Urban High Step Ltd Edition
RANGE
Enjoy the convenience of pedalling distances from 40 km to 100 km, thanks to the efficient Shimano motor and the 504 Wh, 36V battery.
MOTOR
Experience a new level of speed and ease with the powerful 60Nm Shimano Steps E6100 motor—your ultimate companion for effortless journeys!
AGILITY
Enjoy agile and practical city riding with our compact, lightweight design, featuring an eye-catching colour that makes a statement.
In the City Essentials
Technical details
PRODUCT INFORMATION
FRAME SIZES
M (48cm) - L (52cm)
WEIGHT
Approx. 24kg
MAXIMUM BIKE & RIDER WEIGHT
120kg
PAINTING
Powder Painting Scratch Resistant with Glossy Varnish
COLOUR(s)
Ice Grey with glossy finish
FRAME
FRAME
Aluminium High Step
FORK
Rigid Alloy 28"
HEADSET
ACROS 1.5" to 1-1/8" Tapered SHIS
E-BIKE SYSTEM

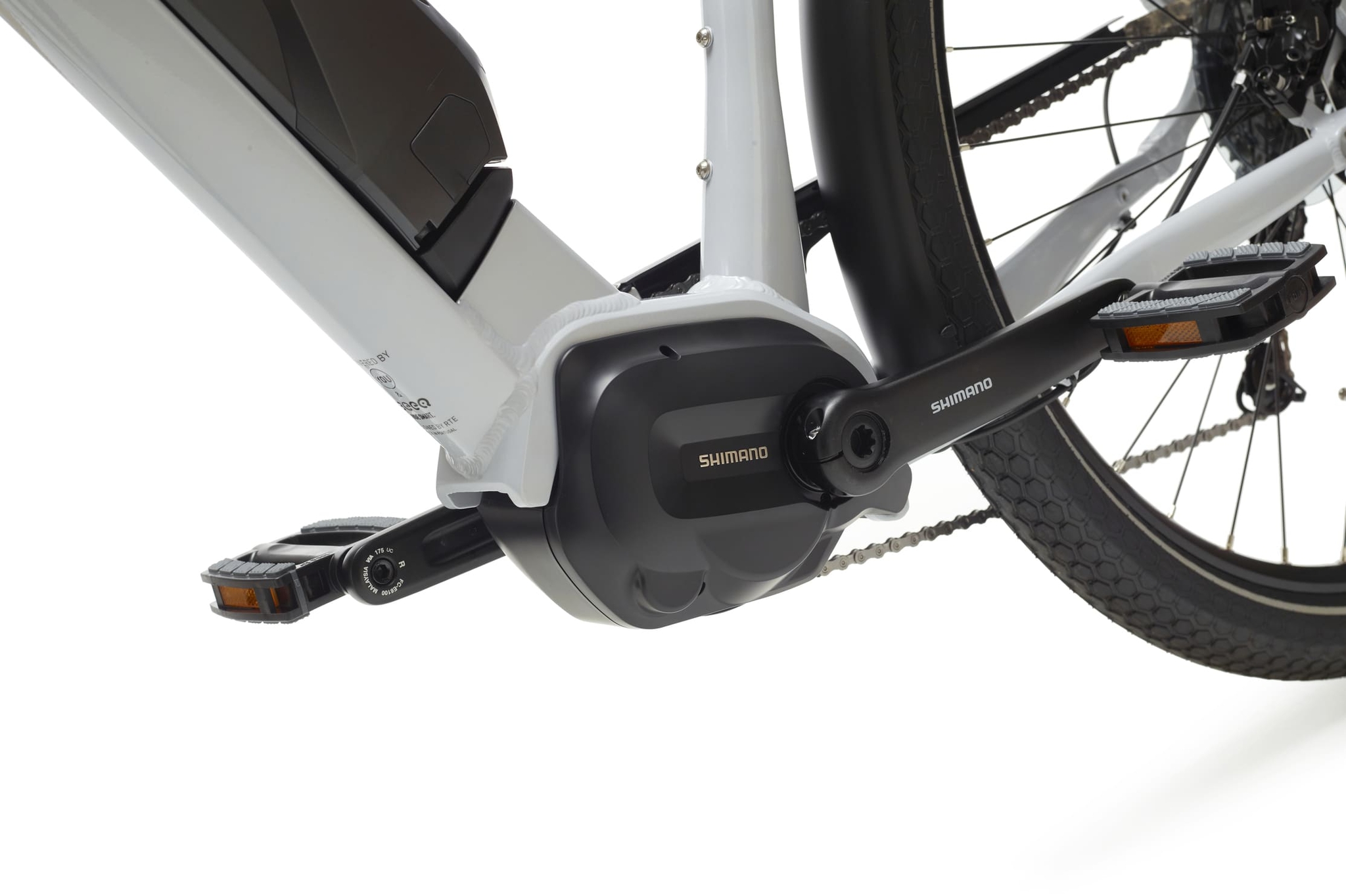

DRIVE UNIT
SHIMANO Steps DU-E6100 60Nm

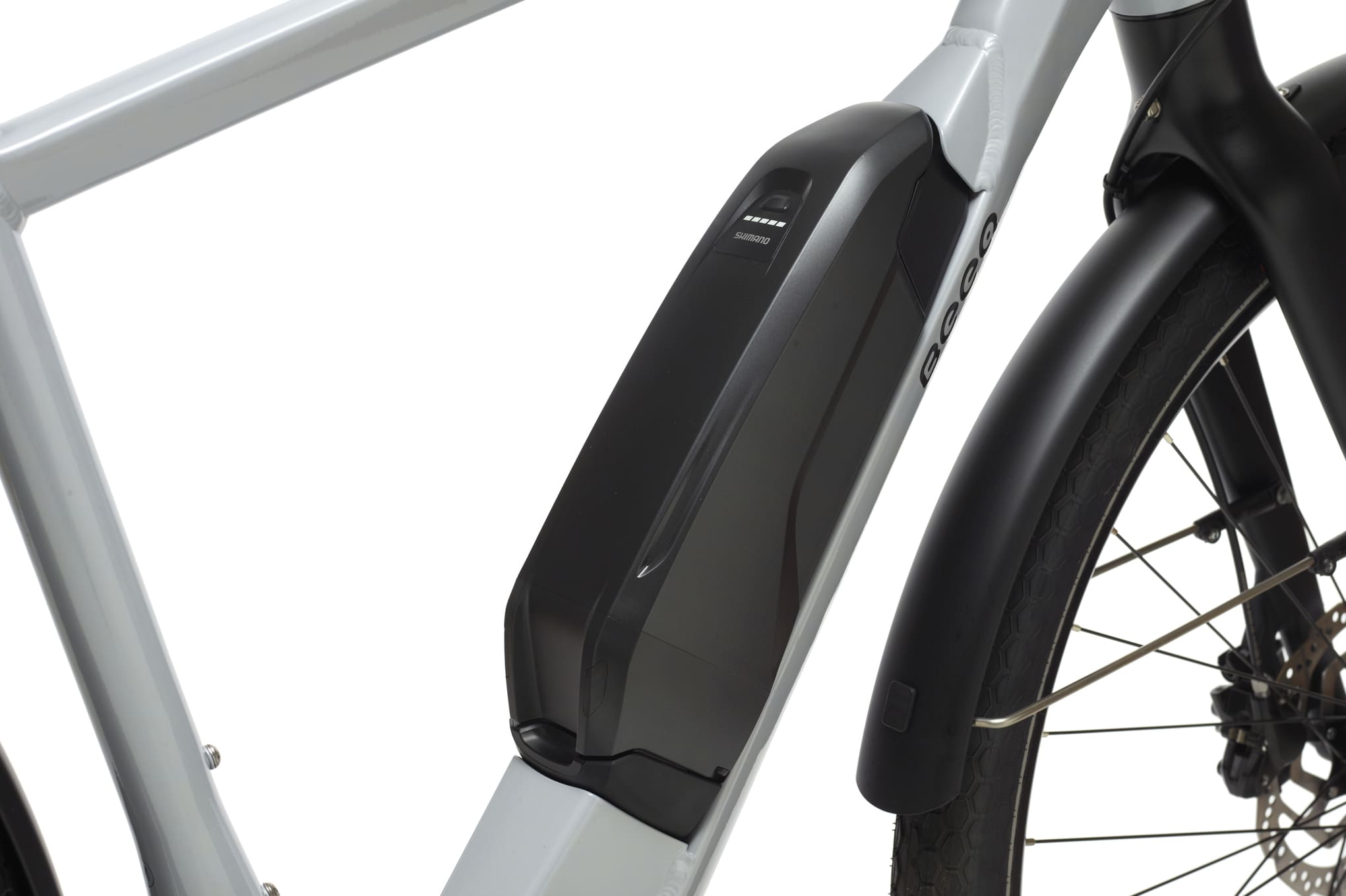

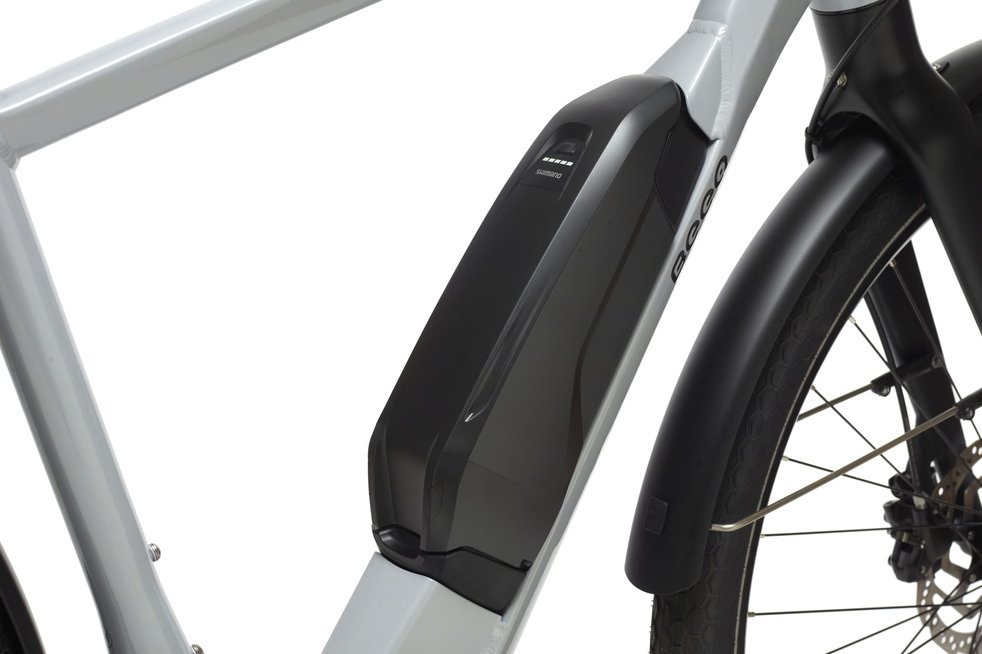

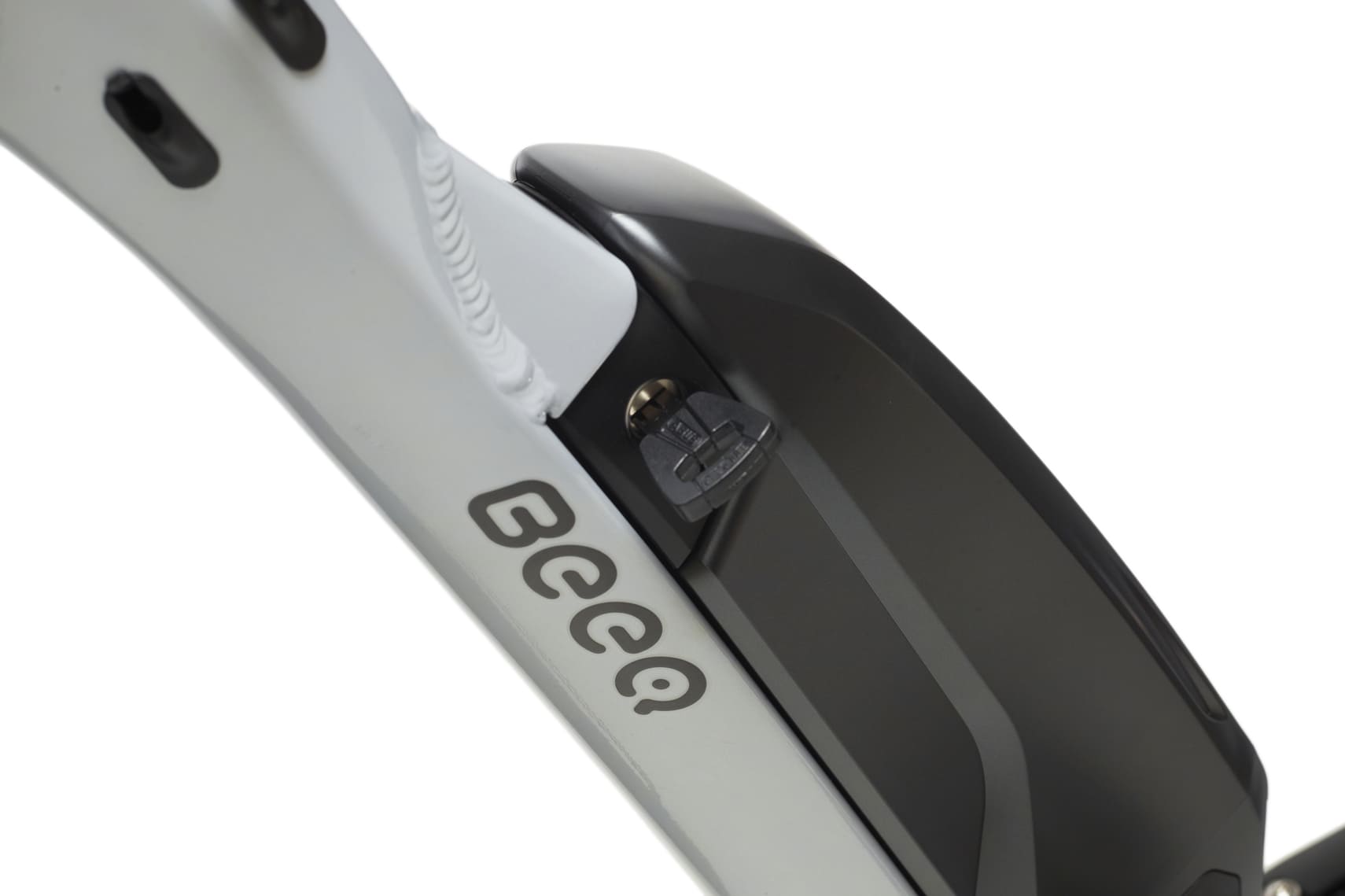

BATTERY
504Wh - Semi-integrated in downtube - Removable
RANGE
40km to 100km
BATTERY LOCK KEY
Yes
CHARGER
2A - up to 7 hours total charge time

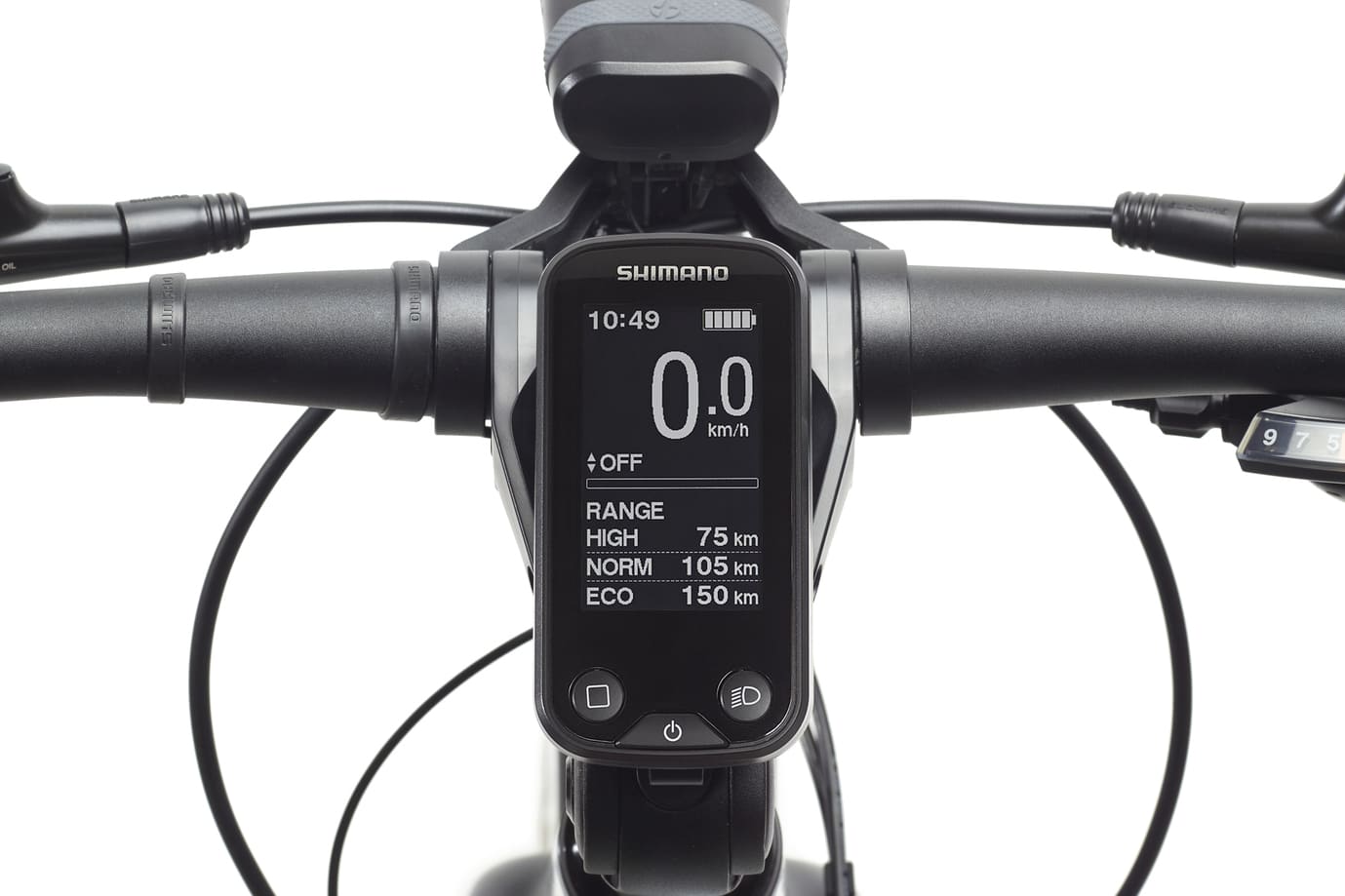

DISPLAY
SHIMANO SC-E6100

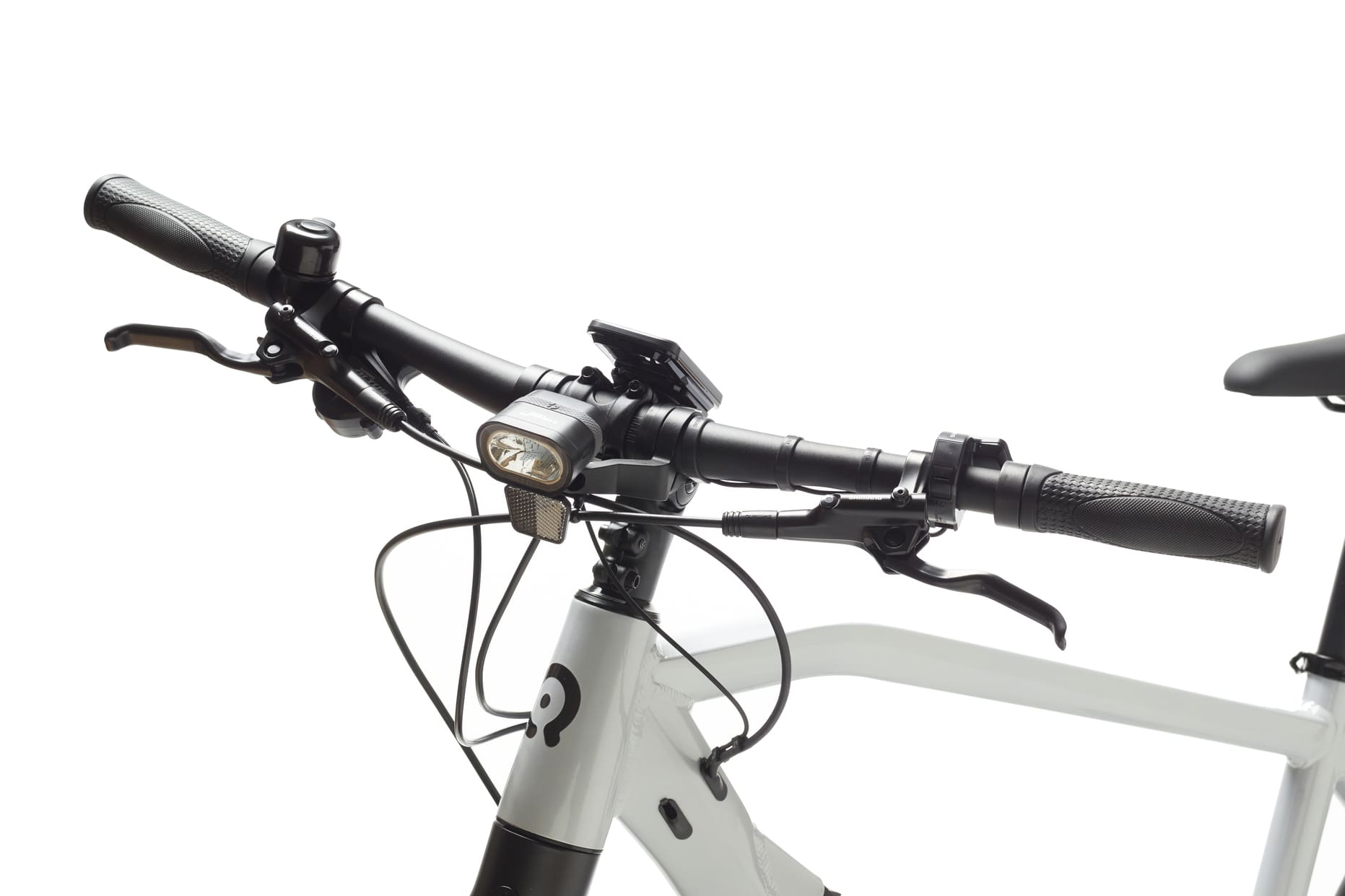

COCKPIT
HANDLEBAR
AL 660mm / 31.8mm (Straight)
STEM
AL 90mm - 31.8mm - adjustable 0-90º
GRIPS
Ergonomic Grip with Clamp
WHEELSET

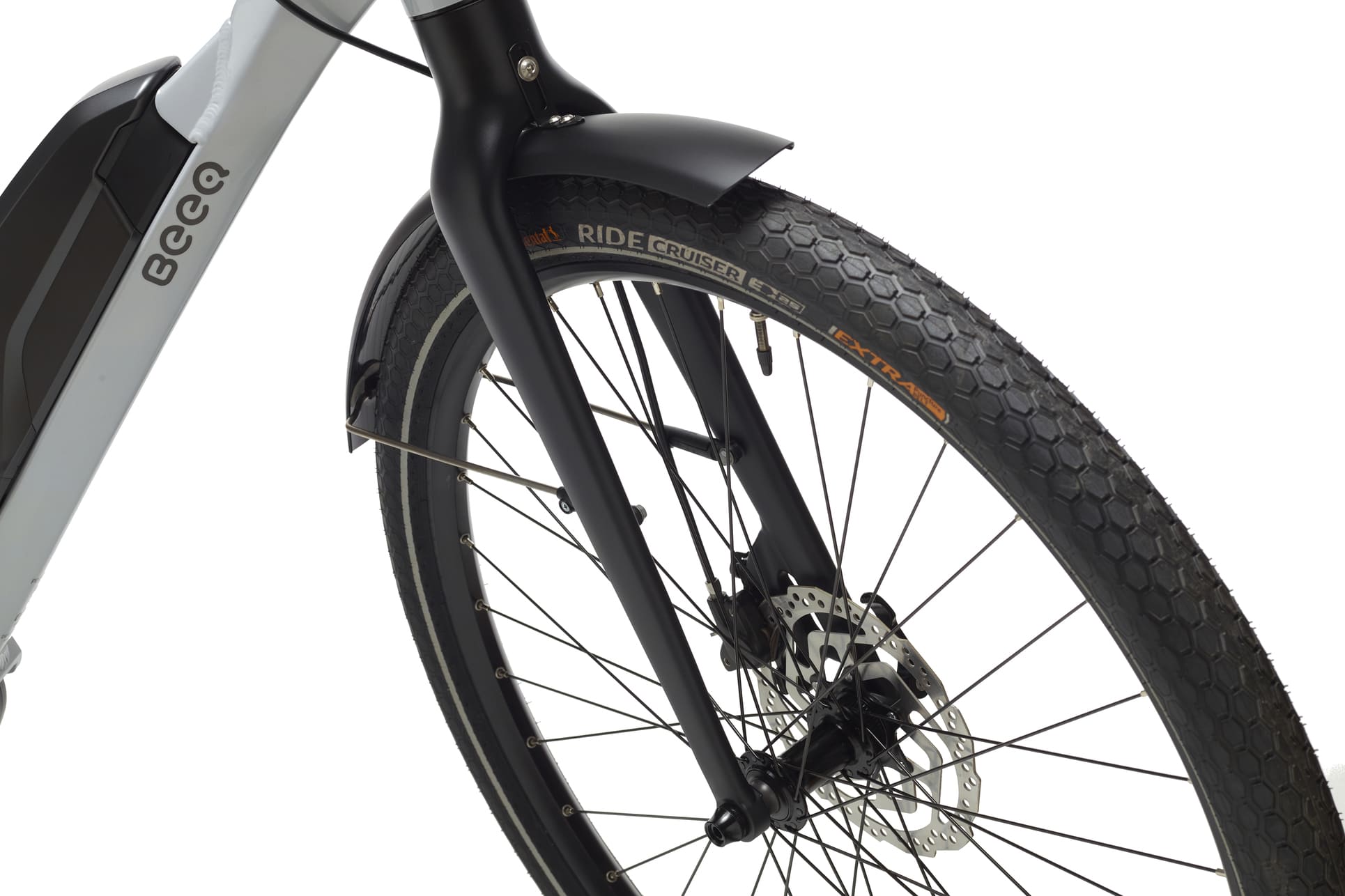

TYRES
CONTINENTAL Ride Cruiser 28''x2,0''
WHEEL SIZE
28''
RIMS
Alloy Double Wall 25mm
SPOKES
Stainless Steel Black
FRONT HUB
SHIMANO HB-MT400 100 Thru-axle 15mm
REAR HUB
SHIMANO FH-TX505 135mm
DRIVETRAIN & BRAKES
BRAKES
SHIMANO Hydraulic MT200
BRAKE ROTOR - Front
SHIMANO SM-RT10 180mm

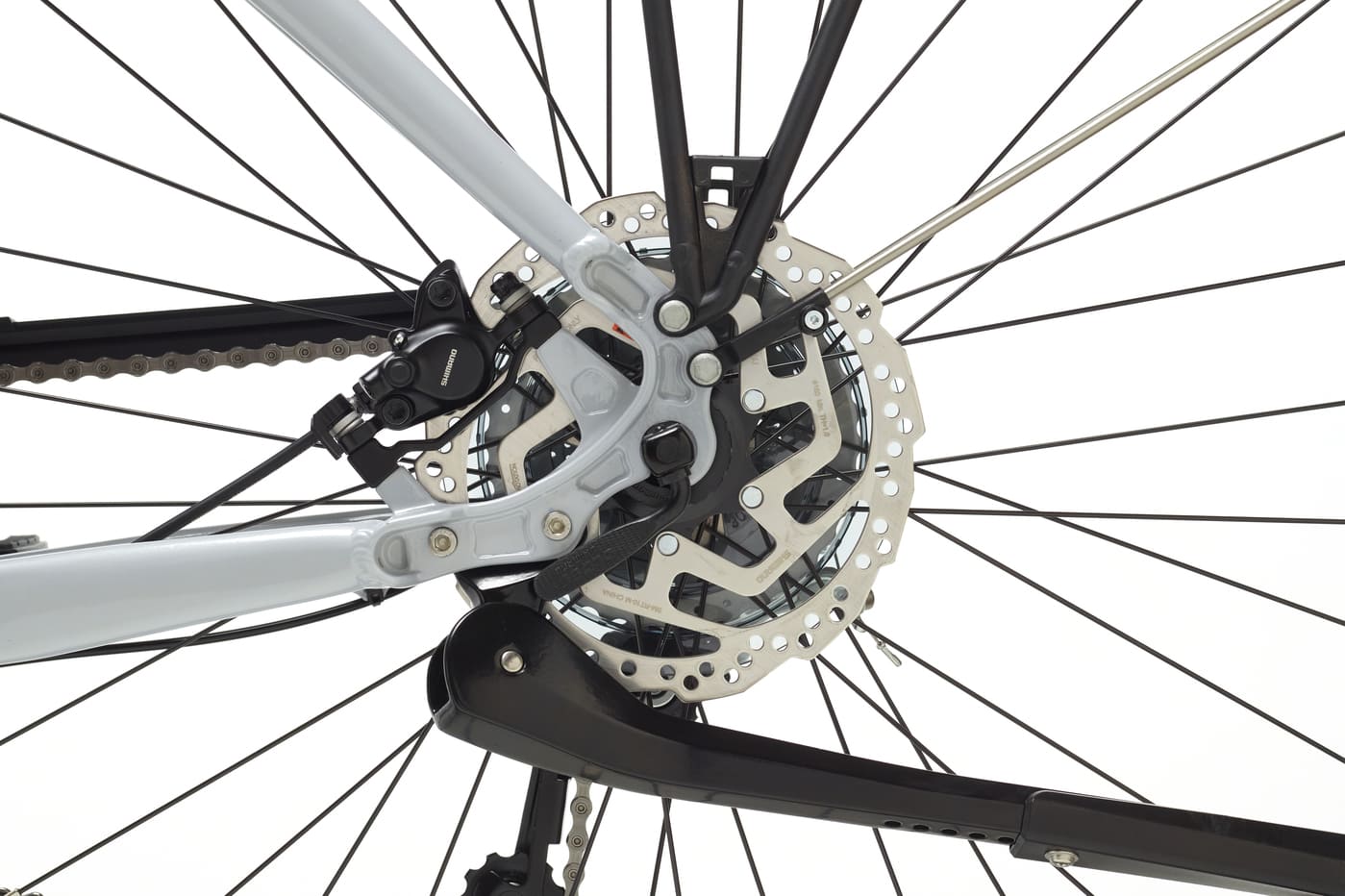

BRAKE ROTOR - Rear
SHIMANO SM-RT10 180mm

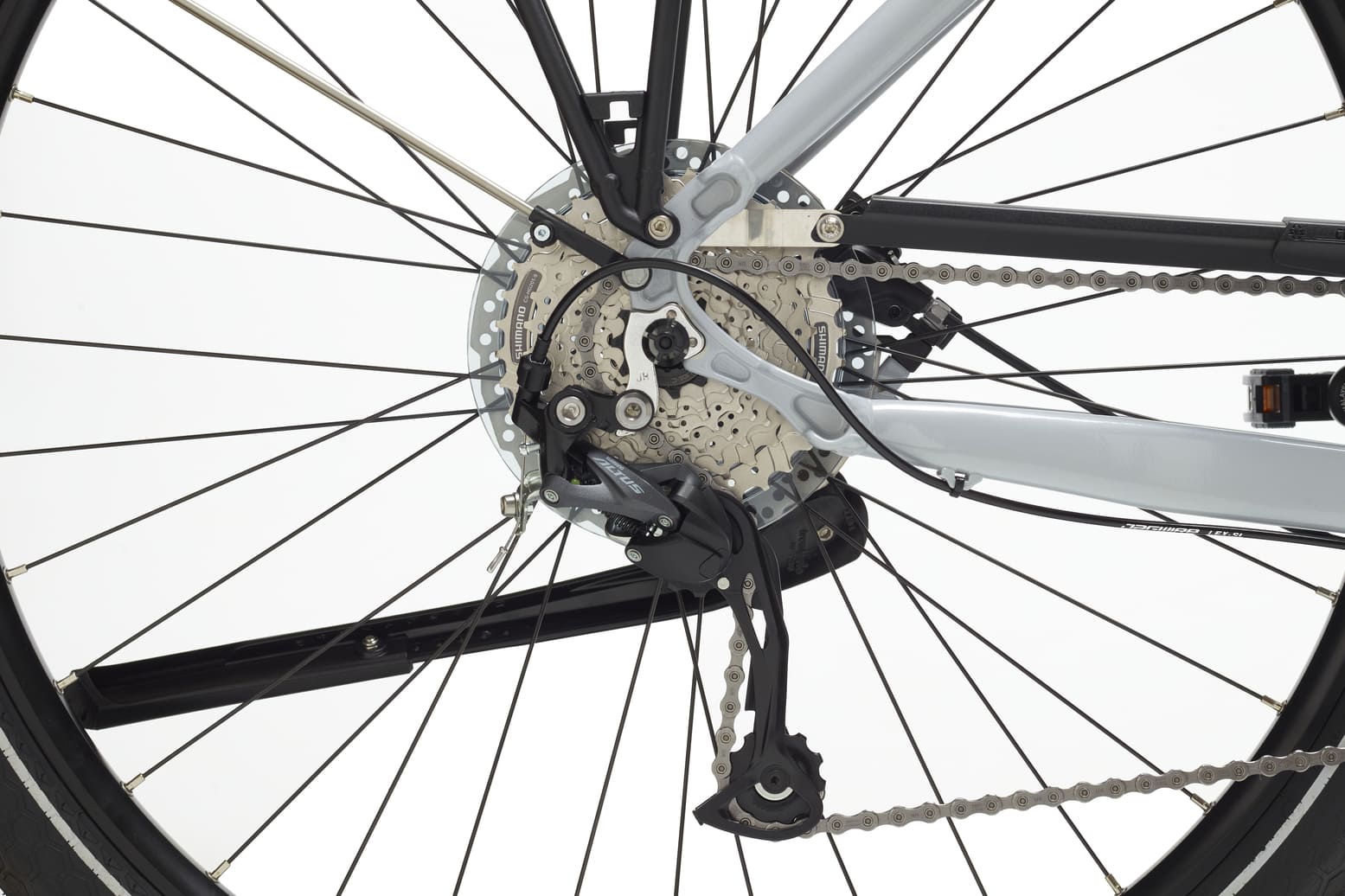

REAR DERRAILEUR
SHIMANO Altus M2000 9S
CASSETTE
SHIMANO Altus CS-HG201-9 11-36T
SHIFTERS
SHIMANO Altus 9S
CHAINRING
SHIMANO SM-CRE61 38T
CRANK
SHIMANO FC-E6100 - 175mm
CHAIN
SHIMANO CN-LG500
CHAINGUARD
Yes - SKS
SAFETY & ACESSORIES

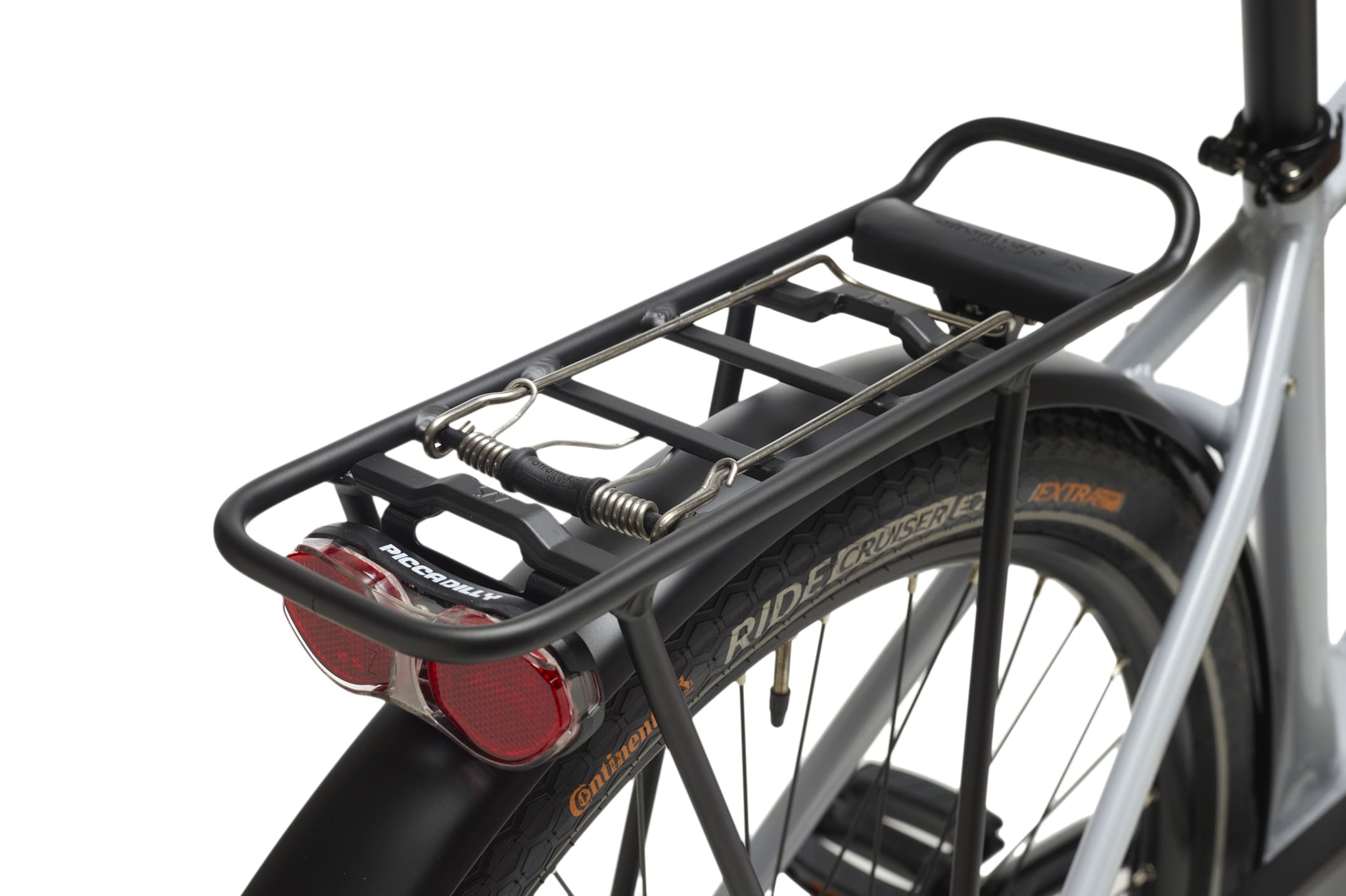

RACK
ATRANVELO Tour AVS (max.: 25Kg)

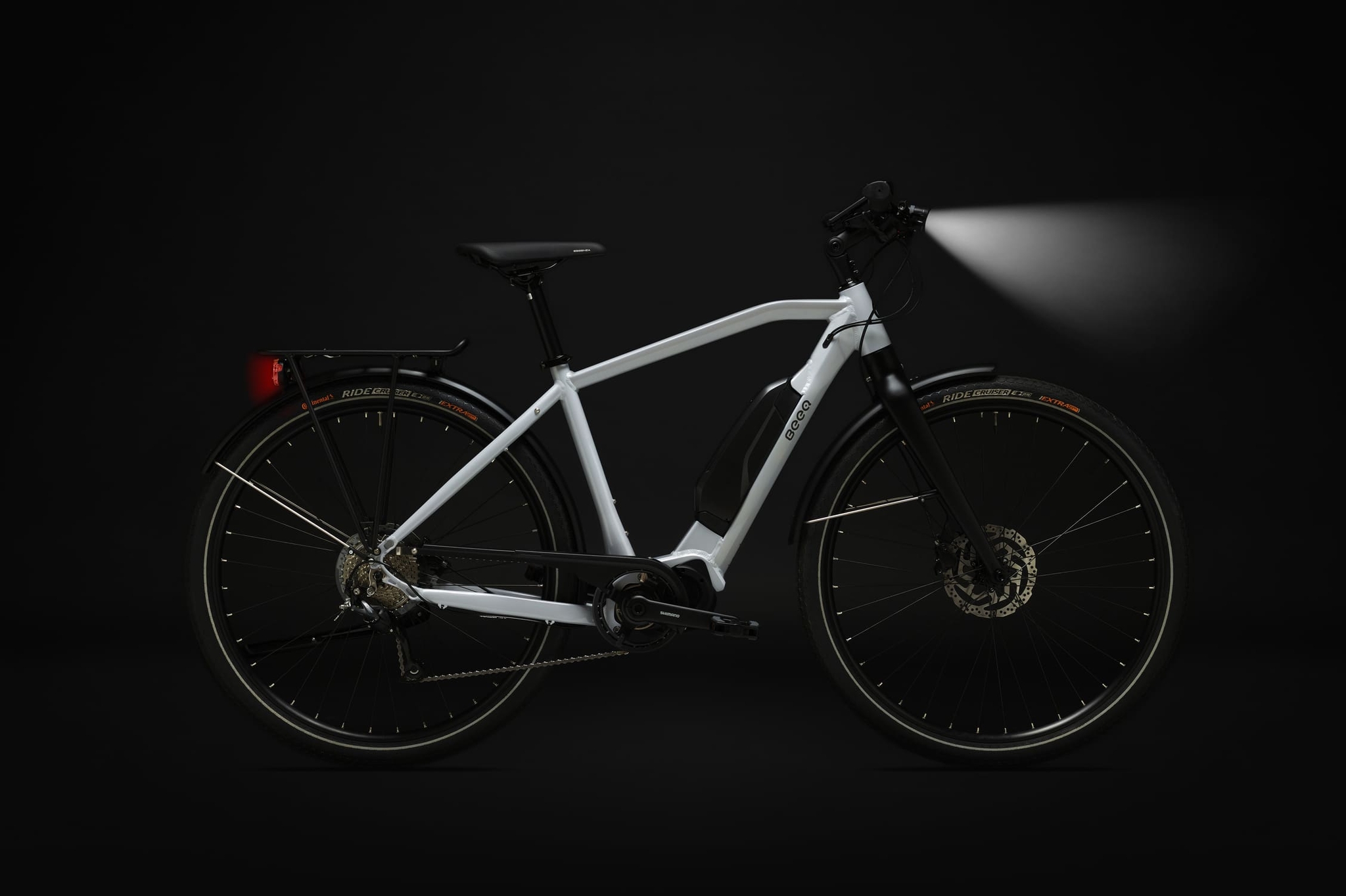

FRONT LIGHT
SPANNINGA Axendo 40 with reflector
REAR LIGHT
PICCADILY with reflector
KICKSTAND
ATRANVELO Dux
MUDGUARD
SKS
BELL
Yes
BOTTLE CAGE
Not suplied. Frame prepared for standard

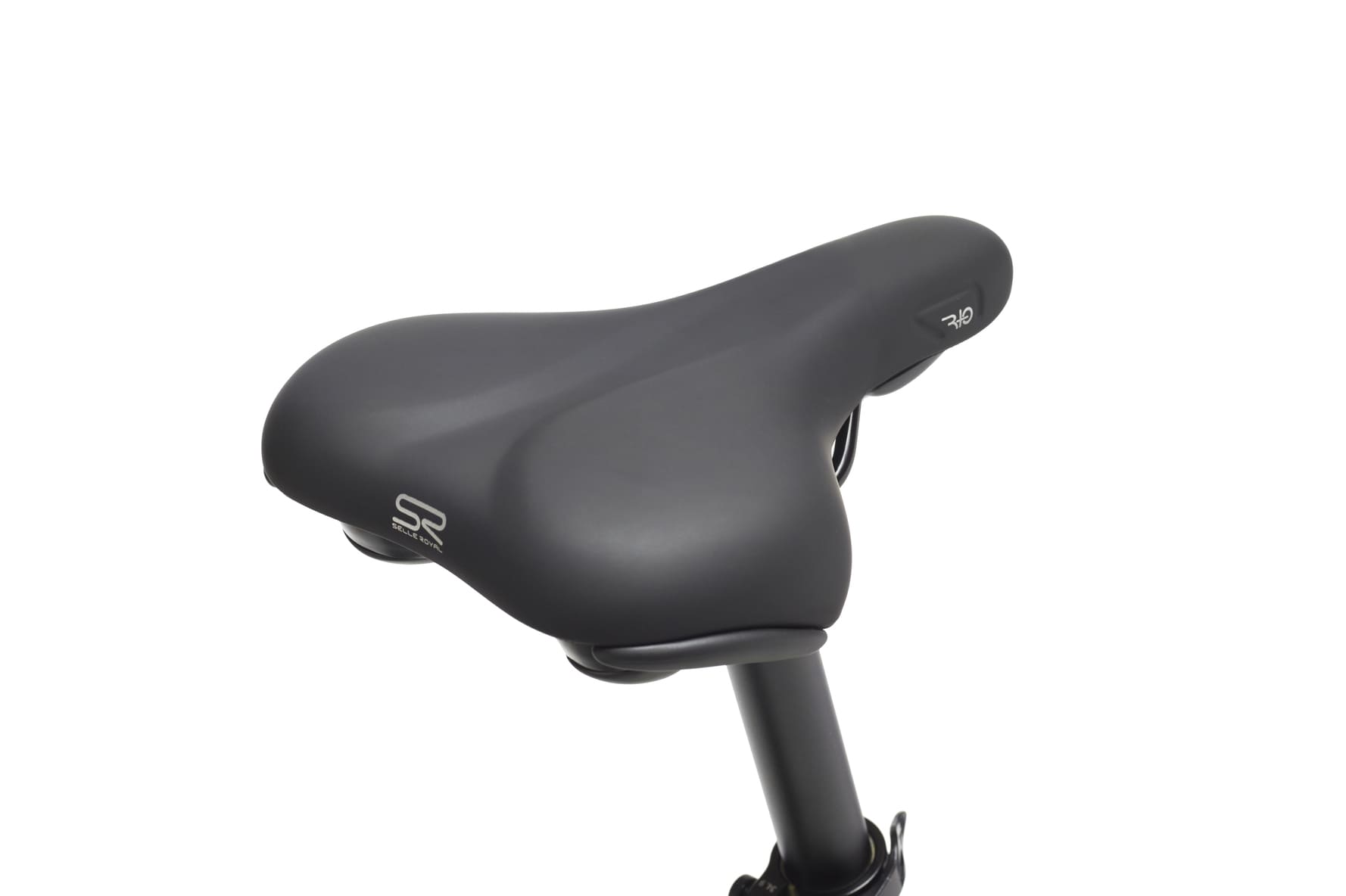

SADDLE
SELLE ROYAL Essenza Moderate Gel
SEAT POST
AL Black 350mm 30,9mm/15mm
SEAT CLAMP
Alloy black with quick release
PEDALS
UNION SP-827 Flat with reflectors
FRAMELOCK
Not included. Sold separately.
