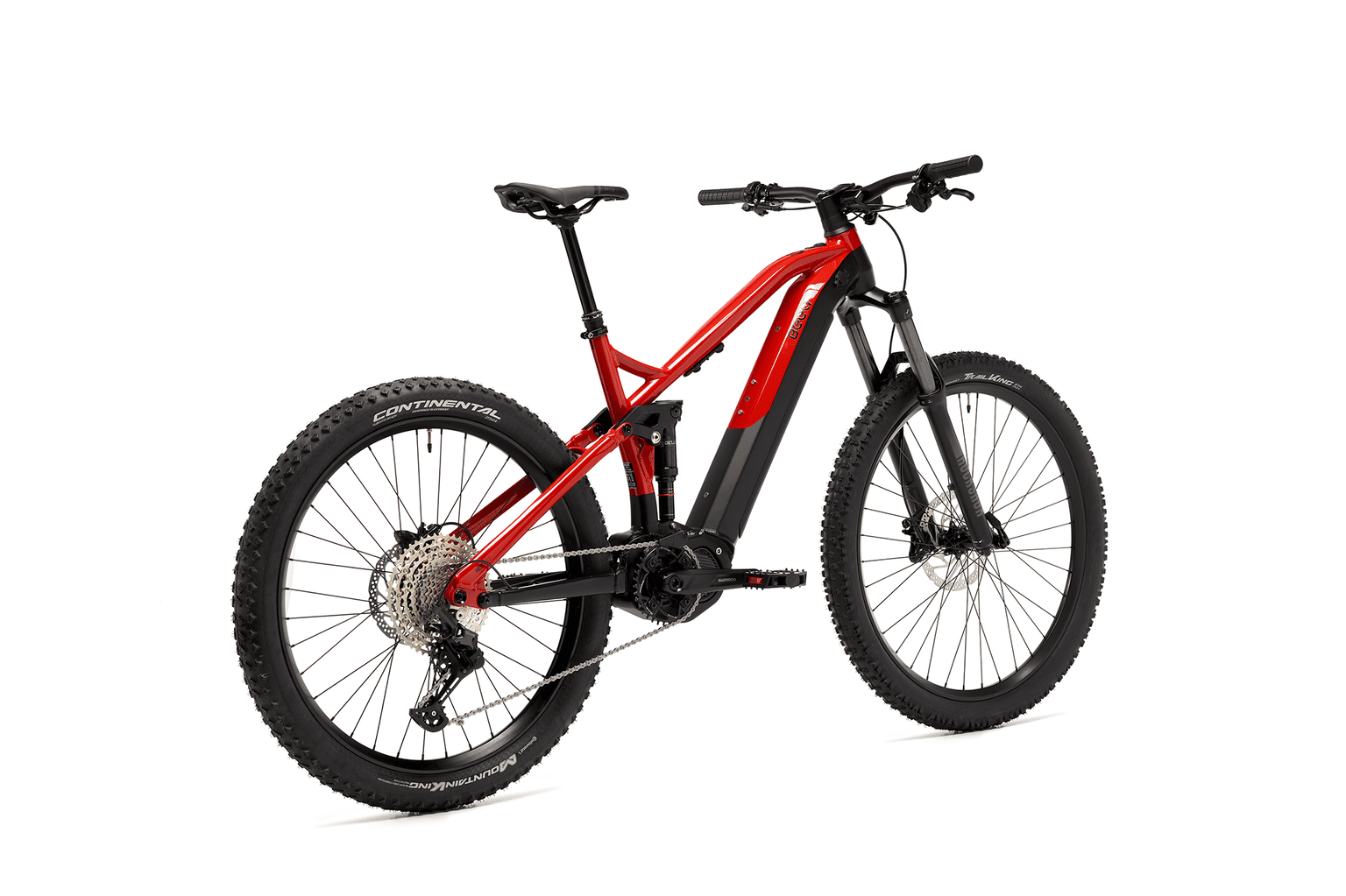

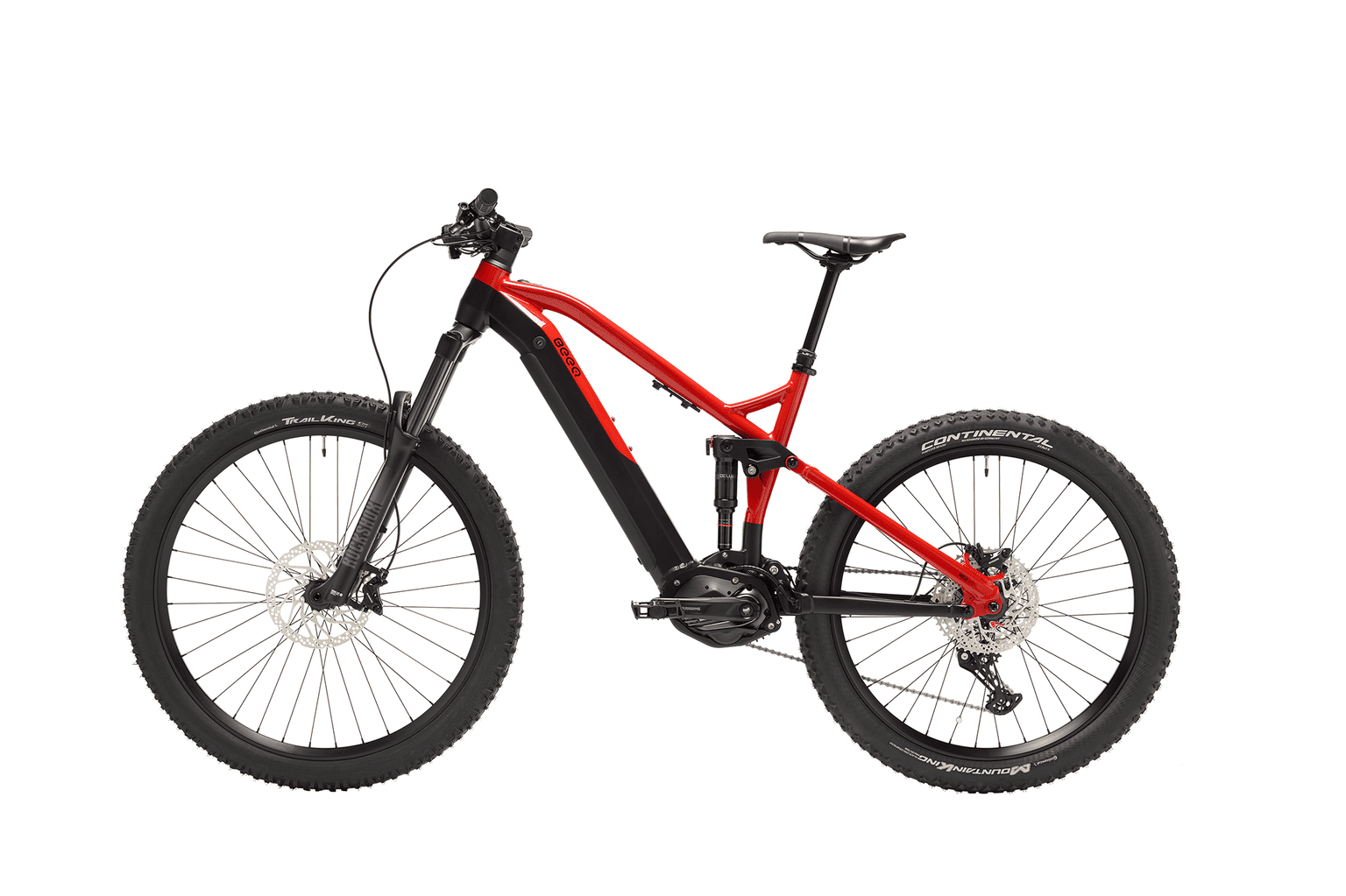

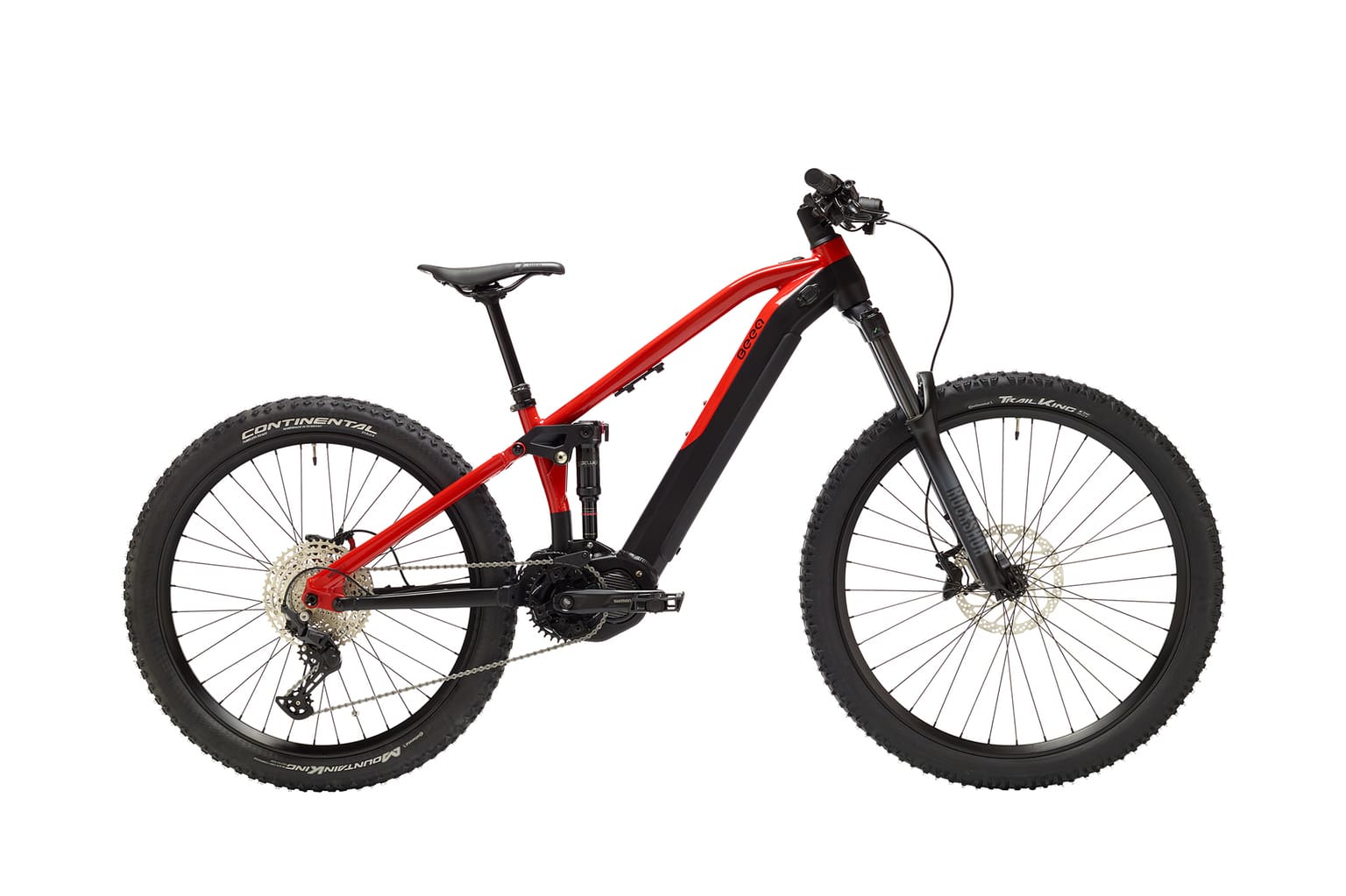

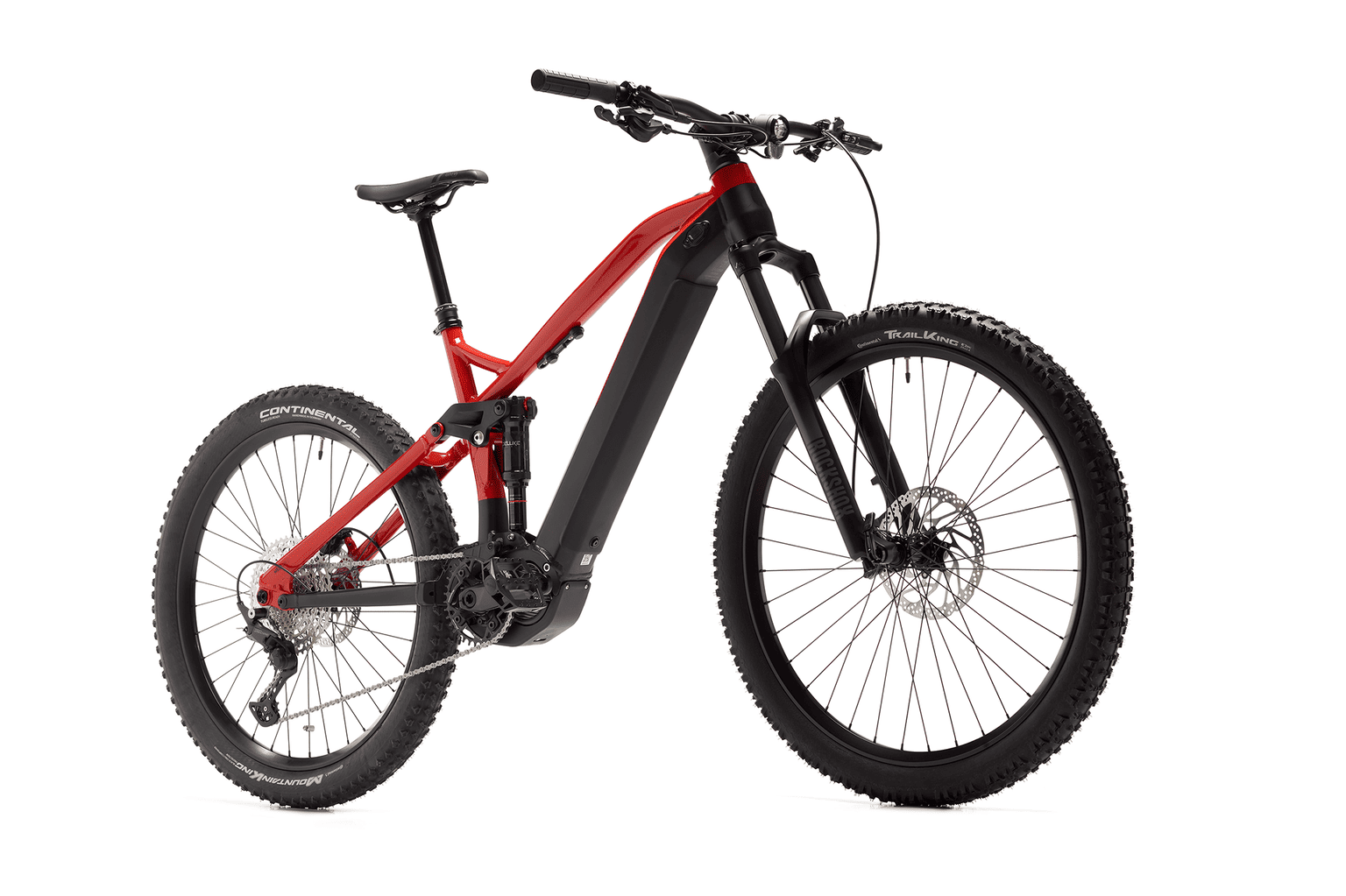

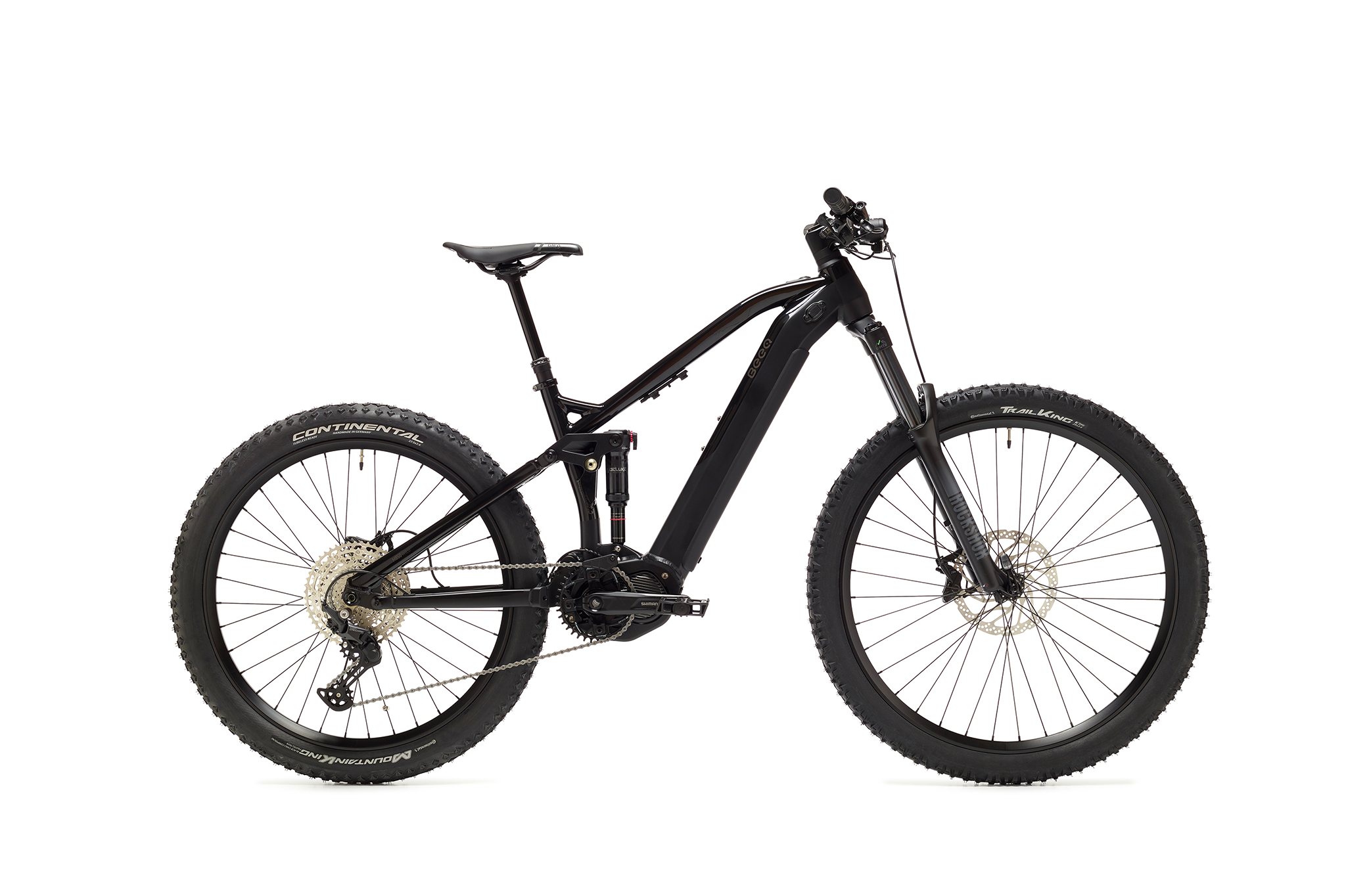

M850 Wild Full Suspension
RANGE
Enjoy the mountain adventures for longer with less effort thanks to the efficient SHIMANO battery with 630Wh and 36V.
MOTOR
Experience the power of the SHIMANO EP800 85Nm motor and embark on thrilling adventures beyond the next mountain peak.
MULLET CONFIGURATIOIN
Tackle the mountains with a mullet setup: a 29-inch front wheel for stability and a 27.5-inch rear wheel for agility on tough trails.
On the mountain Essentials
Technical details
PRODUCT INFORMATION
FRAME SIZES
S (38cm) - M (42cm) - L (46cm)
WEIGHT
Approx. 26kg
MAXIMUM BIKE & RIDER WEIGHT
135kg
PAINTING
Powder painting scratch resistant with Glossy Varnish
COLOUR(s)
Dark Night with gloss finish | Pure Red with gloss finish
FRAME
FRAME
MTB FS Full Aluminium 150mm
HEADSET
ACROS AZX-581 1.5" SHIS With Blocklock 150º Integrated Cables

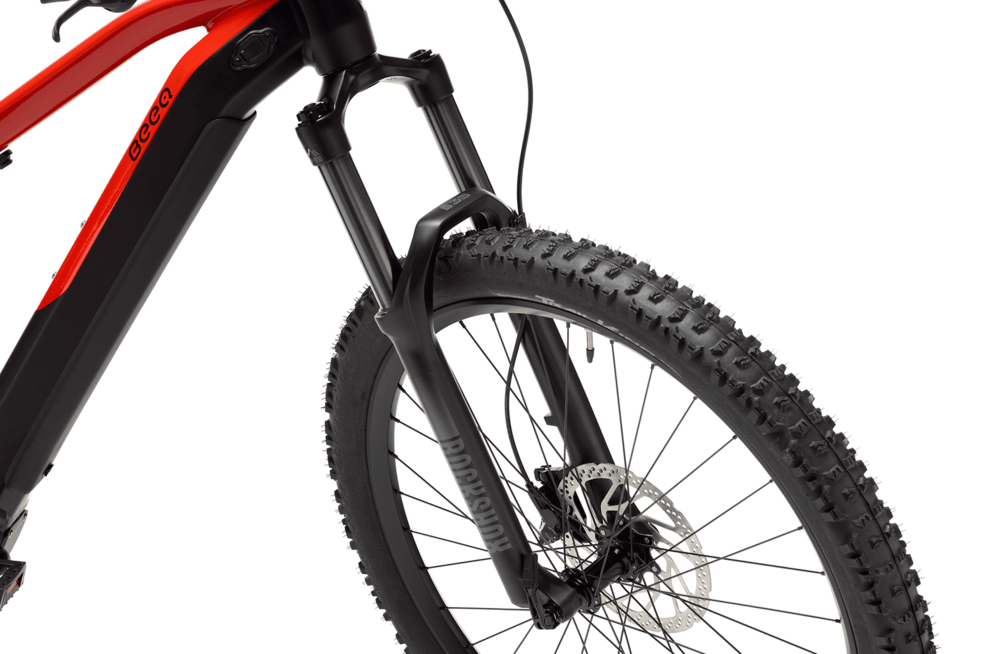

SUSPENSION
Rockshox 35S Air Travel 150mm Axle Boost 110mm 29''

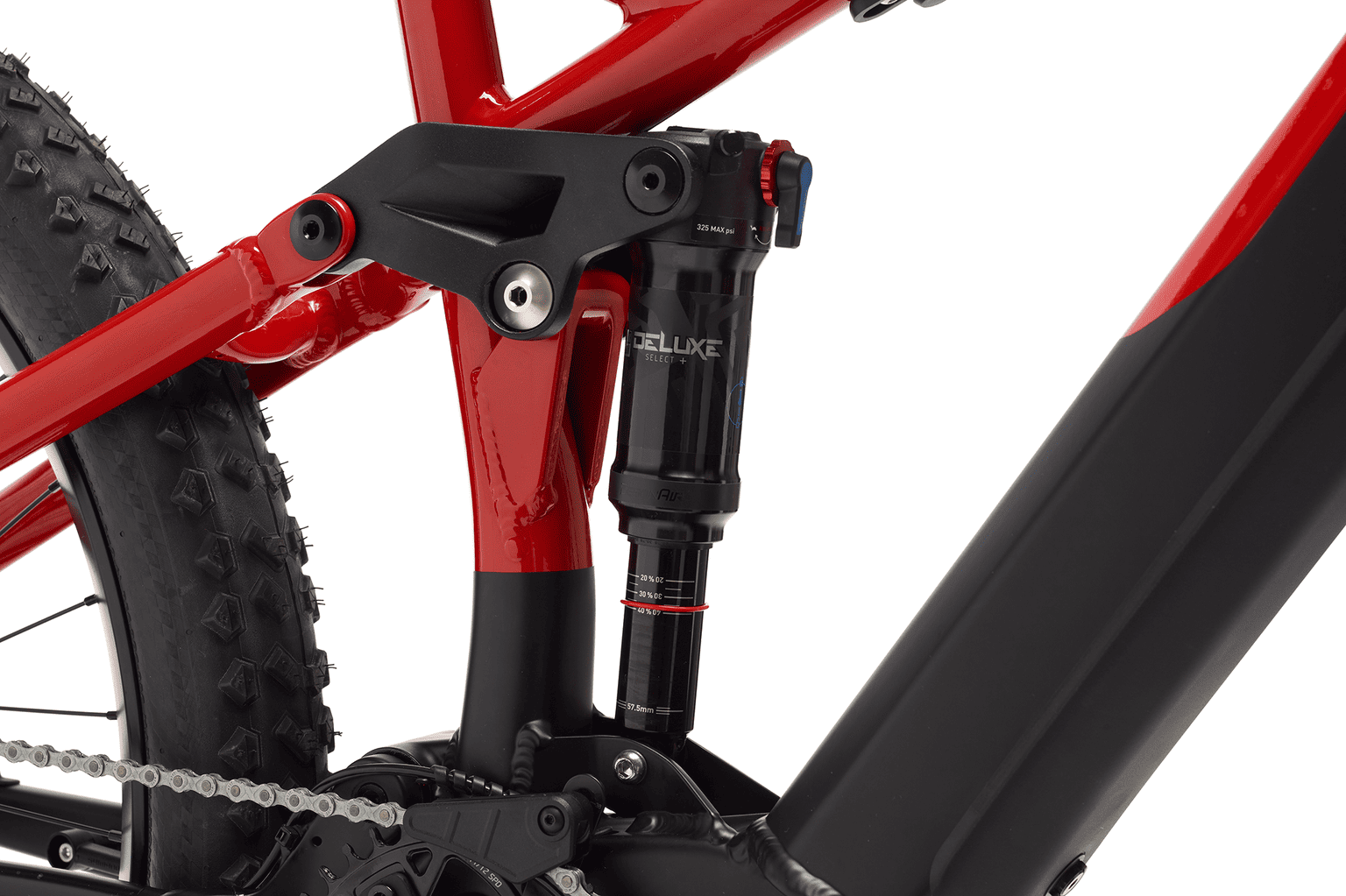

REAR SHOCK
ROCKSHOX Deluxe Select+ Travel 150mm Trunnion (205x57,5)
E-BIKE SYSTEM

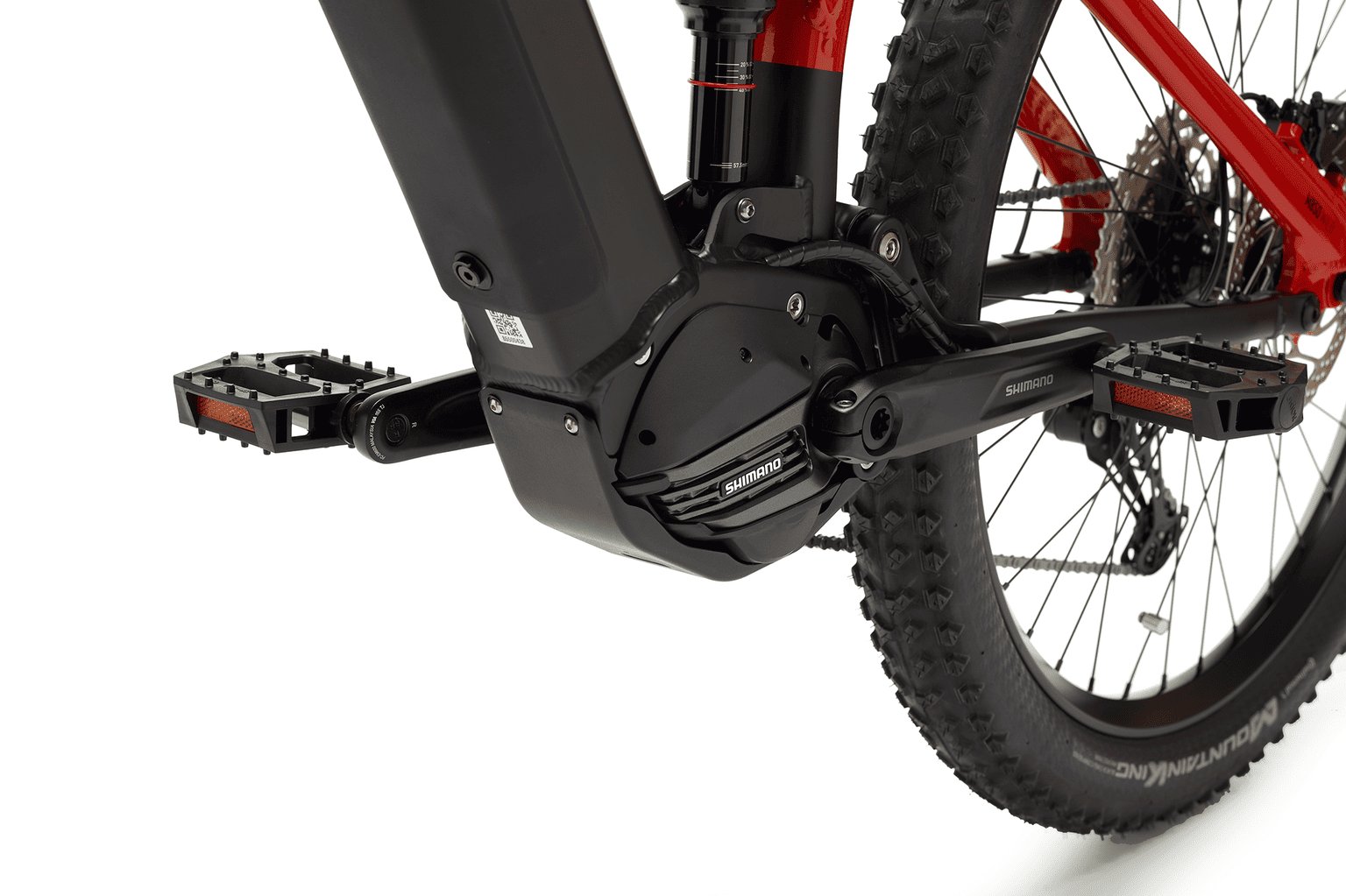

DRIVE UNIT
SHIMANO Steps EP800 85Nm

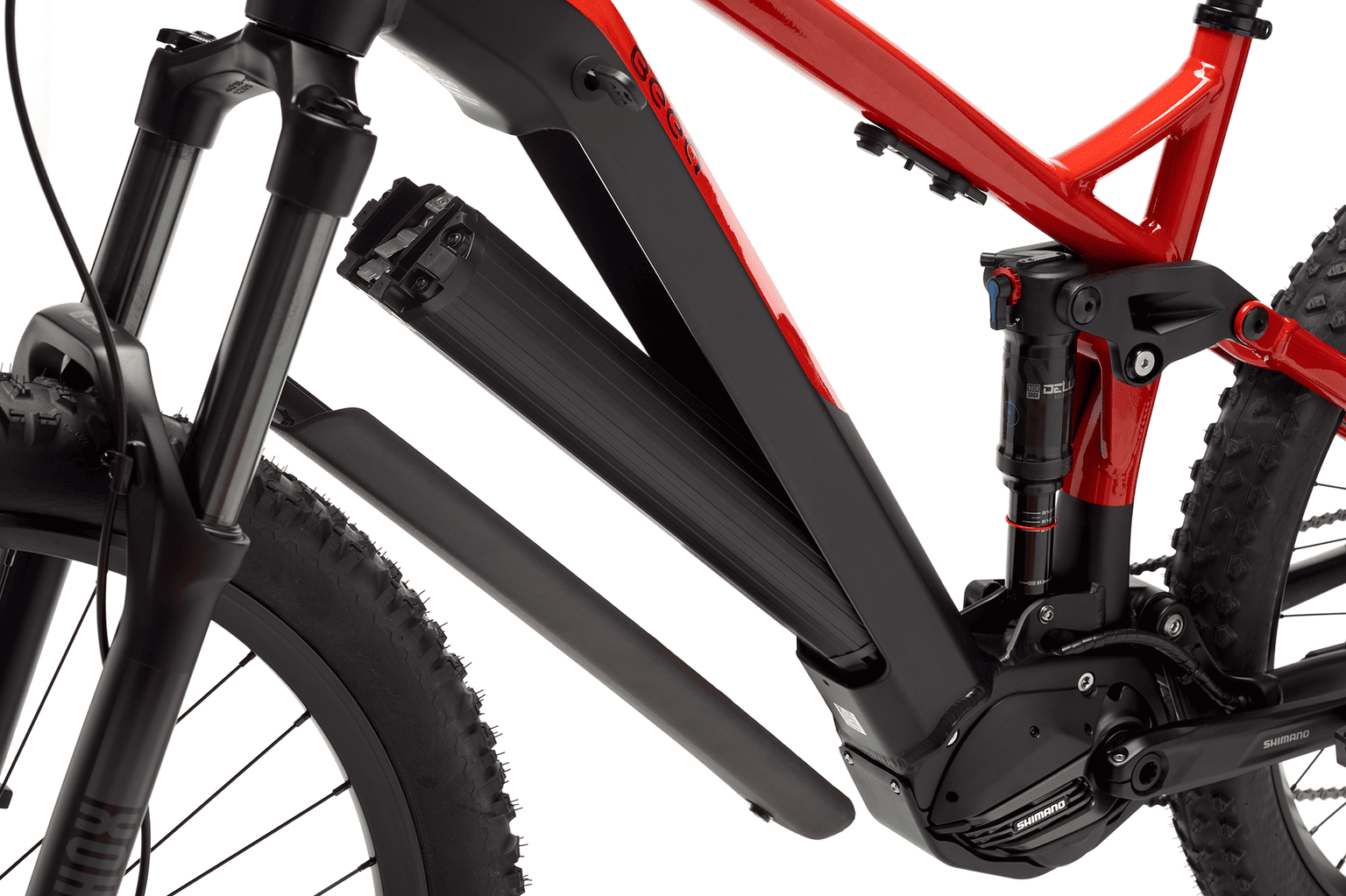

BATTERY
630Wh 36V - Integrated on Downtube - Removable
RANGE
40km to 100km
BATTERY LOCK KEY
Yes
CHARGER
2A - 6 to 8 hours total charge time

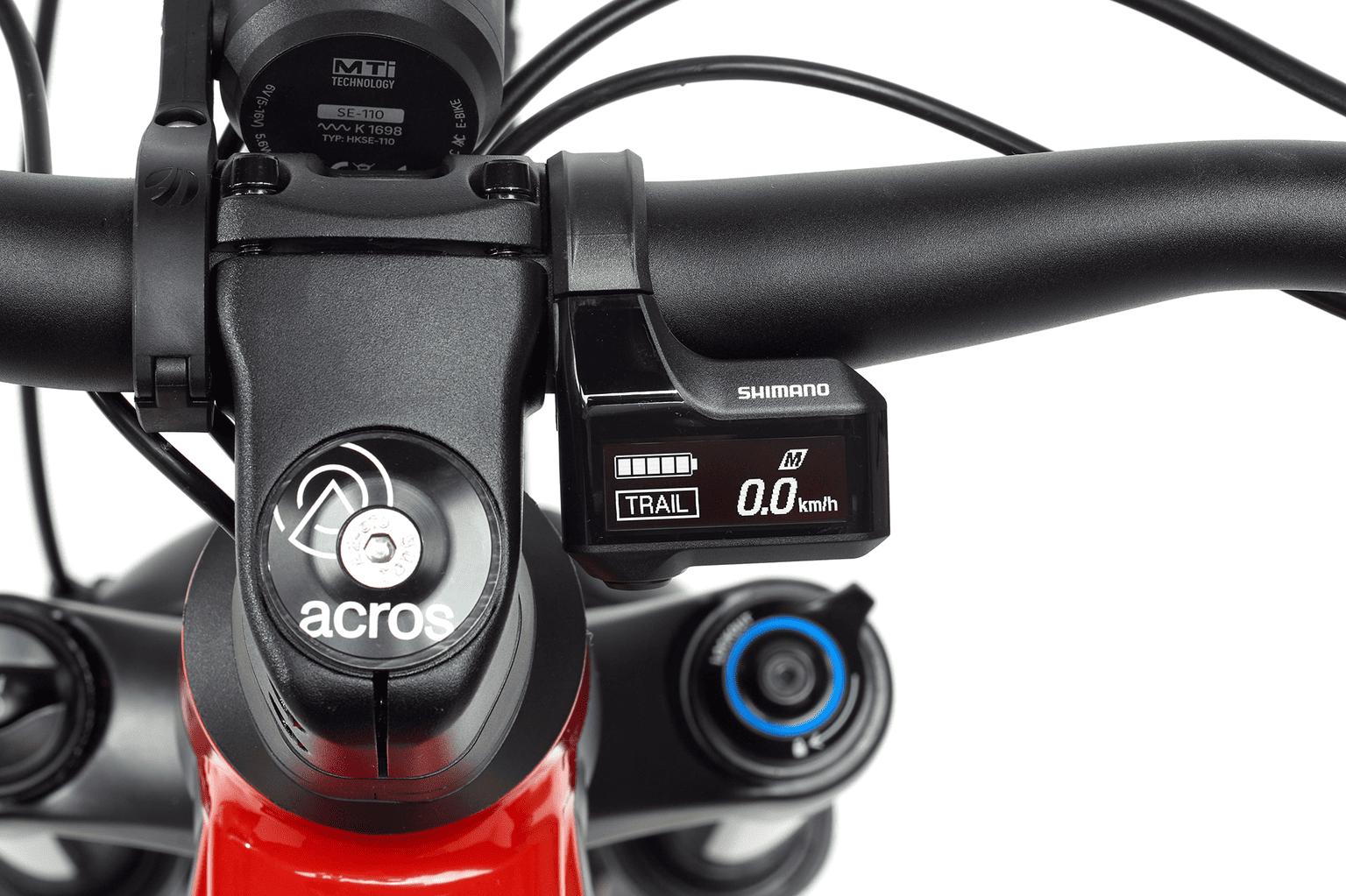

DISPLAY
SHIMANO SC-E7000
COCKPIT

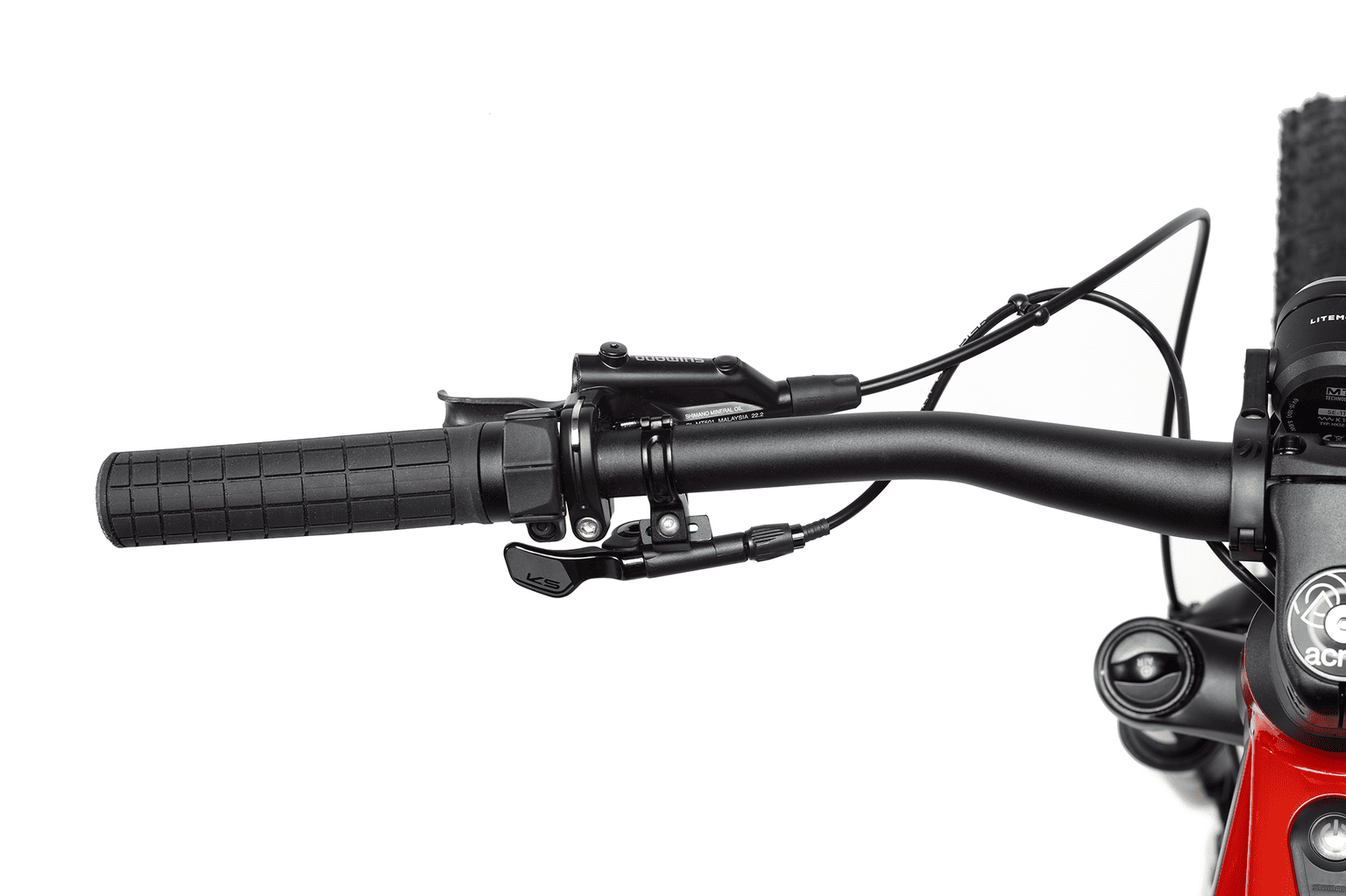

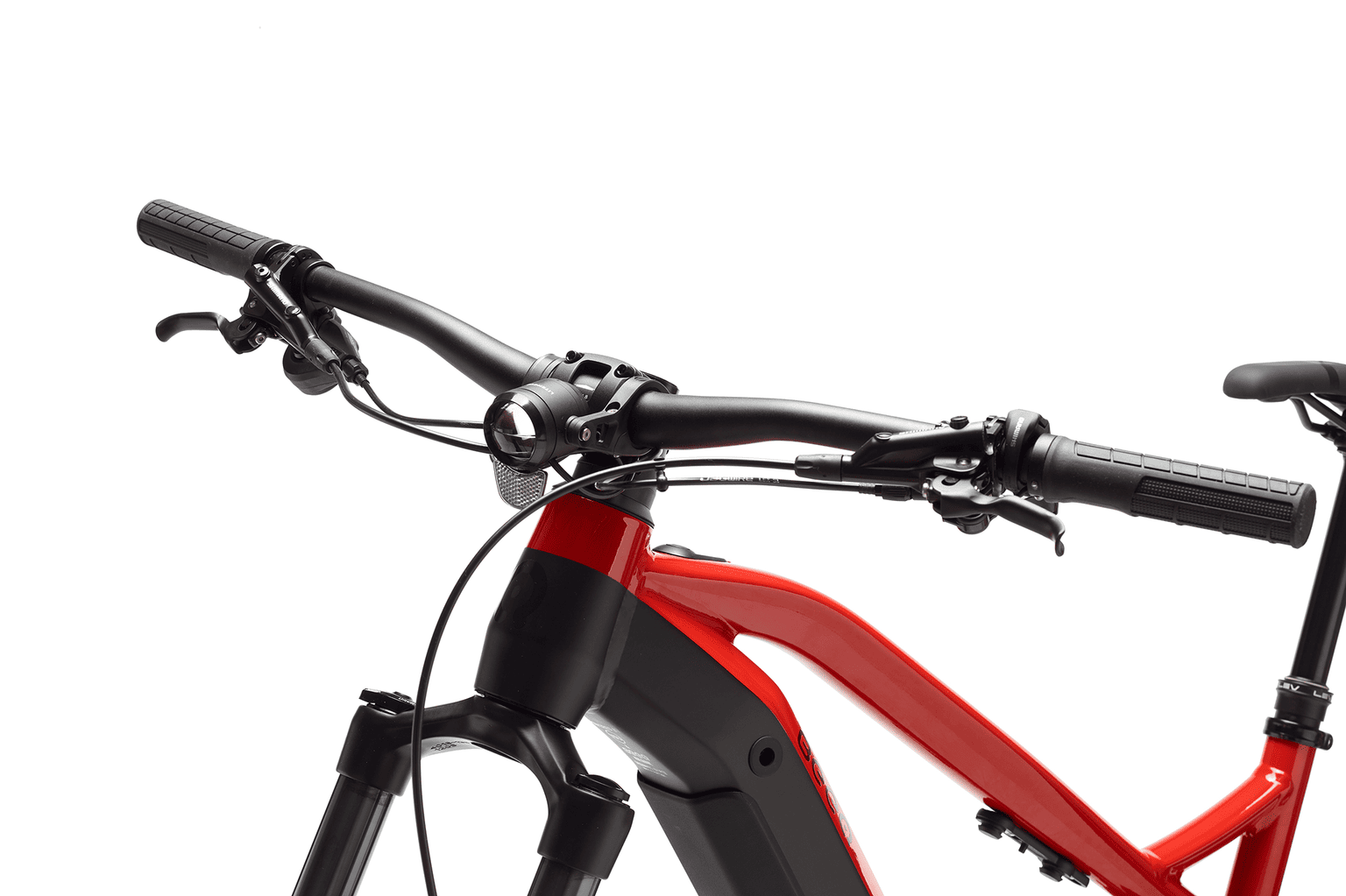

HANDLEBAR
AL 780mm / 31.8mm / Rise 20mm (Straight)
STEM
AL 40mm - 31.8mm - 0º
GRIPS
VP VPG 122A
WHEELSET
TYRES
CONTINENTAL MountainKing 27,5''x2,6'' / TrailKing 29''x2,4'' (Rear Tyre Tubeless Ready)
WHEEL SIZE
Mullet: 27,5'' / 29''
RIMS
Alloy Double Wall Front: 30mm/ Rear: 35mm (Tubeless Ready)
SPOKES
Black Stainless Steel
FRONT HUB
Boost 110 Thru-axle 15mm
REAR HUB
Boost 148 Thru-axle 12mm
DRIVETRAIN & BRAKES
BRAKES
SHIMANO Hydraulic MT520

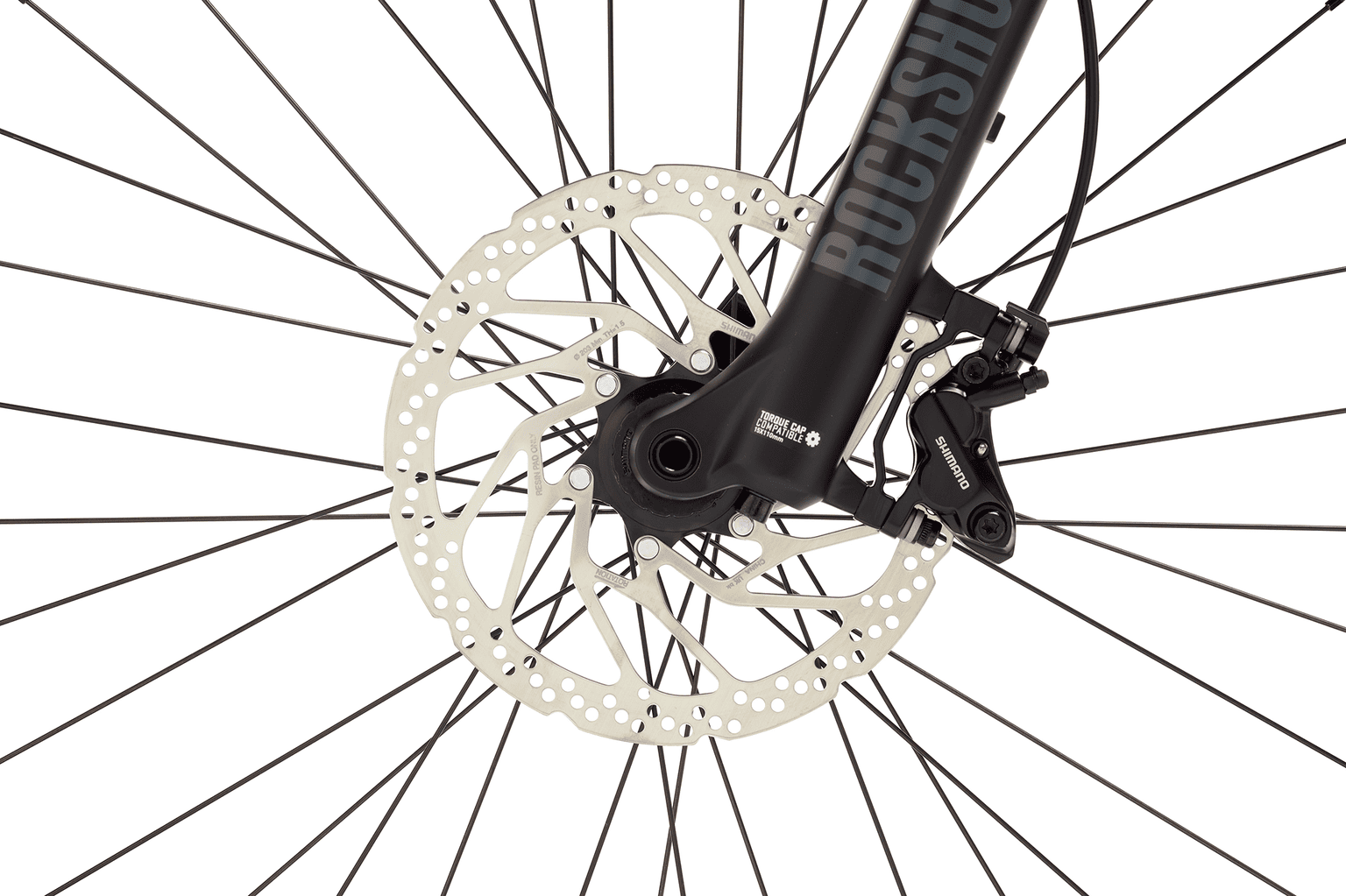

BRAKE ROTOR - Front
SHIMANO SM-RT30 203mm
BRAKE ROTOR - Rear
SHIMANO SM-RT30 180mm

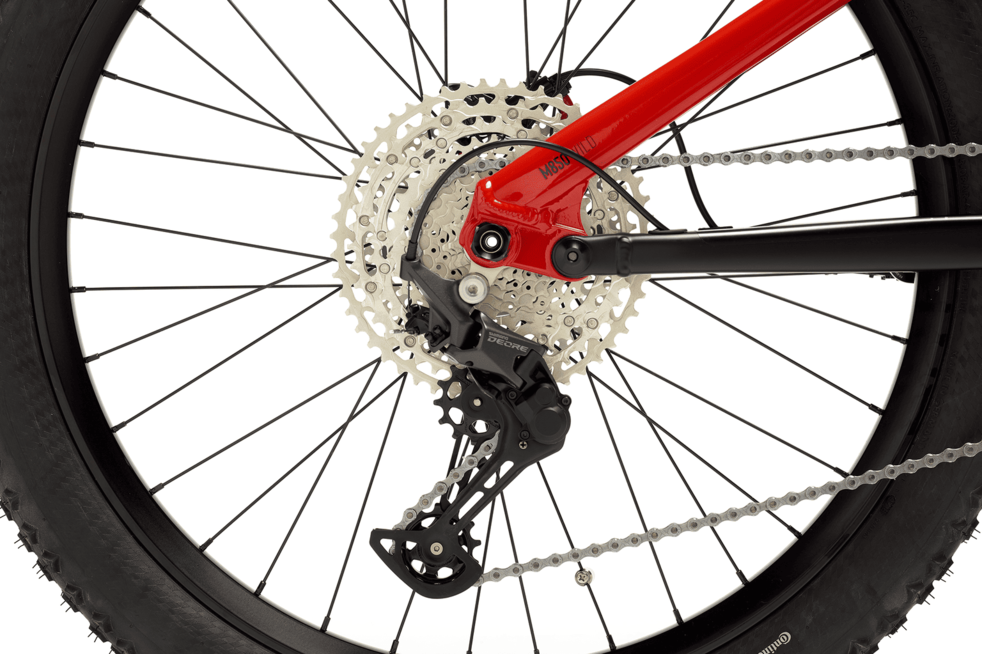

REAR DERRAILEUR
SHIMANO Deore 11S

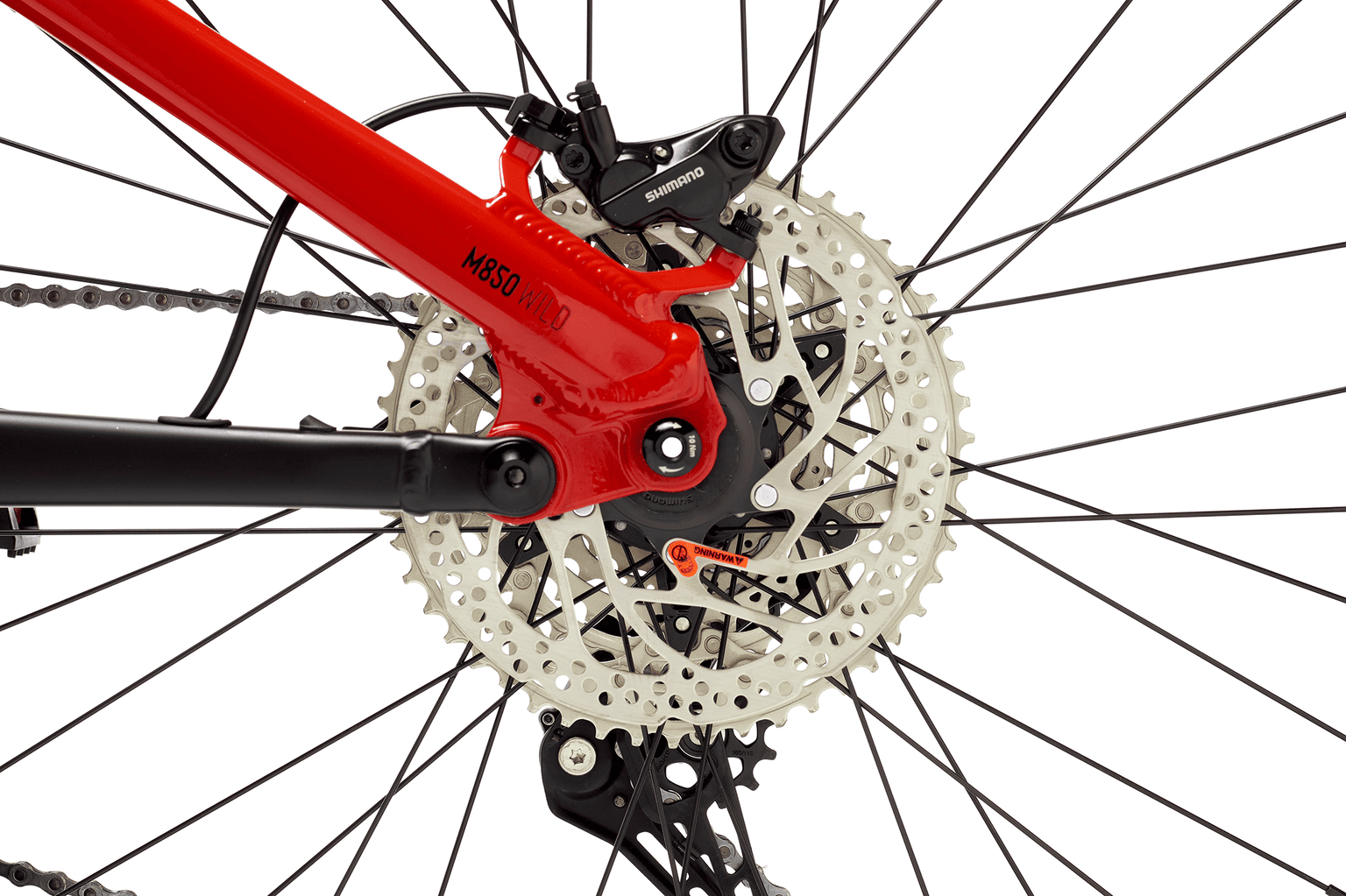

CASSETTE
SHIMANO Deore 11S 11-51T

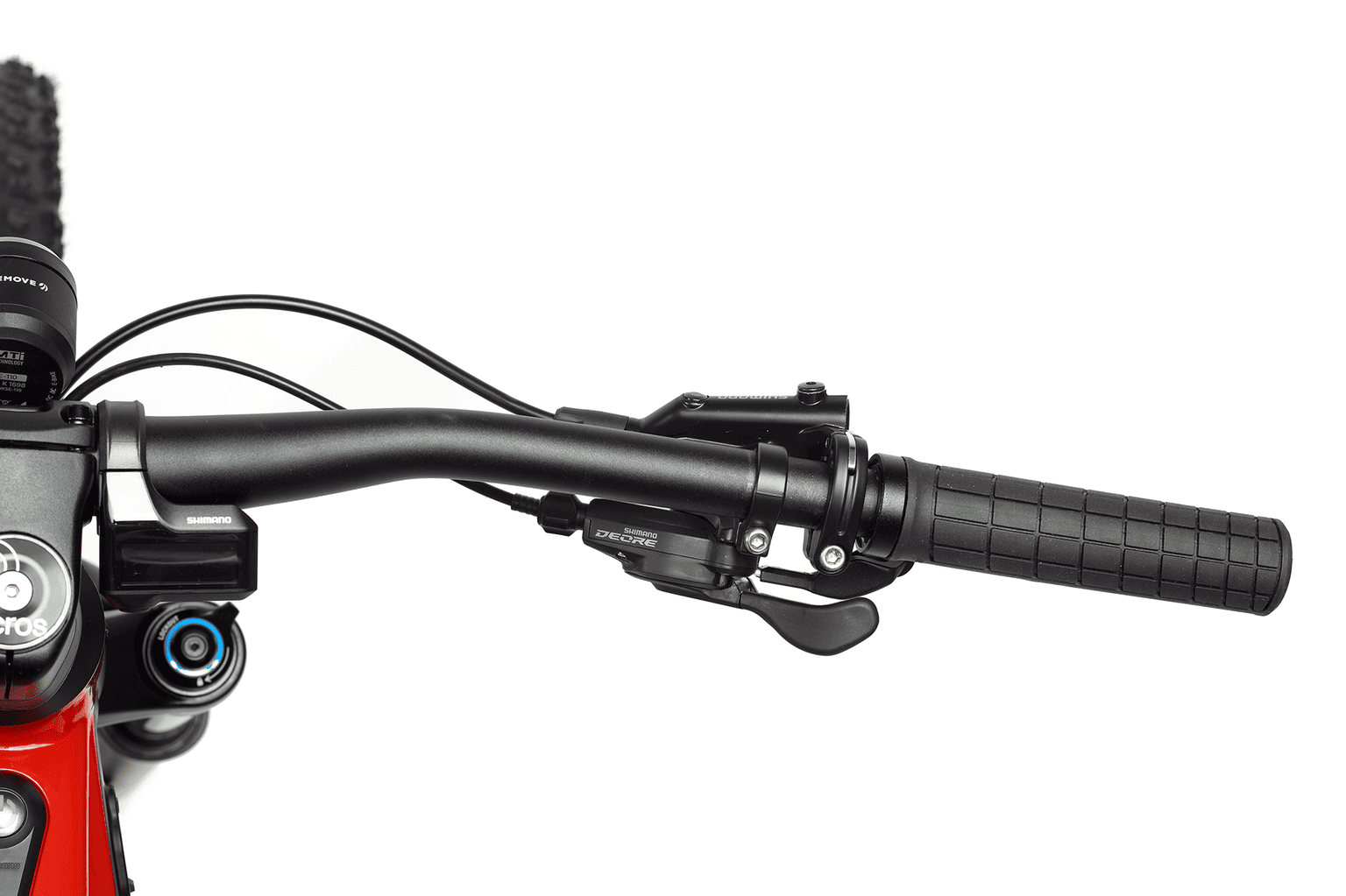

SHIFTERS
SHIMANO Deore 11S
CHAINRING
MIRANDA ChainFlow 3D BCD104 36T
CRANK
SHIMANO FC-EM600 165
CHAIN
KMC e11 Turbo e-bike series
CHAINGUARD
Yes - GW
SAFETY & ACESSORIES
FRONT LIGHT
LITEMOVE SE-110 with reflector 110 Lux

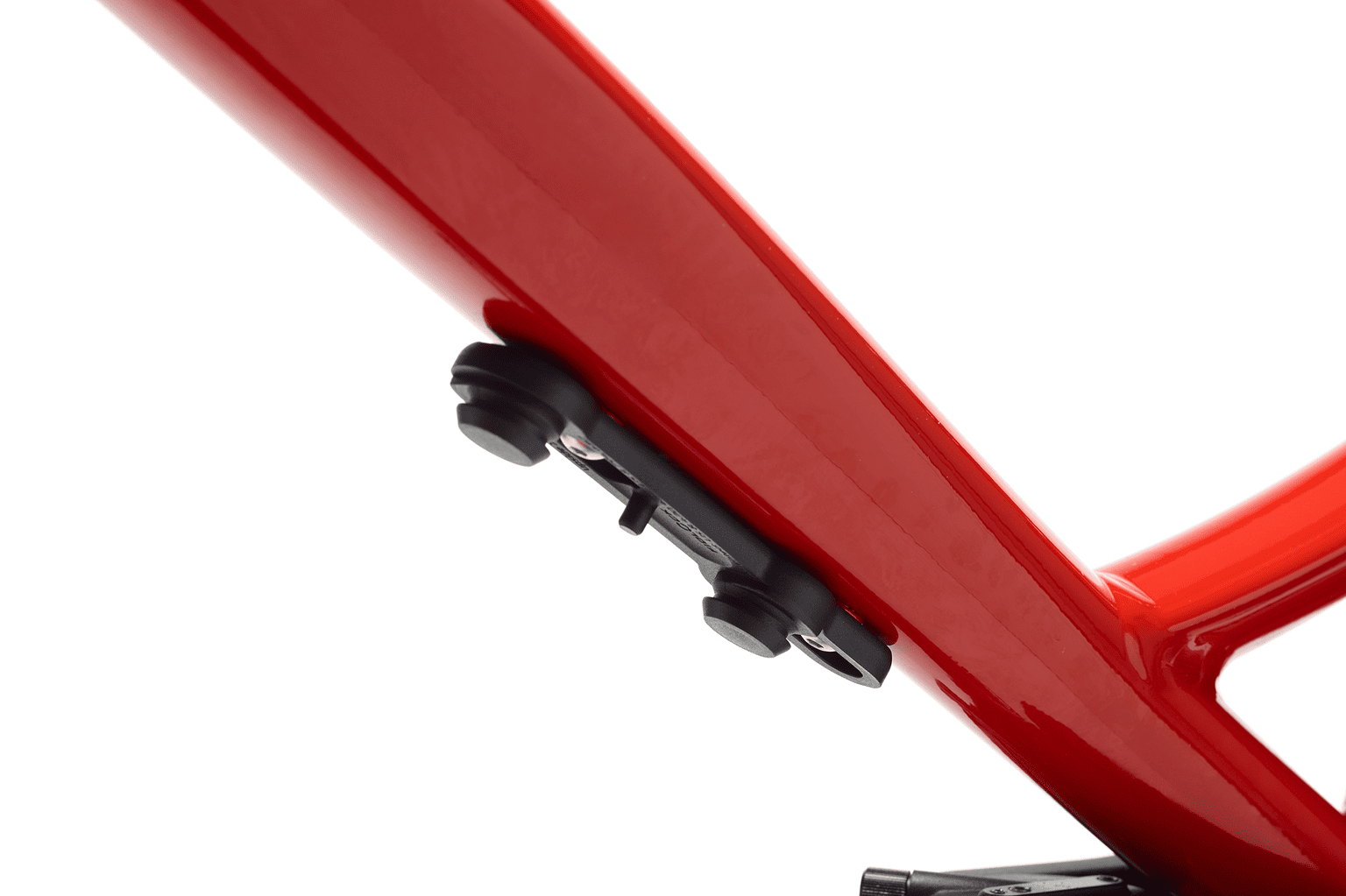

BOTTLE CAGE
FIDLOCK Twist

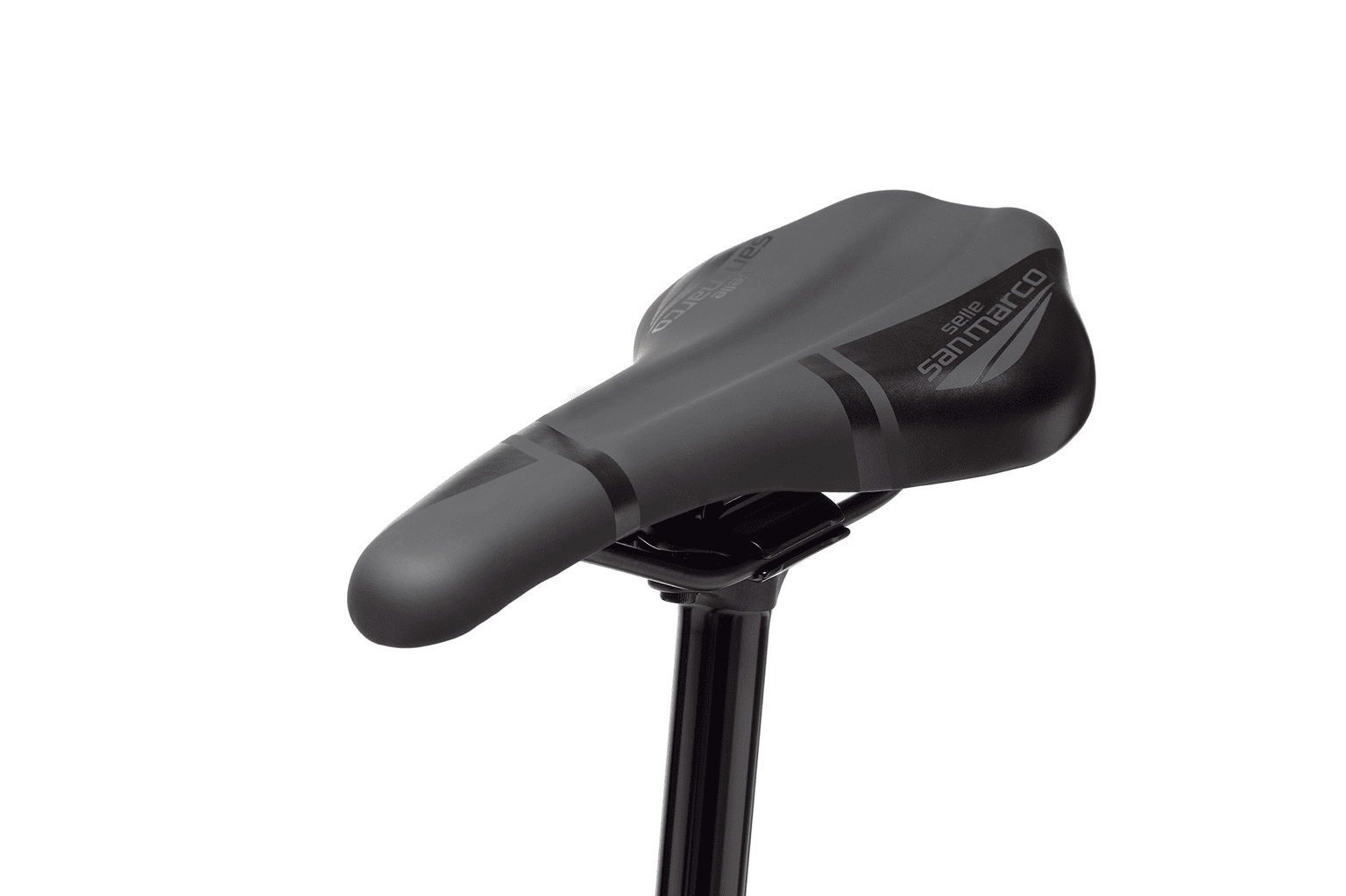

SADDLE
SELLE SAN MARCO GND
SEAT POST
KindShock Dropper Post Lev Integra Travel 150mm
SEAT CLAMP
Alloy black with screw
PEDALS
MARWI SP-400 Flat with reflectors
M850 Wild Full Suspension
Experience the thrill of riding M850, where adventure and excitement await at every turn!
