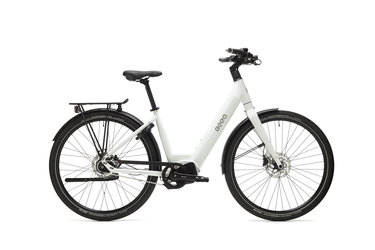

E850 Urban Motion
RANGE
Experience the convenience of traveling up to 100 km on a single battery charge with assisted riding, thanks to the efficient 504Wh 36V battery.
MOTOR
Enjoy the pleasure of cycling thanks to the powerful Shimano Steps E6100 motor with 60 Nm, delivering gradual and smooth pedal assistance.
HUB GEAR
Experience effortless gear shifting, without having to pedal—ideal for your daily commute in the city. It’s easy, practical, intuitive.
In the City Essentials
Technical details
PRODUCT INFORMATION
FRAME SIZES
S/M (46cm) - L/XL (54cm)
WEIGHT
Approx. 26,5kg
MAXIMUM BIKE & RIDER WEIGHT
145kg
PAINTING
Powder Painting Scratch Resistant with Matte or Glossy Varnish
COLOUR(s)
White Star with glossy varnish | Happy Blue with matte finish | Black Suit with matte finish | Desert Sand with matte finish
FRAME
FRAME
Aluminium Low Step
FORK
Rigid Alloy 28"
HEADSET
ACROS AZX-581 1.5" SHIS With Blocklock 150º Integrated Cables
E-BIKE SYSTEM
DRIVE UNIT
SHIMANO Steps E6100 60Nm
BATTERY
504Wh 36V - Integrated on Downtube - Removable
RANGE
40km to 100km
BATTERY LOCK KEY
Yes
CHARGER
2A - 7 hours total charge time
DISPLAY
SHIMANO SC-E6100
COCKPIT
HANDLEBAR
AL 660mm / 31.8mm (Curved)
STEM
AL 90mm - adjustable 0-90º - with integrated cables
GRIPS
ERGON GP1
WHEELSET
TYRES
CONTINENTAL Contact Urban 28''x2,2''
WHEEL SIZE
28''
RIMS
Alloy Double Wall 25mm
SPOKES
Black Stainless Steel
FRONT HUB
SHIMANO HB-MT400 100 Thru-axle 15mm
REAR HUB
SHIMANO Nexus SG-C6001-8D
DRIVETRAIN & BRAKES
BRAKES
SHIMANO Hydraulic MT200
BRAKE ROTOR - Front
SHIMANO SM-RT10 180mm
BRAKE ROTOR - Rear
SHIMANO SM-RT10 180mm
SHIFTERS
SHIMANO Nexus 8
CHAINRING
SHIMANO SM-CRE61 38T
CRANK
SHIMANO FC-E6100 175mm
CHAIN
SHIMANO CN-NX10
CHAINGUARD
Yes - HEBIE
SAFETY & ACESSORIES
RACK
ATRANVELO Tour AVS (max.: 25Kg)
FRONT LIGHT
SPANNINGA Axendo 40 with reflector
REAR LIGHT
PICCADILLY with reflector
KICKSTAND
ATRANVELO Dux
MUDGUARD
SKS
BELL
Yes
BOTTLE CAGE
Not included. Sold separately.
SADDLE
SELLE ROYAL Rio Gel
SEAT POST
AL Black 300mm 31,6mm/15mm
SEAT CLAMP
Alloy black with quick release
PEDALS
UNION SP-827 Flat with reflectors
FRAMELOCK
AXA Block XXL
E850 Urban Motion
Effortlessly gliding through the bustling streets with E850 Urban Motion!
